Suntec cnc 5 axis cnc machine updated proble

Writer： admin Time：2020-08-03 15:05 Browse：℃

SUNTECCNC 5 AXIS CNC CENTER UPDATED RENISHAW WORKPIECE MEASUREMENT FOR HIGH PRECISION

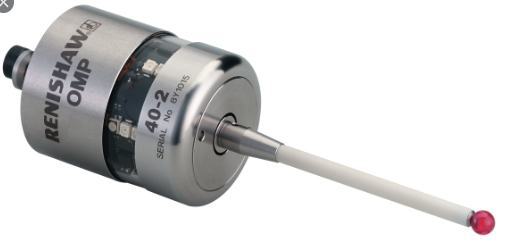

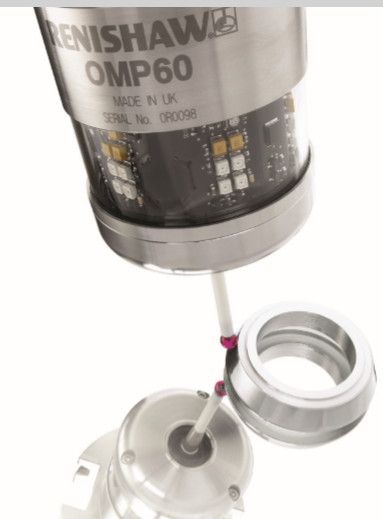

The compact OMP40-2/OR OPM60 for CNC machining centres reduces set up times

Critical part dimensions are measured and offsets updated to reduce scrap

The controlled process with easy to use software can run unmanned maximising the potential for productivity gains

Features

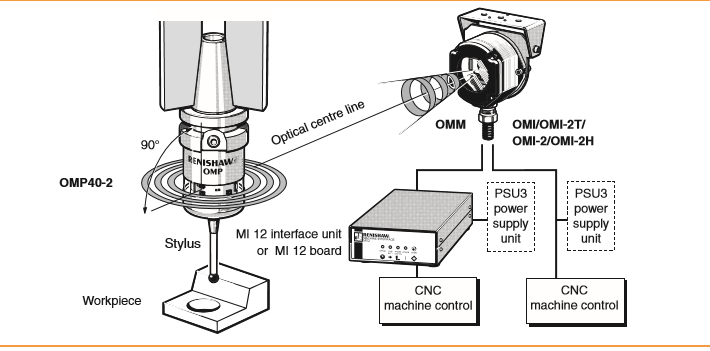

• Signal transmission The OMP40-2 transmits through 360°, at an angle of 90° to the spindle axis, with a range of up to 5 m (16.4 ft).

• Modulated transmission Now upgraded to include modulated transmission for increased resistance to light interference.

• Probe repeatability  Repeatability of 1.0 µm 2σ (0.00004 in 2σ) is certified at 480 mm/min (1.57 ft/min) with 50 mm stylus.

• Probe switch-on Probe switch-on is by machine input.

• Probe switch-off Probe switch-off is user configurable between machine input and time off.

• Battery life

A standard battery life of 140 hours continuous use, or the equivalent of over 85 days at 5 % usage is achievable. Battery life is increased when low power mode is selected.

• Probe sealing Sealed to IPX8 and designed for the machine tool environment.

• Twin probing      A probe can be designated either as Probe 1 or Probe 2 for use in twin probe systems.

• Visible probe diagnostic LEDs Providesseated/triggered and low battery information.

• Optical receivers

 Compatible with OMI and OMM (Legacy transmission) and OMI-2T/OMI-2/OMI-2H (Modulated transmission).

• Software for probe routines       The OMP40-2 is suitable for use with Renishaw single and double touch probing cycles.

Sunteccnc professional for cnc milling center 5 axis cnc , 4 axis 180 swing ,ATC cnc , 3d carving cnc machine ,fiber laser cutting machine  laser cutting machine etc more customized cnc according customers requirements . more information pls contact http://www.sunteccnc.com  whatsapp 8615966606596
