SUNTEC 4 axis ST2030 180 degree rotary for basin 3d mould making delivery Lativia

Writer： admin Time：2020-09-22 14:26 Browse：℃

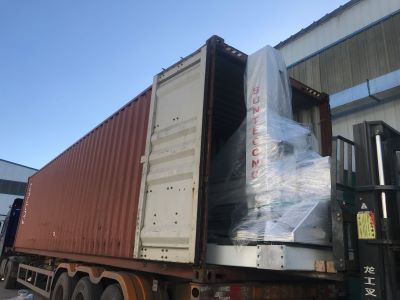

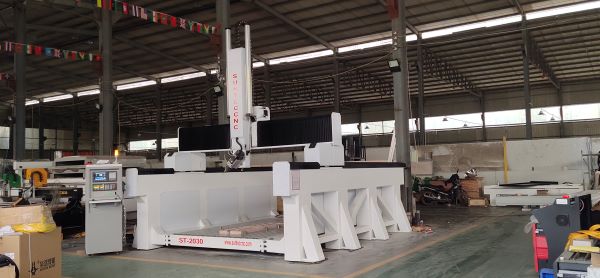

SUNTEC 4 axis ST2030 180 degree rotary for basin 3d mould making delivery lativia

working 2000*3000*1500mmm

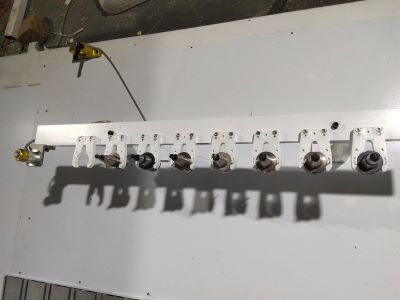

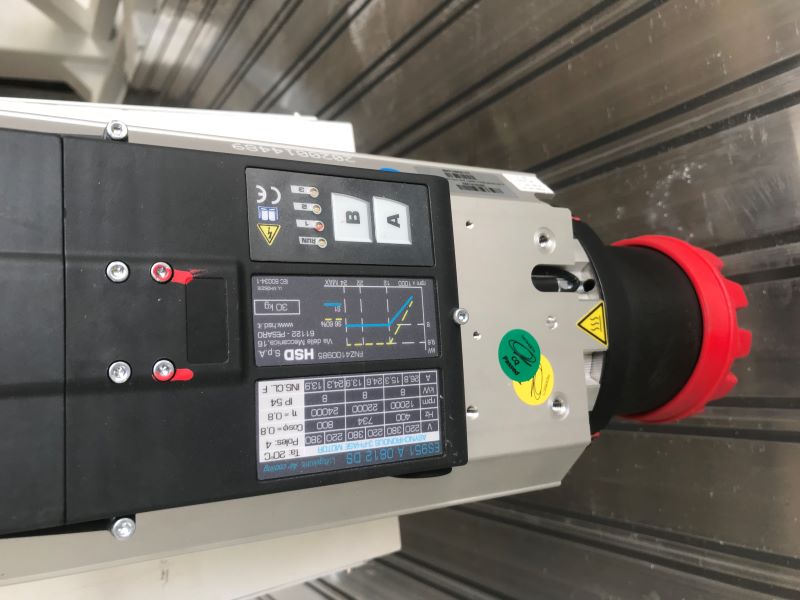

1. 9kw italy hsd spindle automatic tool change 8 piece . The spindle is passed test of IP65 water proof and dust proof.Ceramic bearing is thermostable. Max. speed is 24000RPM，heavy duty cutting is available for high precision and bearing abrasion. Inside and outside air cooling system prolong spindle’s life

spindle rotary 180 degree

2. japan yaskawa driver and motor , high powerful high speed, high precision. Motor’s max. torque can reach 350% which may shorten speed up and slow down time. The servo motor can response instantly. High resolution makes high Precision position and high precision procession

3. Germany 2M slant herion gear

The precision is less than 0.02mm Tooth face is heat treated with features of high efficiency transmission, Bearing high torque, low noise. Precision grinding grade helical gears, transmission backlash is small, with a special surface heat treatment, wear long life .

4. Taiwan square guide 30

Precision N class liner guide way with precision less then 0.02mm The liner guide way has middle preloading design，features of high precision and stability may prolong liner guide way. (HIWIN, Taiwan) liner guide way's special dust prove worst environment.

5.japan shimpo reducer

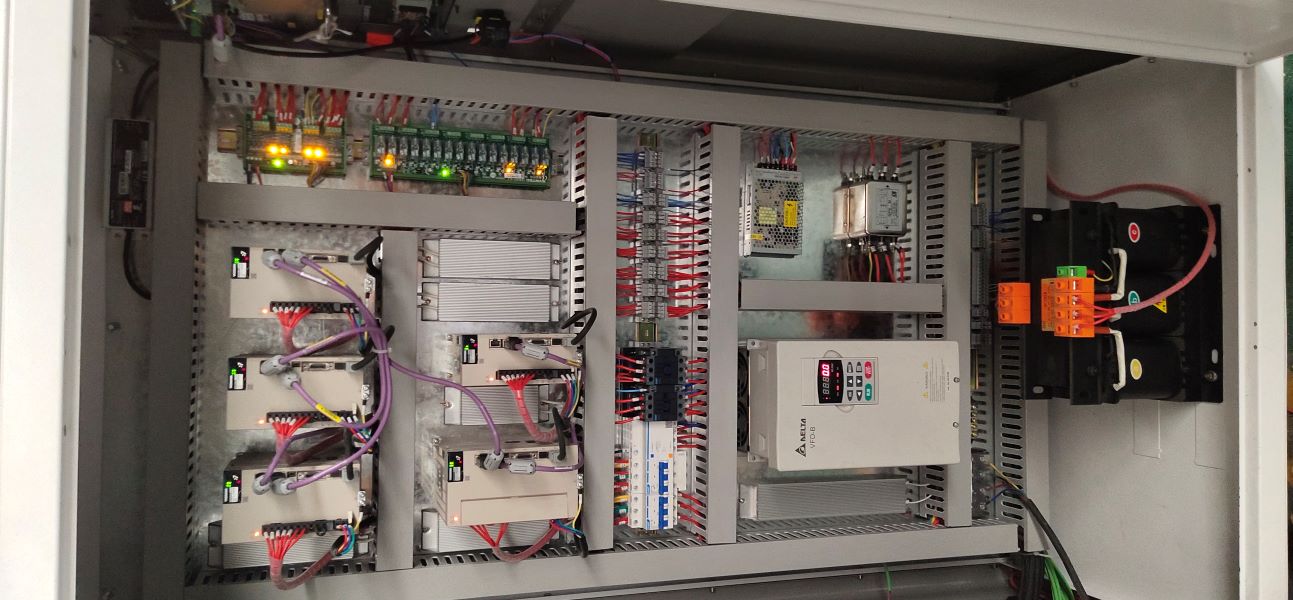

6. syntec control with handwheel .

7. heavy duty structure table with heat treatment

Ruggedly constructed machine structure. Material is Stress relieved and annealed for deformation free, thus always keep machine accurate.

Machine base is produced by CNC machine, and machine base’s five sides are produced at one same procession to make sure the machine body geometry tolerance is standard.
