SUNTEC CUSTOMIZED SIZE CCD OSCILLATING KNIFE CUTTER FOR FABRIC CORRUGATED PAPER CUTTING FOR SPAIN

Writer： admin Time：2021-02-05 17:36 Browse：℃

SUNTEC CUSTOMIZED SIZE CCD OSCILLATING KNIFE CUTTER FOR FABRIC CORRUGATED PAPER CUTTING FOR SPAIN

WORKING 2500*3200MM

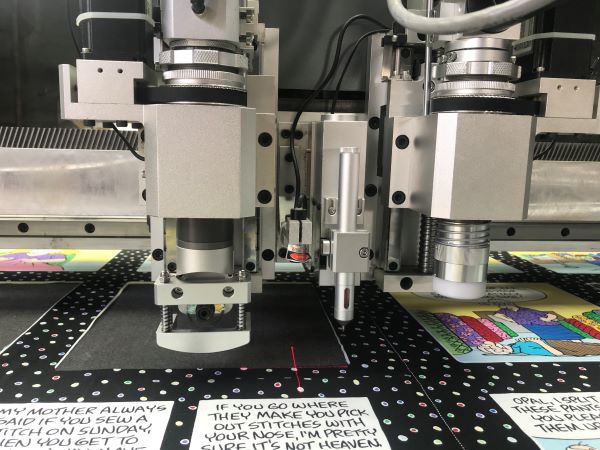

OSCIALLTING HEAD : OSCIALLTING CUTTER HEAD , PRESS WHEEL HEAD , ROUND CUTTER HEAD ,V CUTTER HEAD

DRIVER : TAIWAN DELTA DRIVER AND MOTOR

CONTROL :RUIDA CONTROL

CARMERA ：TWO CCD CAMERA SCAN COUNTOUR OR MOLD CUTTING FOR FABRIC CUTTING

 ROLL FABRIC : AUTOMATIC FEEDING DEVICE

THIS MACHINE CAN NOT ONLY FOR FABRIC ,CORRUGATED PAPER ,KT BOARD , CARBON FIBER GLASS ETC DIFFERENT MATERIAL CAN USE DIFFERENT HEAD CUTTERS .

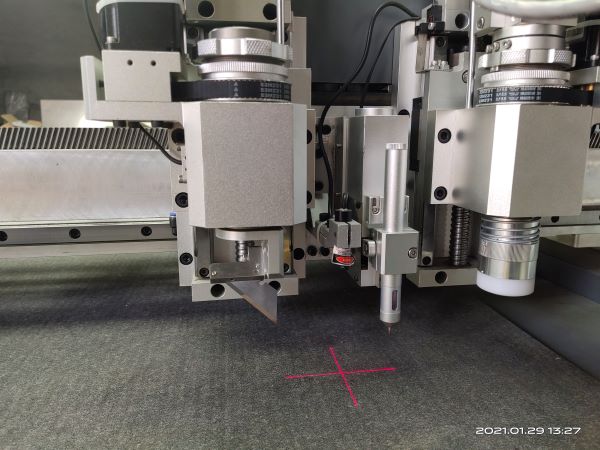

1. MARK PEN , WHICH CAN REALIZE THE FUNCTION OF MARKING,SUITABLE FOR LEATHER, FABRIC AND OTHER MATERIAL FOR RECORD . FOR THE FABRIC IT CAN CALLBRATION TO DRAWING CROSS LINES .

2. OSCILLATING KNIFE CUTTER :WHICH IS FOR MIDDLE HENDISTY MATERIALS WITH A WIDE VARIETY OF BLADES FOR LEATHER ,CARPET , CARBON FIBER CATONS ETC.

3. PRESS WHEEL :WHICH CAN PRESSWHEEL FOR THE EDGE OF CORRUGATED PAPER TO MAKE BOX .




ROUND CUTTER :IT USE CIRCLE BLADE TO CUT SOFT MATERIAL AND OTHER WOVEN MATERIALS

V CUTTERS :IT CAN CUT ANGLE 0 15 22.5 30 45 DEGREE TO ACOUSTICAL BOARD ,SOFT PVC ,HONEY COMB THICKNESS CORRUGATED PAPER ,INSULATION BOARD ETC

TAIDA DRIVER AND MOTOR HIGH POWERFUL FOR SPEED

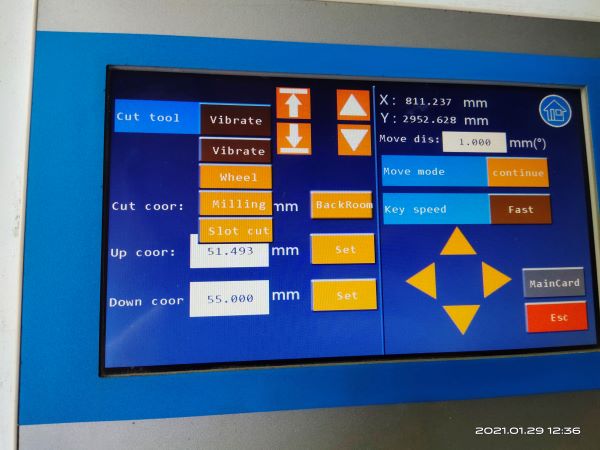

RUIDA CONTROL MANY LANUGAGE TO CHOOSE EASILY OPERATE .

TWO CCD SCAN THE COUTOUR TO CUT ALONG THE EDGE

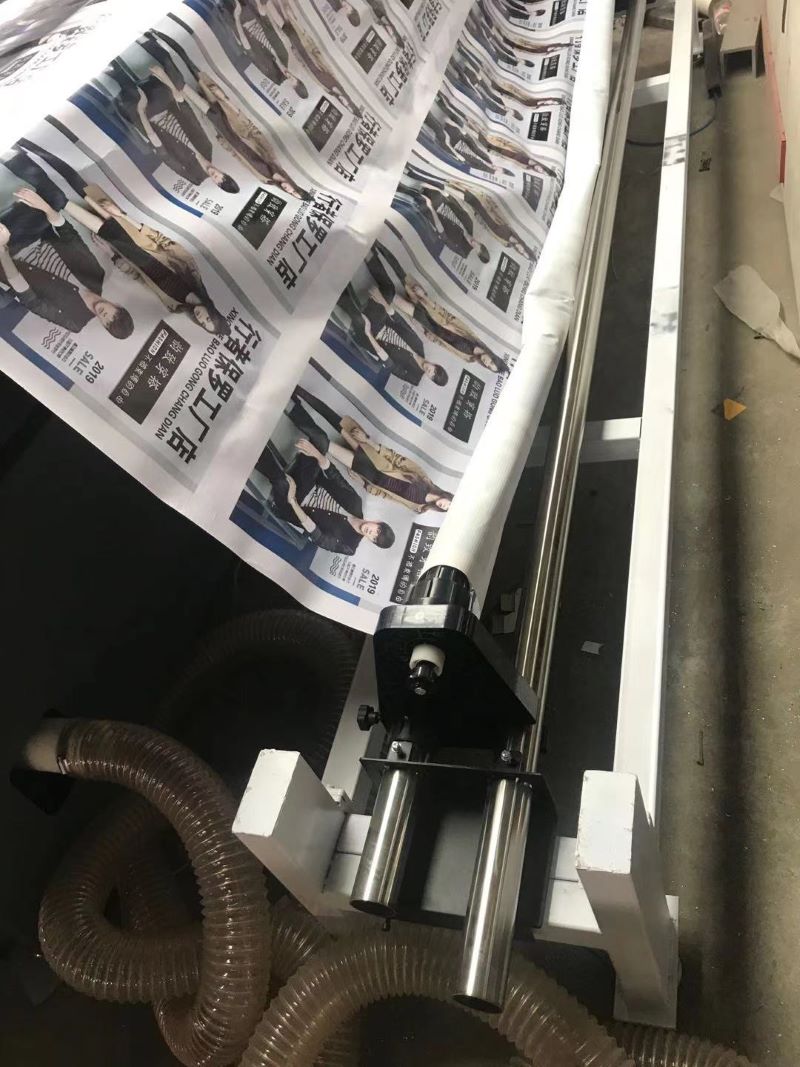

AUTOMATIC FEEDING DEIVCE TO AUTOMATICLLY FEEDING FABRIC TO IMPROVE WORKING EFFIENCY
