HOW TO PRODUCE OUR CNC -SUNTEC CNC PRODUCTION PROGRESS

we according your working size max size and min size and all working wood size to make drawing ,

according this to divide vacuum zone , some customer like add vacuum cups to side milling . so we suggest steel plate

it can used many many years no deformed , some factory introduce double pvc table , which we dont used it , as it hard platics  Thermal expansion and contraction many years it can no high precision and wood not accurate position .but steel not happen that situation .

our standard vacuum cups 48mm height . any size need customized. but delivery time need long .

all our structure table heat-treatmemt to reduce itself rigidity which can used many many years no deformed .

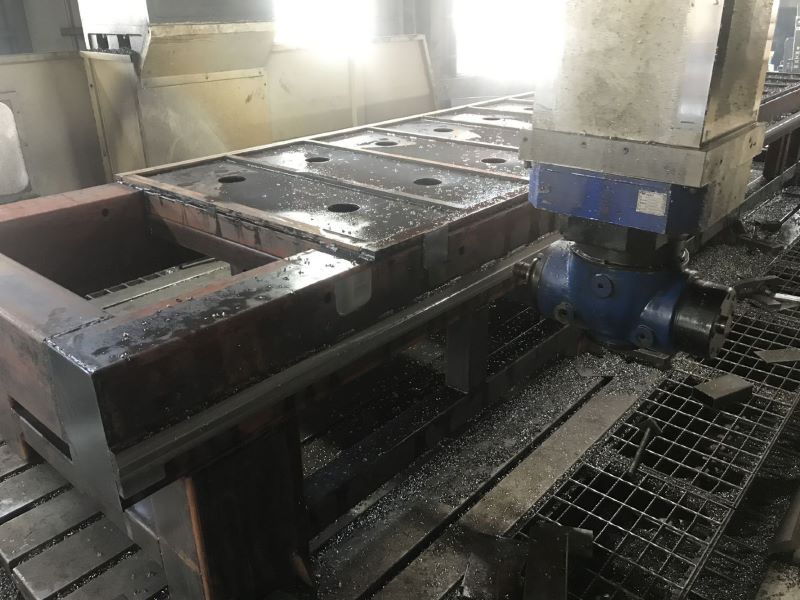

then used 5 sides milling center to milling and make square guide to make sure high precision .

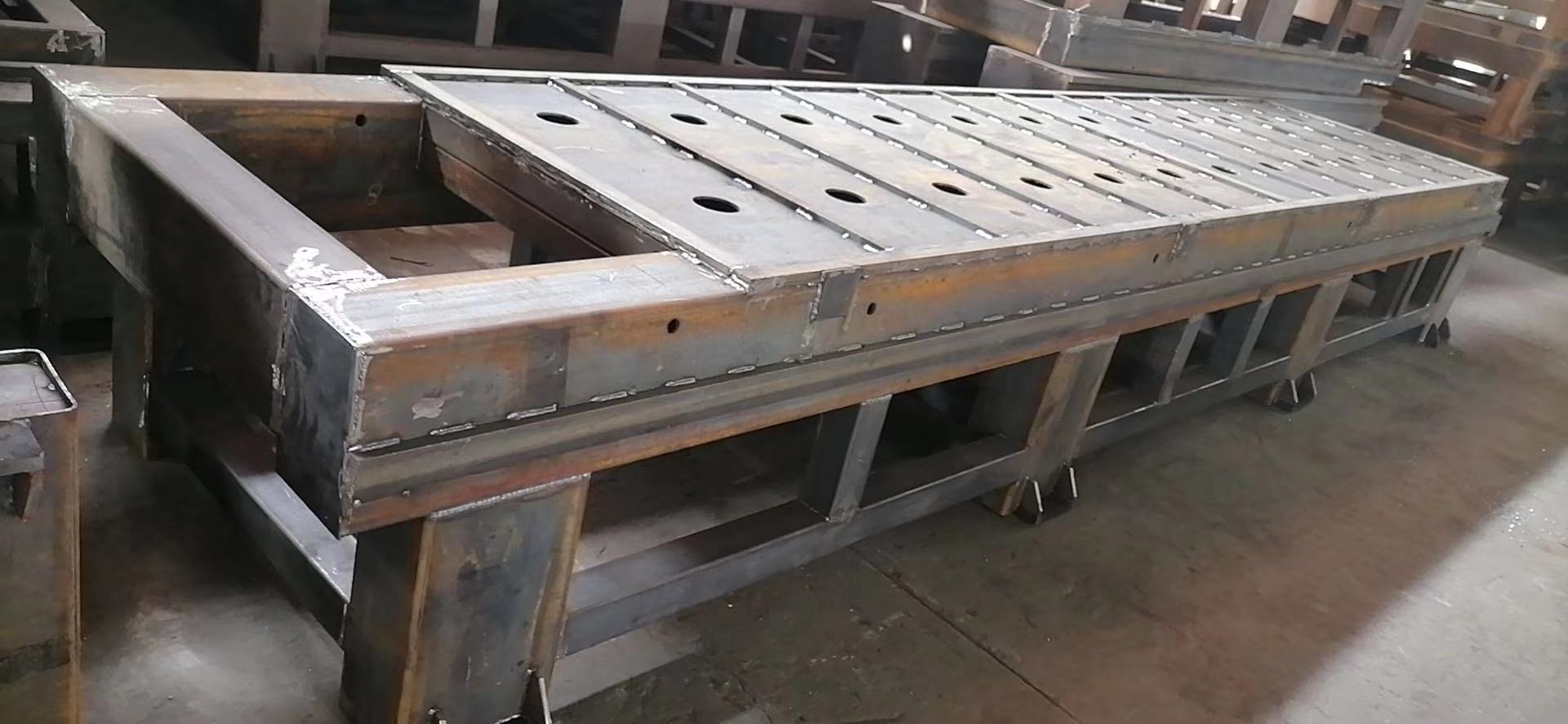

8mm thickness structure table which can visible

12mm thickness gantry to bear heavy duty spindle and boring head to make sure no vibration when working .

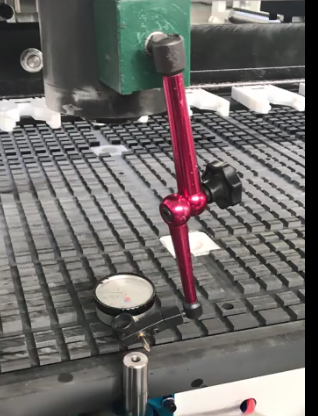

Vacuum table using high-density 30mm thickness PVC  material with great suction strength, comfortably accommodating all sizes of work piece.Pop up pins make right position for workpiece. we use it to test vertical for spindle

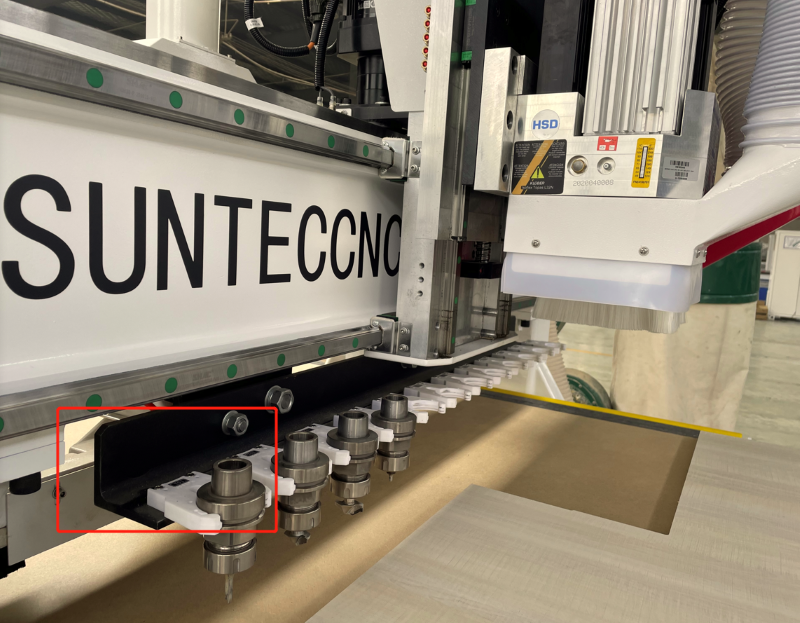

suntec ATC tools all used whole steel which no deformed many years .

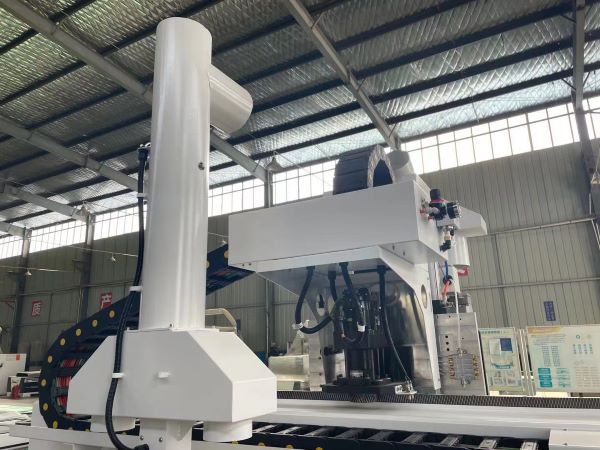

Suction tube it can wood very clean . our machine have two device for dust collect . another is automatic pusher

all our boring head add cylinder to make sure drillings down at same time to make sure precision .

Boring head 5+4 vertical and other 9V3h1s For optional

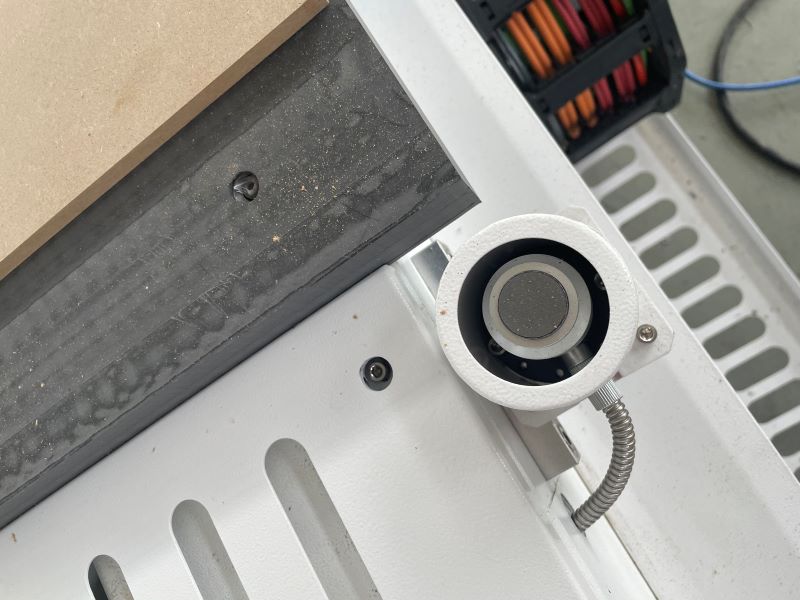

Tools sensor High accuracy, long service time,steady movement and good startingperformance.

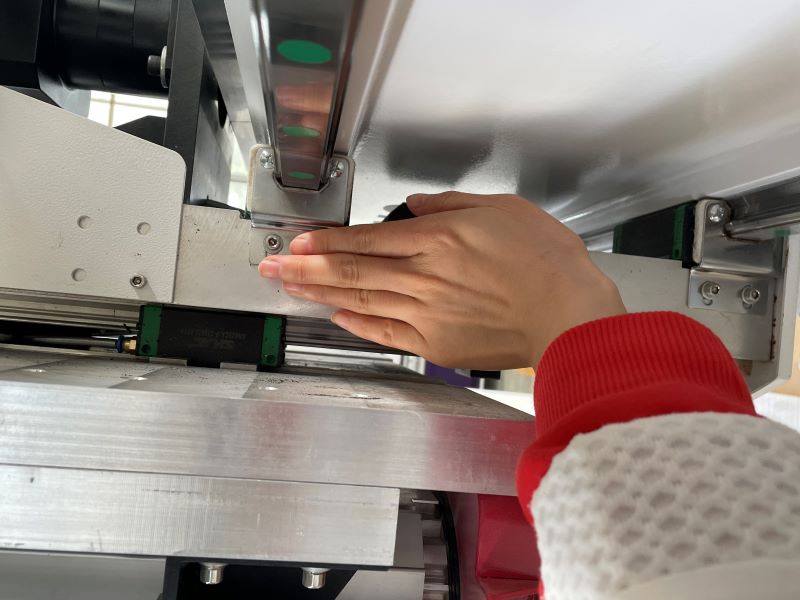

Dust cover for square guide to make sure square guide working in clean enviroment to make sure long life time

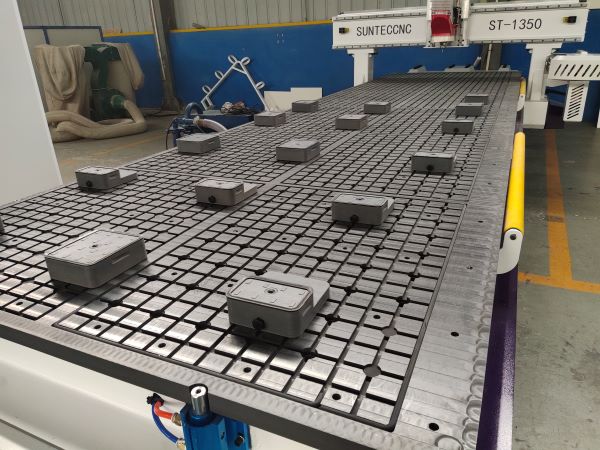

standard vacuum cups for optional

Taiwan airtac parts can make sure enough air for pressure

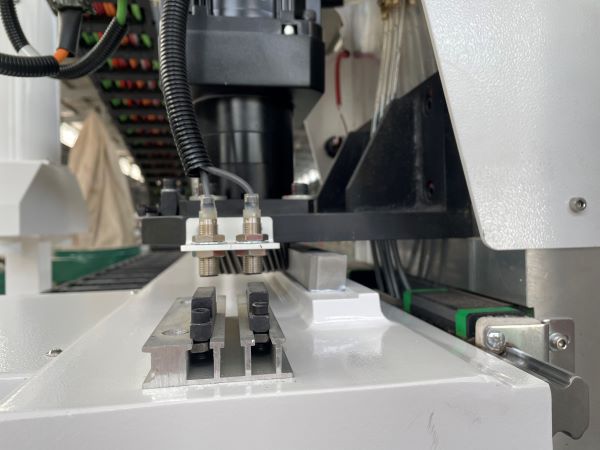

Hard limit with Delta electrical limit senstive and long life time

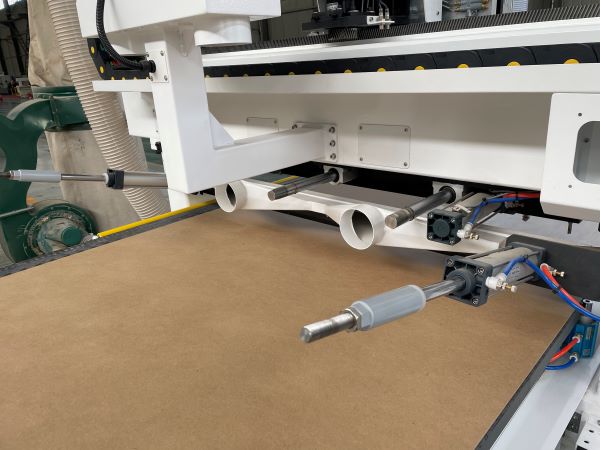

Automatic push device with second dust collect to make sure clean work

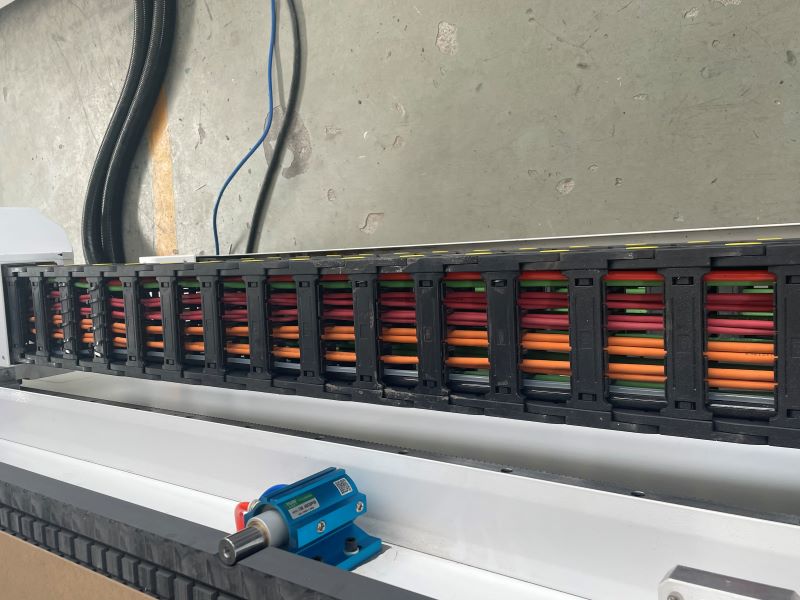

Germany PUR DRAGCHAIN cable resist high temperature .

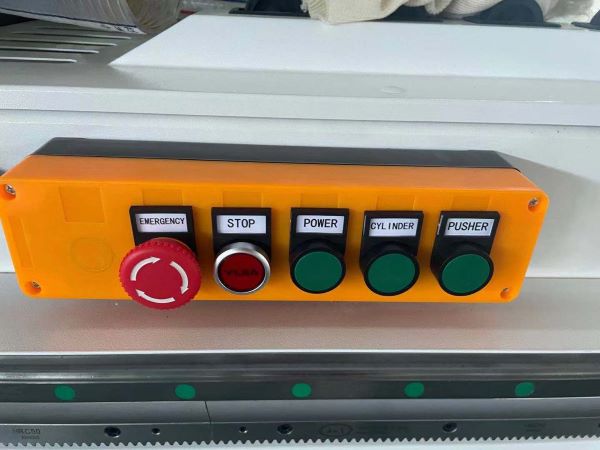

Back button easy to operate at beind of machine

very strongand hard  No 6161 Aluminum plate to bear the spindle parts no vibrating when working and no deformed long time .

japan yaskawa driver and motor  high speed, high precision. Motor’s max. torque can reach 350% which may shorten speed up and slow down time. The servo motor can response instantly. High resolution makes high Precision position and high precision procession.

Italy,HSD spindle , the features are high speed and low noise. The spindle is passed test of IP65 water proof and dust proof.Ceramic bearing is thermostable. Max. speed is 24000RPM,heavy duty cutting is available for high precision and bearing abrasion. Inside and outside air cooling system prolong spindle’s life.

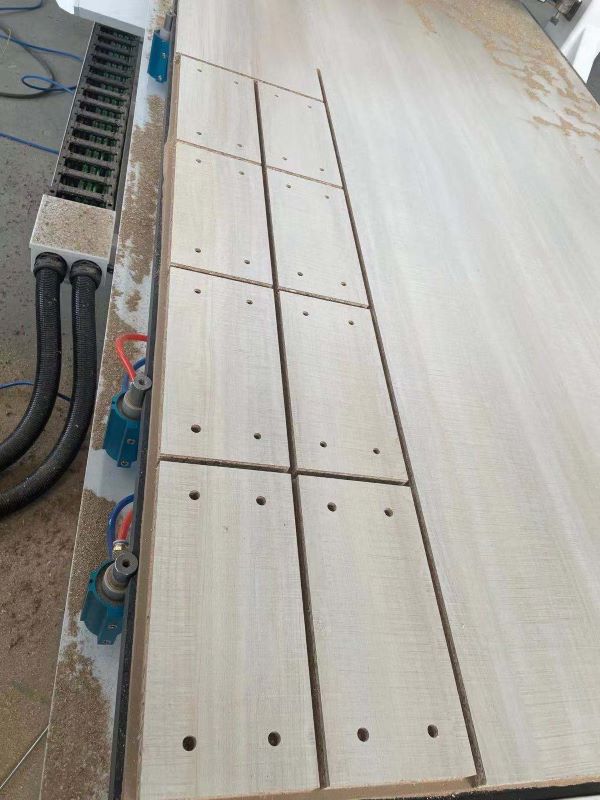

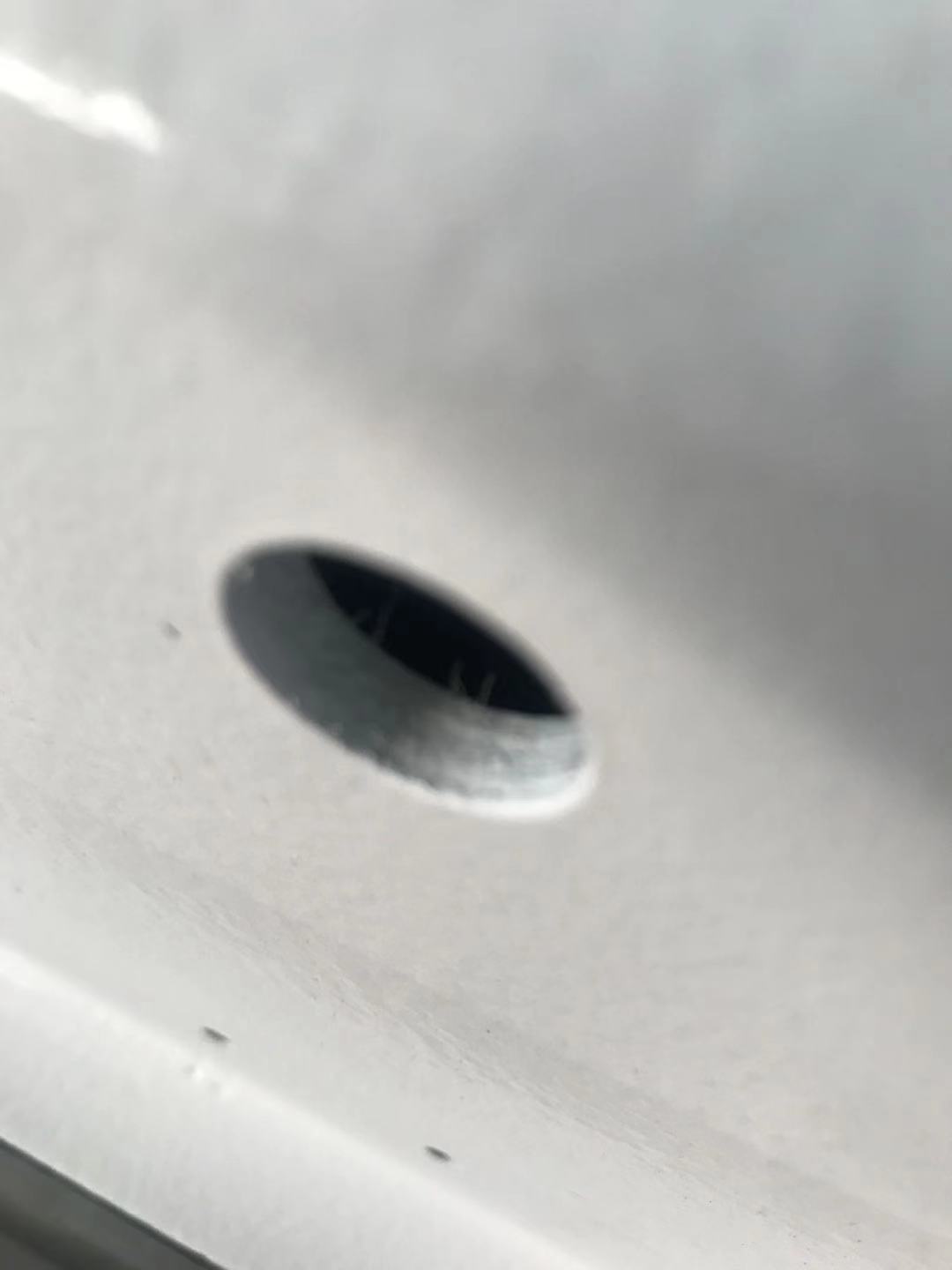

Test sample round hole and straight very high accrute board No edge collapse
