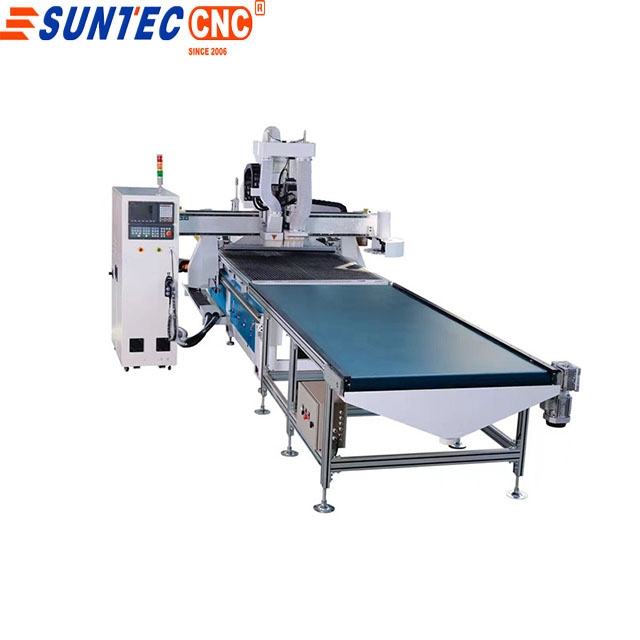

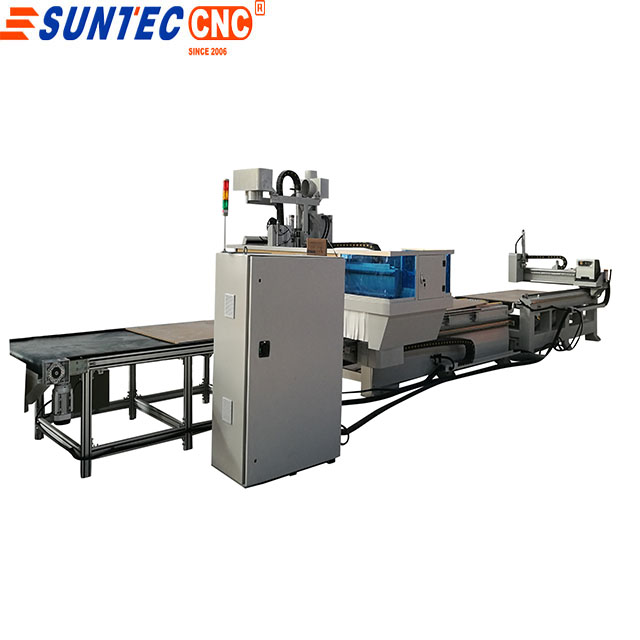

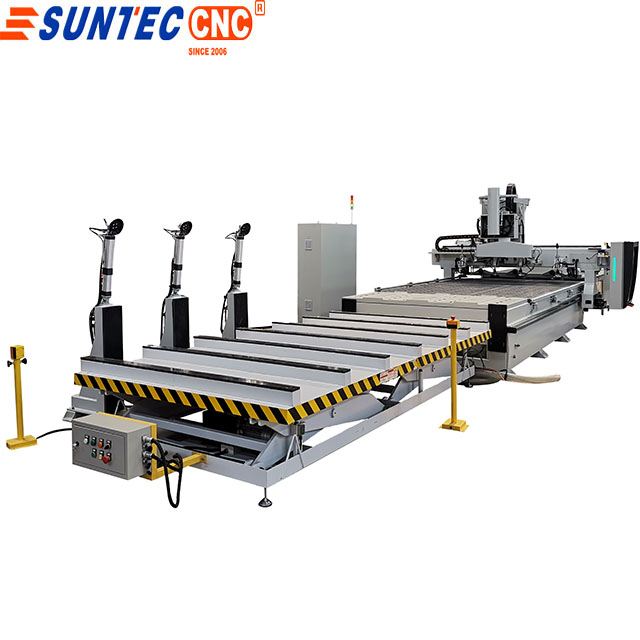

nesting automatic loading unloading ATC cnc router ST2040
working area 2000*4000mm
nesting automatic loading unloading cnc router . prepostion for optional , labelling for optional ,pre-position for optional
9kw HSD spindle disc atc 12 piece
HSD bank driling center 9V 4H 1S for optional .
TPA control ,syntec control for optional ,according your requirements
6.7.5kw backer vacuum pump
6 . Enrope cover with LED for optional
Description | Parameters |
Model | ST-2040 |
Working Area | 2000x4000x300mm |
Table Size | 2150x4440mm |
Machine structure | Welded Steel square tube |
Traveling Positioning Accuracy | ±0.03/300mm |
Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum table |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Max. Power Consumption (Without spindle) | 11KW |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 2500mm/min |
Spindle head | 9.0kw Italy HSD spindle, drill bank, atc magazine |
Spindle Speed | 0-24000RPM |
Drive Motors | Japan YASKAWA Servo motor |
Working Voltage | AC380V/50/60Hz,3PH |
Command Language | G code |
Operating System | Taiwan Syntec controller |
Computer Interface | USB |
Collet | ISO30 |
Software Compatibility | Type3 / Ucancam / Artcam |
Running Environment Temperature | 0°C~45°C |
Relative humidity | 30%~75% |
working sample
