what's different 4 axis cnc and 5 axis cnc router

4-axis CNC ROUTER

Building upon the constraints of the 3-axis method delineated earlier, gained prominence alongside 5-axis CNC machining. The 4-axis CNC machining process maintains the same operational principles but integrates an additional axis.

This supplementary axis introduces rotation along the X-axis, designated as the A-axis or B axis . While the spindle retains its three linear axes of movement (X-Y-Z), akin to 3-axis machining, the A-axis facilitates rotation of the workpiece. Various configurations exist for 4-axis machines, with the prevalent type being 'vertical machining,' where the spindle rotates about the Z-axis. The workpiece is affixed along the X-axis and can rotate alongside the fixture on the A-axis. With a single fixture setup, machining can be executed on four sides of the component.

This all video from customer workshop for hard wood mold making ,they use SUNTEC 4 axis cnc router nearly 10 years .

one day working 13 hours using italy hsd spindle PMI 45 with yaskawa driver 1300kw very powerful .and all structure table

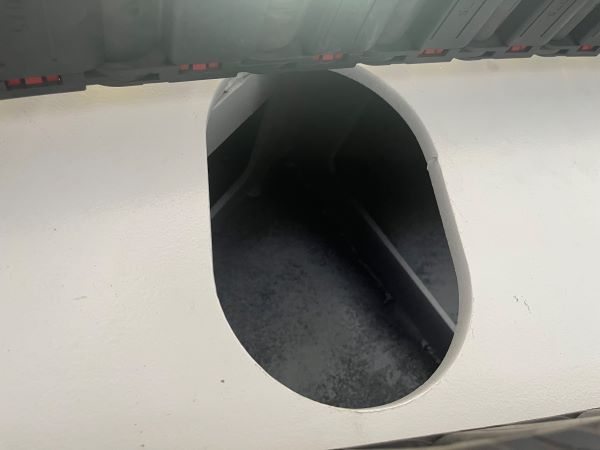

heat using large steel welded to make sure no vibrating when working .

inside have enforeced steel to strengthern it powerful balance the powerful .

but 4 axis cnc router spindle just right left 90 degree rotary just 180 degree no RCTP function just for two sides surface milling carving engraving cutting .

another two sides limit . but cost cheaper than 5 axis cnc router

5 axis cnc router center

There exist two primary classifications of 5-axis CNC machines: 3+2 machines and fully continuous 5-axis machines.

In 3+2 axis machining, two rotational axes function independently of each other. This allows for the workpiece to be rotated to various compound angles concerning the cutting tool for machining features. However, simultaneous rotation of both axes during machining is not feasible. Despite this limitation, 3+2 machining is adept at fabricating highly intricate 3D shapes.

On the other hand, fully continuous 5-axis machining enables simultaneous rotation of both rotational axes while machining, with the cutting tool moving linearly in XYZ coordinates. This method can manufacture exceedingly intricate 3D shapes, encompassing not only planar compound-angled features but also intricate curved surfaces. Consequently, it grants the capability to produce components typically reserved for molding processes.

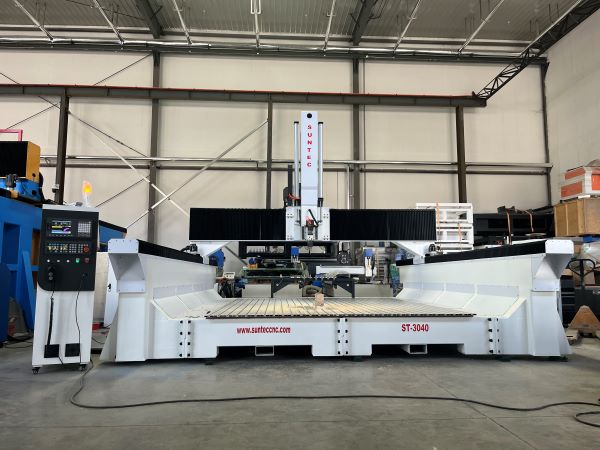

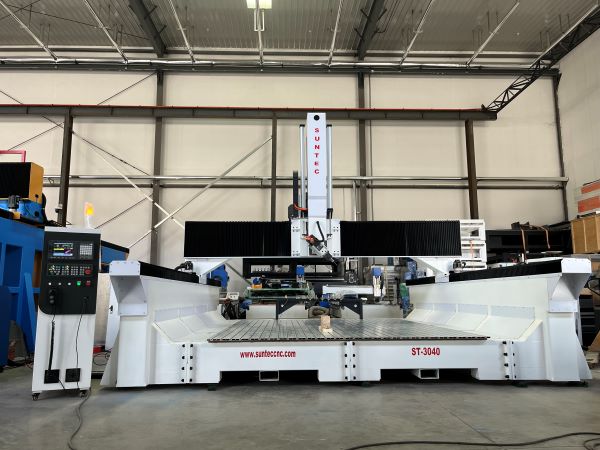

suntec 5 axis cnc router according your working size to have many types

gantry moved such as ST-2030/st-2040/st-3040/st-3050/st-301200 etc according your working size length width height

to choose ,and according working material to choose spindle type wood styrofoam eps combhoney fiberglass carbon material,yogi,non-metal etc

Table moved such as ST-1212/ST-1325/st-1530 etc for small size to choose .

Above all , 5 axis cnc router can 360 degree rotary A+_ 120 degree C axis +_245 degree it can mill cut carve engrave any sides shape according CAD software to make Nc file for 5 axis cnc router . which is famous and hot sale now . it also accordign your precision to choose . if you need high precision . structure details must strong enough , if not high precision so light one is ok . as normal suntec 5 axis cnc router precision within 0.1mm as test .especailly for milltary parts army parts must be high precision . for fiberglass carbon material and composite material etc . if boats ship yacht car normal 5 axis cnc router is enough so cost also cheaper .all according your working type to choose 4 axis and 5 axis cnc .
