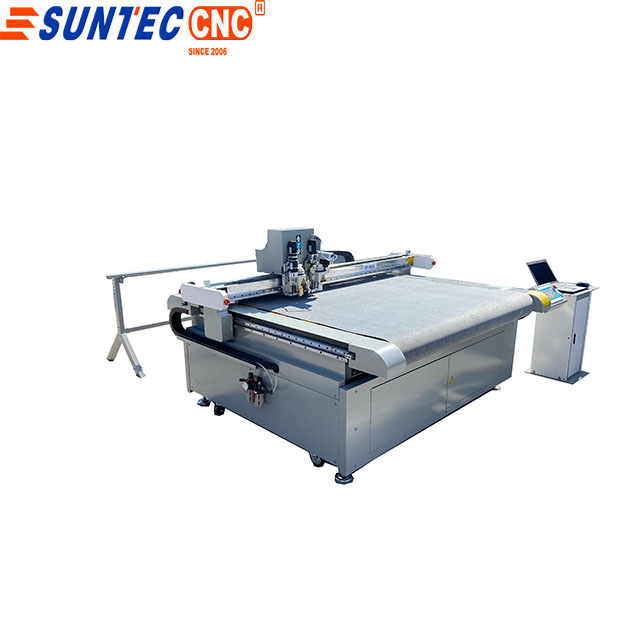

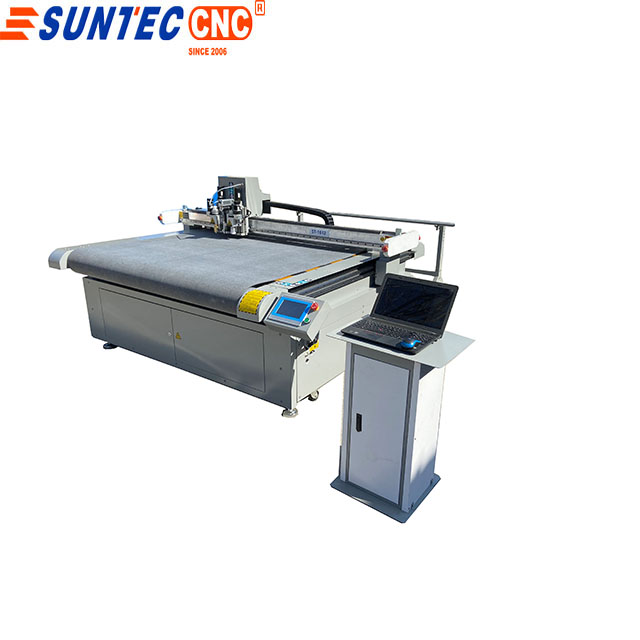

Customized SUNTEC ST-1612 oscillating knife cutter for corrugated paper cutting

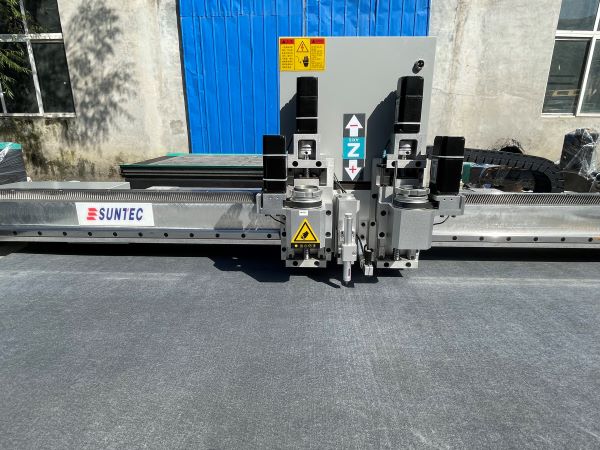

Multi-functional Cutting Head

Replaceable oscillating knife, half knife, full knife, oblique knife and creasing wheel etc.

Tools configuration

Various cutting tools, creasing wheels, pen, cross positioning laser

Safety

High sensitivity infrared induction (optional)

Moving Speed

Max. 1200mm/s

Cutting Speed

Max. 800mm/s(please set the speed according to the material)

Material Applicable

Corrugated paper,non woven fabric ,  PVC expansion sheet, KT board, foam board, grey paperboard, cardboard, vehicle sticker, adhesive sticker etc.

Cutting Depth

Max 50mm (depends on the material)

Material Fixing Method

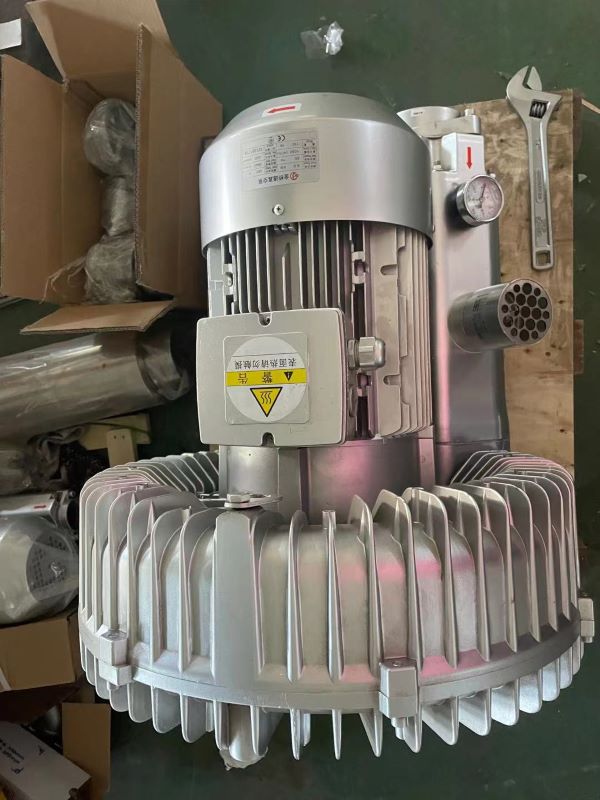

Strong power vacuum absorption and intelligence Partition

Resetting Positioning Accuracy

Max 0.01mm

Mechanical Precision

Max 0.02mm

Drive System

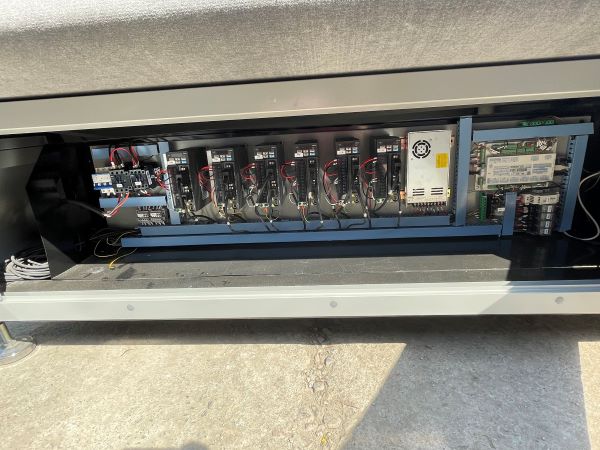

Steel Simultaneous Belt, AC Panasonic servo motor. Linear guide rail

Control System

Jinan suntec control systerm

Display

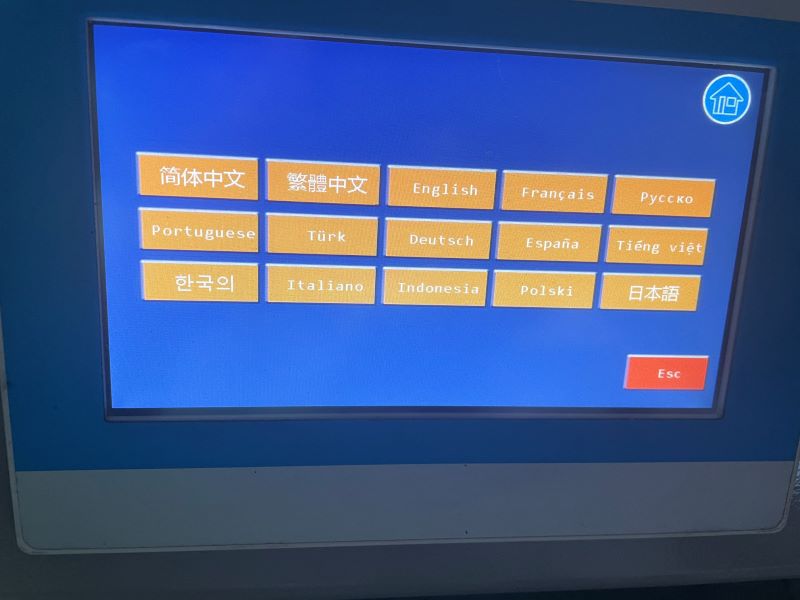

English LCD touch screen

Data Transmission

Ethernet

Command

HP-GL compatible format

Buffering Capacity

Standard--4GB

Rated Power

11KW

12KW

14KW

Max Working Size

1600*1200

2500*1600

3050*2050

Rated voltage

380V

Body dimension

2241*2152*1235mm

3391*2723*1235mm

3891*3173*1235mm

We reserve the final explanation for the above parameters and able to make any alternations without notice
