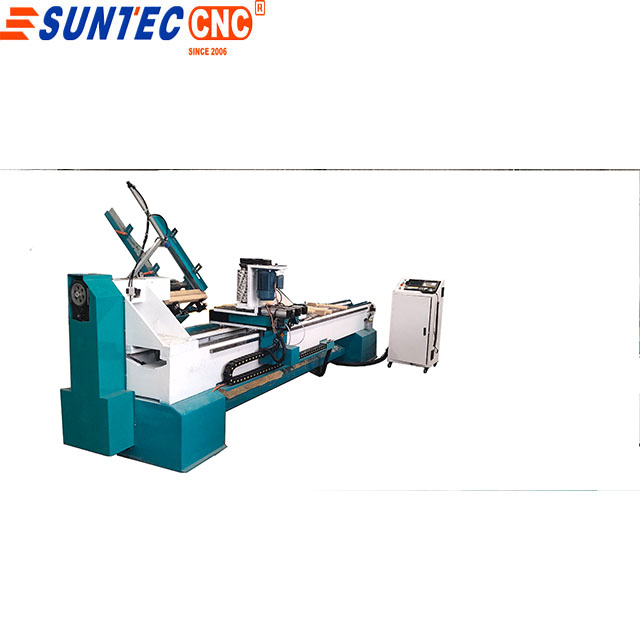

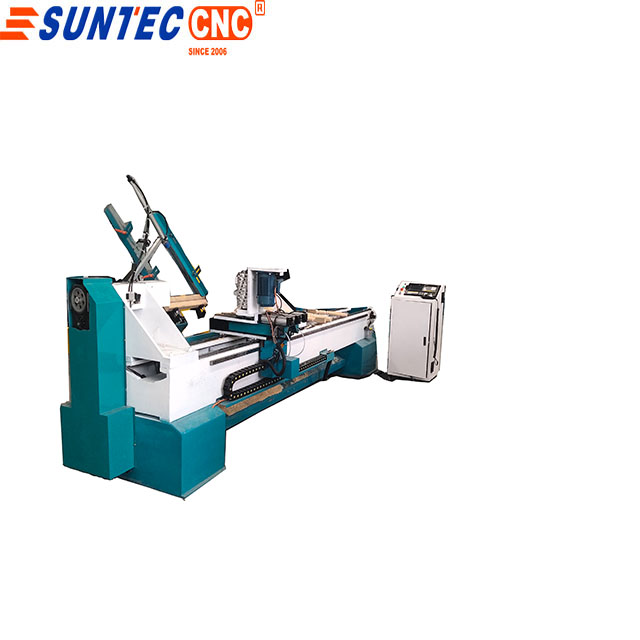

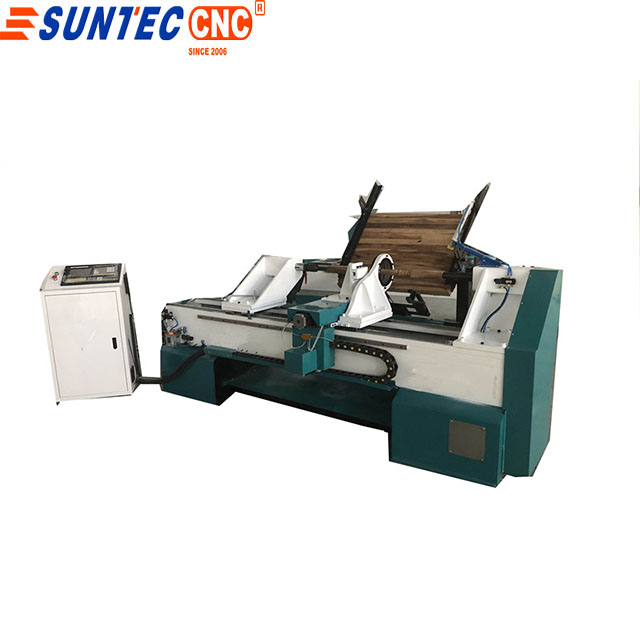

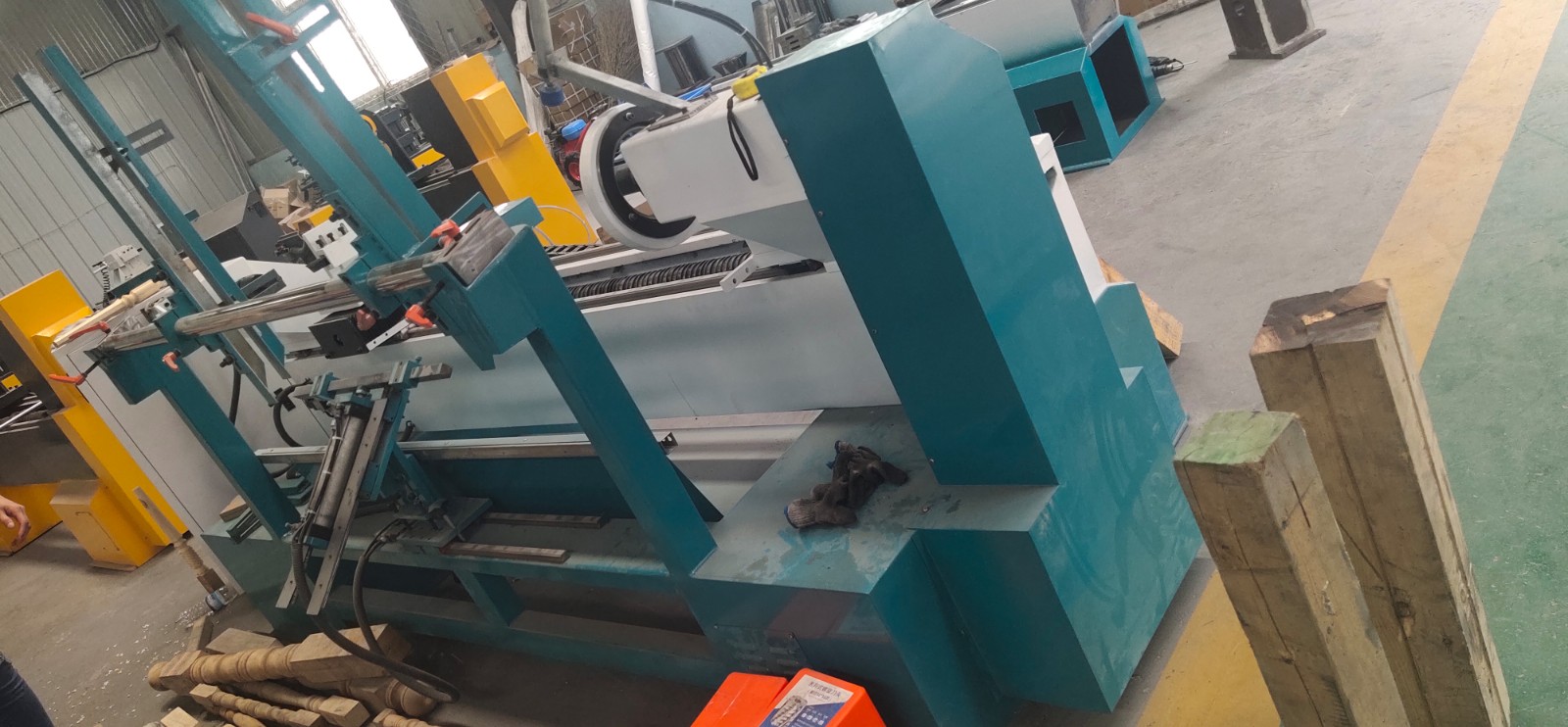

automatic bundle feeding columns baluster making cnc wood turning lathe
heavy duty structure table weight 7t which can turn wood no vibrating
automatic feeding device which can saving labors to feeding wood material

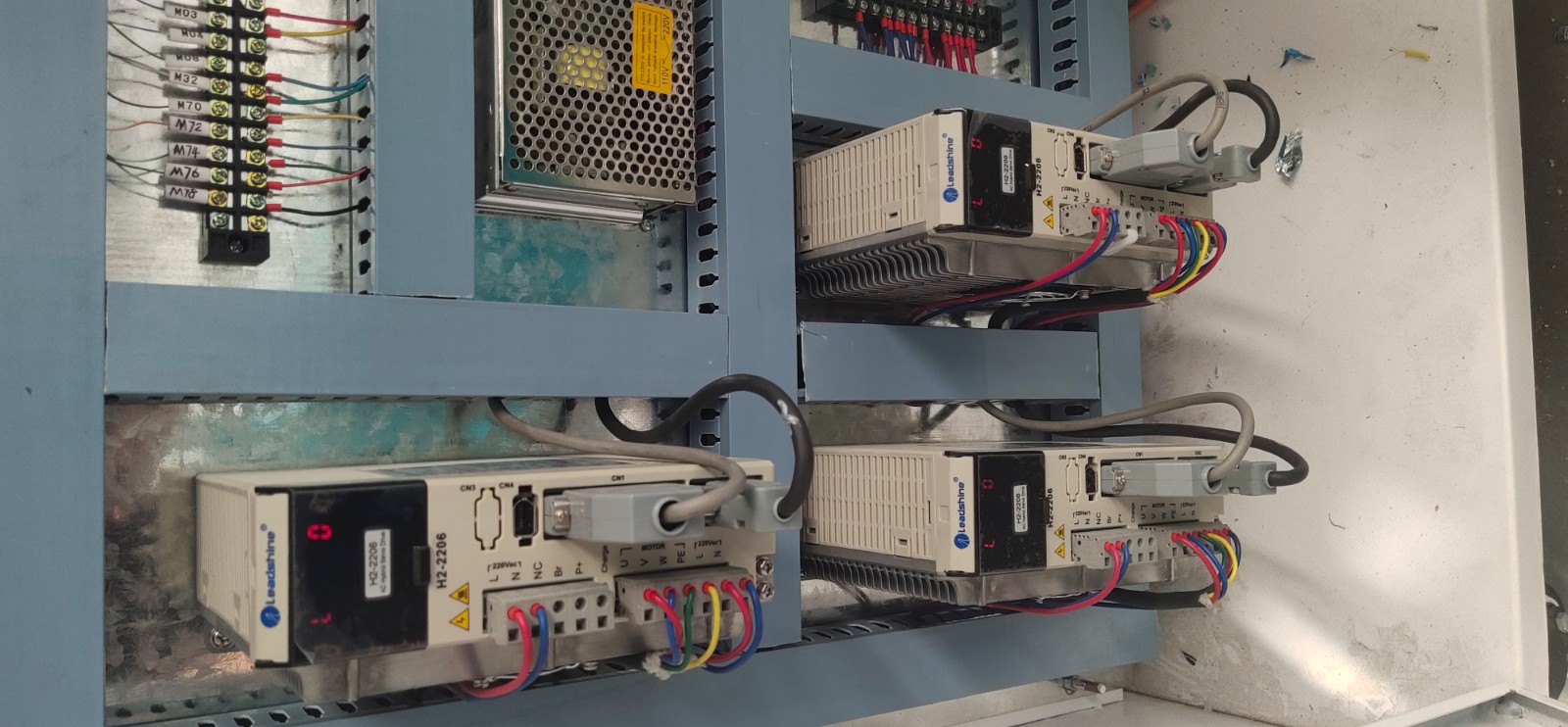

Big stepper driver and motor ,which is powerful and low noise

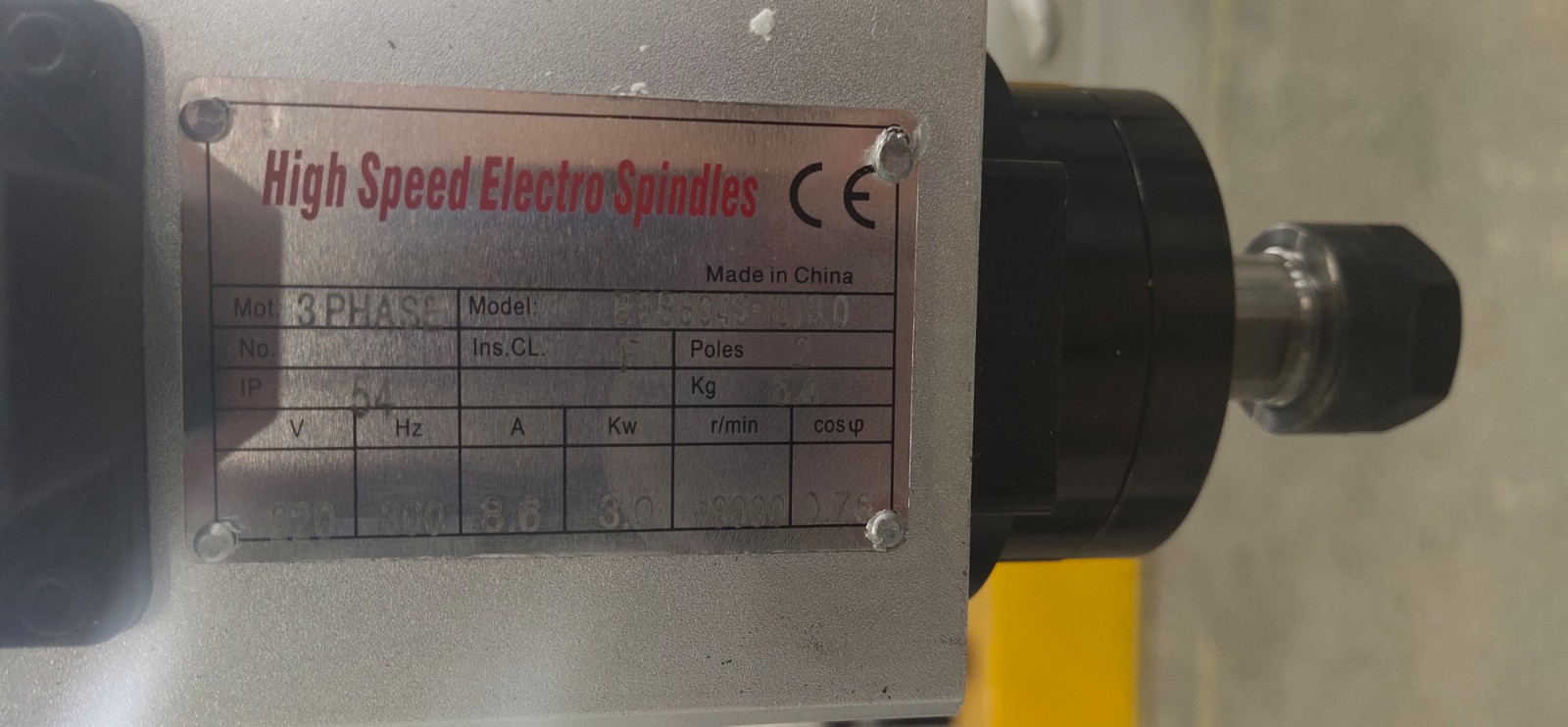

4.5kw engraving spindle which can engrave any design according your drawing .
Model: | ST-1530(1500*300mm) _1 axis_2 blades |
Structure: | Cast iron |
Spindle shaft: | Sturdy spindle, NSK deep groove ball bearing, P5 grade. |
Drive system: | - Three phase current of 380V, 50HZ. 4 Kw. , 1 set - Stepper motor: 450B 2 sets - Stepper driver: YKAO2811MA 2 sets - Servo motor is optional 5.5kw 220v/3ph/220v/1ph for optional |
Inverter: | Best inverter 5.5 kw (Fuling brand is optional) |
Guide rail: | Taiwan HIWIN/PMI linear square guide rail. |
Spindle speed: | 3000 r/min |
Material size: | 300*1500 mm (length: 2000mm, 2500mm, 3000mm are optional) |
Center Sleeve ID: | 1.414 times the side length of material (no need sleeve if material diameter is more than 60mm) |
Weight – bearing: | 500 kg |
Engraving speed: | 4 m/min |
Max. feed | 15 mm/r |
Max. feed rate: | 700 mm /min |
Min. setting unit: | 0.1 mm |
Pivoting device: | Pneumatic air connection within 6-8 bar. |
Tailstock: | Precisely and easily movable, with quick clamping with pneumatic |
Electric system: | Air break switch protection |
Dimensions(L*W*H):Machine (without operation box) | 3100 *1280*1780 mm |
Packing dimensions:Machine (with operation box) | 3200*1380*1980 mm |
Weight: | 1700 kg |
Software | AUTOCAD (DXF format ) |
Control system: | NC with automatic feeding device |

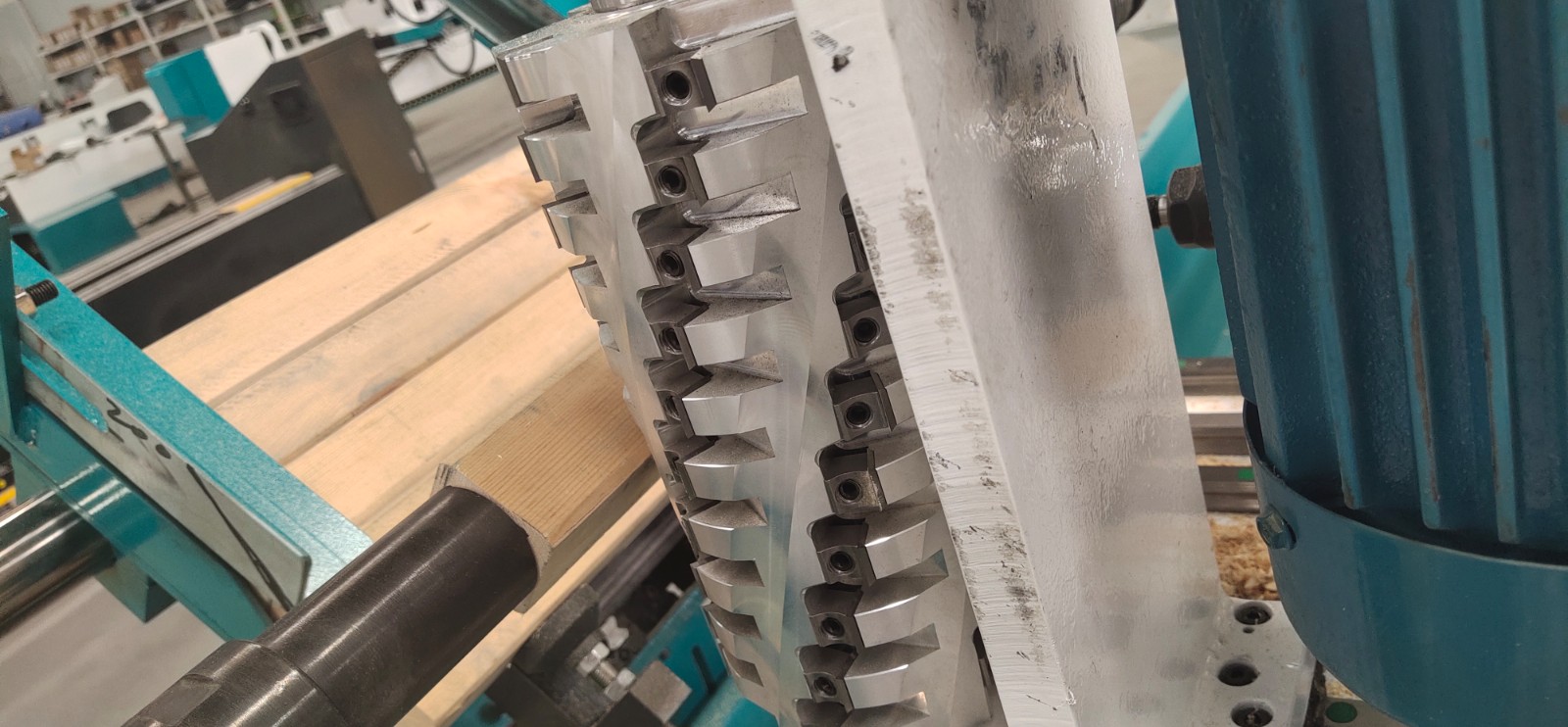

planner for optional which can do irregular wood shape

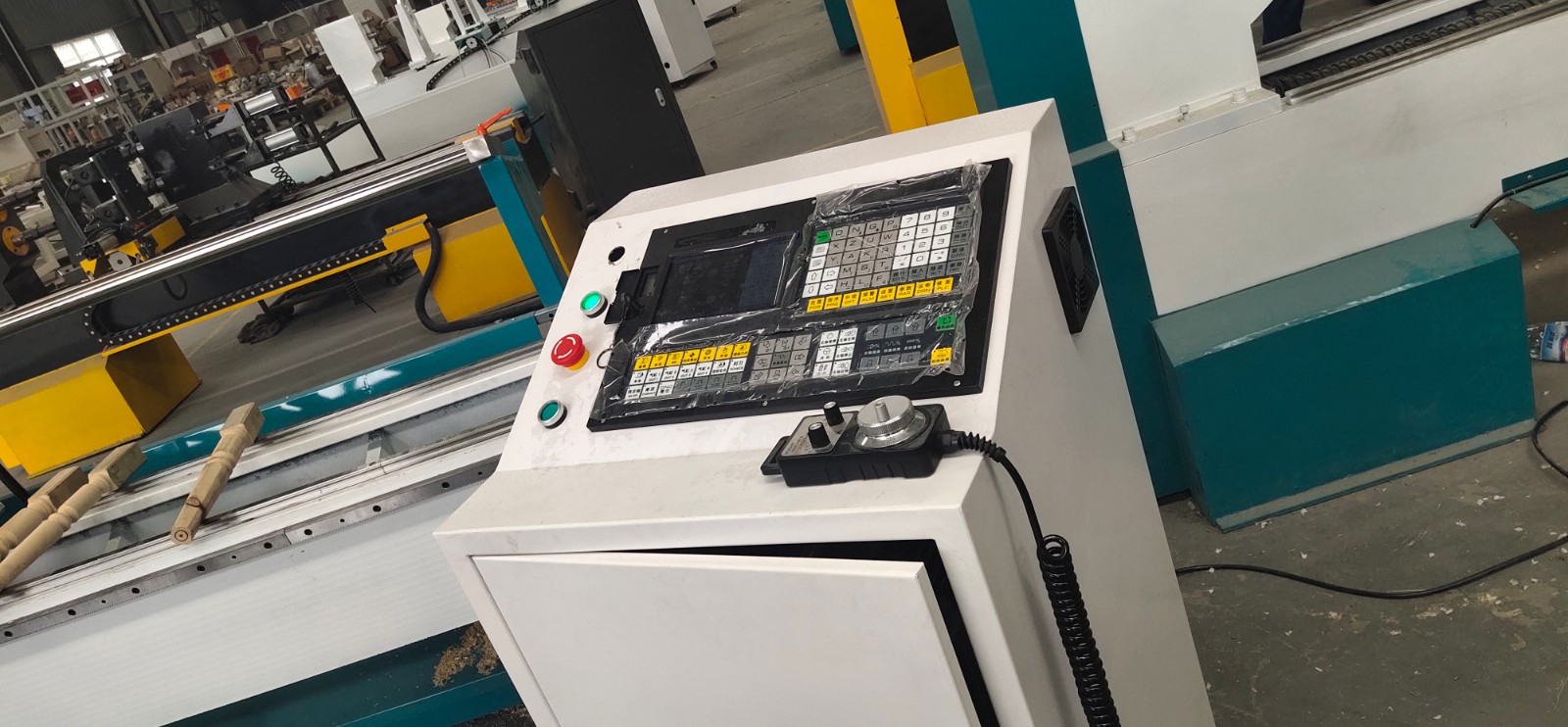

Nc control with hand wheel which can make alloy cutter easily and operate machine can see the drawing in the NC control
Servo motor which is powerful for turning wood

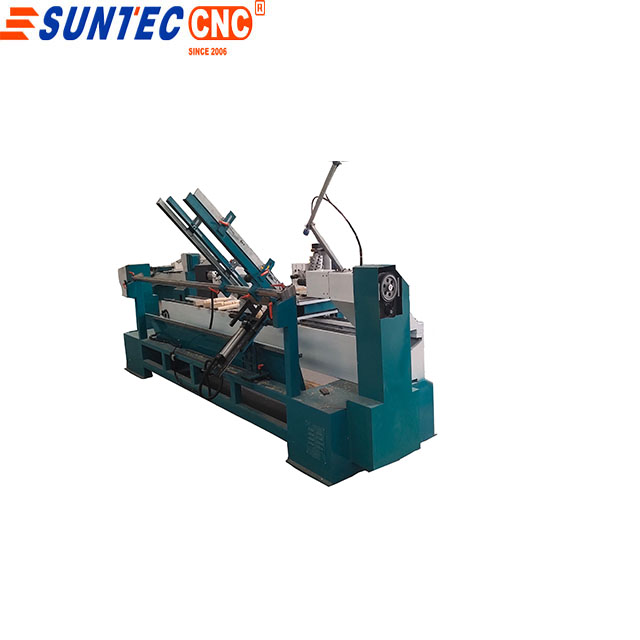

Automatic feeding device saving labors to feeding wood material

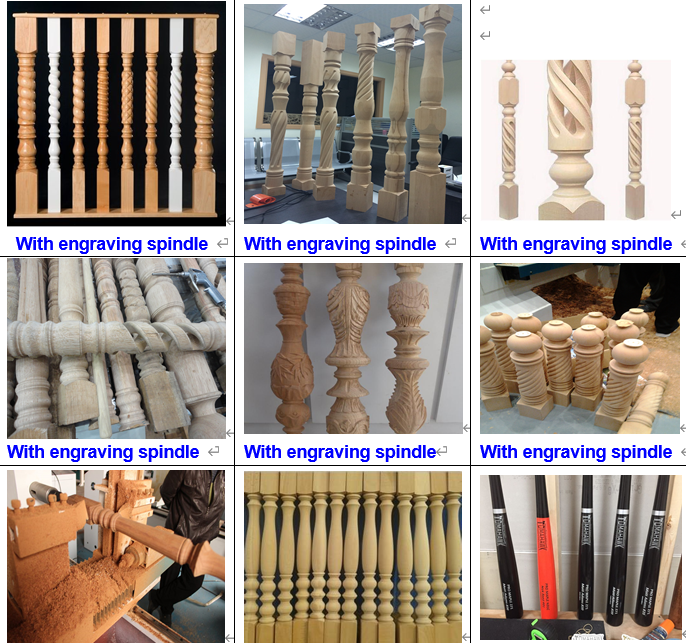

Working sample
