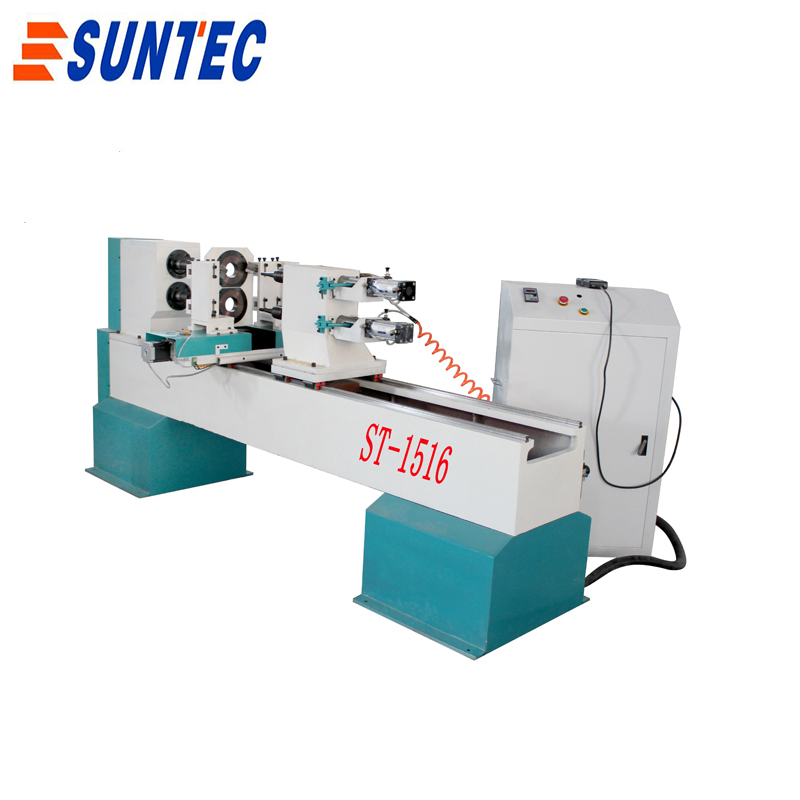

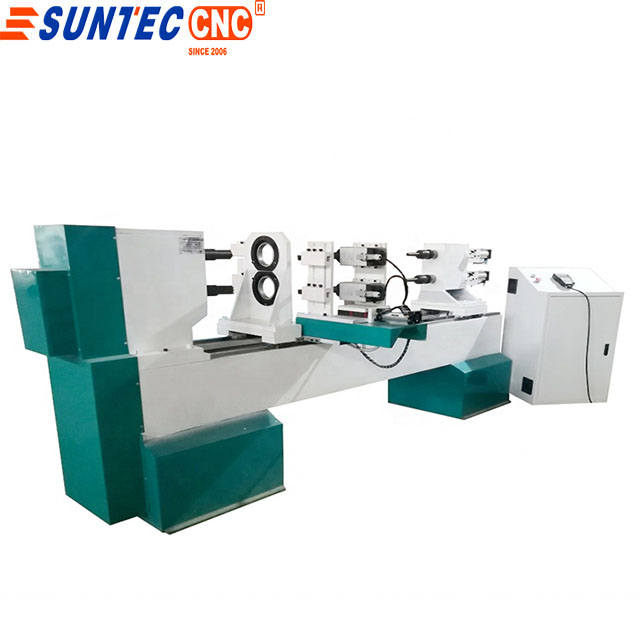

Double axis four cutter automatic cnc wood turning lathe ST1516

Structure:

Cast   iron

Spindle   shaft:

Sturdy   spindle, NSK deep groove ball bearing,   P5 grade.

Drive   system:

-     Three phase current of 380V, 50HZ. 4 Kw. , 1 set

-     Stepper motor: 450B 2 sets

-   Stepper driver: YKAO2811MA 2 sets

-   Servo motor is optional

5.5kw 220v/3ph/220v/1ph for optional

Inverter:

Best inverter   5.5 kw (Fuling brand is optional)

Guide rail:

Taiwan   HIWIN/PMI linear square guide rail.

Spindle   speed:

3000   r/min

Material   size:

300*1500   mm (length: 2000mm, 2500mm, 3000mm are optional)

Center  Sleeve   ID:

1.414   times the side length of material (no need sleeve if material diameter is   more than 60mm)

Weight   – bearing:

500   kg

Engraving   speed:

4   m/min

Max.   feed

15   mm/r

Max. feed   rate:

700 mm   /min

Min.   setting unit:

0.1   mm

Pivoting   device:

Pneumatic   air connection within 6-8 bar.

Tailstock:

Precisely   and easily movable, with quick clamping with   pneumatic

Electric system:

Air   break switch protection

Dimensions(L*W*H):Machine   (without operation box)

3100 *1280*1780   mm

Packing   dimensions:Machine (with operation box)

3200*1380*1980 mm

Weight:

1700   kg

Software

 AUTOCAD (DXF format )

Control system:

DSP
