Mini wood lathe

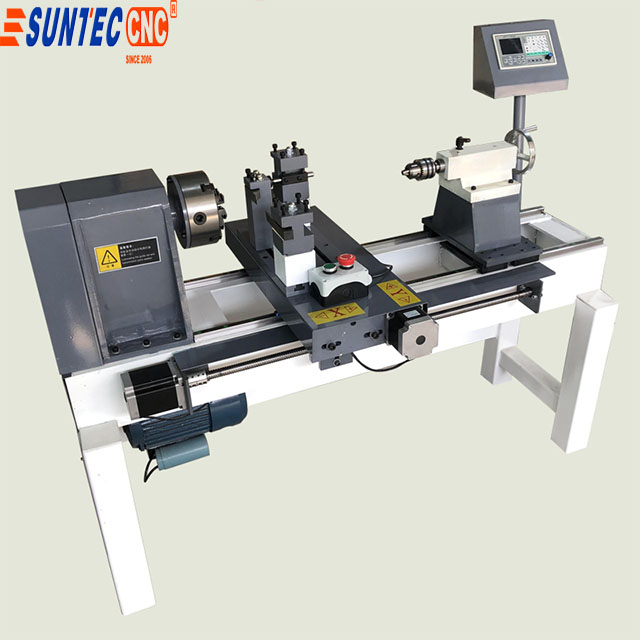

SUNTEC 900MM LENGTH VASE PEN HOLDER BEADS CHESS MAKING CNC WOOD LATHE

  • Model:ST9025
  • Category : Mini wood lathe
  • Working area: 900*250
  • Standard price: 2600
  • Customized: Negoation
  • Payment Terms: T/T(Telegrahic Transfer), Master card, Visa, Paypal, West Union
  • Send Email WhatsApp WhatsApp

SUNTEC 900MM LENGTH VASE PEN HOLDER BEADS CHESS MAKING CNC WOOD LATHE

Operate way:

1.Input required drawing in the software

2.Set Bead diameter,  select the shape, size.

3.No programming, easy to use.

 4.You can also design your own style, drawing of contour line, also can support BMP, JPG etc format



Cutter lifespan:

Adopt super hard alloy CNC cutter,no wear for turning and milling red wood.

Such as processing 3000 pieces Lobular red sandal wood whose with diameter 2cm, no need changing cutter.



Processing speed:

 For example:

1.2 size beads shall prevail, Lobular Rosewood automatic Hole, 38 seconds per piece , 30 seconds without holes.

2.Phoebe play hole turning 25 seconds per piece,19 seconds without punching;

3.5cm diameter handball, 2 minutes one piece.

4.5cm diameter and 11cm length hand-grip gourd needs 5 minutes

Parameters:





SPECIFICATION

ST-5025 CNC LATHE

ST-9025 CNC LATHE

SPEED

2800 RPM

CHUCK DIAMETER

160MM

WORKING DIAMETER

250MM

WORKING LENGTH

500MM

900MM

MOTOR POWER

1.1KW

1.5KW

MAKE HOLE  DIAMETER

58MM

WORKING VOLTAGE

380/220V

MACHINE WEIGHT

340 KGS

380KGS

MACHINE SIZE

1.3*1.1*0.85M

1.7*1.1*0.85M
