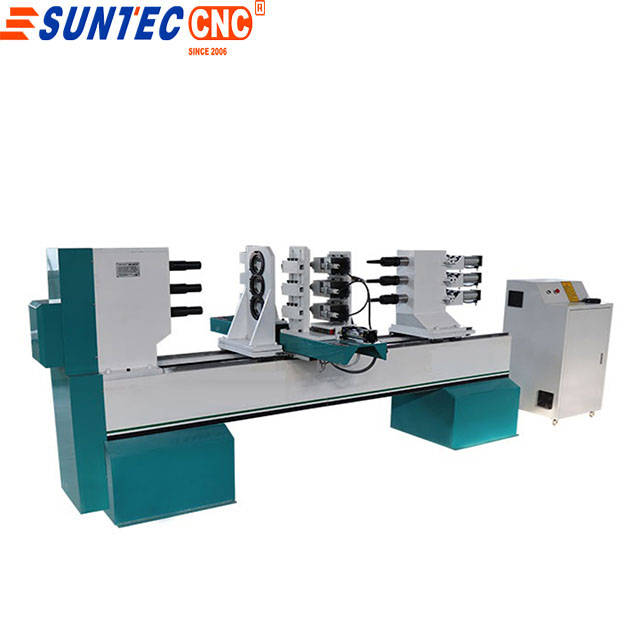

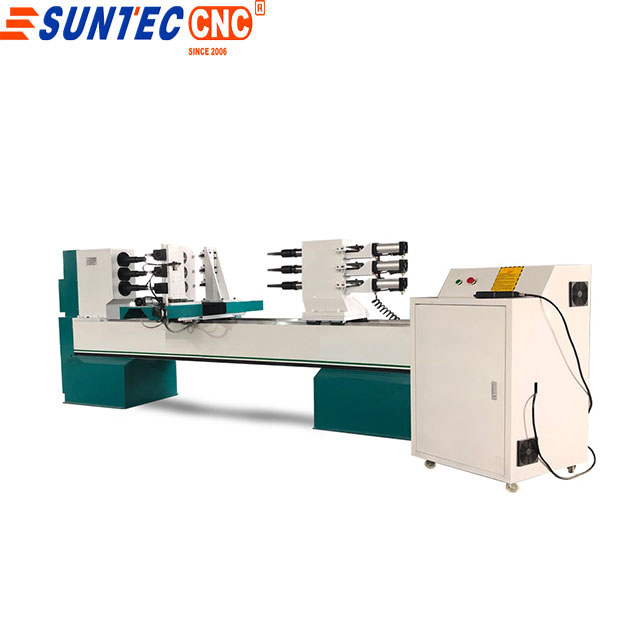

Suntec three axis six cutter fast speed columns cnc wood lathe

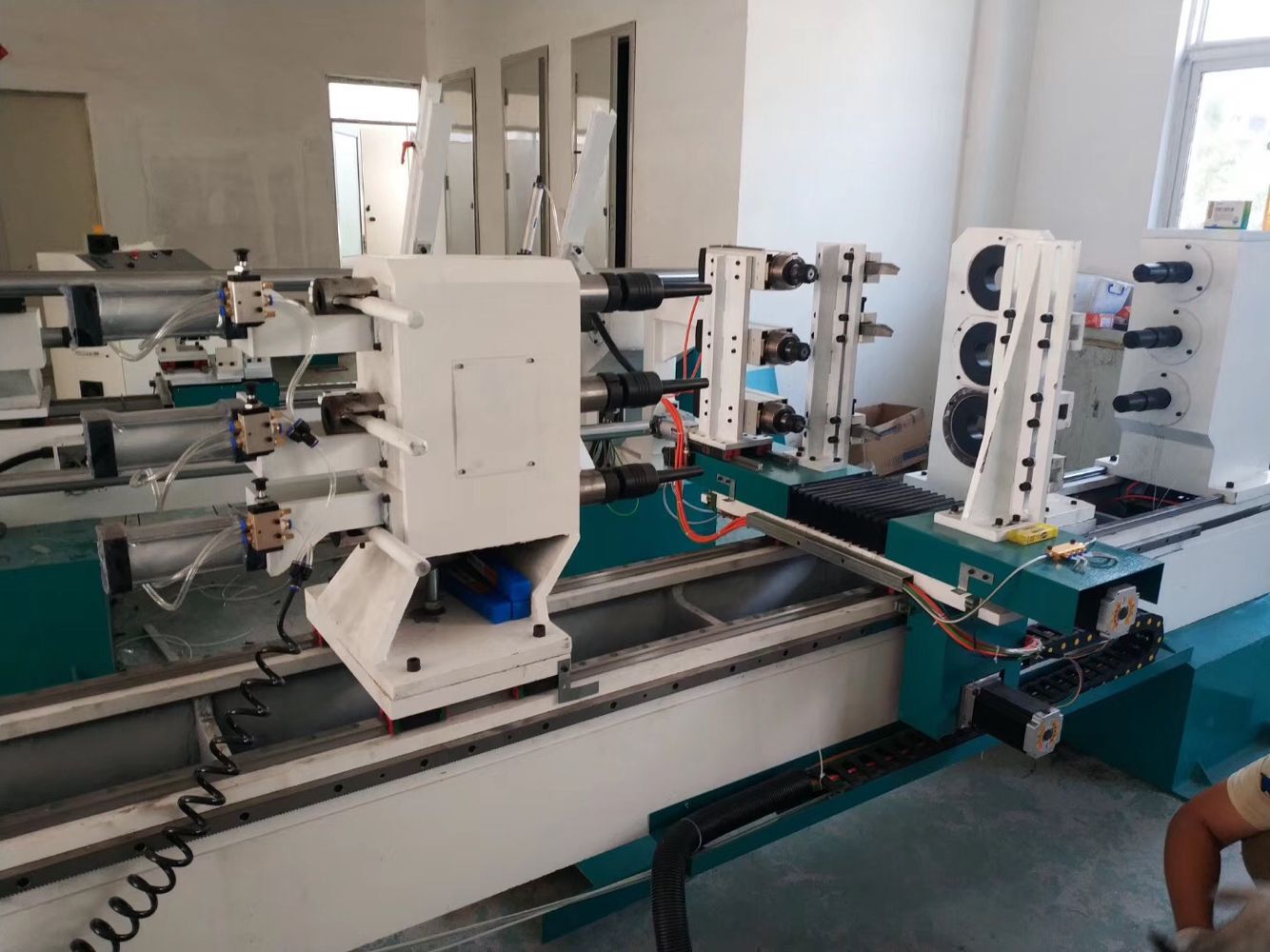

Three axis six cutter cnc wood turning lathe , one time can do three piece wood improve your working effiency.
Three engraving spindle for optional which can engrave on round wood such as flowers dragon or any shape according your desgin .

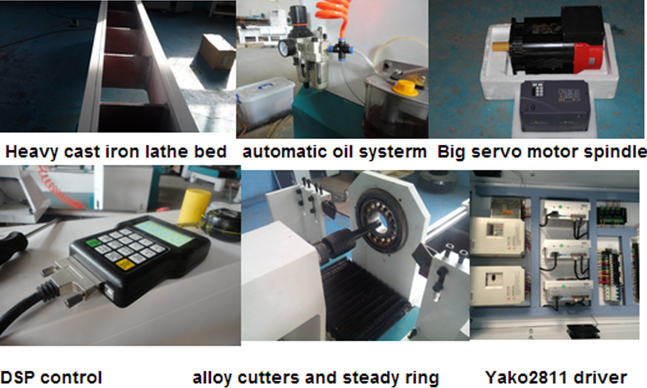

Heavy duty structure table about 7t which can turn wood no vibrating .
Bigger servo motor which is power
Model: | ST-1516(1500*160mm) _three axis_six blades |
Structure: | Cast iron |
Spindle shaft: | Sturdy spindle, NSK deep groove ball bearing, P5 grade. |
Drive system: | - Three phase current of 380V, 50HZ. 4 Kw. , 1 set - Stepper motor: 450B 2 sets - Stepper driver: YKAO2811MA 2 sets - Servo motor is optional 5.5kw 220v/3ph/220v/1ph for optional |
Inverter: | Best inverter 5.5 kw (Fuling brand is optional) |
Guide rail: | Taiwan HIWIN/PMI linear square guide rail. |
Spindle speed: | 3000 r/min |
Material size: | 160*1500 mm (length: 2000mm, 2500mm, 3000mm are optional) |
Center Sleeve ID: | 1.414 times the side length of material (no need sleeve if material diameter is more than 60mm) |
Weight – bearing: | 500 kg |
Engraving speed: | 4 m/min |
Max. feed | 15 mm/r |
Max. feed rate: | 700 mm /min |
Min. setting unit: | 0.1 mm |
Pivoting device: | Pneumatic air connection within 6-8 bar. |
Tailstock: | Precisely and easily movable, with quick clamping with pneumatic |
Electric system: | Air break switch protection |
Dimensions(L*W*H):Machine (without operation box) | 3100 *1280*1780 mm |
Packing dimensions:Machine (with operation box) | 3200*1380*1980 mm |
Weight: | 1700 kg |
Software | AUTOCAD (DXF format ) |
Control system: | DSP/NC |

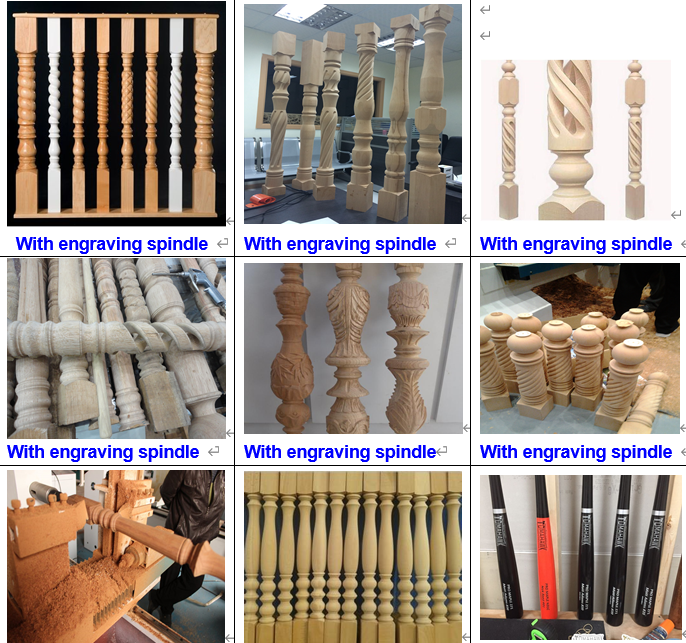

Working sample
