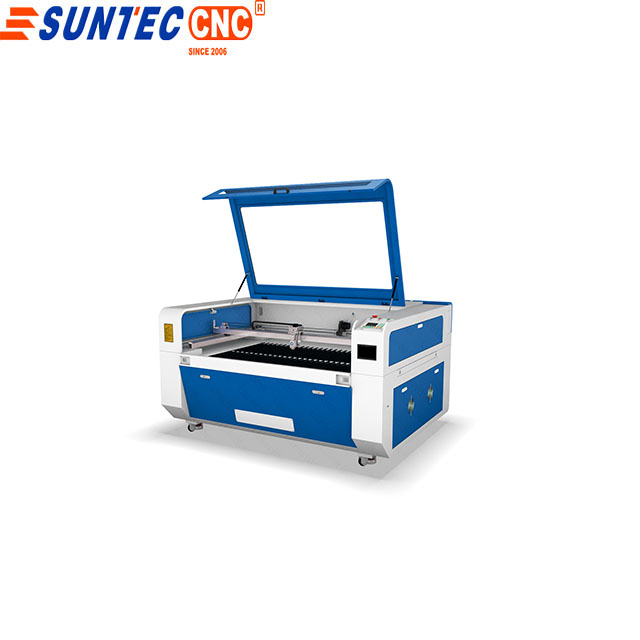

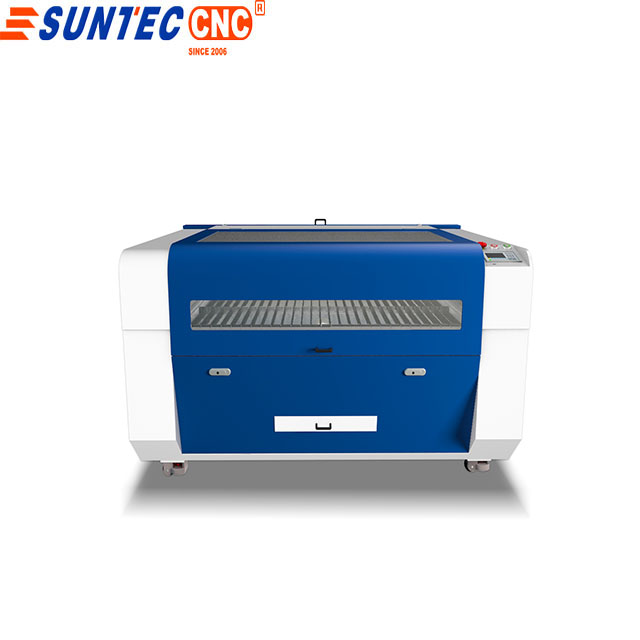

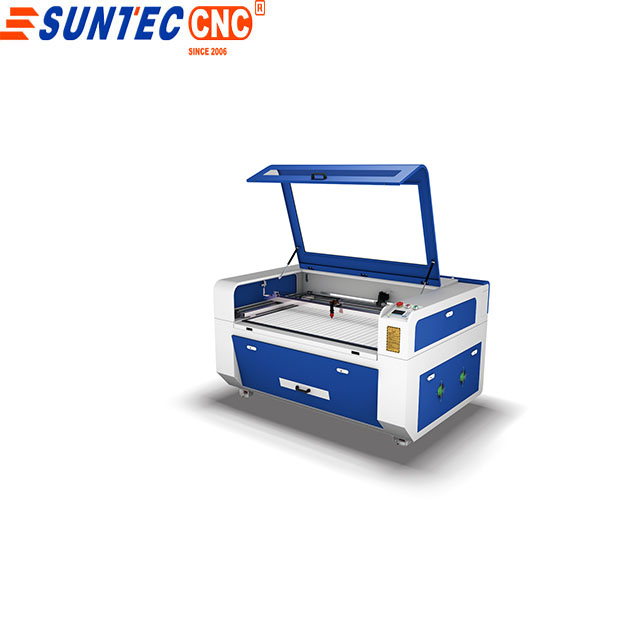

Reci laser tube 150w laser cutting engraving machine 1300*900mm for non metal engraving ST1390
1. Specification
1). Fixed cabinet frame for rigidity.
2). Materials can extend through the front and rear to allow for a larger work product.
3). Large motors for faster engraving speeds
4). Reduction gear on X and Y axis
5). Interior LED Work area light to help see products during laser processing.
6). Easy access for interchanging the rotary attachment
7). Red-Dot pointer to help you see the expected laser beam position.
8). Main components are imported.
9). Advanced water chiller for cooling laser tube, adjust temperature automatically. Besides, it has the function that protect the laser tube from damaging caused by any incidents.
10). DSP control system with USB interface, no need to connect with computer when working.
Name: | ST- 1390 |
Processing area | 1300mm*900mm (4feet*3feet) |
Laser power | 60W,80W,100W,130W,150W |
Laser type: | Sealed Co2 glass laser tube |
Cooling mode: | Water cooling and protection system |
Resetting positioning accuracy: | ±0.01mm |
Compatible Software: | CorelDraw AutoCAD Photoshop |
Whole machine size: | 1820mm*1320mm*1100mm |
Engraving speed | 1-60000mm/min |
Cutting speed | 1-10000mm/min |
Cutting thickness | 0-25mm acrylic (others determined by materials) |
Resolution ratio | ≤0.0125mm |
Position system: | Red dot |
Interface: | USB |
Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
Support graphic format | DST, PLT, BMP, DXF |
Gross power | 1000W |
Driving mode: | DC0.8A 24V stepper motor |
Cooling mode: | Circulation water cooling |
Working voltage: | AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
Operating temperature | 0-45C |
Operating humidity: | 5-95%
|
Driving system | stepper |
Option: | Up and down table, rotary attachment |
Packing: | wooden box |
Guarantee time: | 1 year, laser tube 8 months |
Option: | Rotary attachment for column materials |
Operation: | Video to tell customer how to operate the machine |
Gross weight: | 350KGS after package |

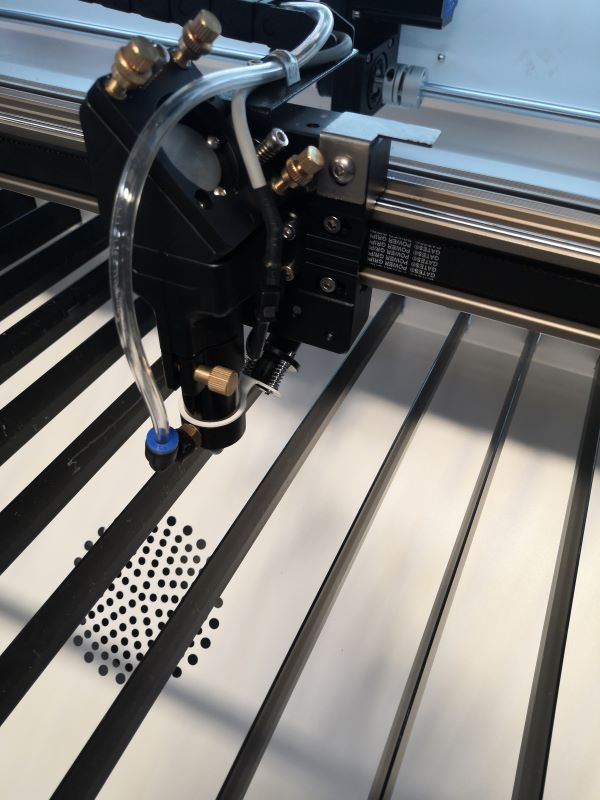

Laser head mould transmission

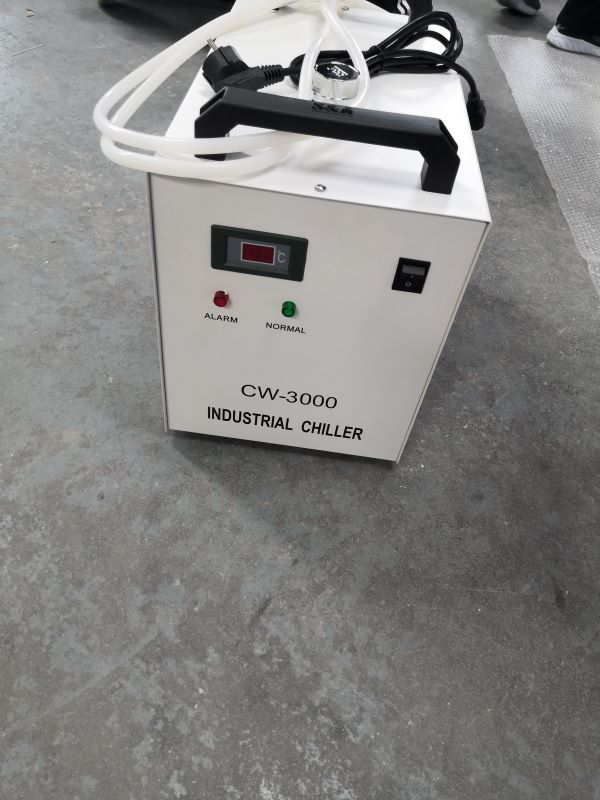

Cw 3000 water chiller for 150w laser tube

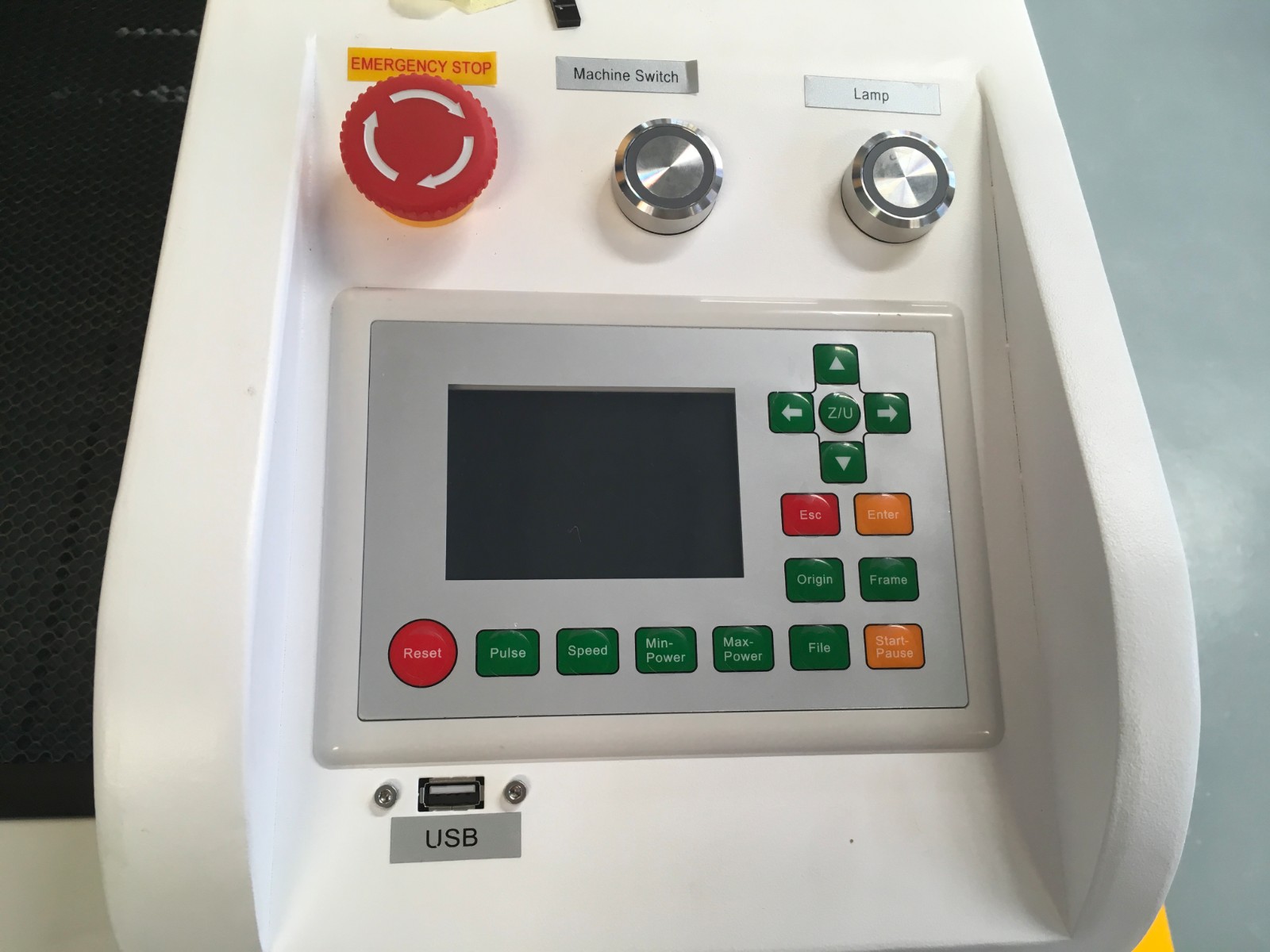

Rd control support dxf ,plt bmp dst format

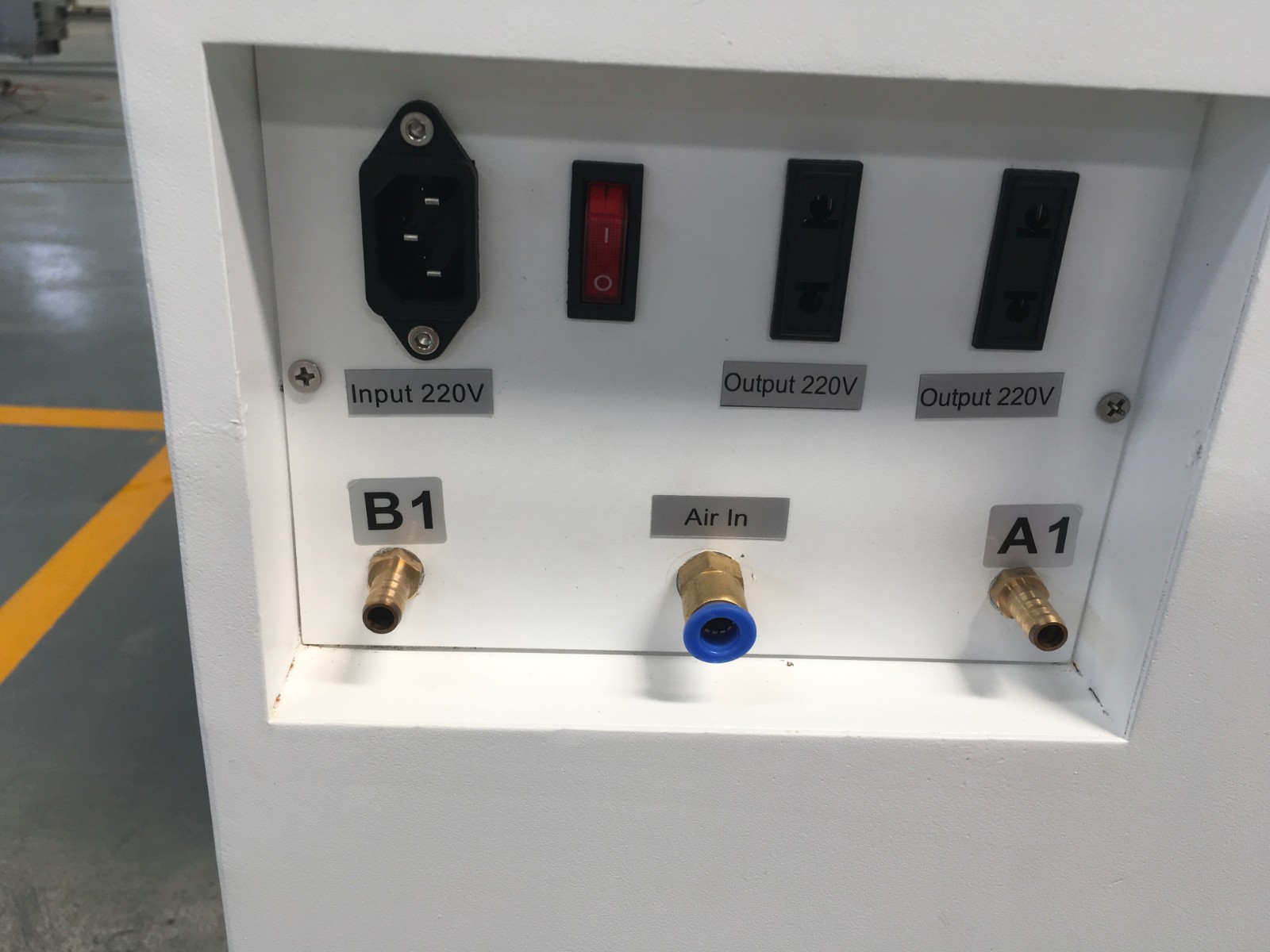

Power water chiller fans install guide

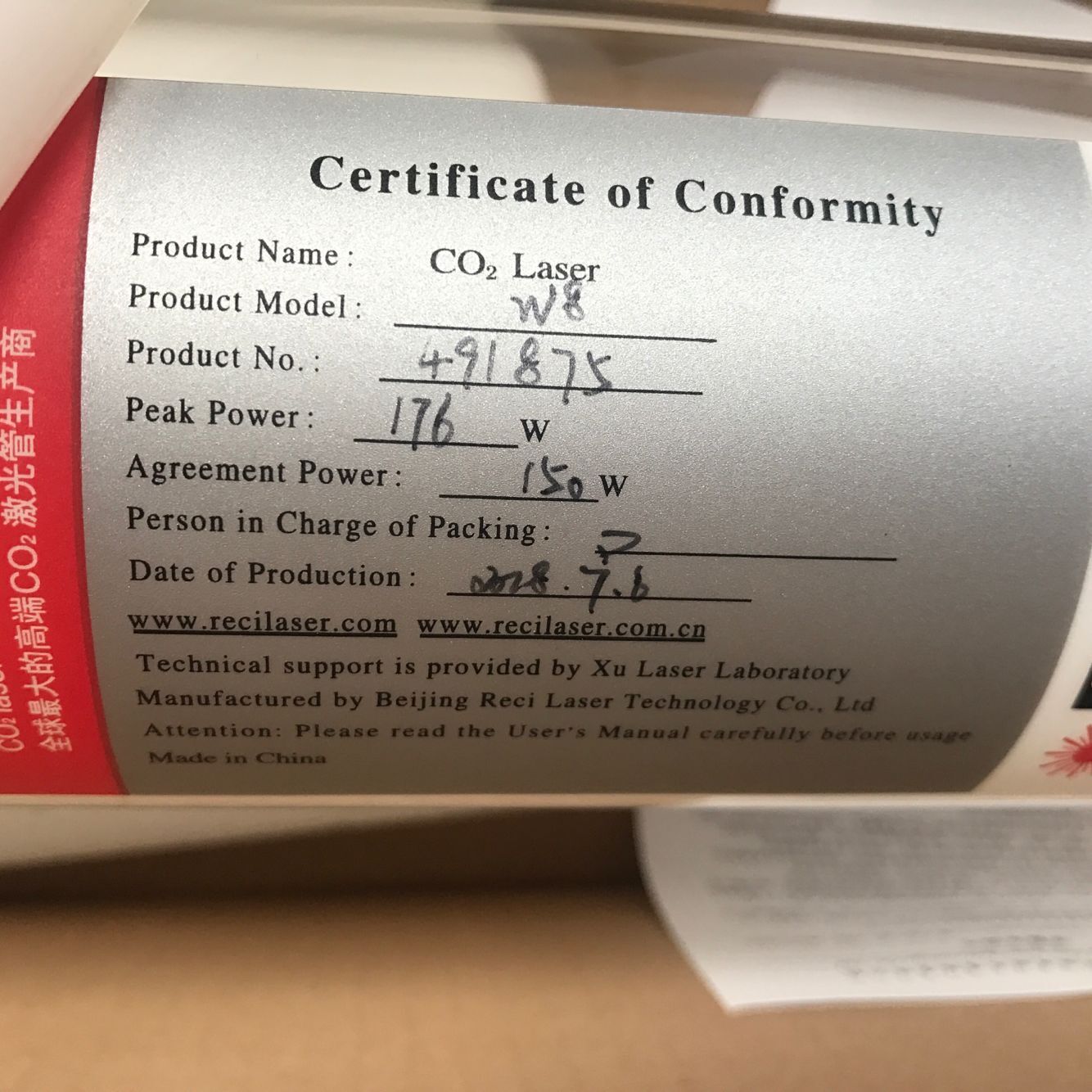

150w reci laser tube

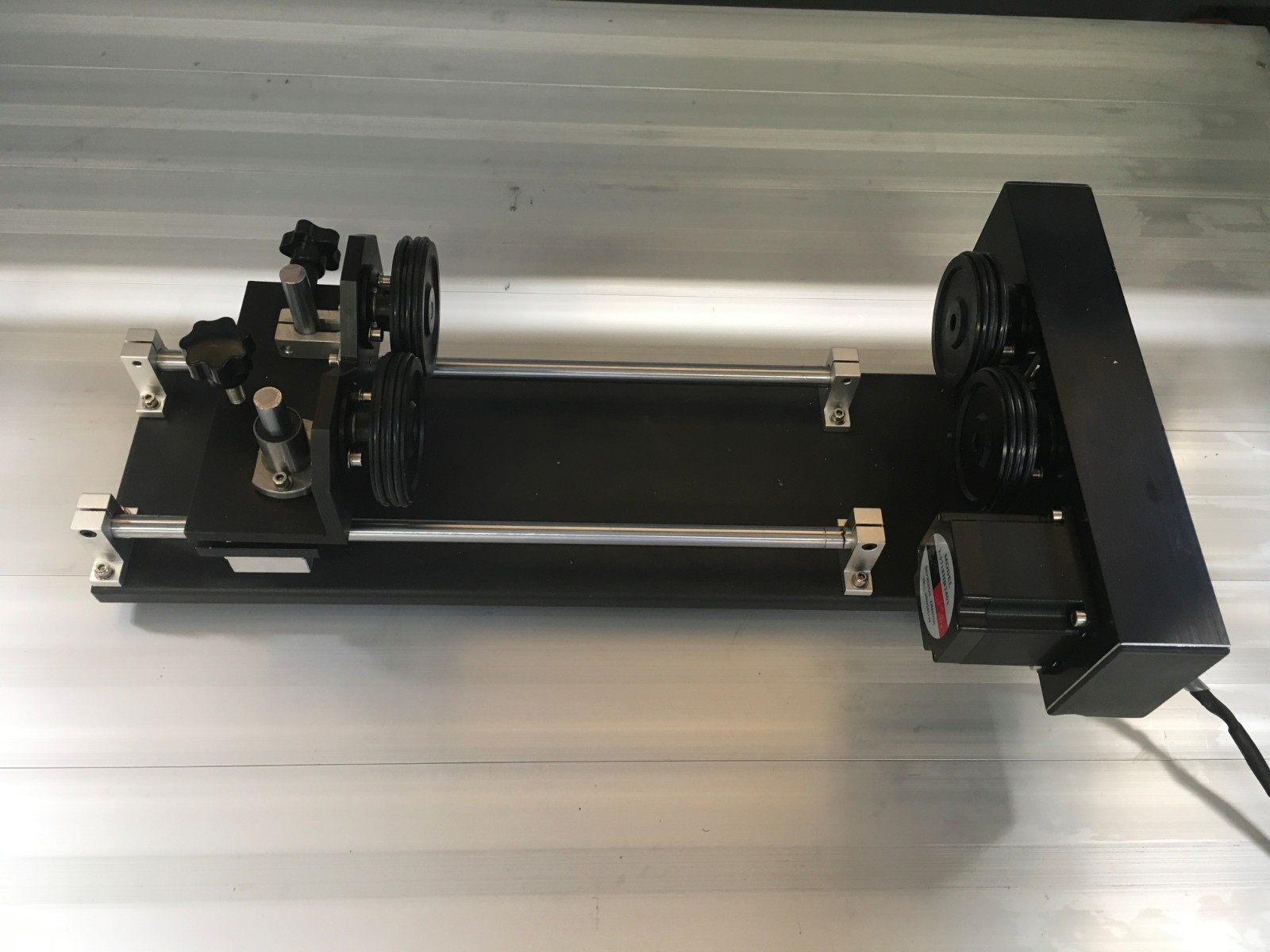

Rotary for you optional

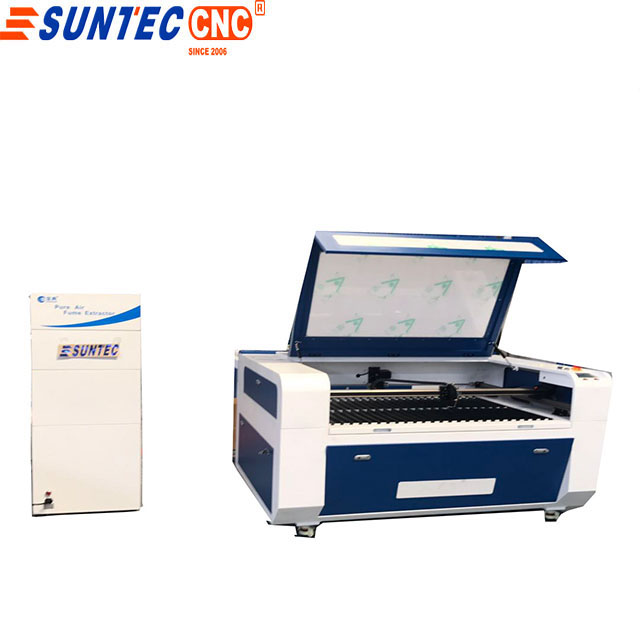

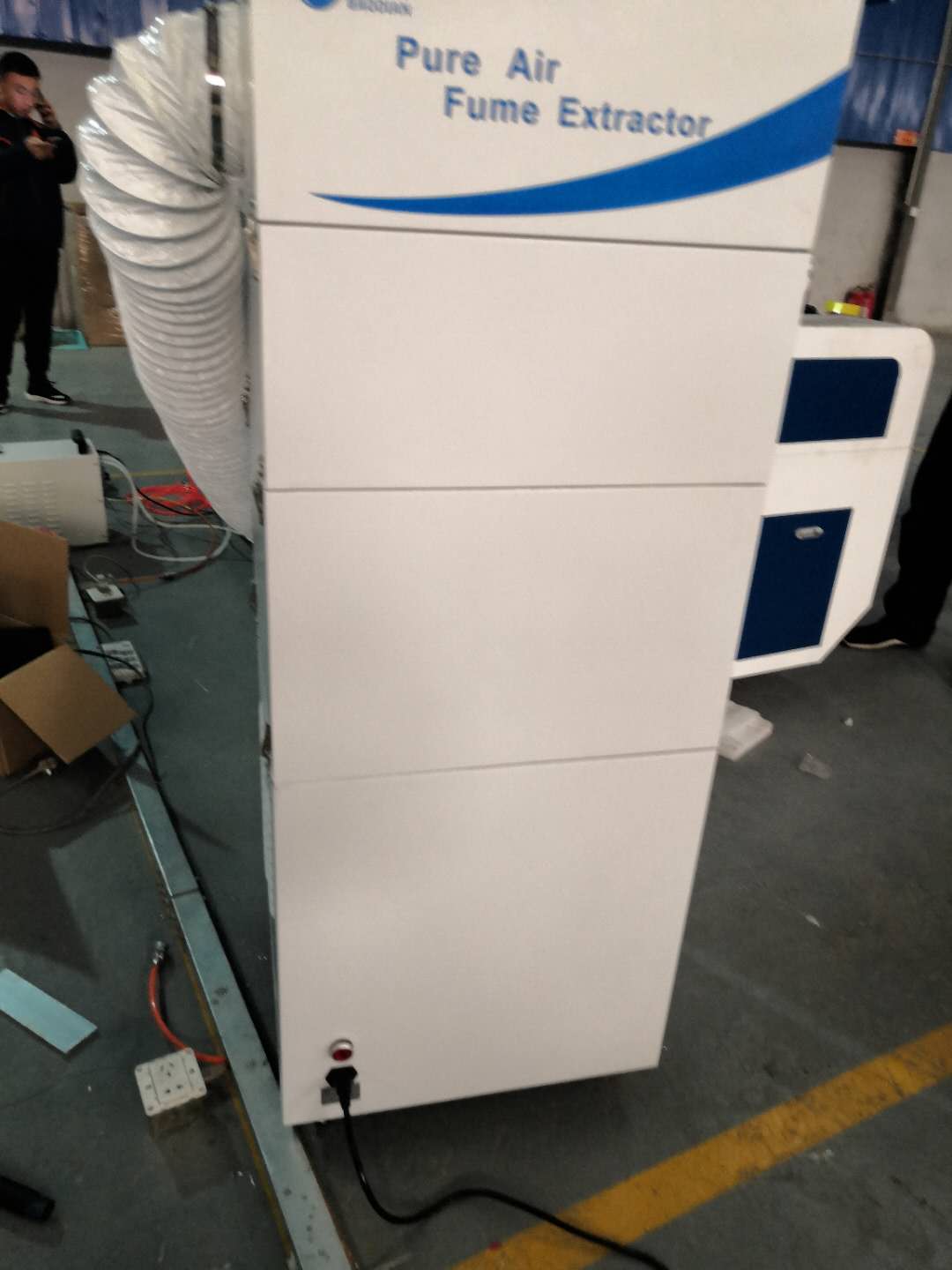

Fog extractor which can take away fog when cutting material especailly cutting acrylic MDF wood material .
working sample
