Customzied ST-1390 fiber laser cutter combined co2 laser engraving machine for metal non metal cutting

Customzied ST-1390 fiber laser cutter combined co2 laser engraving machine for metal non metal cutting

1. Heavy duty structure table welded


2. Dual two laser one is fiber laser for metal cutting such as stainless steel copper brass iron cs cutting . thickness according laser source to choose 1000/1500/2000/3000/6000. CO2 laser 150w/200/280/300w for non metal cutting such as MDF wood acylic paper rubber etc .

3. All machine parts adopt world famous parts yaskawa PMI square guide YYC gear to make sure high fast speed and high precision




   Model	ST-1390 fiber  laser machine combined co2 laser
   Laser type	fiber laser source and CO2 laser tube
   Laser power	1000w/1500w/2000w and 150W / 180 / 220 / 300 watts laser tube
   Working area	1300mm x 900mm
   Engraving speed	0-6000cm/min
   Cutting speed	0-5000cm/min
   Repeating location	≤±0.01
   Transmission	Ball screws transmission
   Driving system	Servo motor
   Machine table	Blade table
   Graphic format supported	BMP, HPGL(PLT), JPEG, DXF,AI, DST, etc.
   Software supported	CorelDraw, AutoCAD, Photoshop, Tajima
   Control system	Ruida USB(Off-line)control system/cypcut controller
   Working voltage	220V or 110V, 50Hz-60Hz

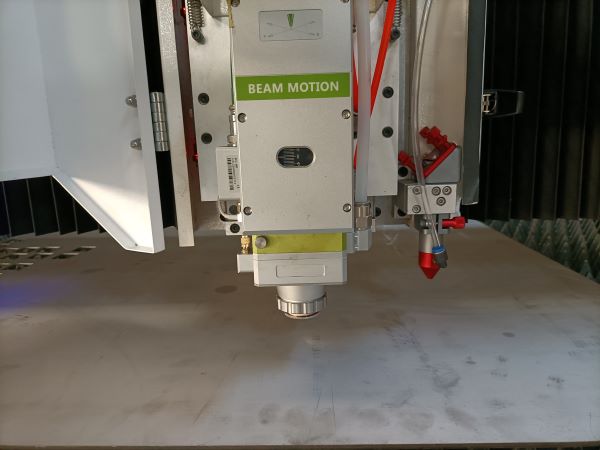

   Two laser head one is raytools automatically focus for metal cutting another co2 laser for non-metal cutting



   CW2000 water chiller for cooling two head

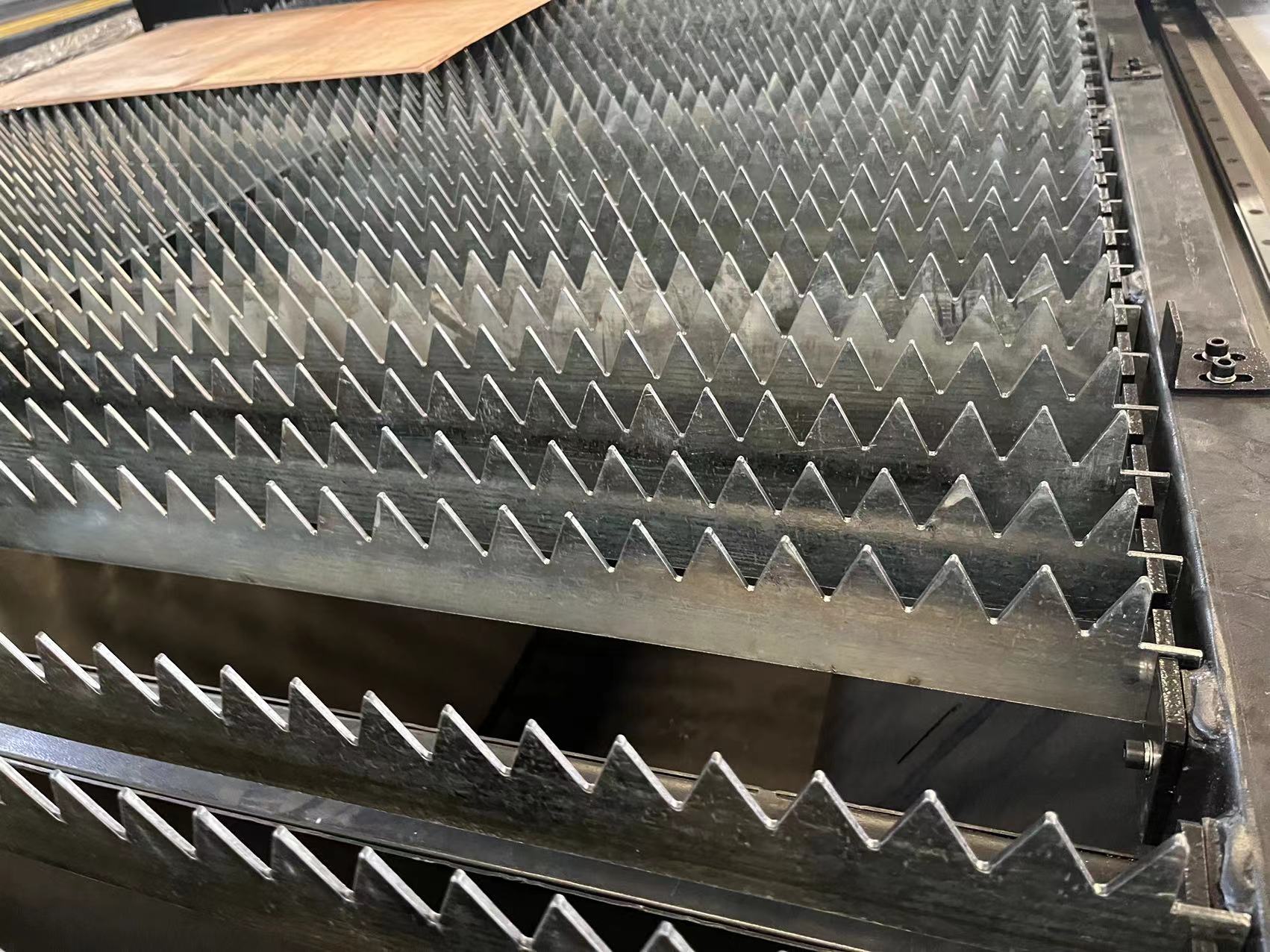

   Knife table for metal cutting and non metal cutting
