ST1530 cheap price 1000w rotary fiber laser cutting machine for metal sheet pipe tube cutting
1.Cypcut operation system
2.Swiss raytools auto focus laser head which is high precision
3.France Motovario motor reducer
4.Japan YASKAWA servo motor
5.German Atlant gear rack
6.Japan SMC/Airtac pneumatic parts
7.French Schneider electronic parts
8.Automatic lubrication system.
9.3rd aviation aluminum beam
10.Taiwan HIWIN square rail
11.Laser head automatically adjust system.
12 Smoke purify system
13 Tongfei Water cooling machine
14.Exchange working table
15. Protection cover
16. rotary 300*6000mm
Machine model | ST1530 fiber laser cutting machine with rotary |
Laser source | 1000w fiber laser source |
Control system | Shanghai Cypcut system |
Working size | X,Y 1500x3000mm rotary 6m length diameter 220mm |
Cutting head | Worthing auto foucs laser head |
Driver and motor for Y | Y axis double sets 2000W Yaskawa servo driver and motor |
Driver and motor for X | X axis 1800W motor and driver |
Driver and motor for Z | Z axis 750W Panasonic driver and motor |
Reducer | France MOTOVARIO |
Reducer ratio | 5:1 |
Rack and pinion | German Atlanta |
X,Y,Z guide rail | Taiwan Hiwin guide rail |
Water cooling system | TONGFEI water chiller (double temperature control) |
Electricals | Schneider |
Support software | DXF , PLT ,AI , LXD , Gerber ,NC , G. code |
Repeat positioning accuracy | ±0.02mm |
Maximum speed | 120m/min |
Maximum Acceleration | 1.5G |
Focus lens | 125mm |
Power supply | 380V 50HZ /60HZ 3PH with 50KVA voltage voltage stabilizer |
Total power | 26kw /27.5kw |
Application material | Stainless steel , carbon steel ,galvanized sheet ,brass ,aluminum , silver ,mild steel , silicon steel , titanium alloy etc . |
Warranty | 3 years |
Consumable parts of the machine | ||||
Items | Use life (hours) | Unit price (USD/pc) | Suggested buying Quantity (pcs) | Remarks |
Protective mirror | 600 | 35 | 5 | |
Protection goggle | / | One for free | 1 | |
Collimator | 10000 | 235 | 1 | |
Ceramic ring | 4000 | 65 | 2 | |
Focus lens | 10000 | 235 | 2 | |
Nozzle(single layer 1mm) | 600 | 15 | 5-10 | For below 3mm stainless steel ,copper ,aluminum |
Nozzle(single layer 1.5mm) | 600 | 15 | 5-10 | For 3-5mm stainless steel ,copper ,aluminum |
Nozzle(single layer 2mm) | 600 | 15 | 5-10 | Above 5mm stainless steel ,copper ,aluminum |
Nozzle(twin layer 1mm) | 600 | 15 | 5-10 | For below 4mm carbon steel |
Nozzle(twin layer 1.5mm) | 600 | 15 | 5-10 | 4-8mm carbon steel |
Nozzle(twin layer 2mm) | 600 | 15 | 5-10 | Above 8mm carbon steel |

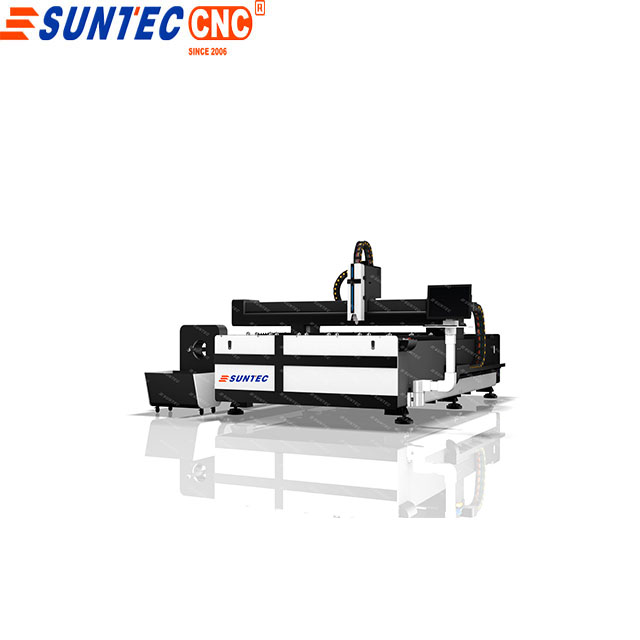

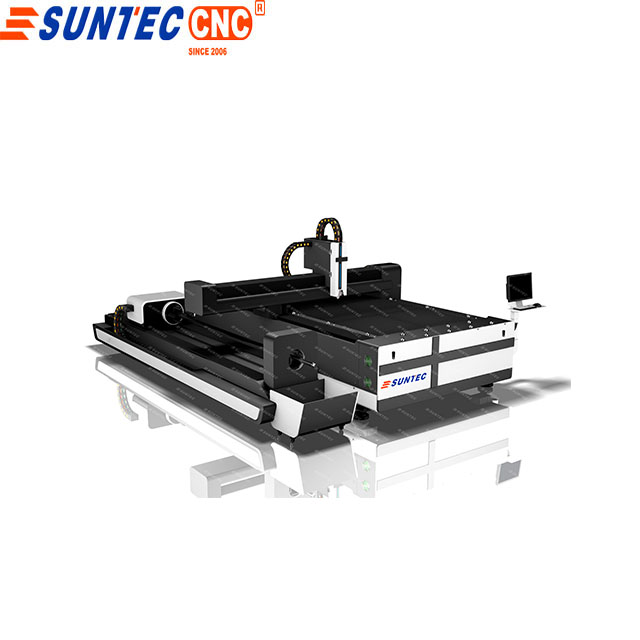

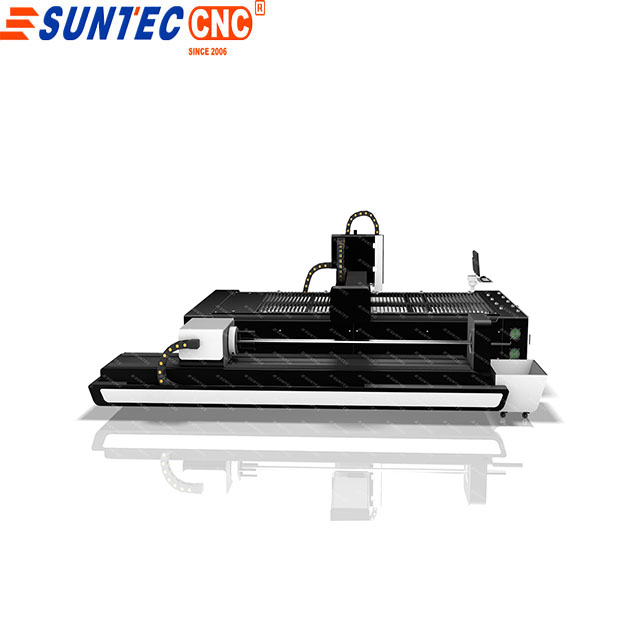

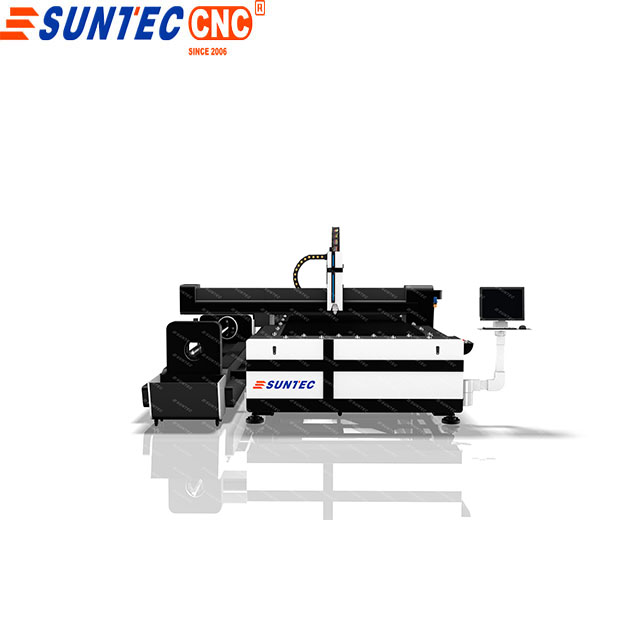

Rotary 1530 fiber laser cutting machine which can cut metal sheet and pipe tube cutting

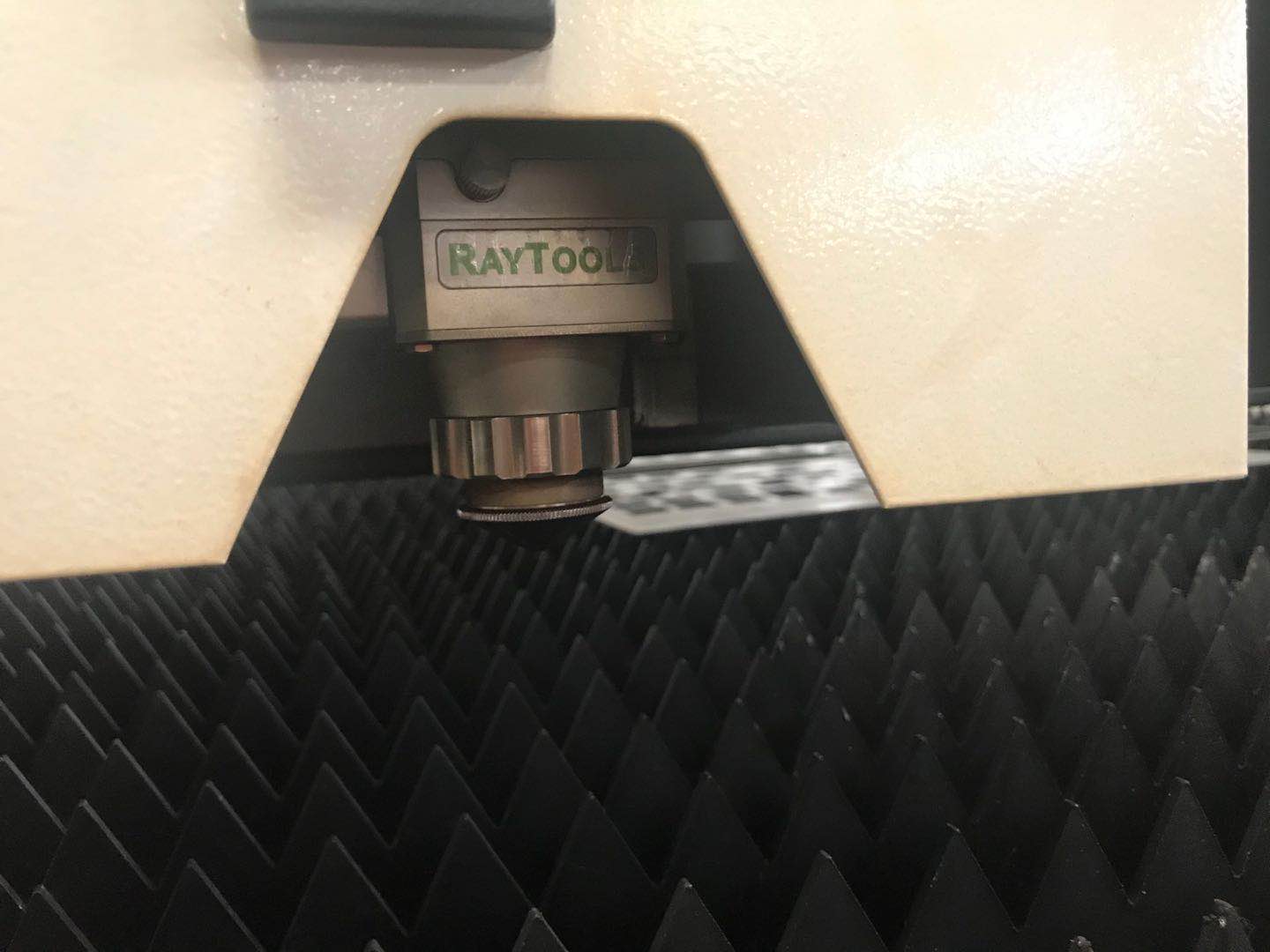

Raytools laser head which can improve high speed

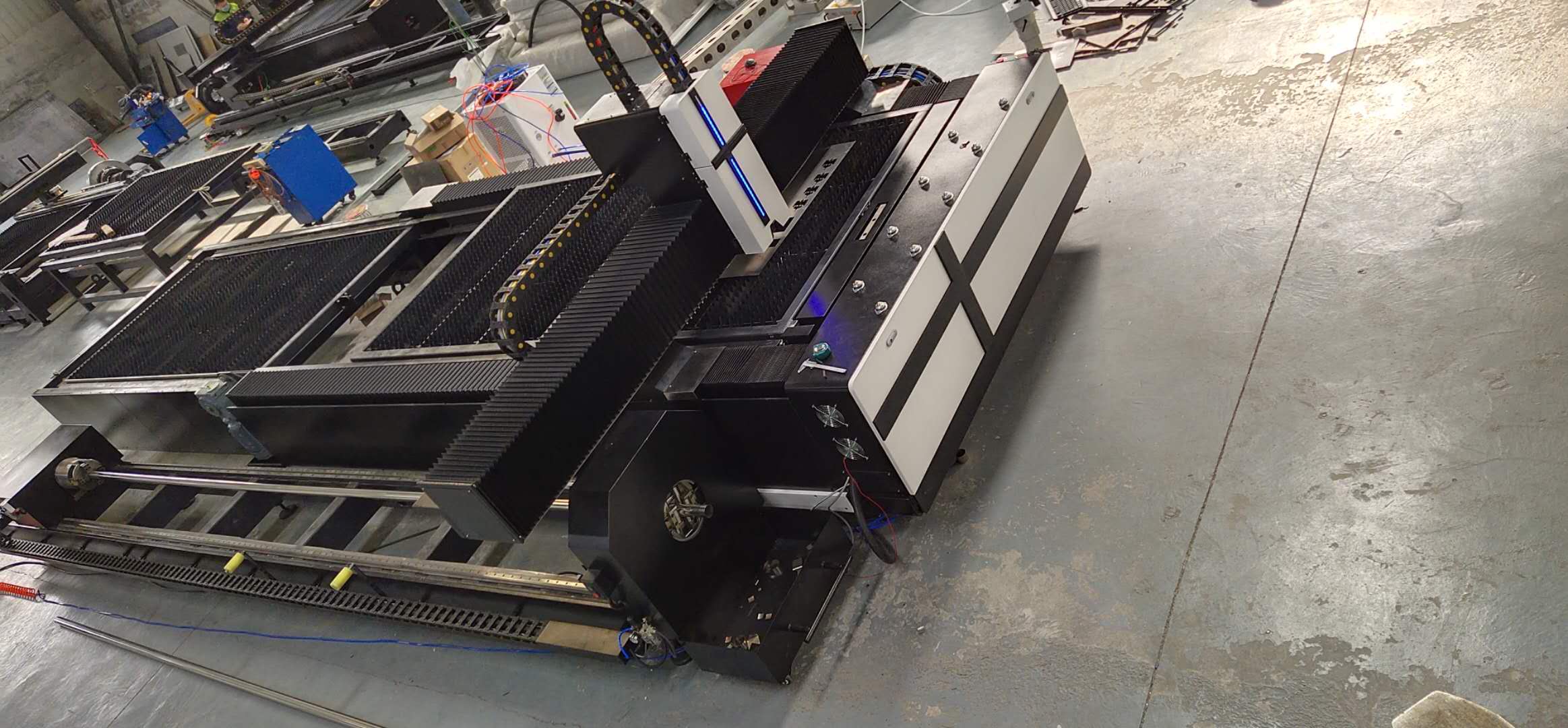

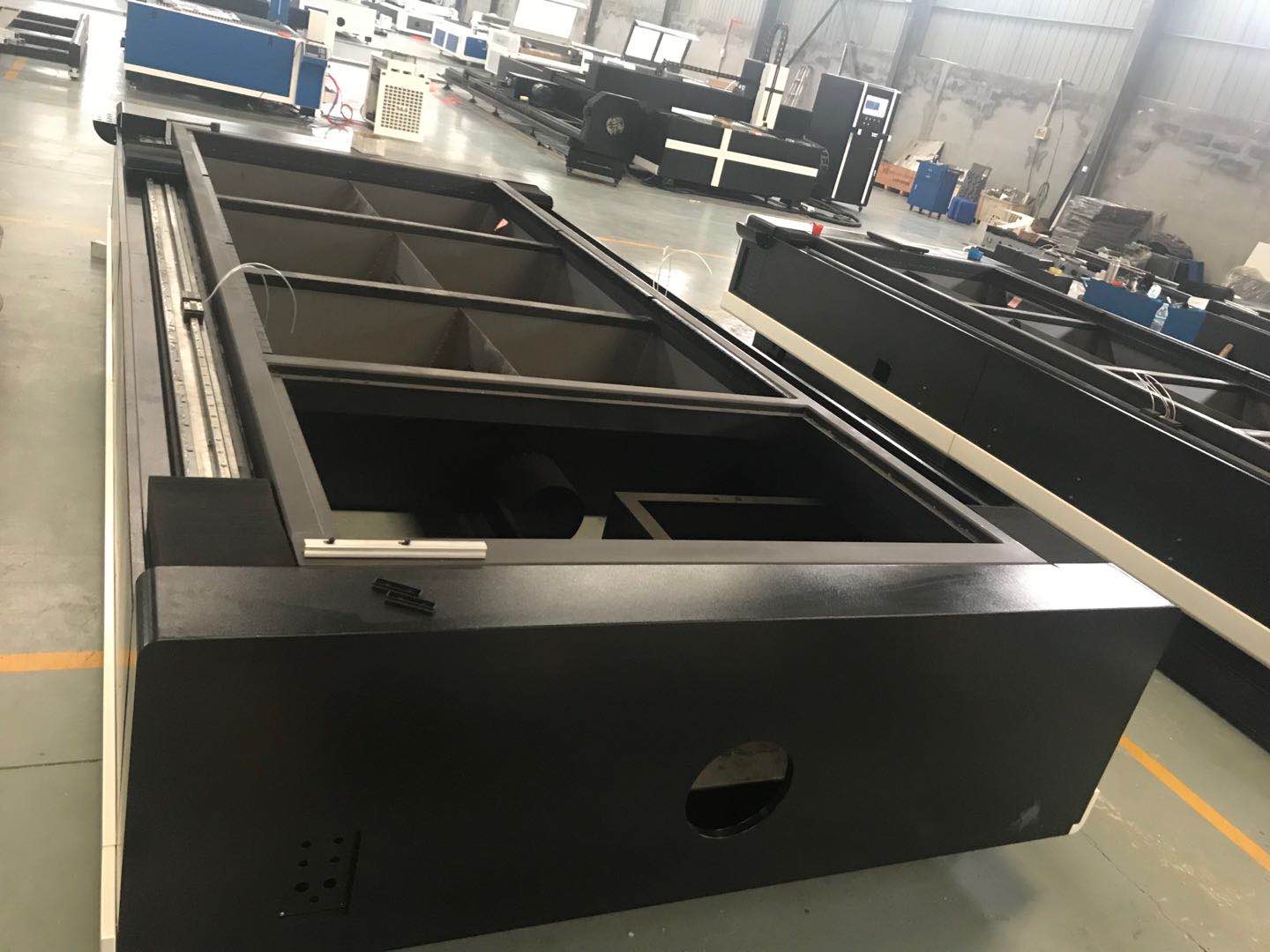

Heavy duty structure table by cnc lathe center milling improve machine stable .

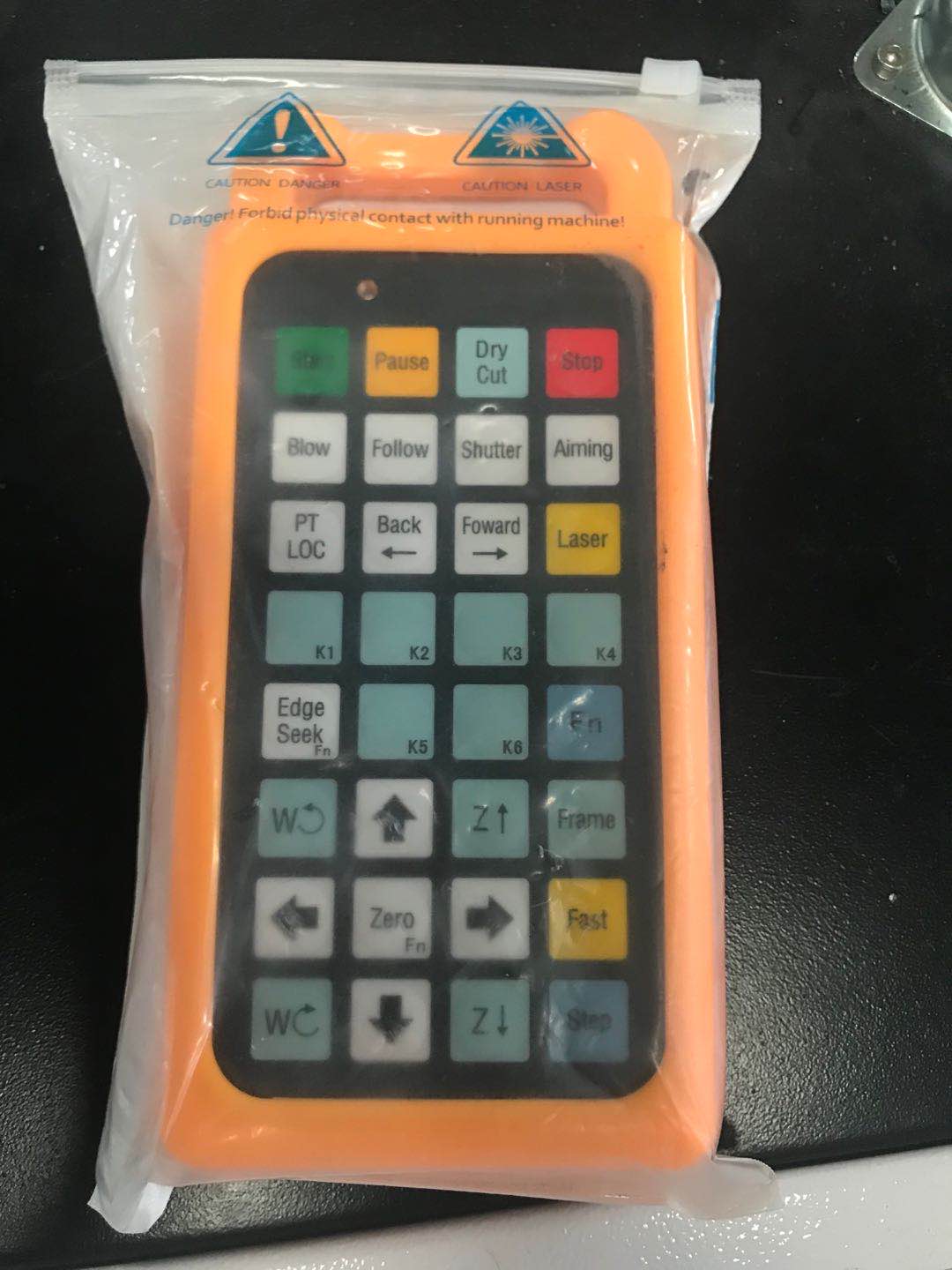

Remote control which can operate machine easily

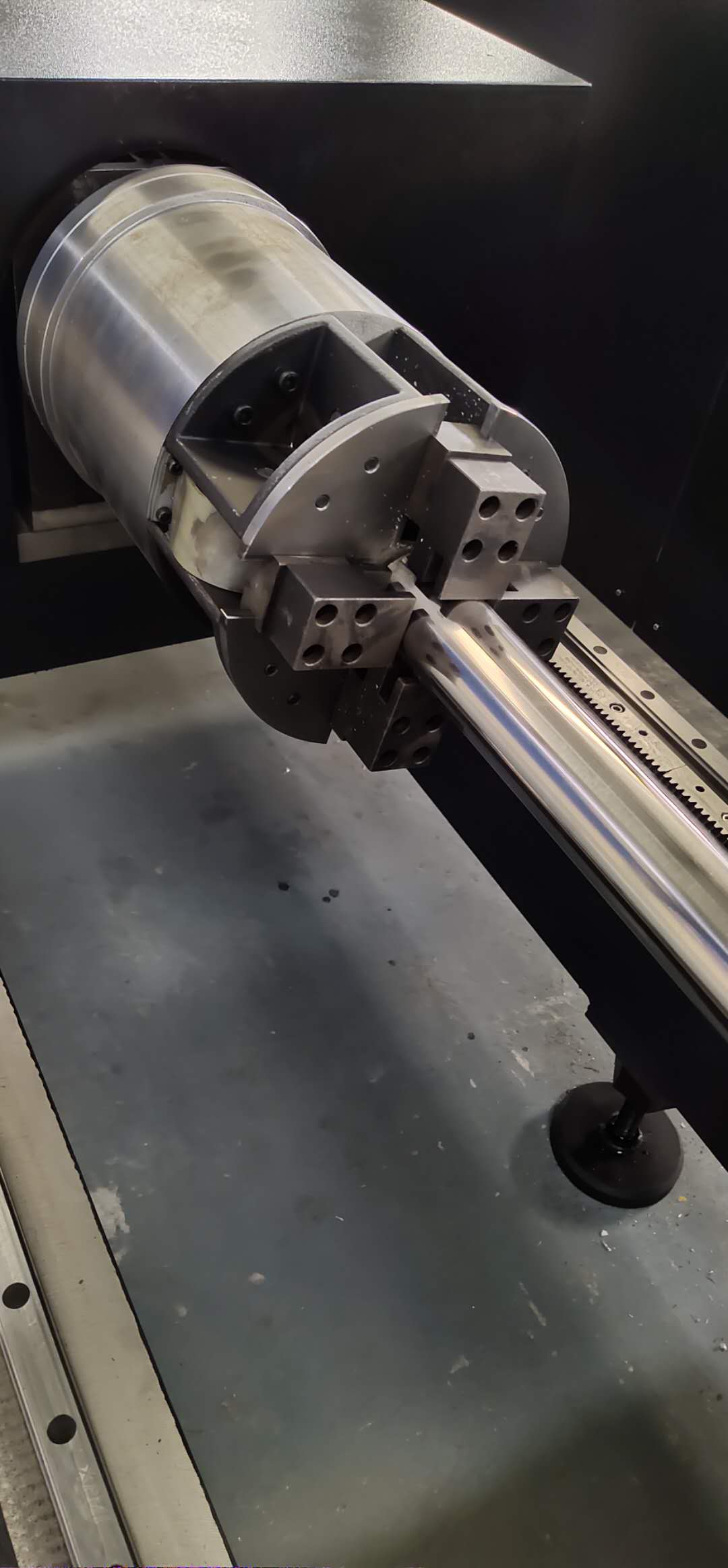

peumatic chuck which can adjust pipe tube well cut high precision and waste material within 100mm

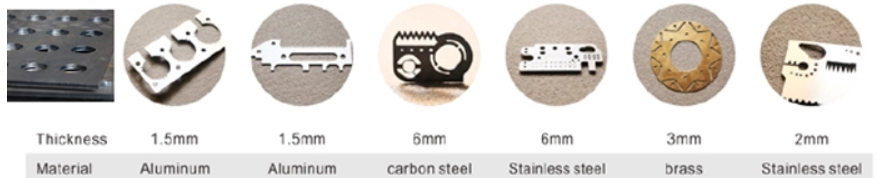

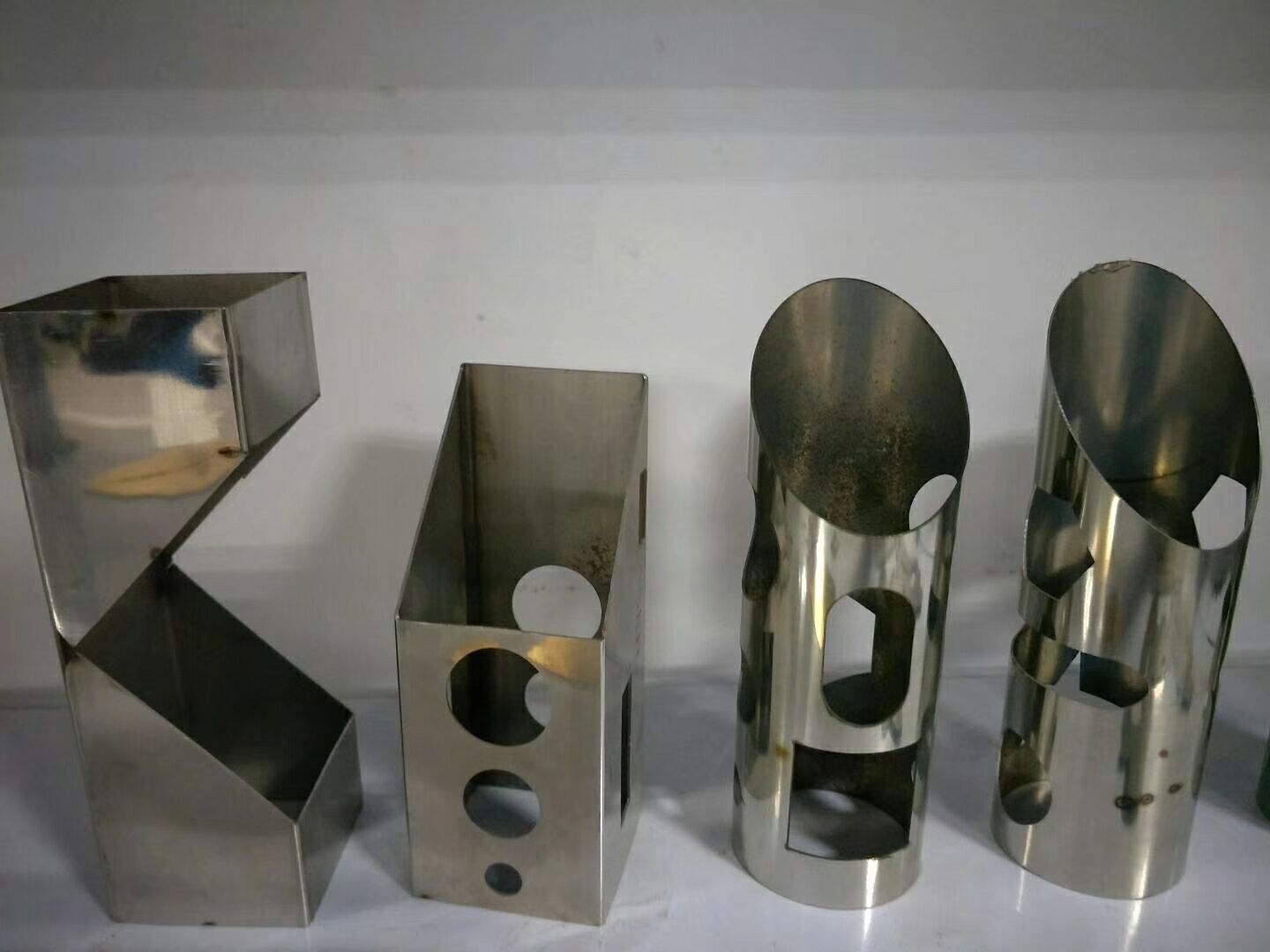

Cutting sample
