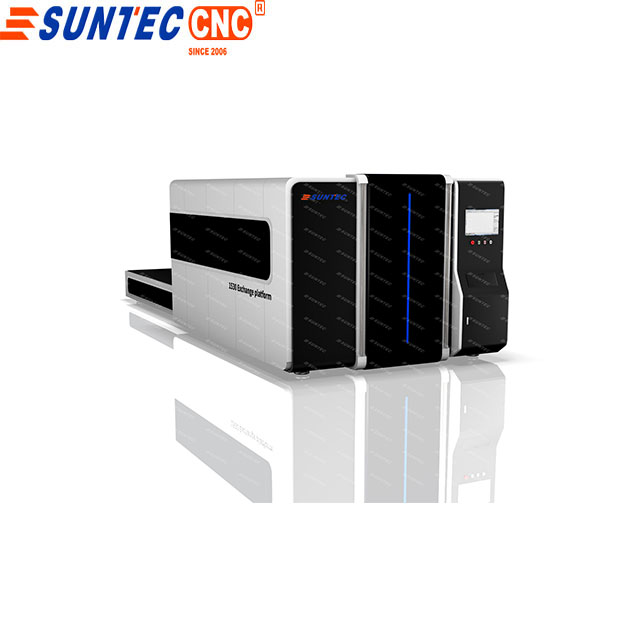

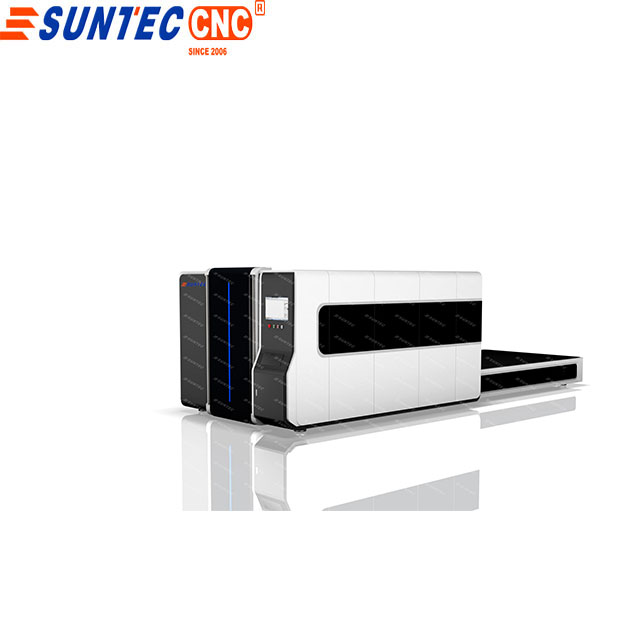

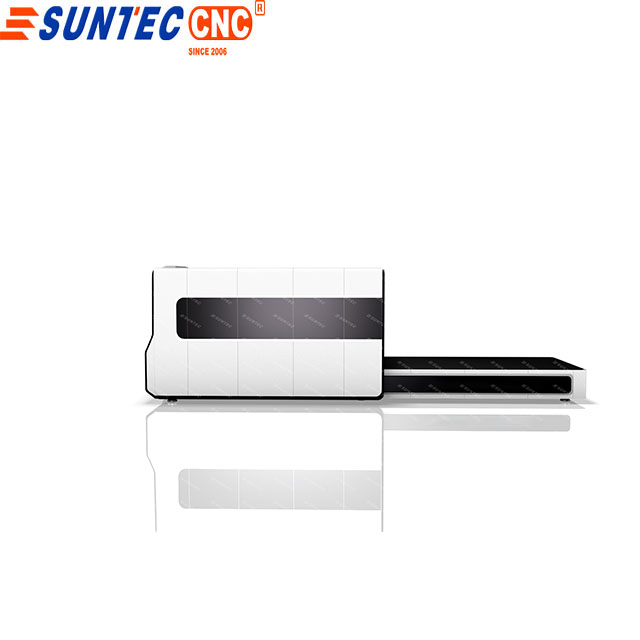

3000w 6000w IPG exchange table fiber laser cutting machine ST2060

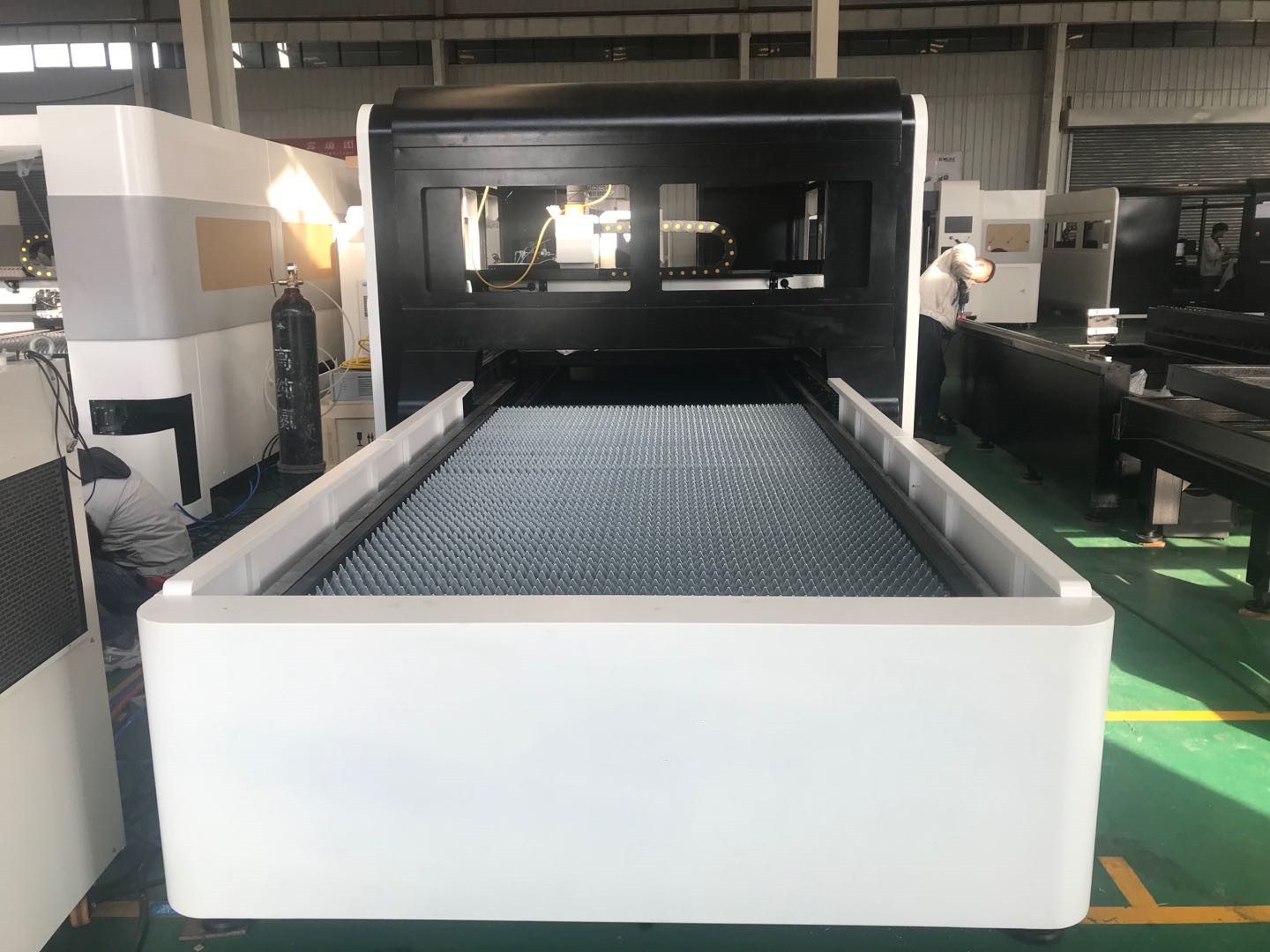

working 2*6m working table with whole cover exchange table
3000w 6000W IPG fiber laser source
heavy duty structure table with heat-treatment using many years no deformed
whole cover to proect labors safety
5. High powerful japan yaskawa driver and motor
6. Rotary for optional .
Machine model | ST2060 fiber laser cutting machine |
Laser source | 3000W ipg 6000w fiber laser source |
Control system | Shanghai Cypcut system |
Working size | X,Y 1500x3000mm |
Cutting head | Swiss Raytools (optional Worthing ) |
Driver and motor for Y | Y axis double Yaskawa servo driver and motor |
Driver and motor for X | X axis Yaskawa motor and driver |
Driver and motor for Z | Z axisPanasonic driver and motor |
Reducer | France MOTOVARIO |
Reducer ratio | 5:1 |
Rack and pinion | Taiwan APEX |
X,Y,Z guide rail | Taiwan Hiwin guide rail |
Water cooling system | TONGFEI water chiller (double temperature control) |
Electricals | Schneider |
Support software | DXF , PLT ,AI , LXD , Gerber ,NC , G. code |
Repeat positioning accuracy | ±0.02mm |
Maximum speed | 120m/min |
Maximum Acceleration | 1.5G |
Focus lens | 125mm |
Power supply | 380V 50HZ /60HZ 3PH |
Total power | 20.1kw |
Application material | Stainless steel , carbon steel ,galvanized sheet ,brass ,aluminum , silver ,mild steel , silicon steel , titanium alloy etc . |
Warranty | 3 years |

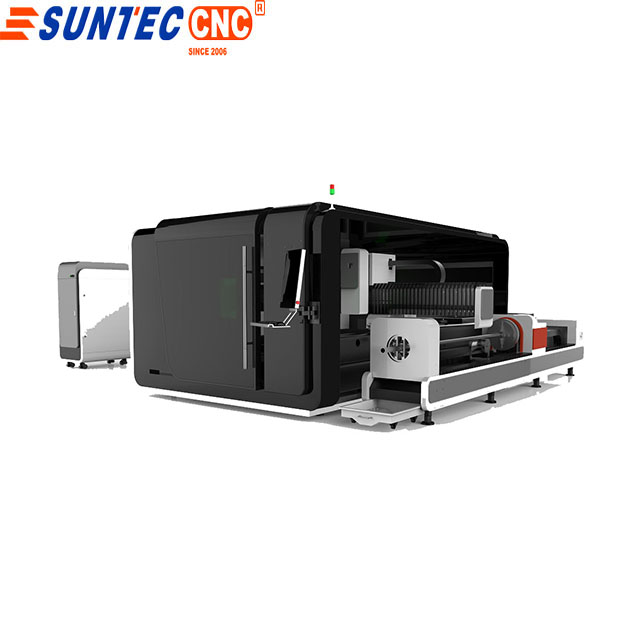

rotary for optional 6 m 3 m or any size according your requirements .

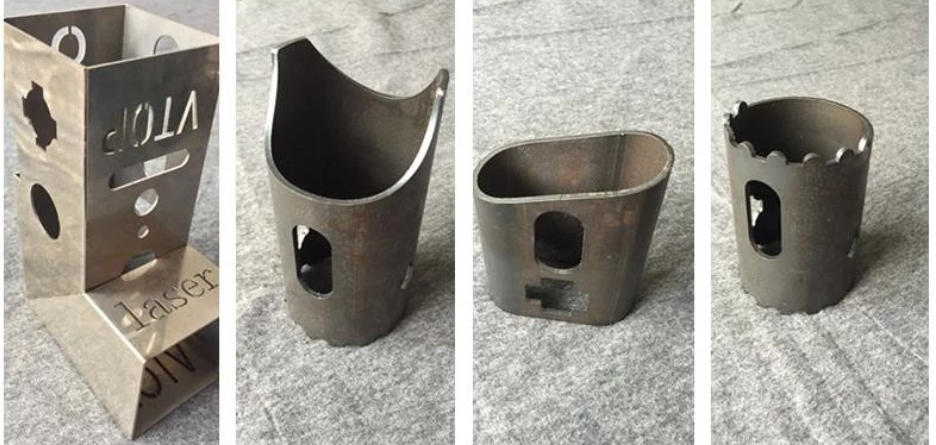

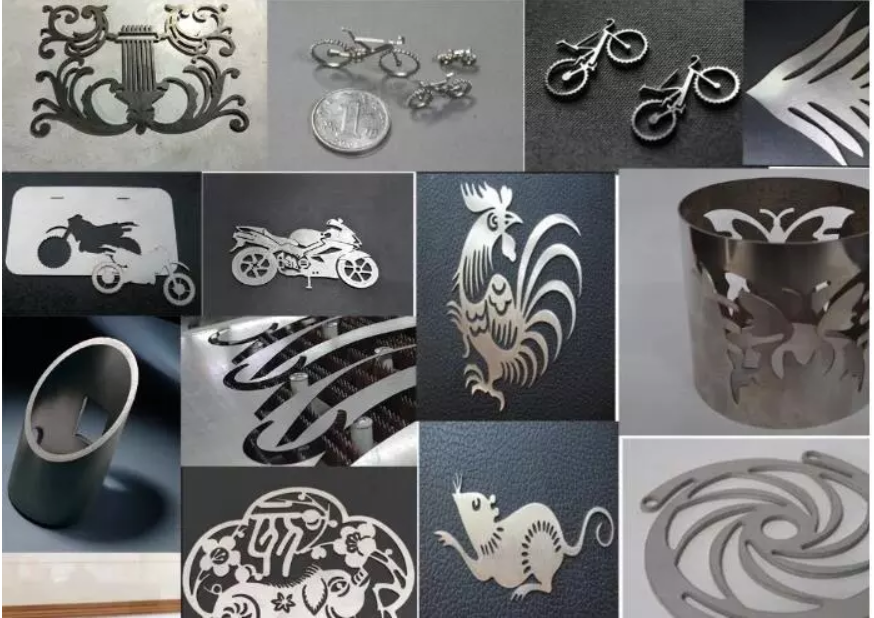

working sample
