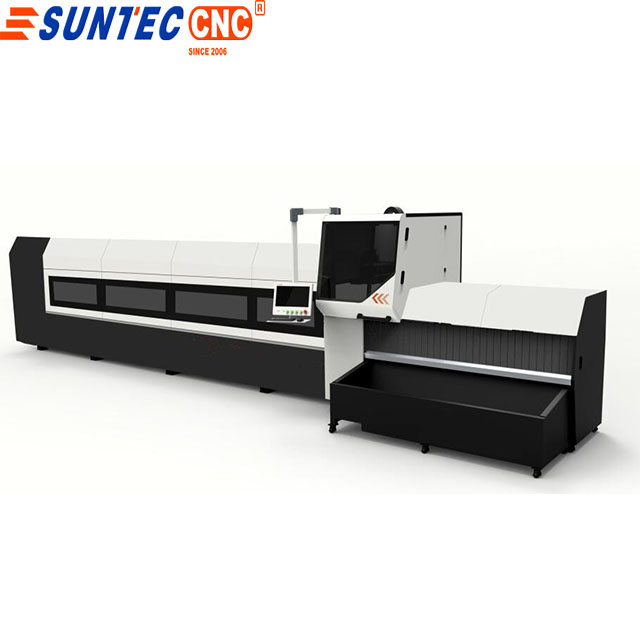

automatic bundle 1500wIPG pipe fube fiber laser cutting machine

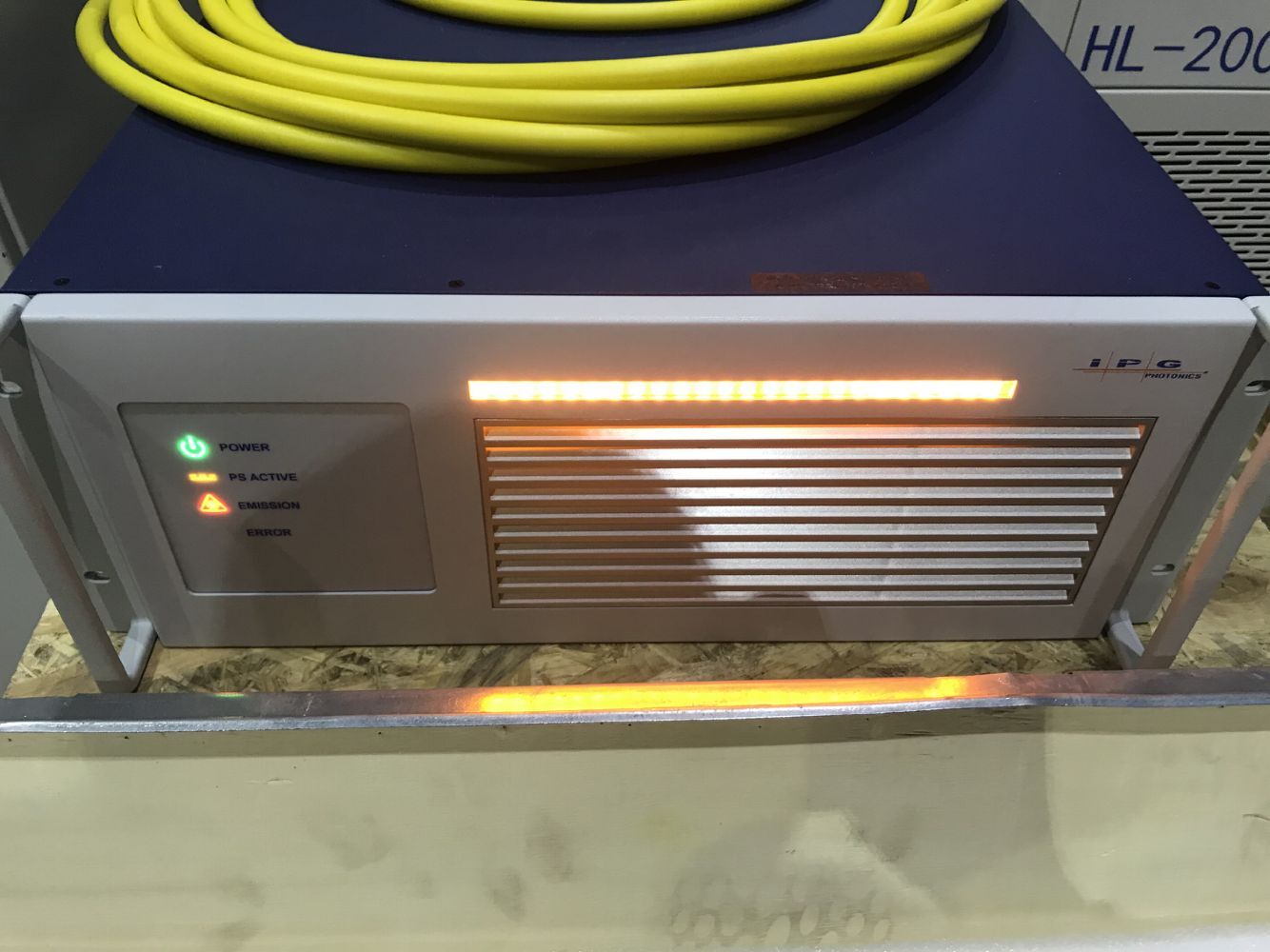

1500w IPG fiber laser source or Raycus laser source for optional
Max cutting length 6m working diameter 20-220mm
Carbon steel stailless steel ,aluminum U H L profile according your design .
Heavy duty structure table with heat-treatment , which can use many years no deformed .
Automatic bundle feeding systerm which can save labor .
Wast material within 100mm .
Peumatic chuck very high precision and suitable for all the thickness .
Working area | 6000x220mm |
Laser Power | 1KW(1500W/2000W optional) |
Laser Wavelength | 1064nm |
Application Materials | Metal tube |
Max. Cutting Thickness | SS:4-10mm,Carbon steel:8-10mm |
Gross Power | 8-10KW |
Positioning Accuracy | ±0.03mm/m |
Reposition Accuracy | ±0.02mm |
Max cutting speed | 15m/min(different material, different speed) |
Max speed of Movement | 80m/min |
Cooling Model | Water cooling |

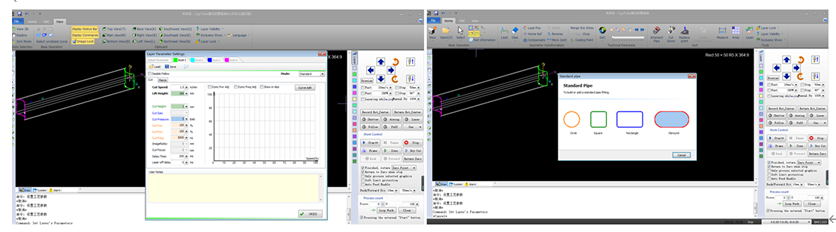

Cycut software to cut any rofile according your drawing

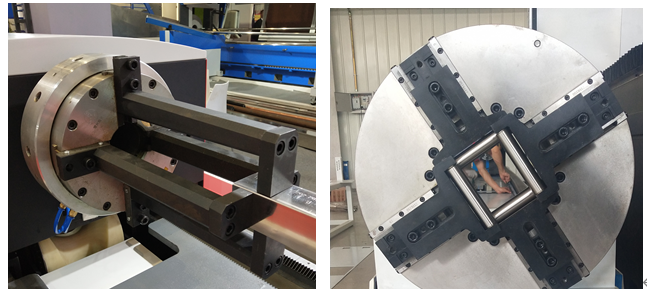

Peumatic chucks with different thickness to make sure high precision

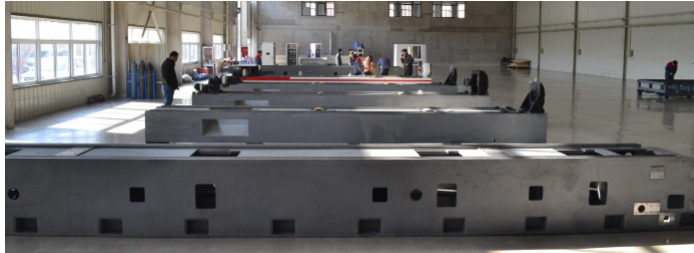

Heavy duty structure table with heat-treatment which can use many years no defomed

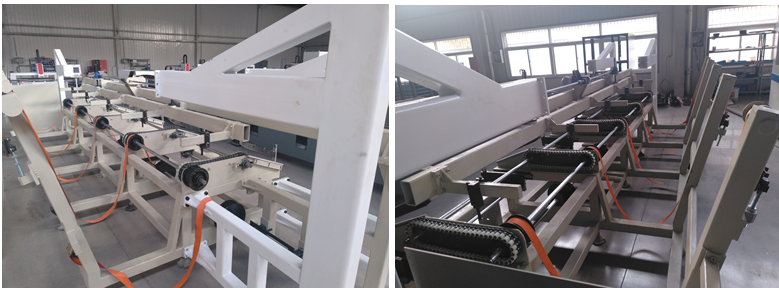

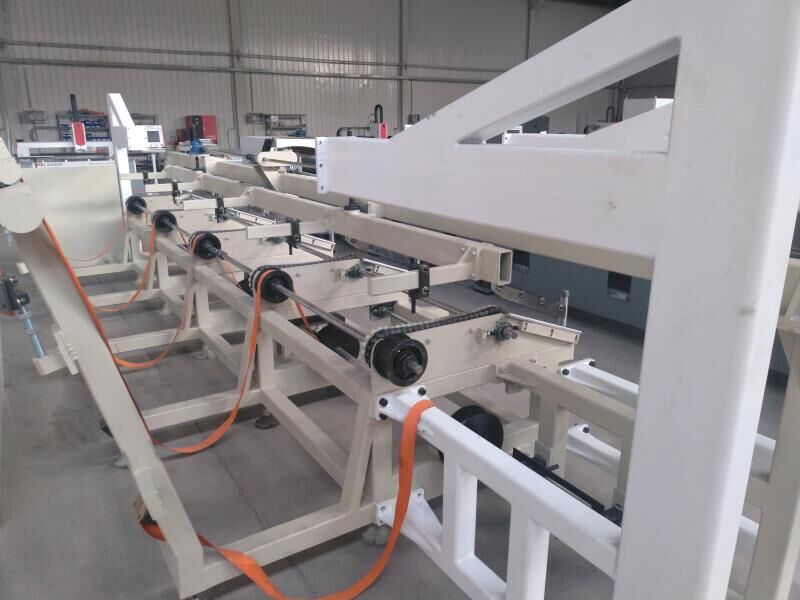

Automatic loading bundle systerms

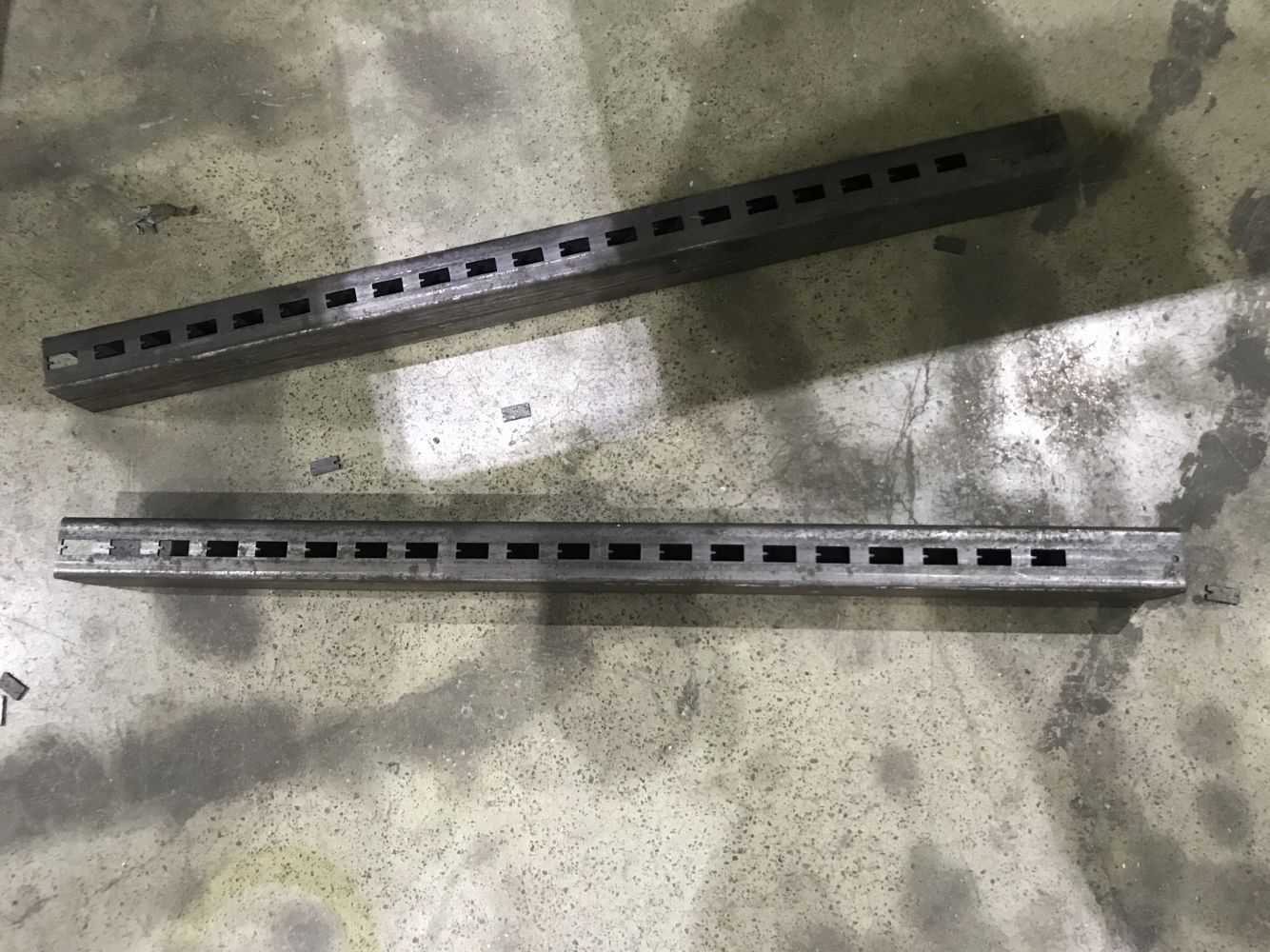

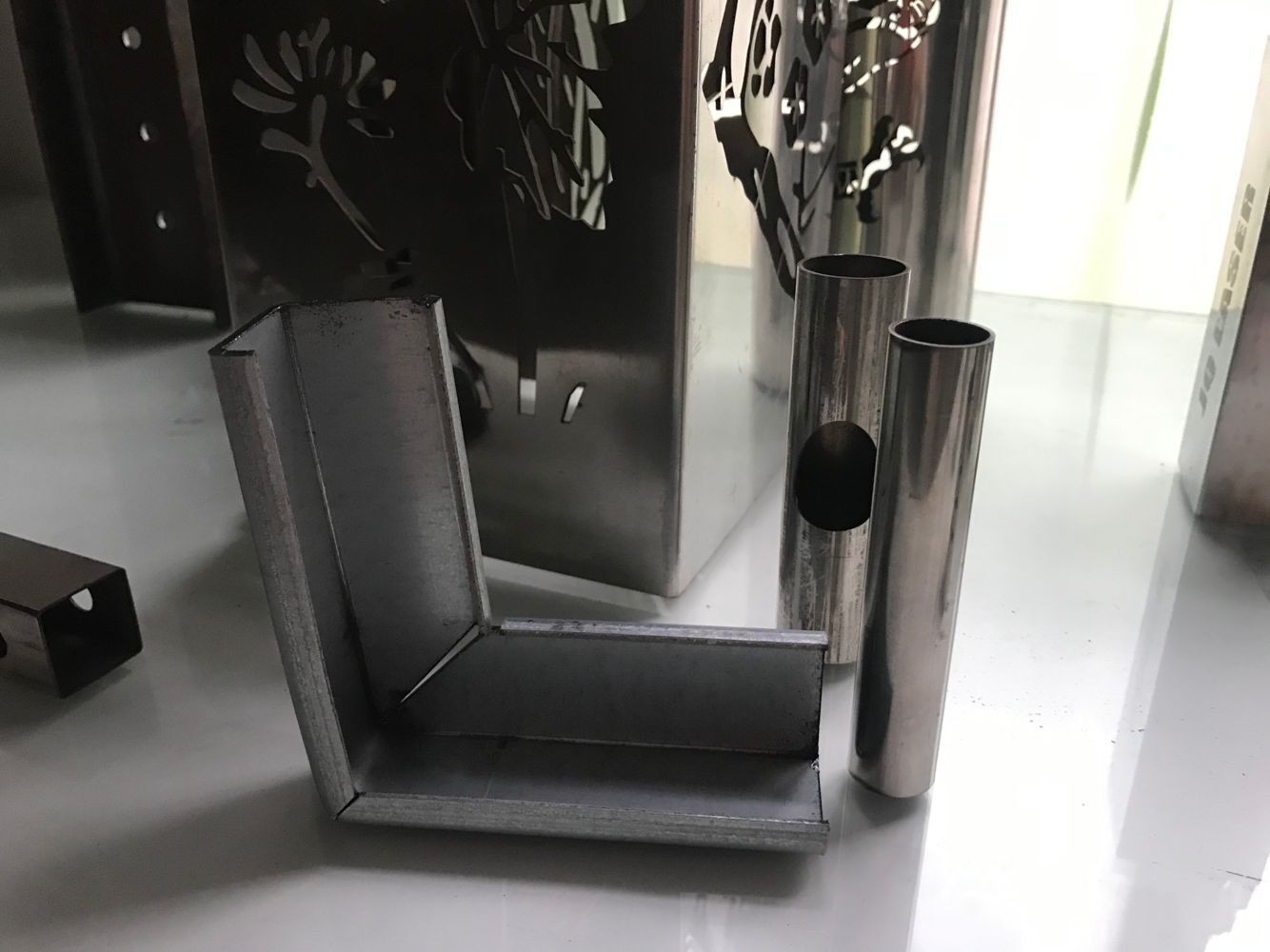

Working sample
