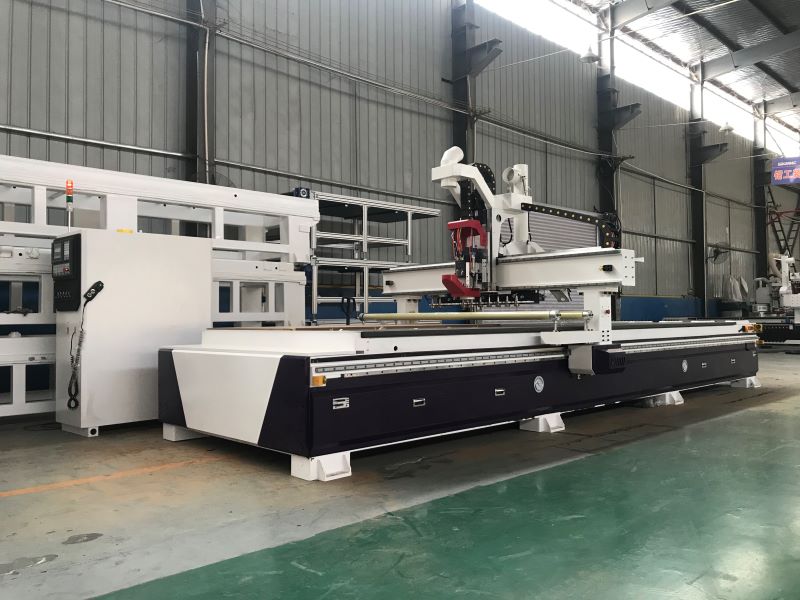

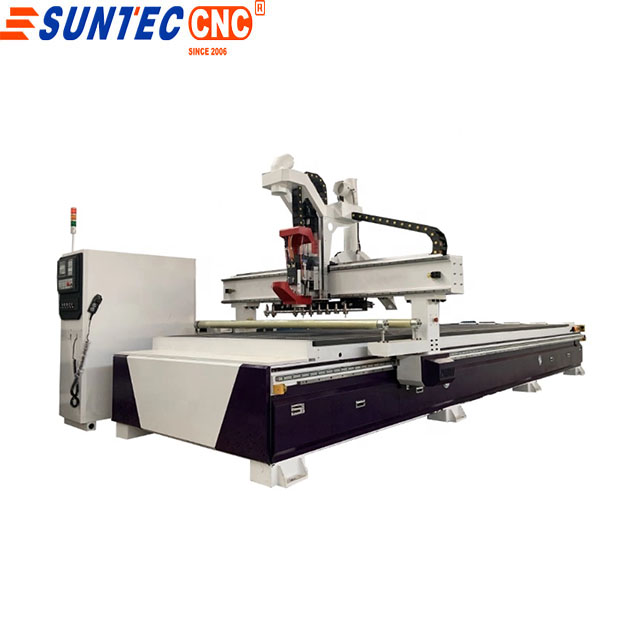

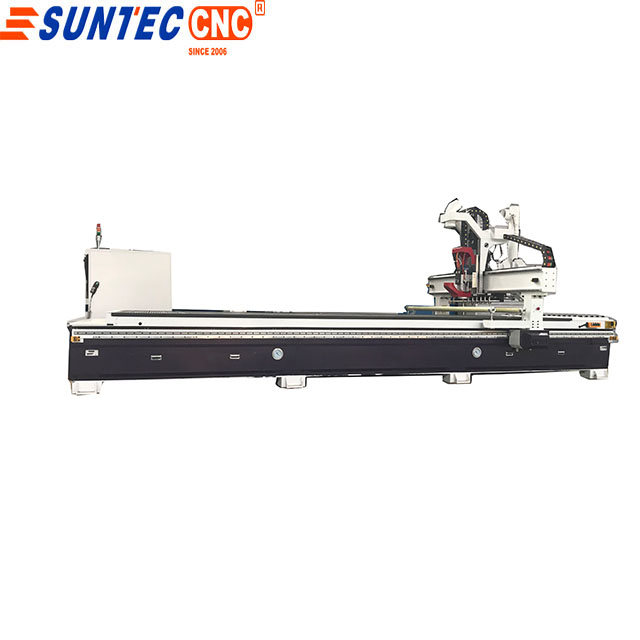

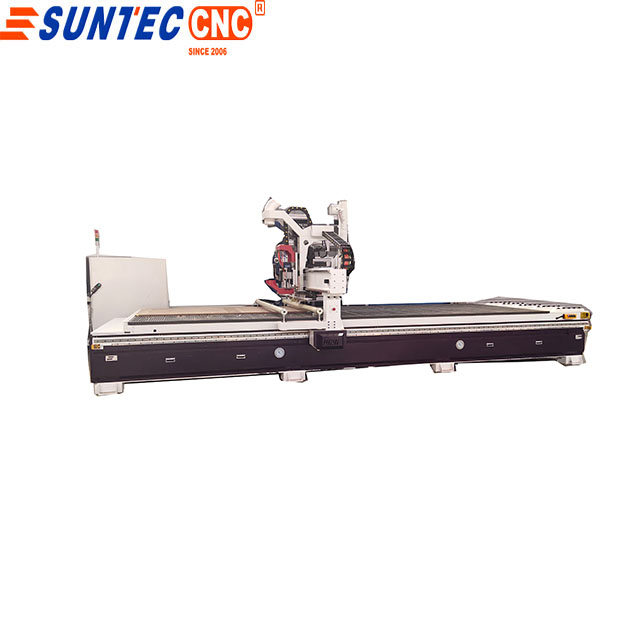

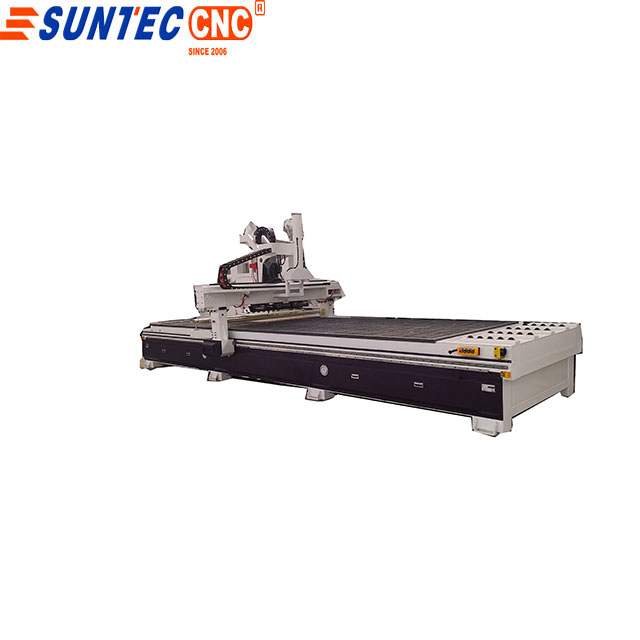

Automatic tool change wood cabinet making cnc router ST2060

Automatic tool change wood cabinet making cnc router ST2060

1. 9kw Italy HSD spindle 24000 rpm ISO30

2. Linear atc 12 piece tools fast speed for change tools to make different design .

3. japan yaskwa driver and motor

4. working 2000*6000mm /2000*4000/1300*2500mm or other customized size

5. .vacuum table with vacuum table

6. syntec control with handwheel

7. Tool measure unit for right position

8. Dust collector cover customized


9. Taiwan Hiwin square guide to make fast speed high precision .




   Description	Parameters
   Model	ST-2060
   Working Area	2000x6000x300mm
   Table Size	6150x3440mm
   Machine structure	Welded Steel square tube
   Traveling Positioning Accuracy	±0.03/300mm
   Repositioning Accuracy	±0.03mm
   Table Surface	Vacuum table
   X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear   Bearings
   Z Structure	Hiwin Rail Linear Bearings and Ball Screw
   Max. Power Consumption (Without spindle)	11KW
   Max. Rapid Travel Rate	33000mm/min
   Max. Working Speed	2500mm/min
   Spindle head	9.0kw Italy HSD spindle, drill bank optional
   Spindle Speed	0-24000RPM
   Drive Motors	Japan YASKAWA Servo motor
   Working Voltage	AC380V/50/60Hz,3PH
   Command Language	G code
   Operating System	Taiwan Syntec controller
   Computer Interface	USB
   Collet	ER32
   Software Compatibility	Type3 / Ucancam / Artcam
   Running Environment Temperature	0°C~45°C
   Relative humidity	30%~75%

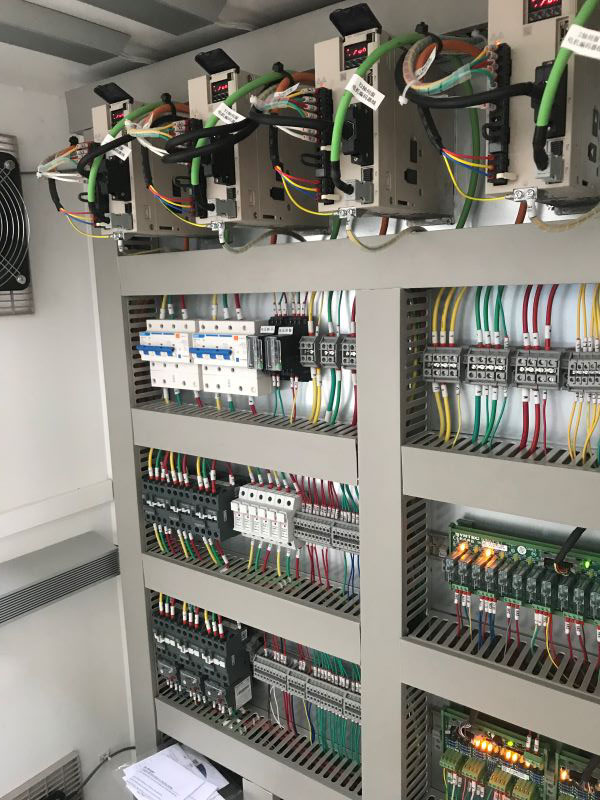

Japan yaskwa driver control box

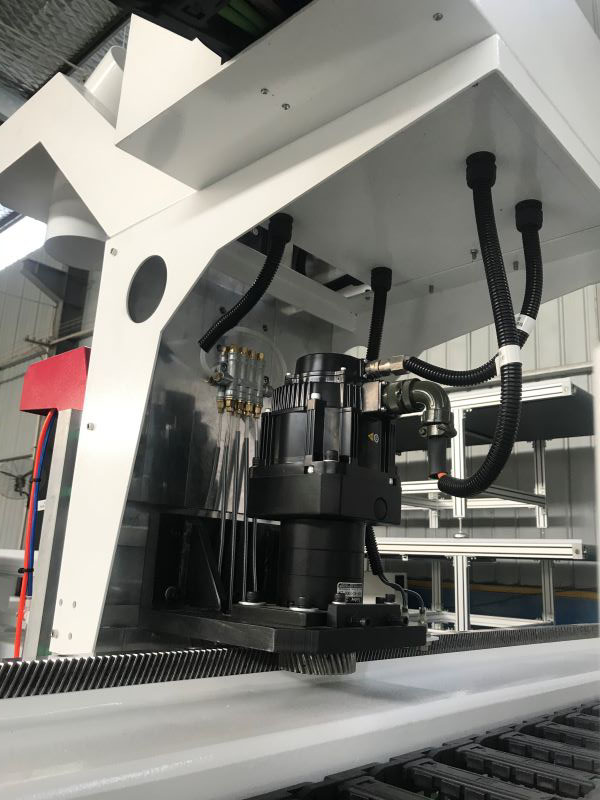

japan yaskawa motor

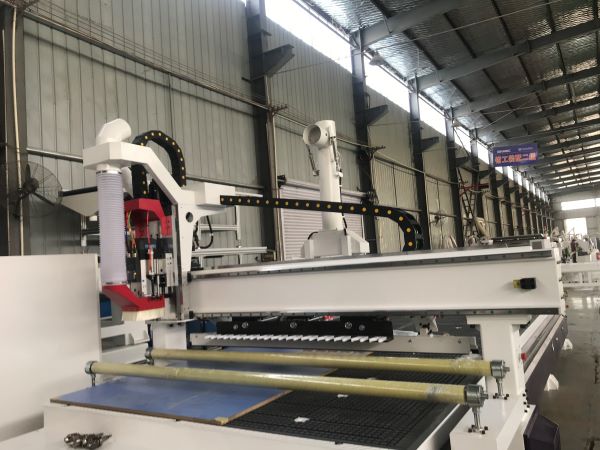

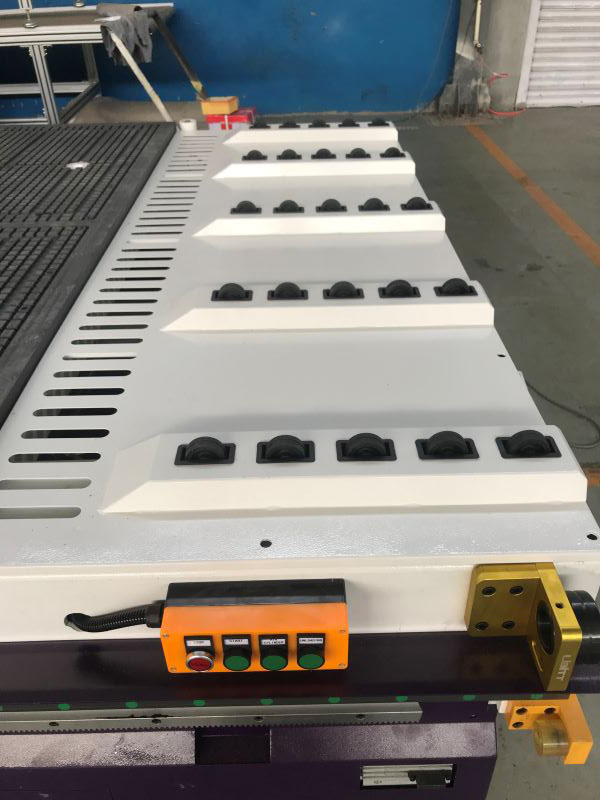

automatic loading table to loading wood easily to put with this wheel

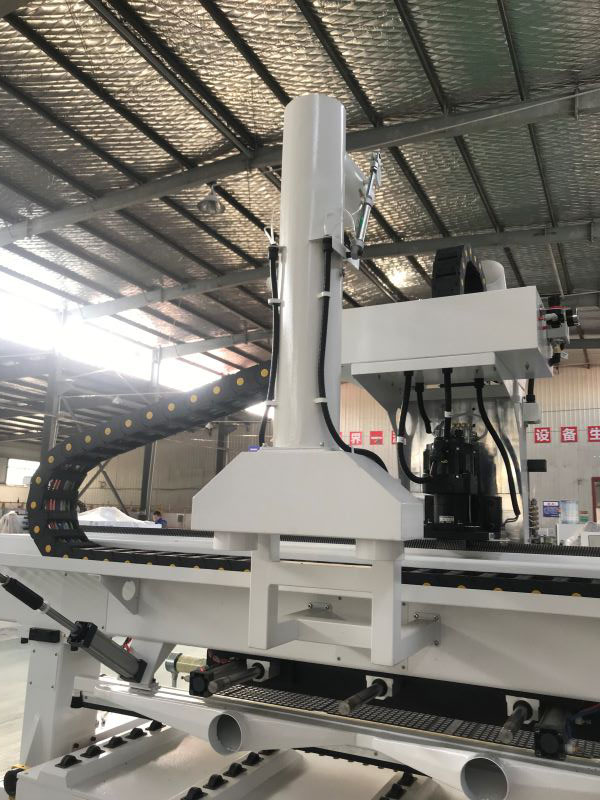

dust colletor pump device for dust collector and automatic vacuum pump cups to pull wood fast to working area

press wheel for optional for press wood tightly

9kw HSD spindle 24000 rpm ISO30 ATC spindle

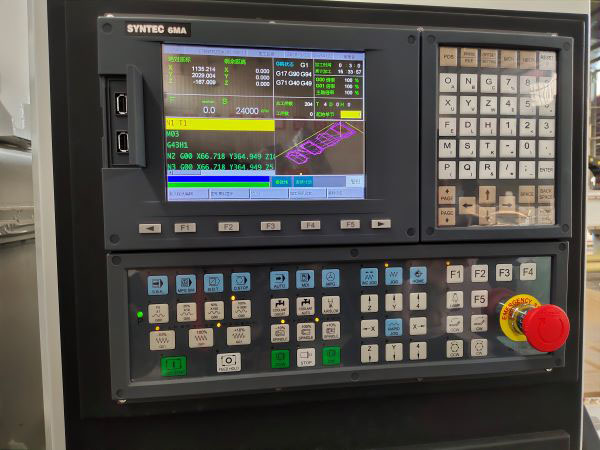

Syntec control with handwheel  easily to control box just using u disk to put design then operate machine easily

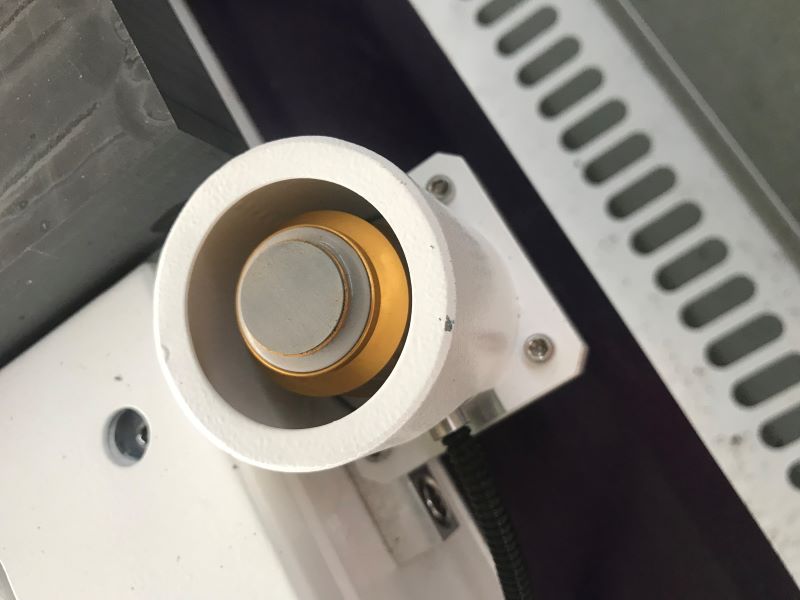

Tool measure unit  to automatically tool setting

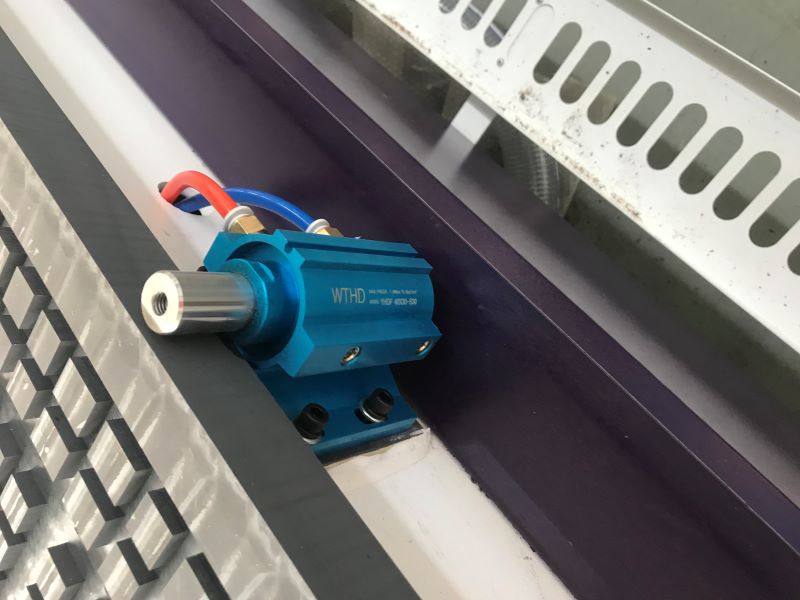

balancy cyliner to keep the wood flat at right position
