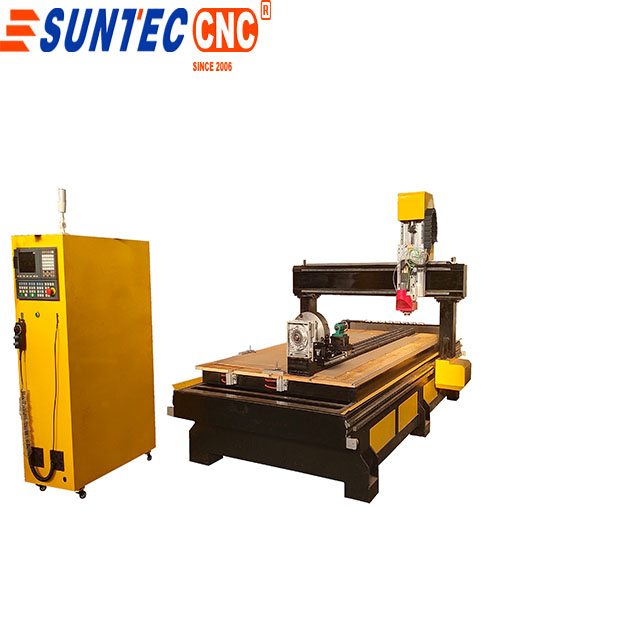

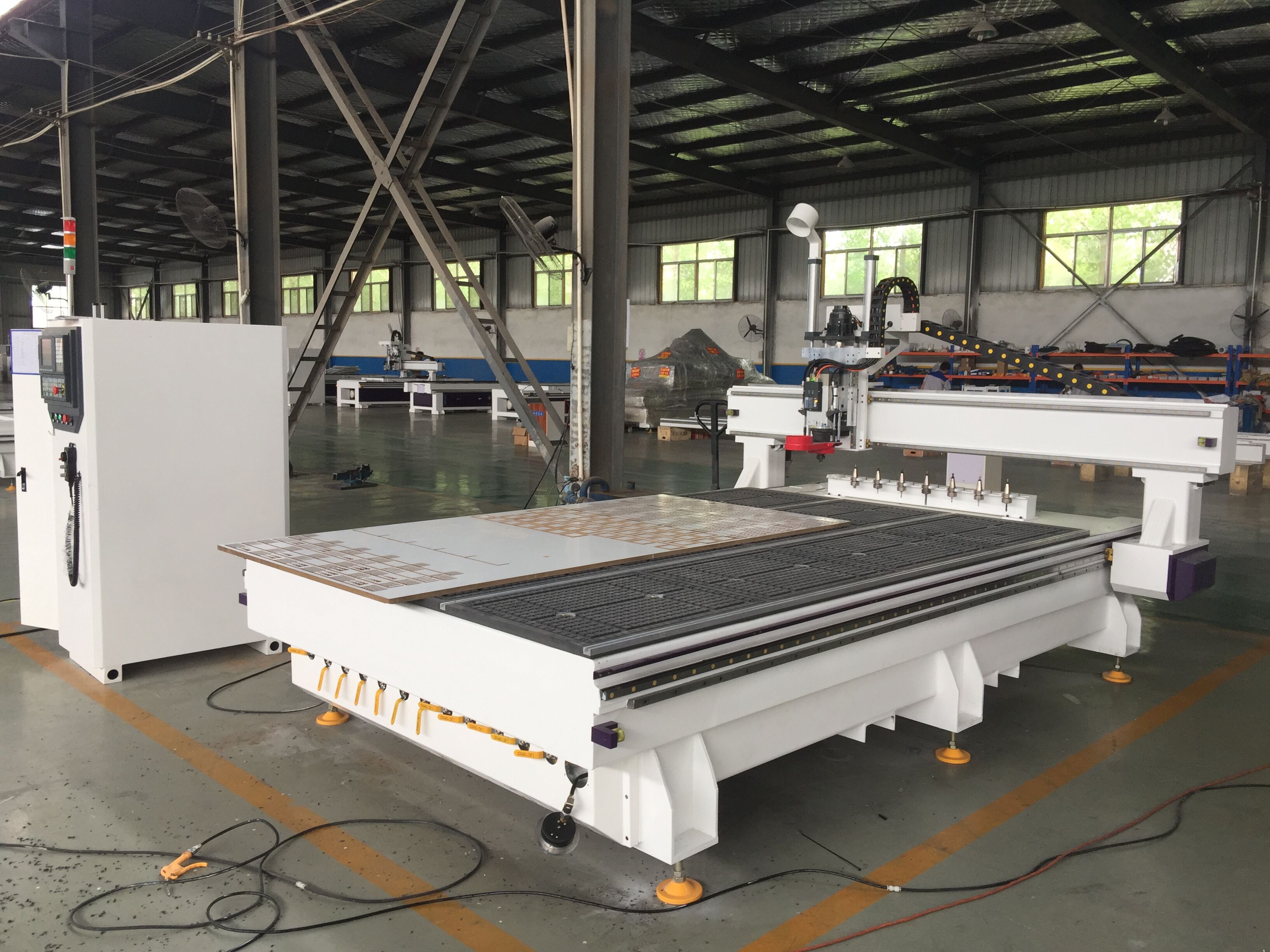

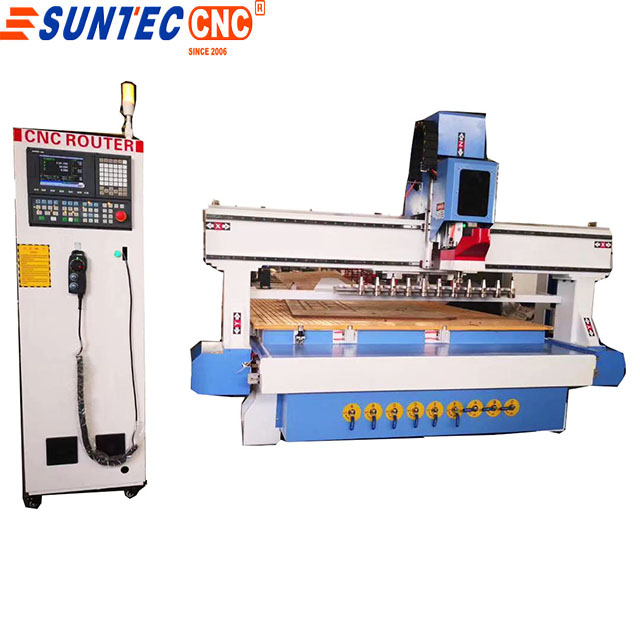

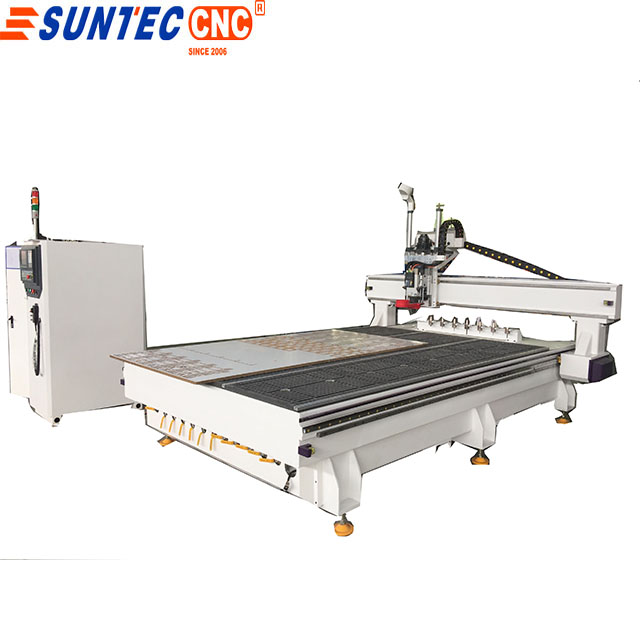

wood cabinet making linear atc cnc router ST1325 with rotary
1. working 1300*2500mm
2. 9kw HSD spindle 24000 rpm ISO30
3. vacum table with vacuum pump 7.5kw
4. Z axsi with balance cyliner
5. Taiwan Hiwin 20 square guide rail
6. syntec control 6MB
7. japan yaskawa driver and motor
8. rotary for optional
Description | Parameters |
Model | ST-1325 |
Working Area | 1300x2500x300mm |
Table Size | 2150x3440mm |
Machine structure | Welded Steel square tube |
Traveling Positioning Accuracy | ±0.03/300mm |
Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum table |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Max. Power Consumption (Without spindle) | 11KW |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 2500mm/min |
Spindle head | 9.0kw Italy HSD spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | Japan YASKAWA Servo motor |
Working Voltage | AC380V/50/60Hz,3PH |
Command Language | G code |
Operating System | Taiwan Syntec controller |
Computer Interface | USB |
Collet | ER32 |
Software Compatibility | Type3 / Ucancam / Artcam |
Running Environment Temperature | 0°C~45°C |
Relative humidity | 30%~75% |
Application of china cnc milling machine
1) Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.
2) Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making.
3) Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
4) Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum

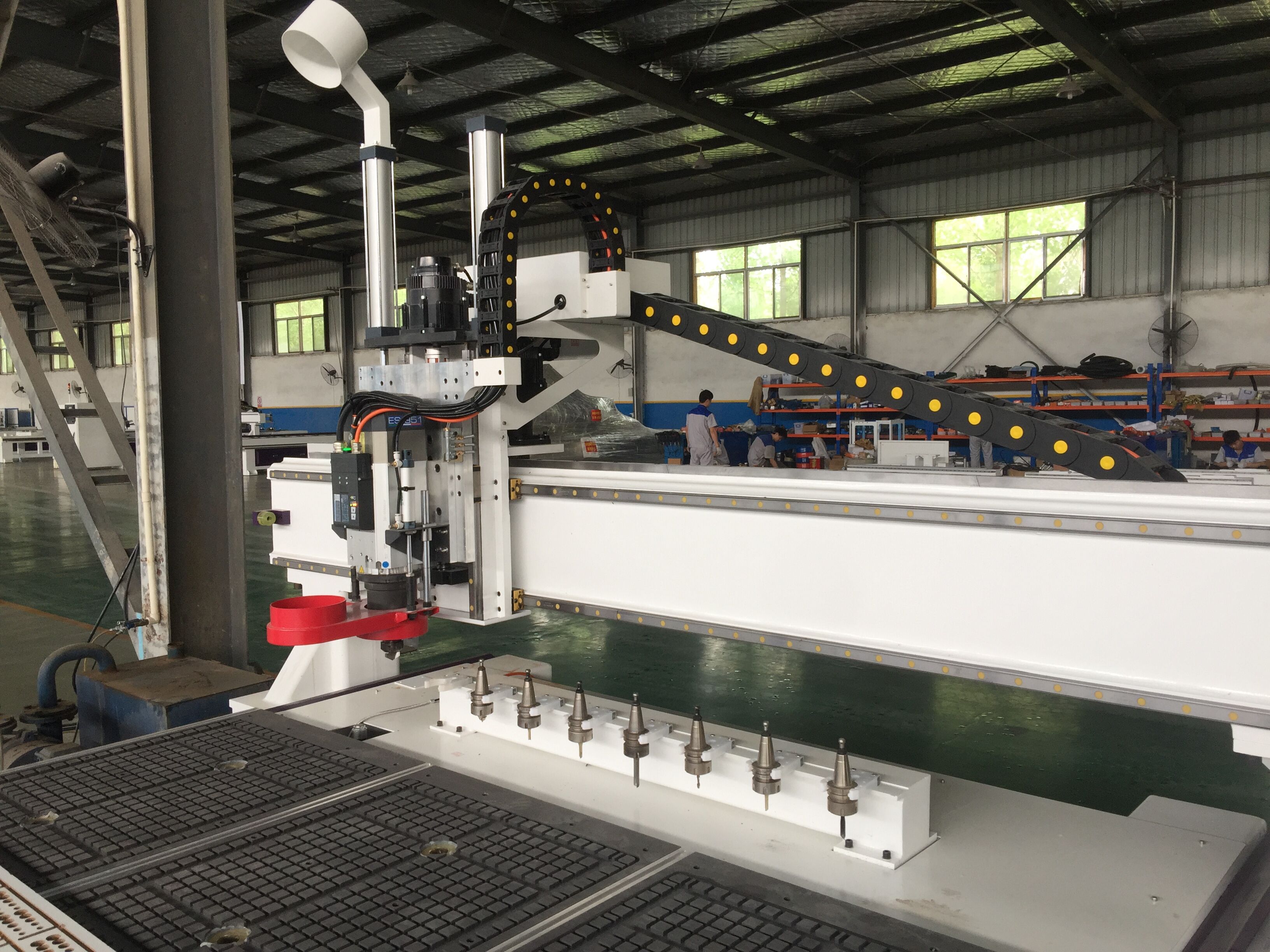

9kw HSD spindle 24000rpm ISO30
working sample
