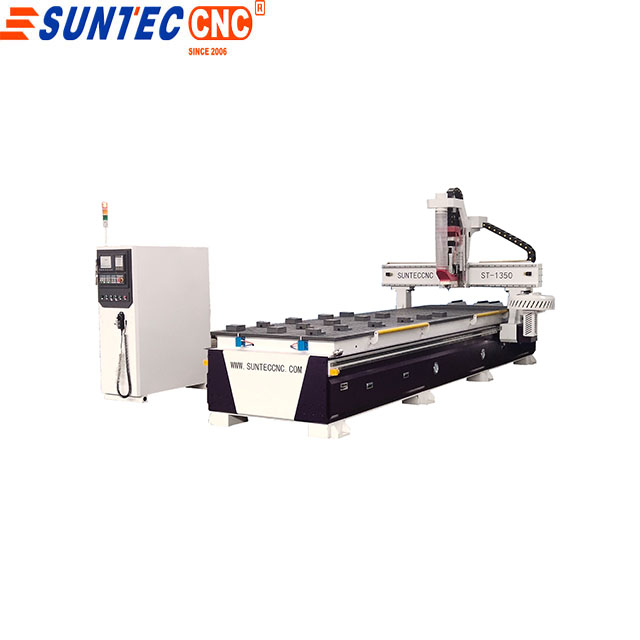

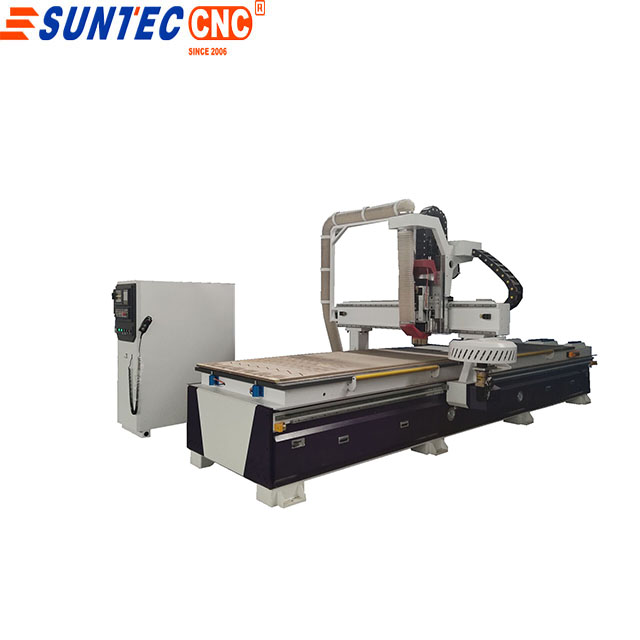

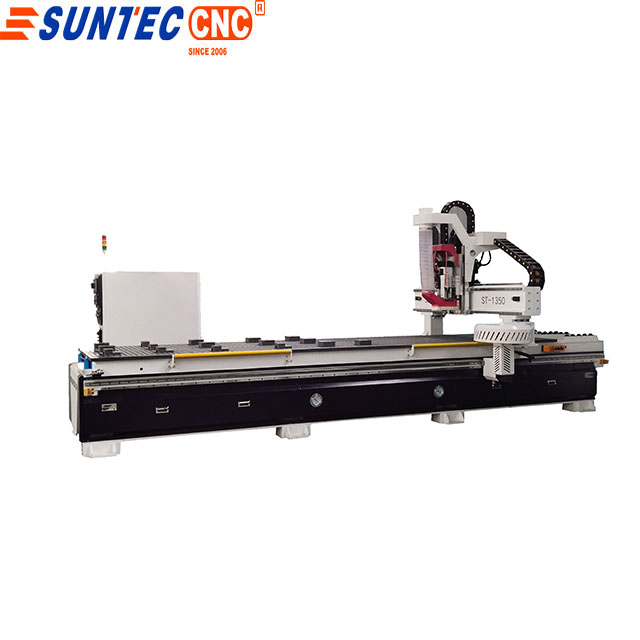

Customized ST1350 cnc router ATC steel plate vacuum cups for wood funiture making
Description | Parameters |
Model | ST-1350 |
Working Area | 1300x5000x200mm |
Table Size | 5840x2240mm |
Machine structure | Welded Steel square tube steel plate |
Traveling Positioning Accuracy | ±0.03/200mm |
Repositioning Accuracy | ±0.01mm |
Table Surface | Vacuum table with steel plate vacuup cups |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Max. Power Consumption (Without spindle) | 12KW |
Max. Rapid Travel Rate | 90000mm/min |
Max. Working Speed | 2500mm/min |
Spindle head | 12kw Italy HSD spindle, drill bank optional |
Spindle Speed | 0-24000RPM |
Drive Motors | Japan YASKAWA Servo motor |
Working Voltage | AC400V/50/60Hz,3PH |
Command Language | G code |
Operating System | Taiwan Syntec controller |
Computer Interface | USB |
Collet | ER32 |
Software Compatibility | Type3 / Ucancam / Artcam |
Running Environment Temperature | 0°C~45°C |
Relative humidity | 30%~75% |

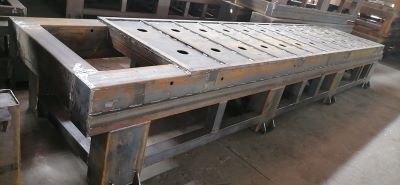

heavy cast iron structure with steel plate heat treatment which can use long time no deformed

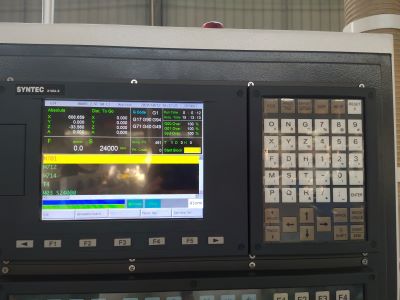

syntec 21MA control which can show working method and read g code easily

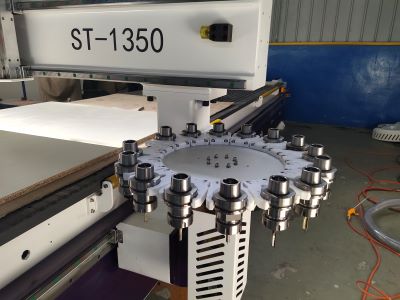

round disck atc 16 piece tools easy to automatic tool change for different shape design

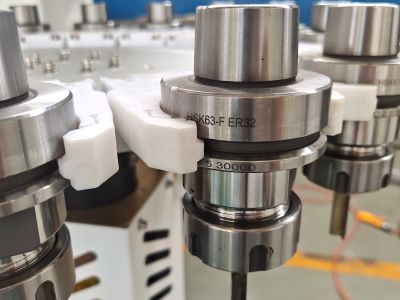

HSK63 er32 collector holders

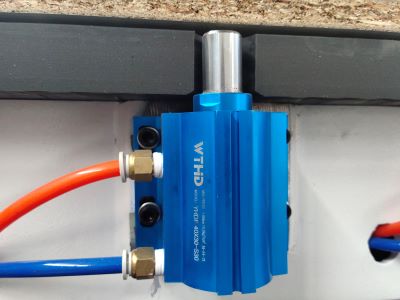

cylider postion for fixed wood material postion

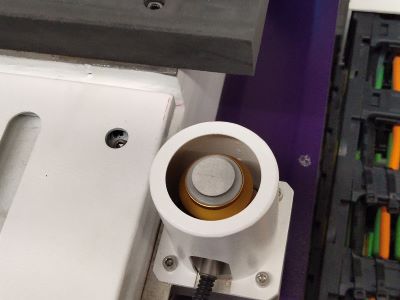

Tool measure unit

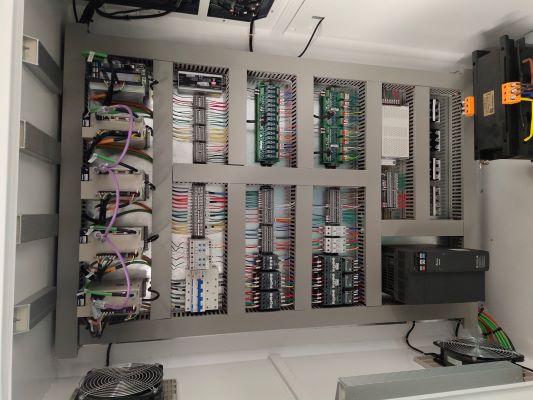

japan yaskawa driver and motor

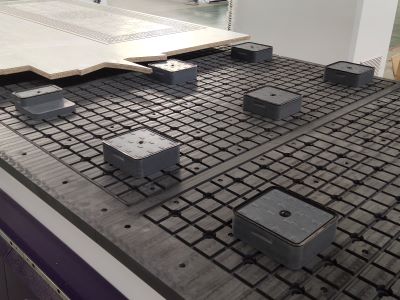

vacuum cups for big and small piece wood around milling

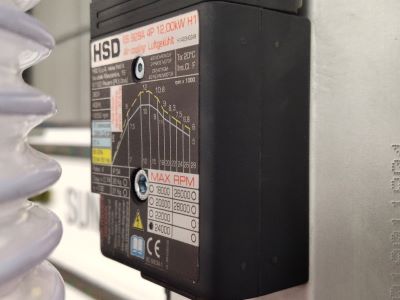

italy 12kw hsd spindle for high powerful

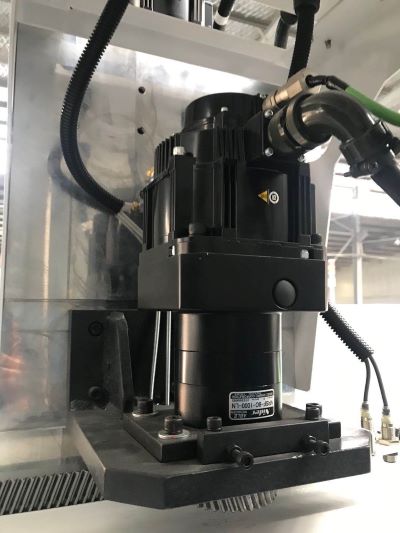

japan yaskawa driver and japan shimpo reducer

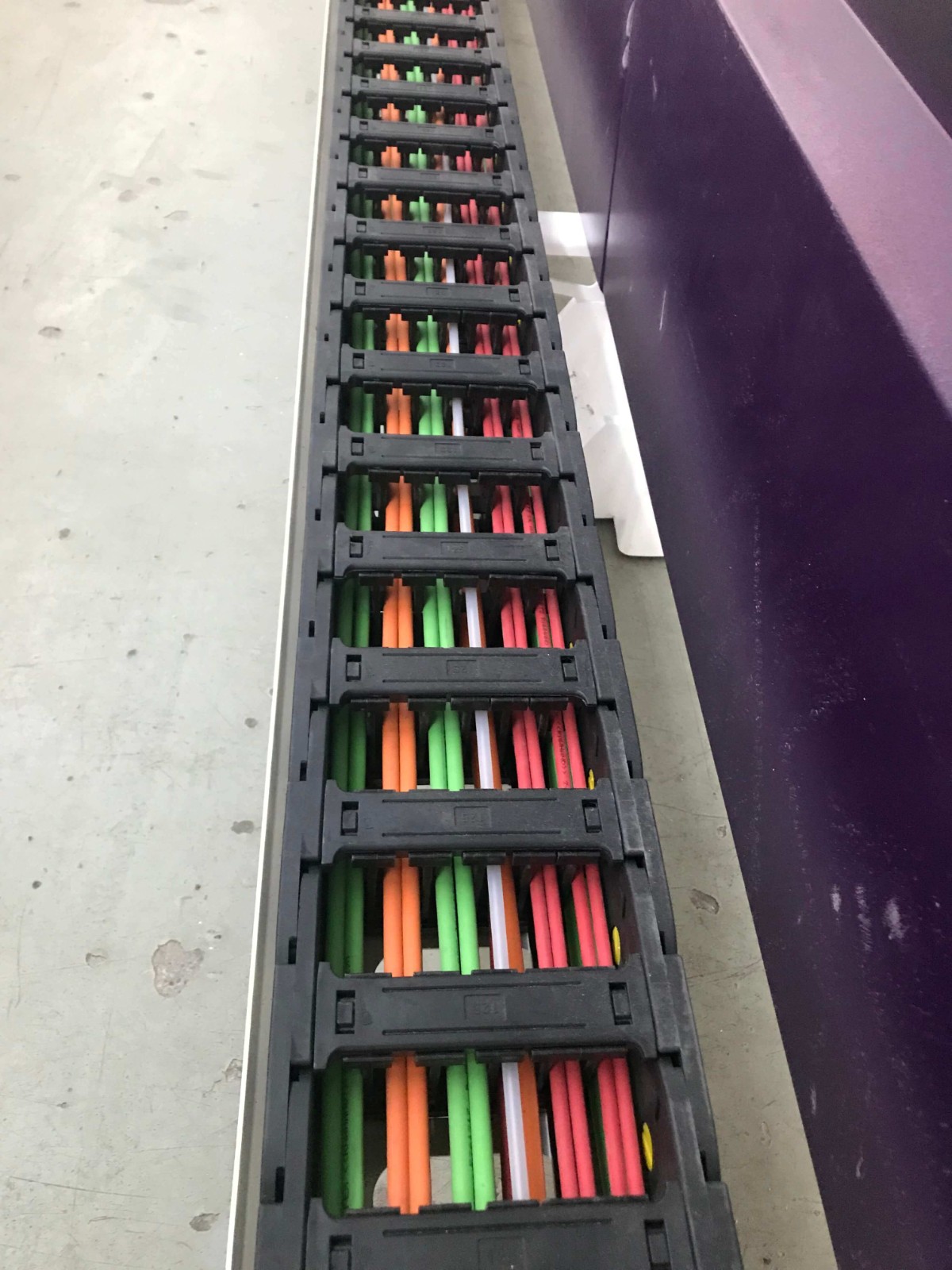

Germany high temperature electrical line
