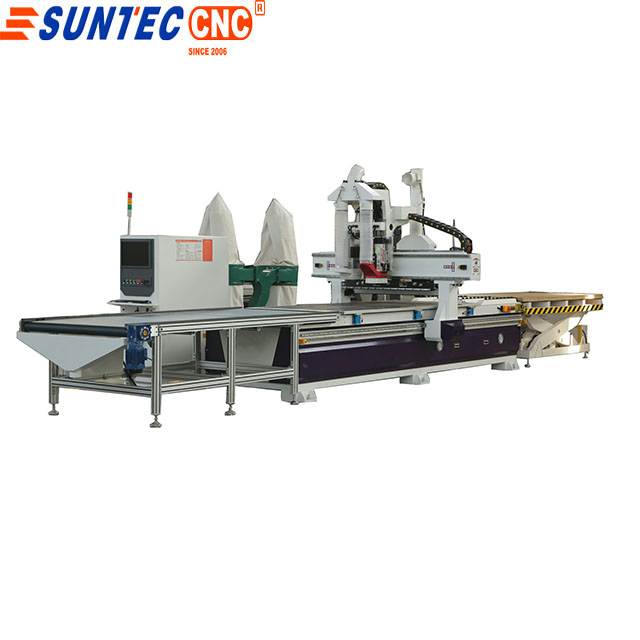

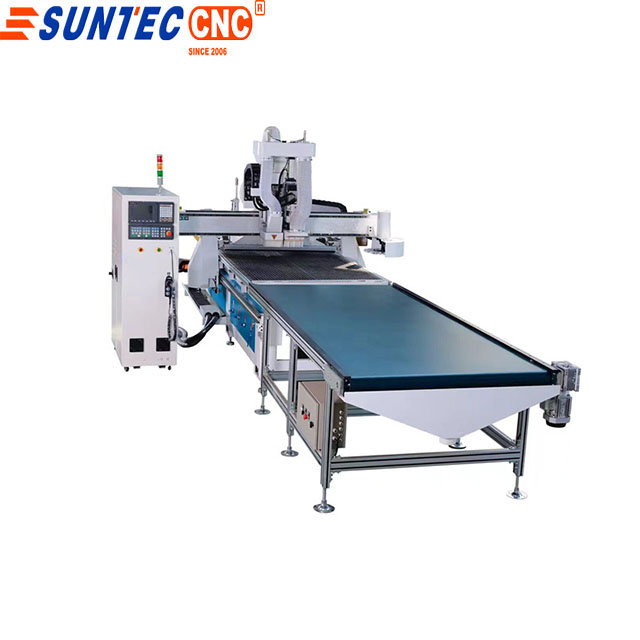

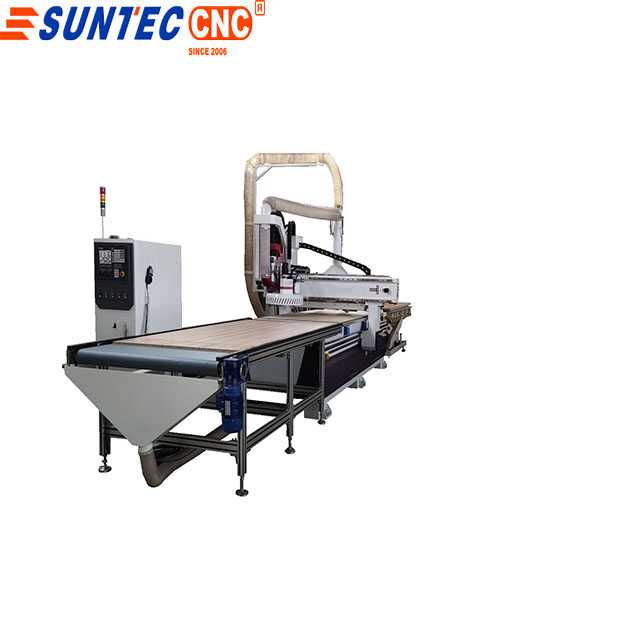

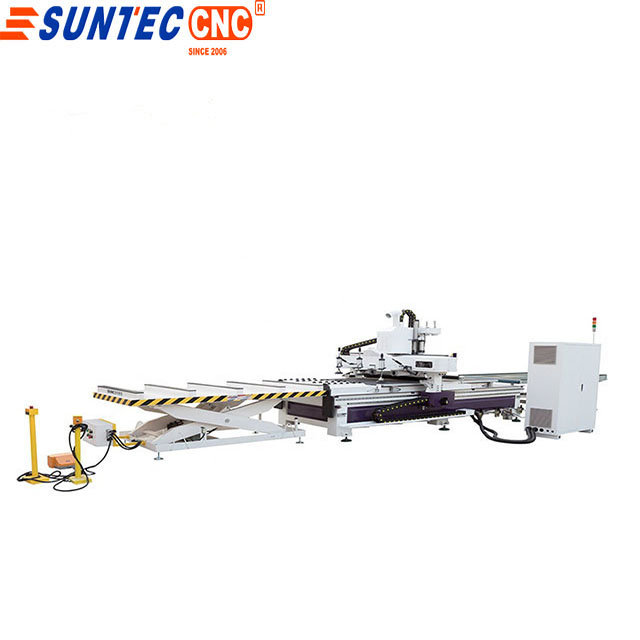

9kw HSD spindle Drilling bank center bank HSD 9V3H1S automatic loading unloading nesting labelling cnc router ST2130

9kw HSD spindle Drilling bank center bank HSD 9V3H1S automatic loading unloading nesting labelling cnc router ST2130

1. working 2100*3000*300mm

2. 9.6kw italy HSD spindle 24000 rpm ISO30  low  noise , high speed .

3. Driling bank center HSD 9v3H1S for optional

4. Europe design whole cover

5. Automatic loading unloading systerm

6. .Labelling system

7. heavy duty structure table

8. vacuum table with 7.5kw vacuum pump




   Description	Parameters
   Model	ST-2130
   Working Area	2100x3000x300mm
   Table Size	3150x4440mm
   Machine structure	Welded Steel square tube
   Traveling Positioning Accuracy	±0.01/300mm
   Repositioning Accuracy	±0.01mm
   Table Surface	Vacuum table
   X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear   Bearings
   Z Structure	Hiwin Rail Linear Bearings and Ball Screw
   Max. Power Consumption (Without spindle)	11KW
   Max. Rapid Travel Rate	8000mm/min
   Max. Working Speed	6000mm/min
   Spindle head	9.0kw Italy HSD spindle, drill bank, atc   magazine
   Spindle Speed	0-24000RPM
   Drive Motors	Japan YASKAWA Servo motor
   Working Voltage	AC380V/50/60Hz,3PH
   Command Language	G code
   Operating System	Taiwan Syntec controller
   Computer Interface	USB
   Collet	ER32
   Software Compatibility	Type3 / Ucancam / Artcam
   Running Environment Temperature	0°C~45°C
   Relative humidity	30%~75%

9KW ITALY HSD SPINDLE ATC 24000 RPM ISO30

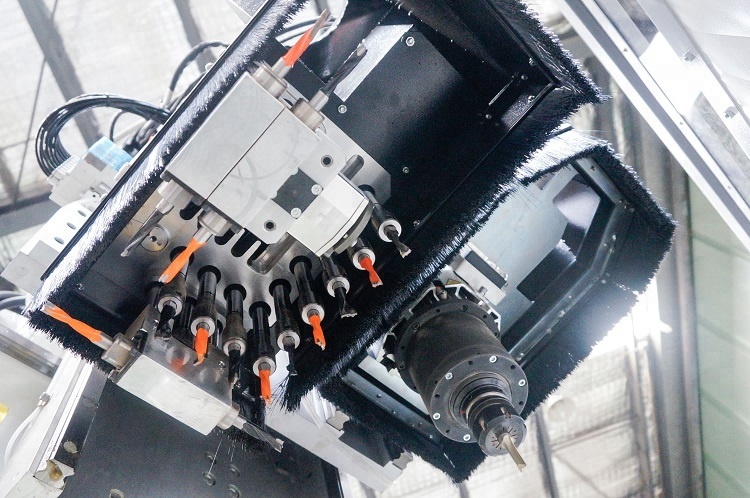

HSD drilling bank center 9v 6H (9 Vertical 3 head 6 horizonal ceter 1 saw for you optional )

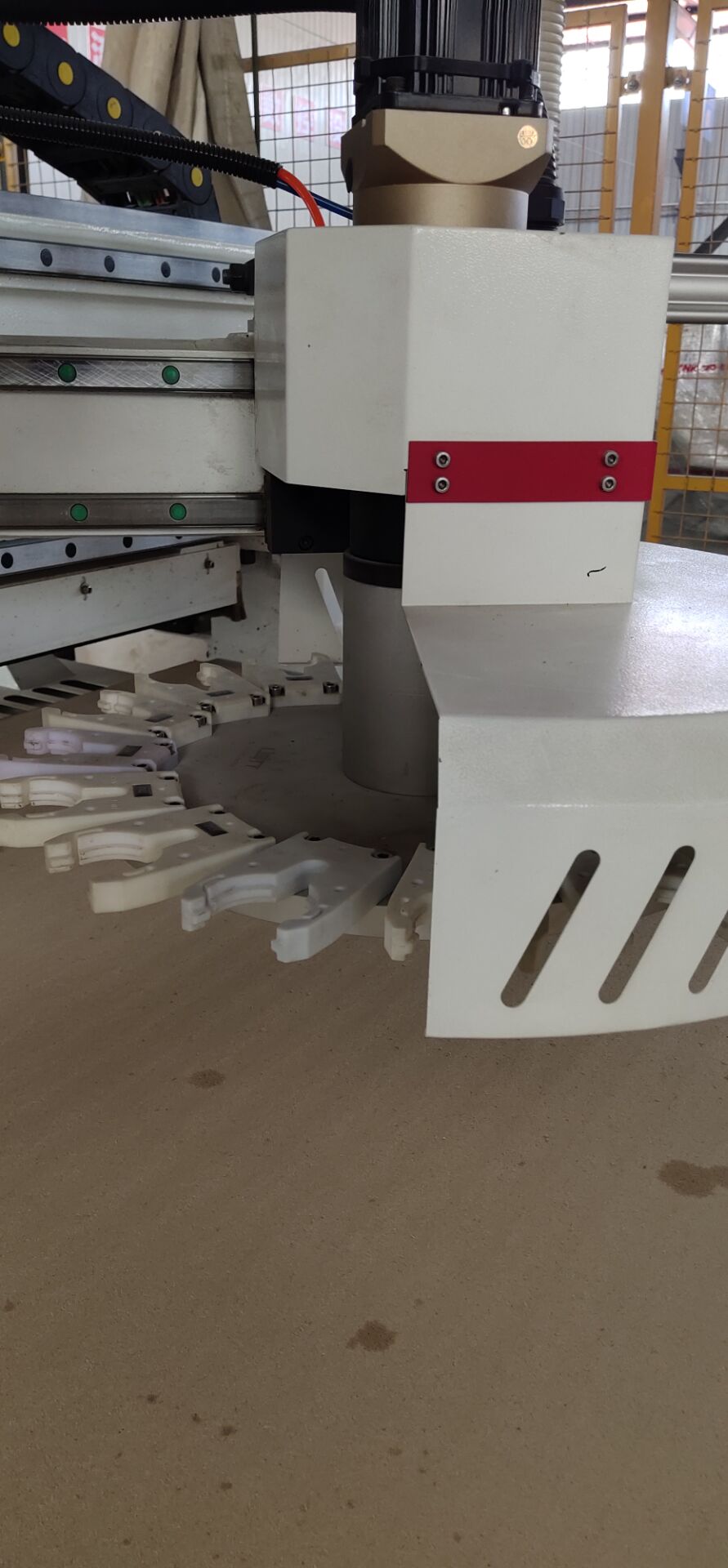

Round caroul DISC 10 piece tools ISO30

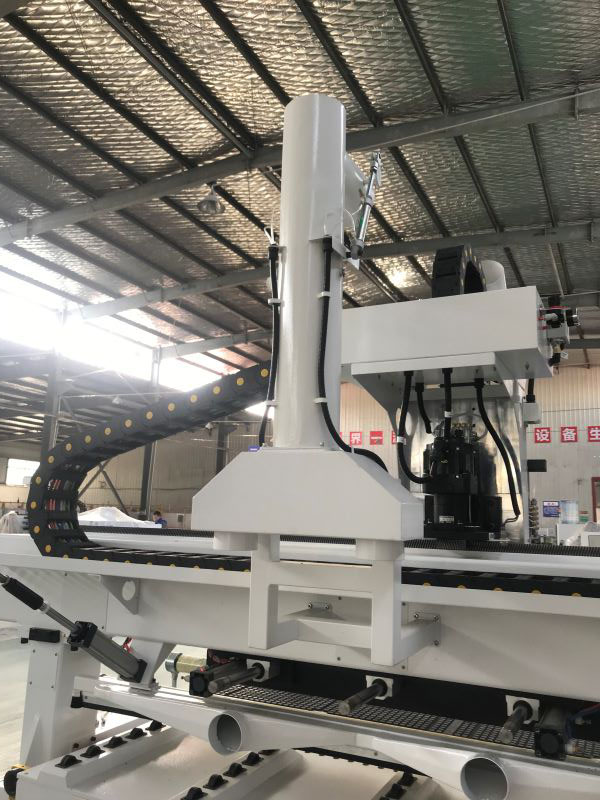

Automatic push wood material suction cups

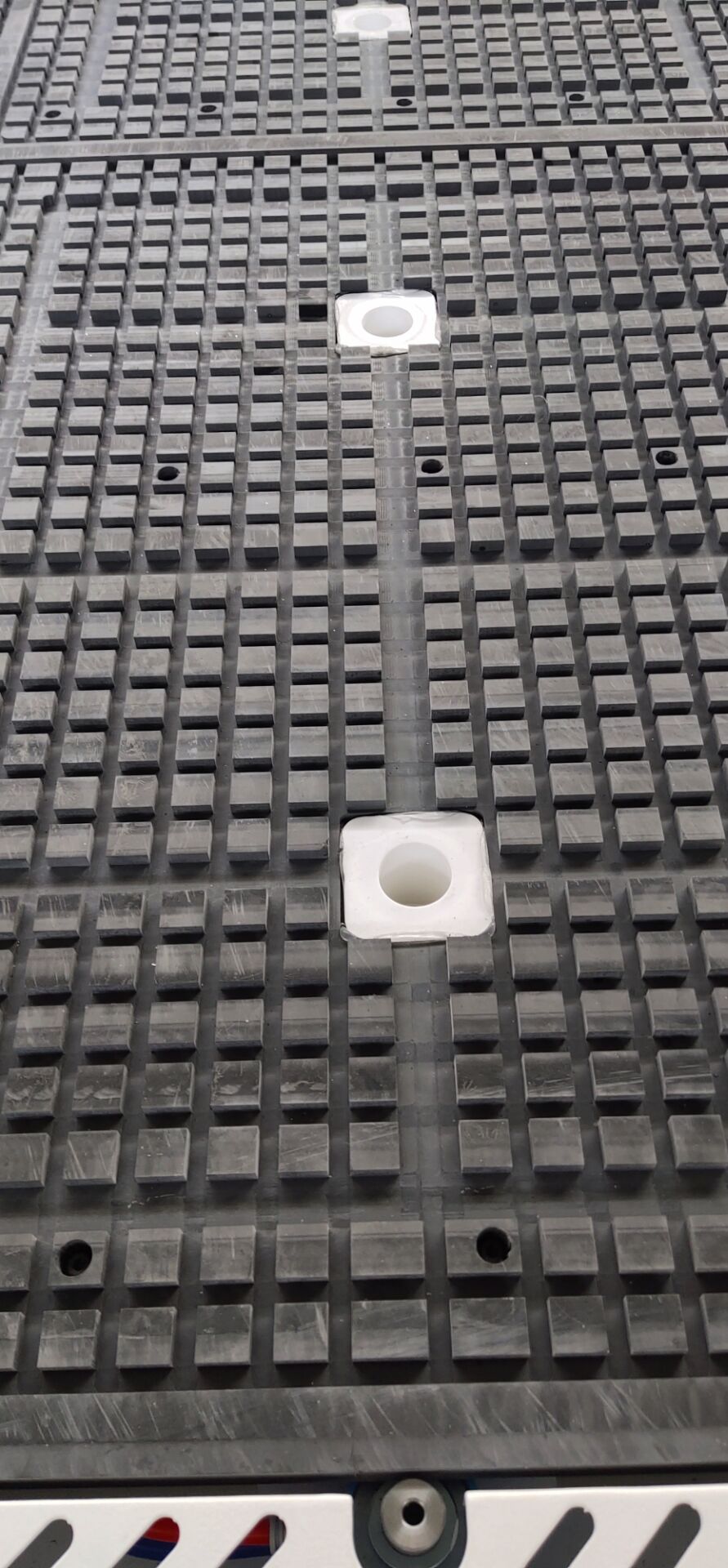

Double player pvc vacuum table

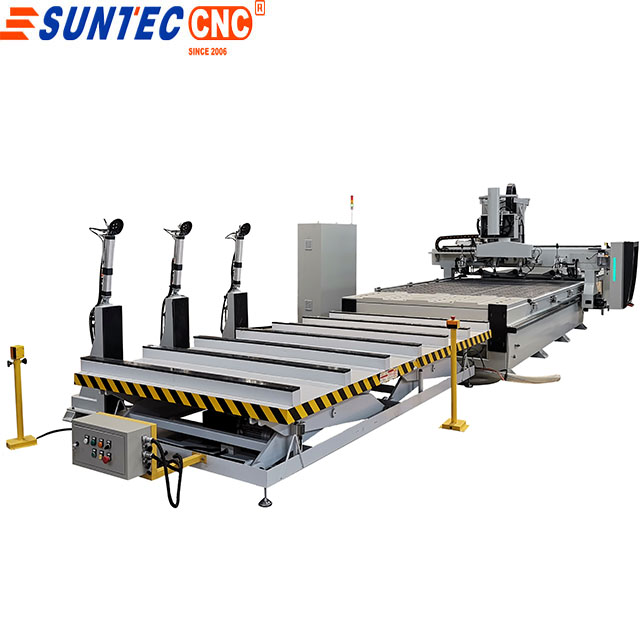

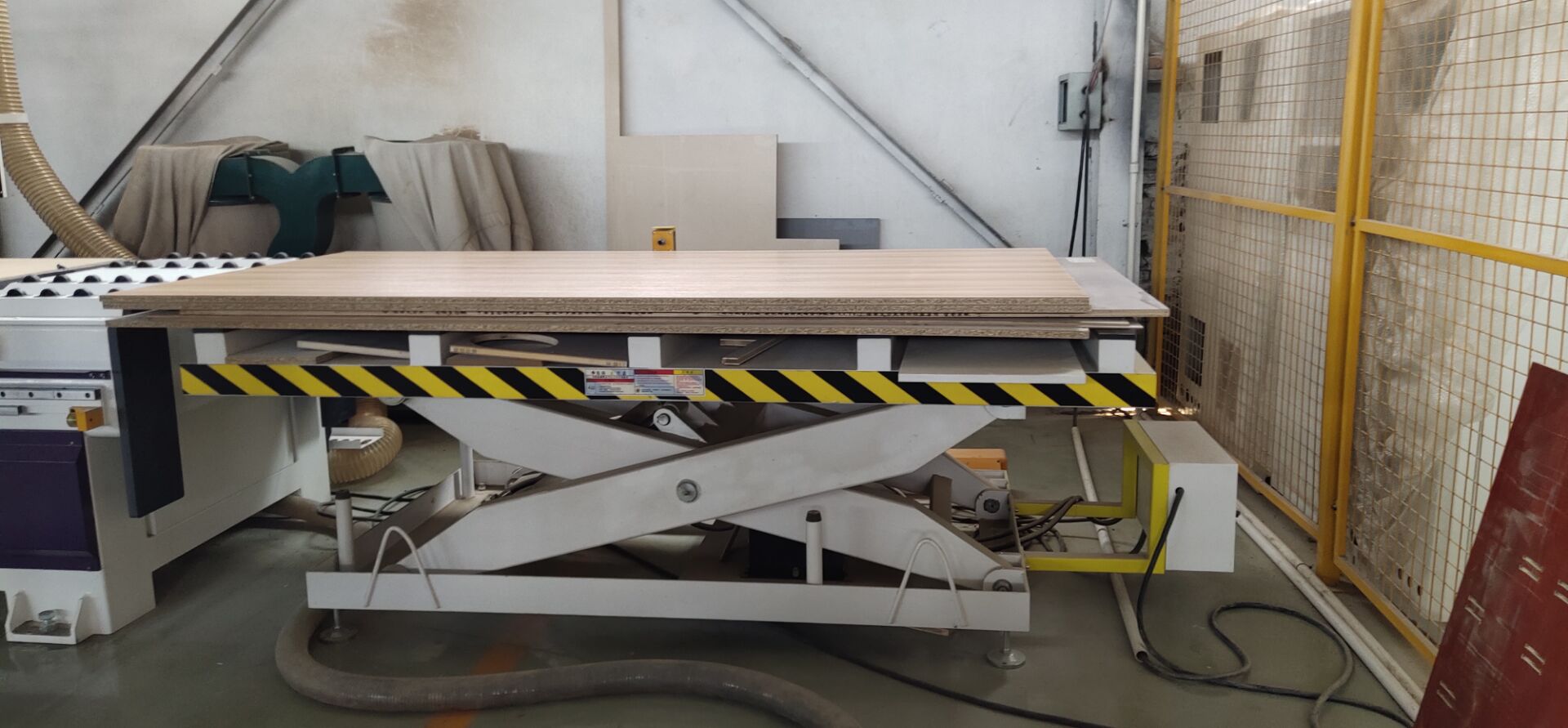

Automatic loading table

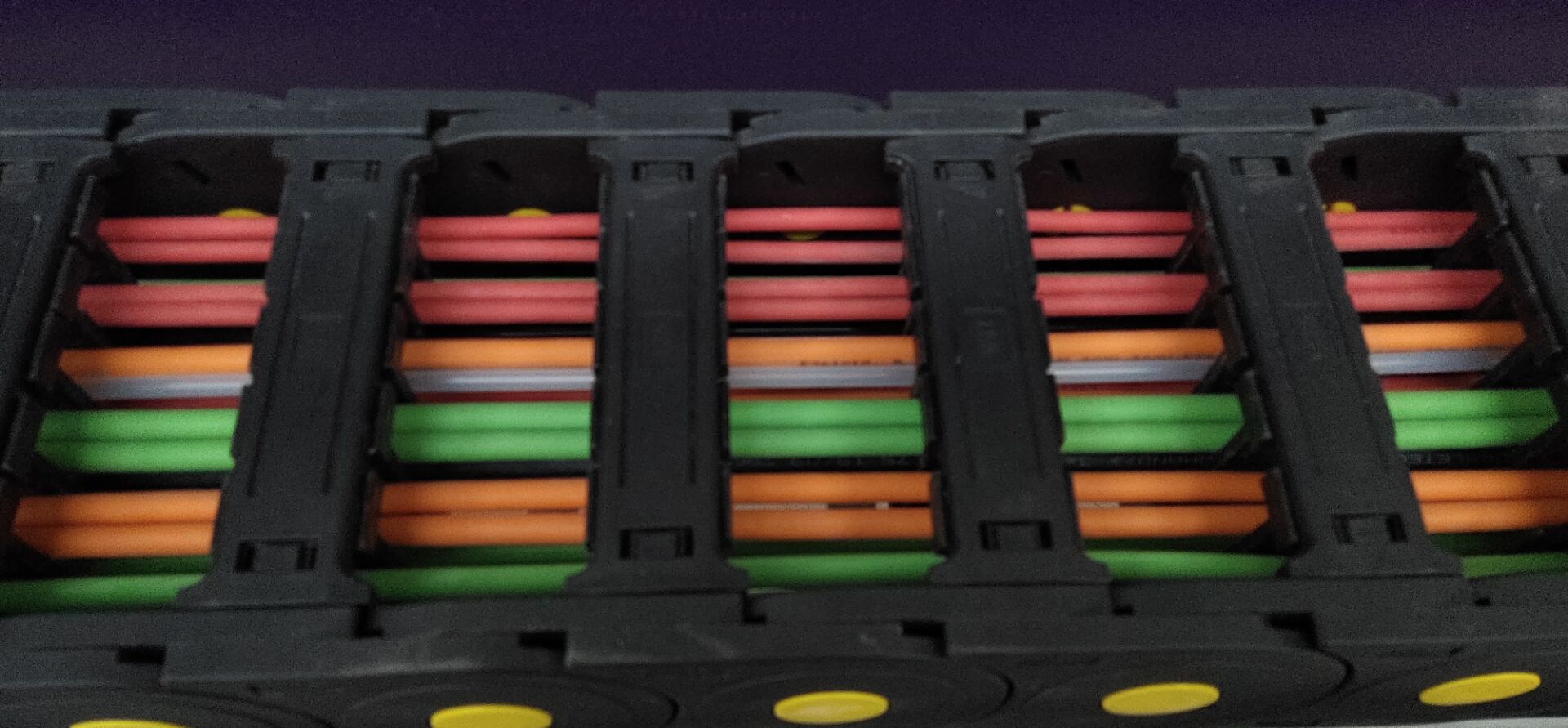

PUR High temperature resistance, corrosion resistance, high shielding cable line

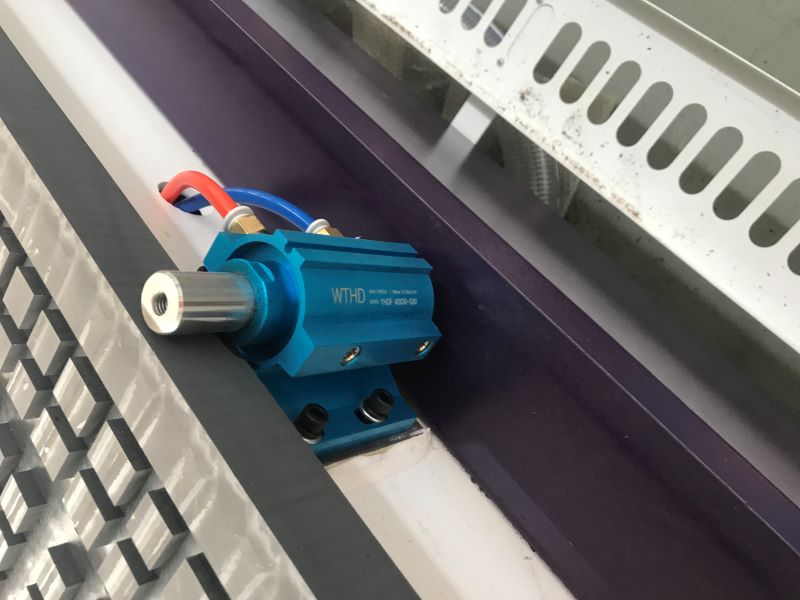

Balance cylinder

Dust collector device

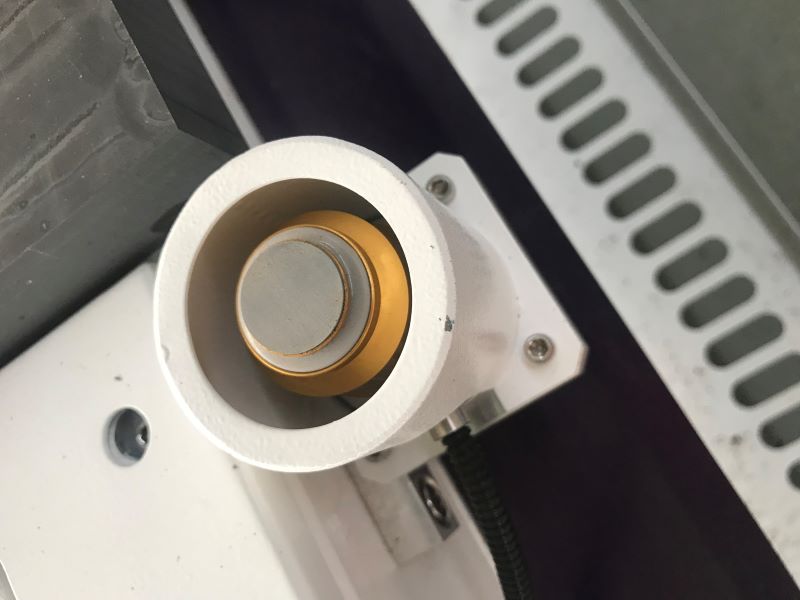

Tool  measure unit

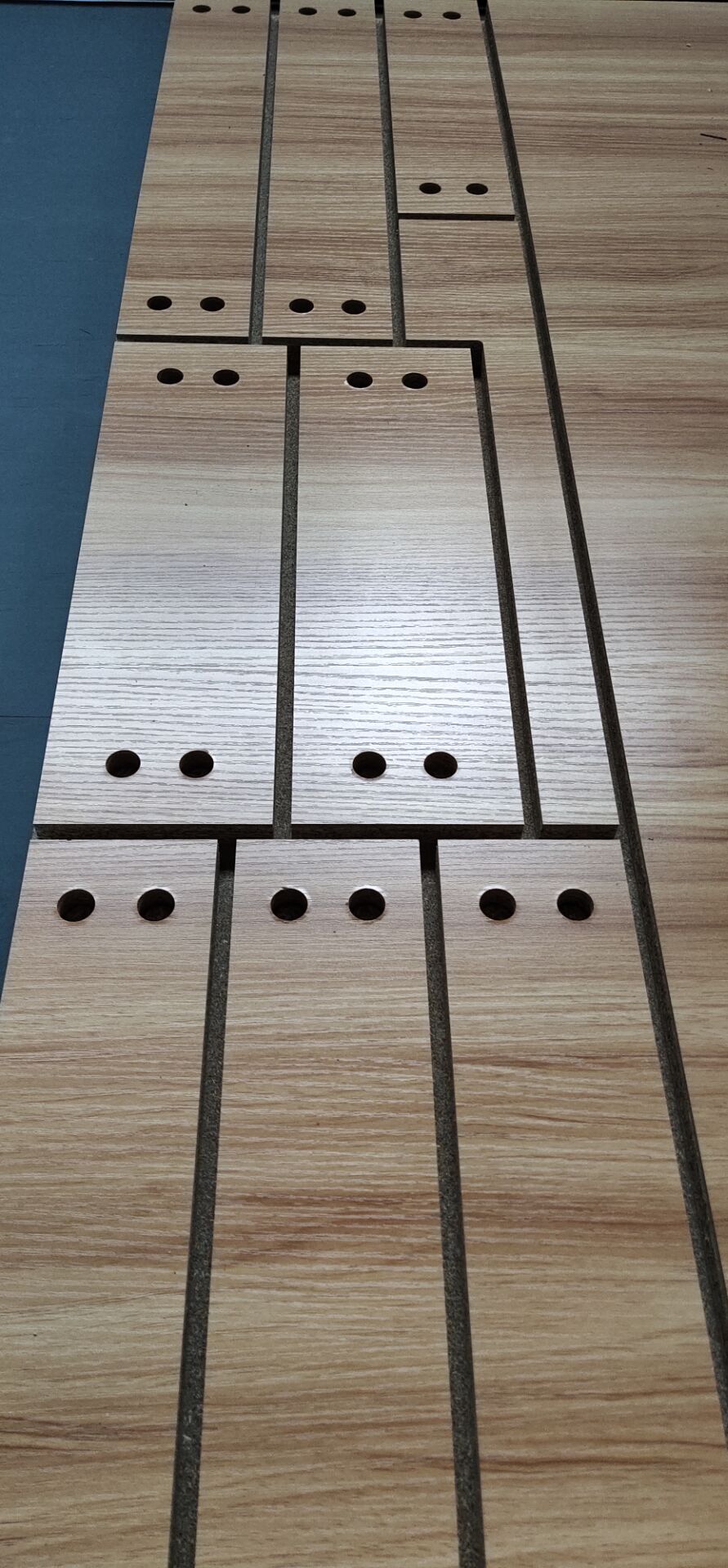

Working sample
