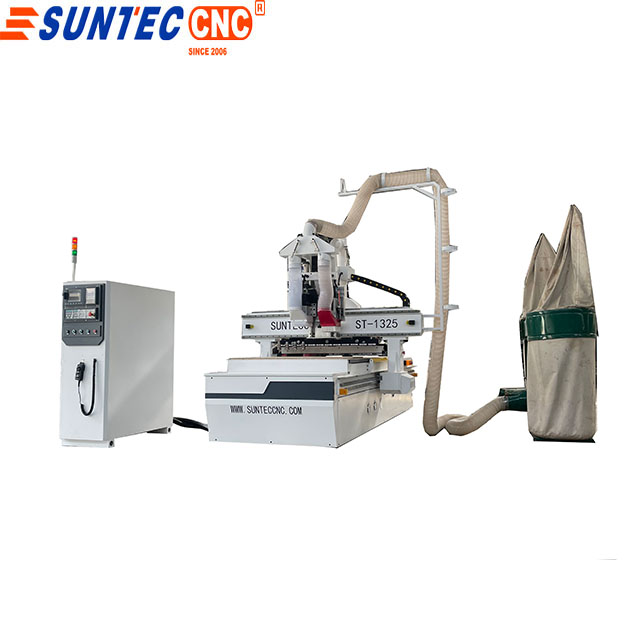

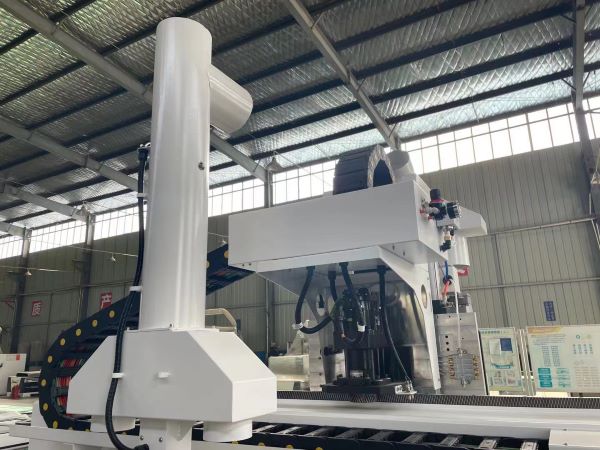

Customized SUNTECST-1325 nesting atc cnc router for wood cabinet

Customized SUNTECST-1325 nesting atc cnc router for wood cabinet

1. 9.6kw Italy HSD spindle 24000 rpm hskf63 er32 automatic tool change 8 piece tool holder

2. HSD driling bank center 5+4 vertical hole

3. Linear atc 12 piece tools fast speed for change tools to make different design .

4. japan yaskwa driver and motor

5. working 1300*2500mm /2000*4000/rother customized size

6. .vacuum table with Taiwan EUROVAC  vacuum table

7. syntec control with handwheel

8. Tool measure unit for right position

9. Dust collector cover and dust pusher device  customized


10. Taiwan Hiwin square guide to make fast speed high precision .




    Description	Parameters
    Model	ST-1325
    Working Area	1300x2500x300mm
    Table Size	3900x2260mm*2500mm
    Machine structure	Welded Steel square tube with heat-treatment
    Traveling Positioning Accuracy	±0.03/300mm
    Repositioning Accuracy	±0.03mm
    Table Surface	Vacuum table for six vacuum zone each zone have 6 piece adsorb hole for 48ft wood

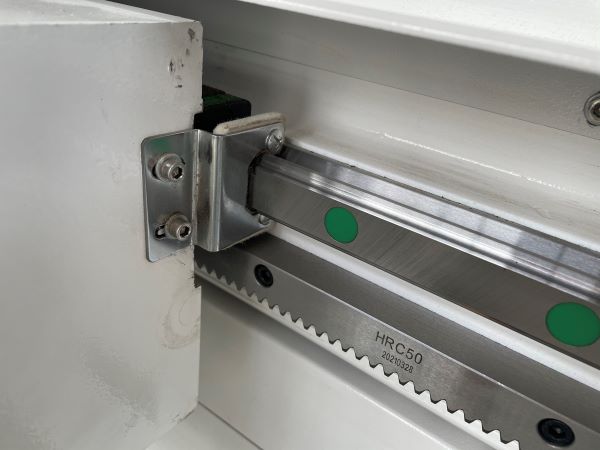

    X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear   Bearings
    Z Structure	Hiwin Rail Linear Bearings and Ball Screw
    Max. Power Consumption (Without spindle)	11KW
    Max. Rapid Travel Rate	90000mm/min
    Max. Working Speed	2500mm/min
    Spindle head	9.6kw Italy HSD spindle, drill bank optional
    Spindle Speed	0-24000RPM
    Drive Motors	Japan YASKAWA Servo motor
    Working Voltage	AC220V/50/60Hz,3PH
    Command Language	G code
    Operating System	Taiwan Syntec controller
    Computer Interface	USB
    Collet	ER32
    Software Compatibility	Type3 / Ucancam / Artcam
    Running Environment Temperature	0°C~45°C
    Relative humidity	30%~75%

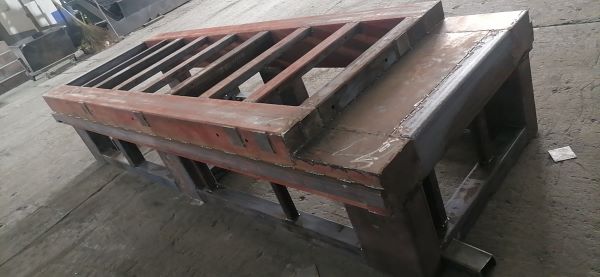

heavy duty structure table welded then heat treatment to delete itself rigidity to make sure many years no deformed then make sure precision .

5 side cnc machine center milling to make squre guide holes to make sure machine precision.

HSD driling bank center  vertical 5+4 holes each distance 32mm

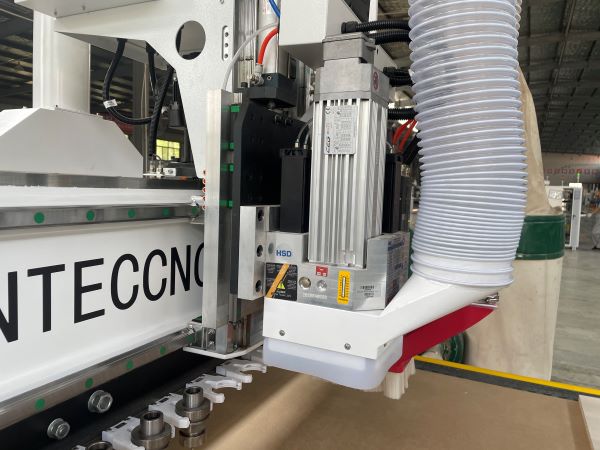

HSD spindle 9.6kw 24000 rpm HSKF63 ER32 collector high speed low noise.  the spindle is passed test of IP65 water proof and dust proof.Ceramic bearing is thermostable. ,heavy duty cutting is available for high precision and bearing abrasion. Inside and outside air cooling system prolong spindle’s life.

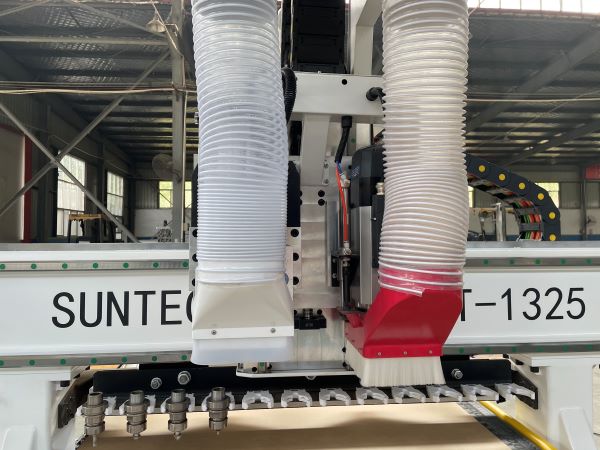

customized dust collector to make sure dust wood very nice .

suntec special dust hose for driling bank center and spindle

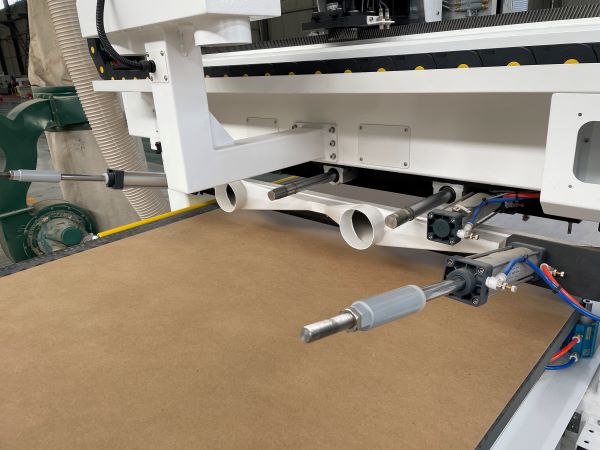

automatic pusher  two holes  for second dust removable which can clean board better

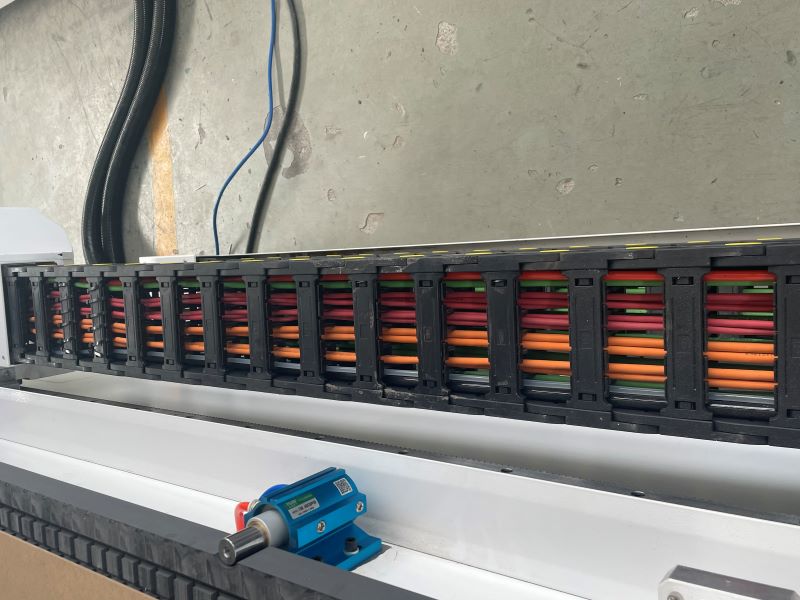

Germany PUR DRAGCHAIN cable resist high temperature .

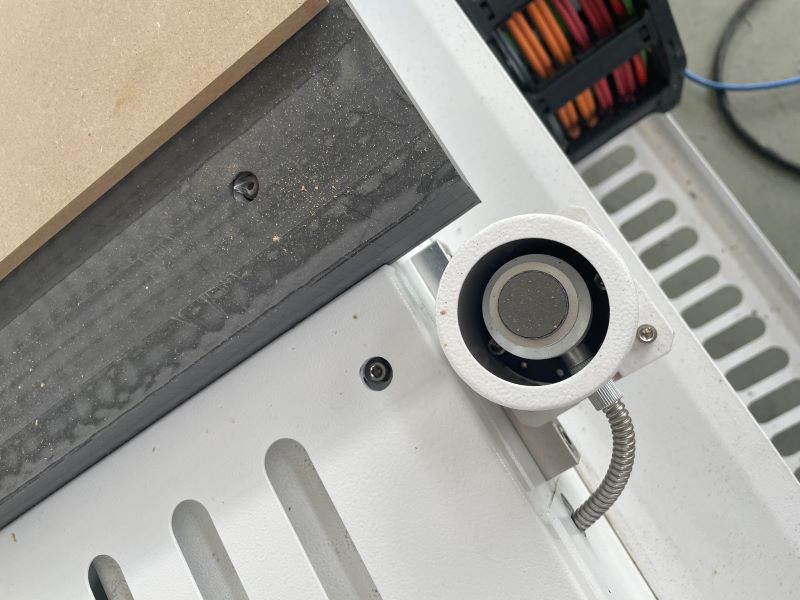

Tools sensor High accuracy, long service time,steady movement and good startingperformance.

Mechanise limit high sensitvice give fast feedback for the machine to make sure high precision

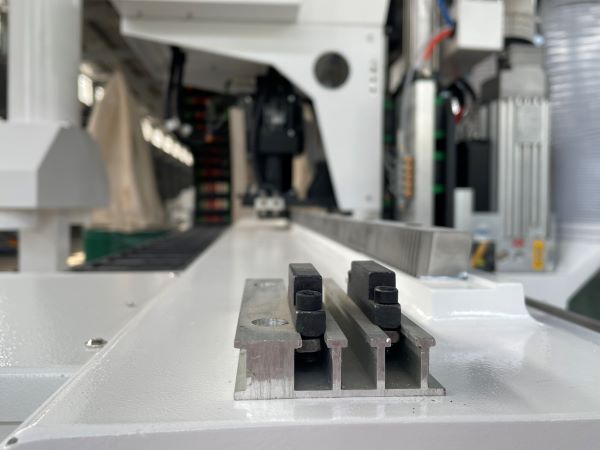

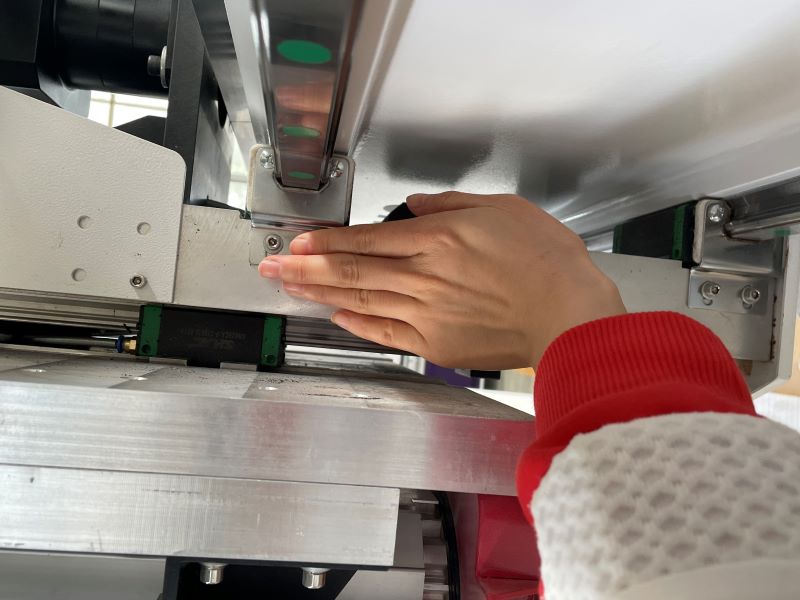

Dust cover for the square guide to make sure wood dust no impact square guide precision .

so strong and heavy spindle head to make sure no vibrating to make sure precision

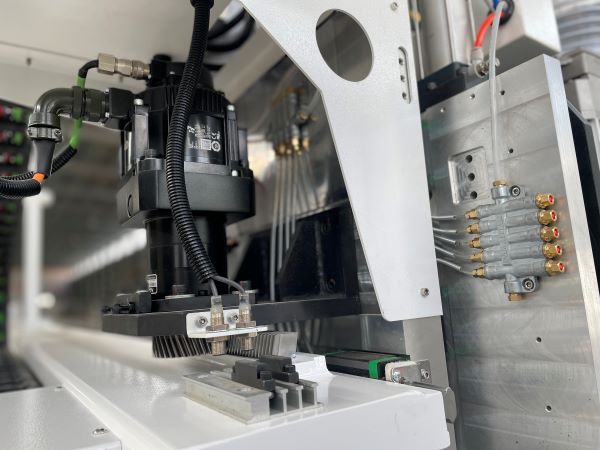

japan yaskawa driver and motor  high speed, high precision. Motor’s max. torque can reach 350% which may shorten speed up and slow down time. The servo motor can response instantly. High resolution makes high Precision position and high precision procession.

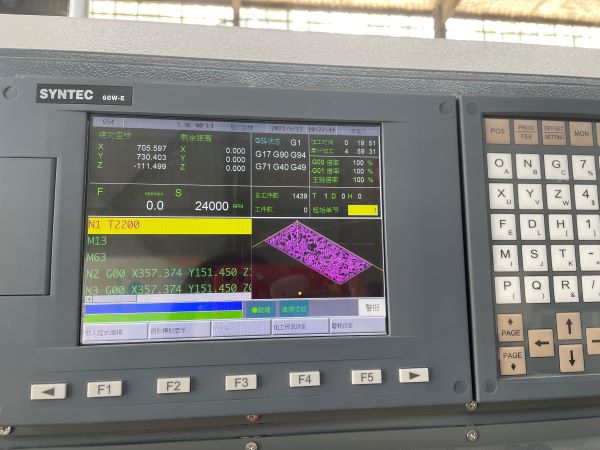

syntec controller chinese and English exchange support G code with handwheel easily to operate

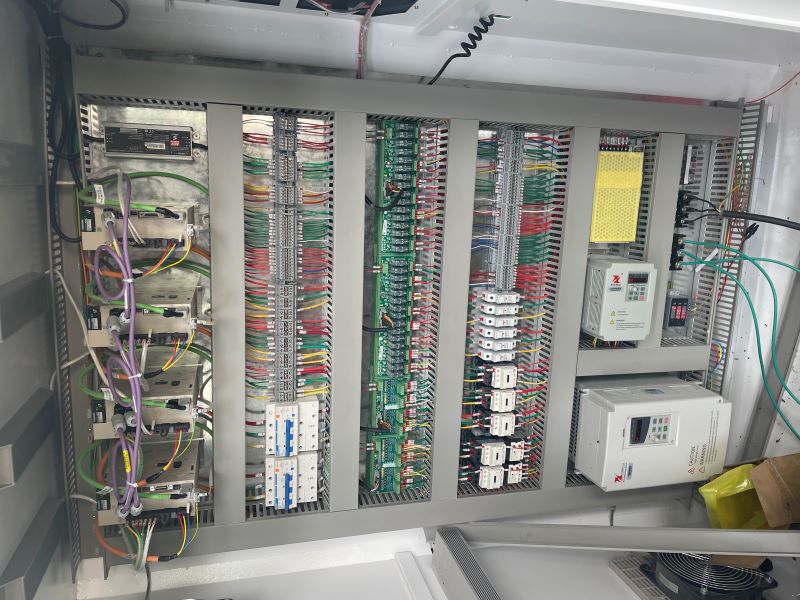

Yaskawa driver with scheneder parts and voltage shower to protec electrical parts well not broken .

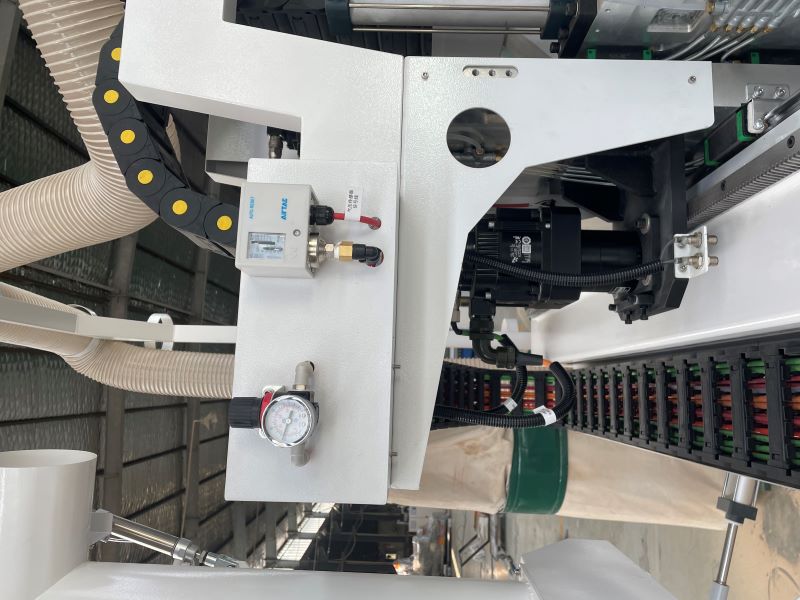

airtac parts to make sure machine have enough air for working
