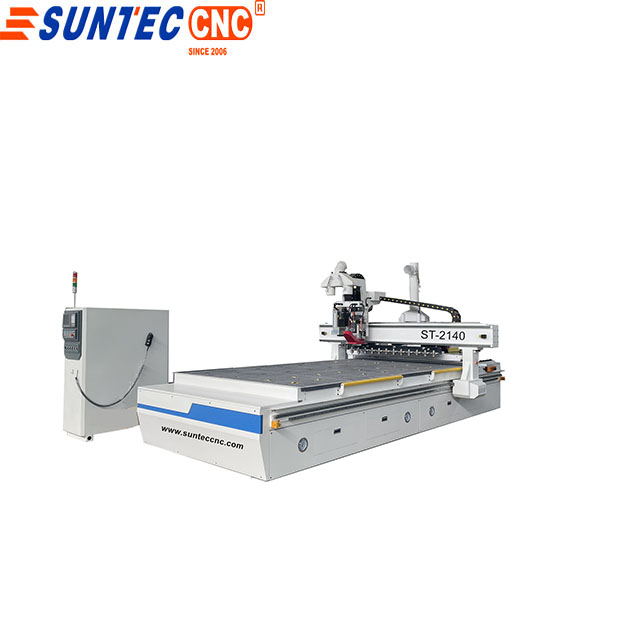

Customized ST2140 wood cabinet making atc wood cnc router for UK

Customized ST2140 wood cabinet making atc wood cnc router for UK

Productions details

1) Vacuum table: Double PVC layer, 5 vacuum zones for different panel size. PVC table 35mm thickness each vacuum hole 8mm to make sure well adsobtion MDF wood .

2) Independent electric cabinet & control panel

3). The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity and zero down time.

4). Leading brand components such as Italian HSD spindle (automatic tool changer), Japanese Yaskawa servo motors, Taiwan Syntec controller, Japan Shimpo reducer and transmissions ensure high efficiently.

5). High efficiency advanced automatic tool change program, without human intervention, program automatically.

6). Through industrial grade overall welding lathe bed with tempering and aging treatment, deformation is avoided and the stability and processing precision of the machine toolare improved.

7). Carousel Tool Magazine can hold up to 12 tools or linear atc for HSKF63 or ISO30 . Adopted Yaskawa servo motor magazine to ensure high repeatability, high efficiency.

8). Truly versatile: nesting, routing, vertical drilling, cutting, side milling and edge grinding all in one. It is well-suited for panel furniture, office furniture, cabinets production.

Advantage
1. Increase 10% material usage
2. Reduce the dependence of the technical workers.

3.Decrease of sorting procedure and sorting error.
4. Save both time and labor for complicated workpiece processing.
5. It can also groove and drill.
6. Improve the product quality and the efficiency.
7. Optimize technology procedure, reduce the production cost.

Ruggedly constructed machine structure. Material is Stress relieved and annealed for deformation free, thus always keep machine accurate.

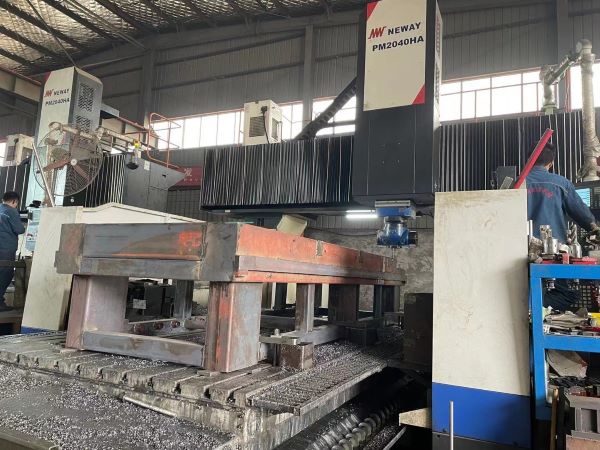

Machine base is produced by CNC machine, and machine base’s five sides are produced at one same procession to make sure the machine body geometry tolerance is standard.

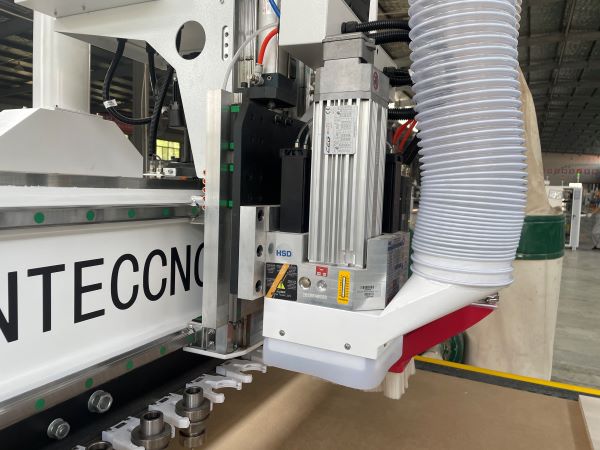

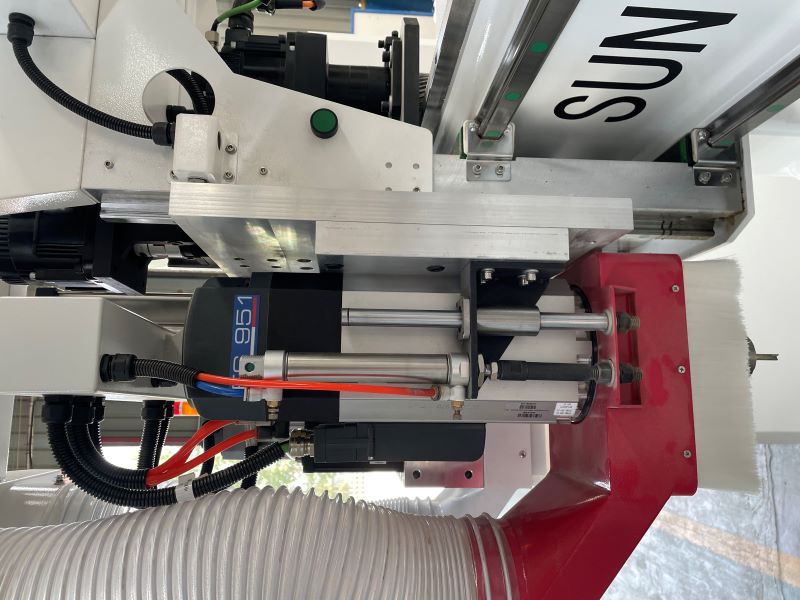

Italy,HSD spindle , the features are high speed and low noise. The spindle is passed test of IP65 water proof and dust proof.Ceramic bearing is thermostable. Max. speed is 24000RPM,heavy duty cutting is available for high precision and bearing abrasion. Inside and outside air cooling system prolong spindle’s life.

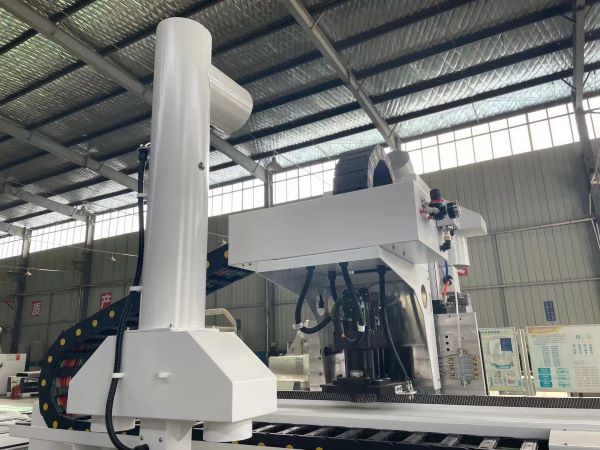

Suction tube it can wood very clean . our machine have two device for dust collect . another is automatic pusher

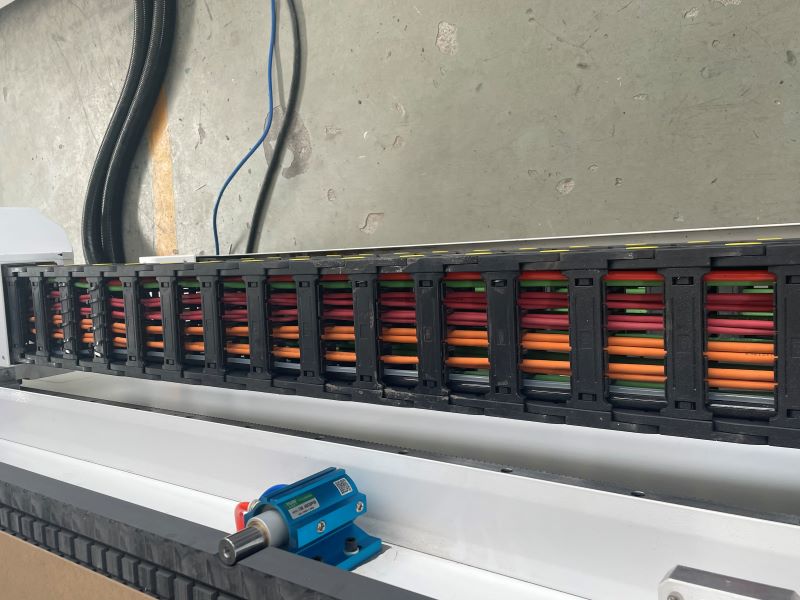

Germany PUR DRAGCHAIN cable resist high temperature .

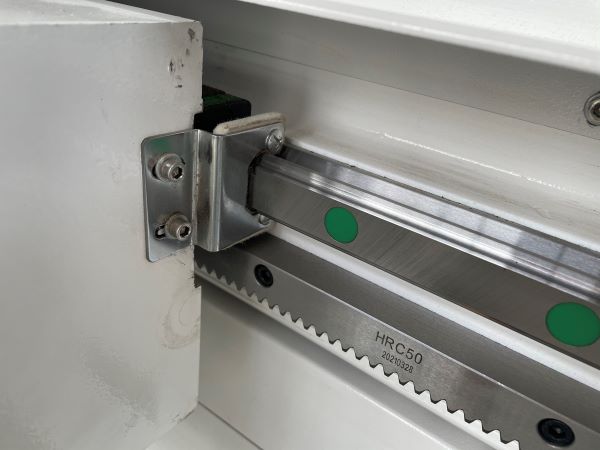

DUST COVER FOR PROTEC DUST TO PROTEC SQUARE GUIDE

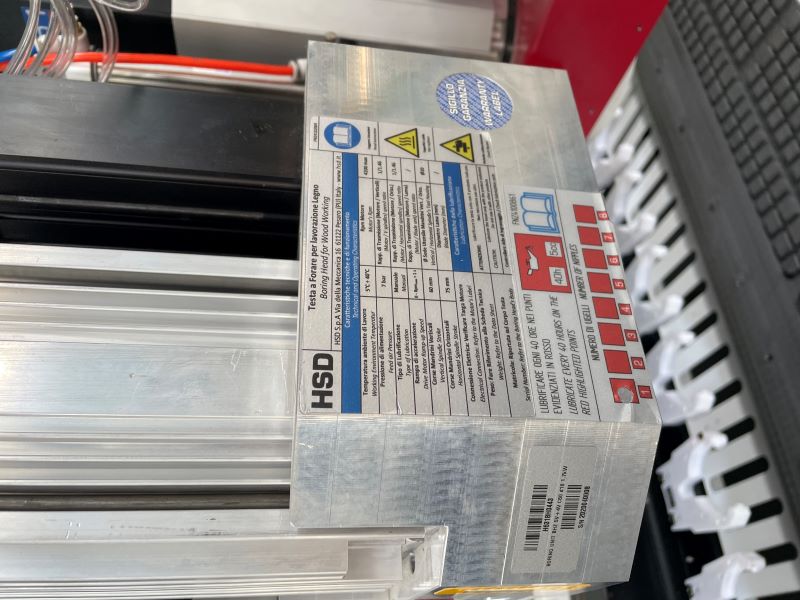

Drilling bank center for making vertical hole 9 piece at one time each hole distance 32mm .it improve working effiency .  horizonal  with saw for optional .

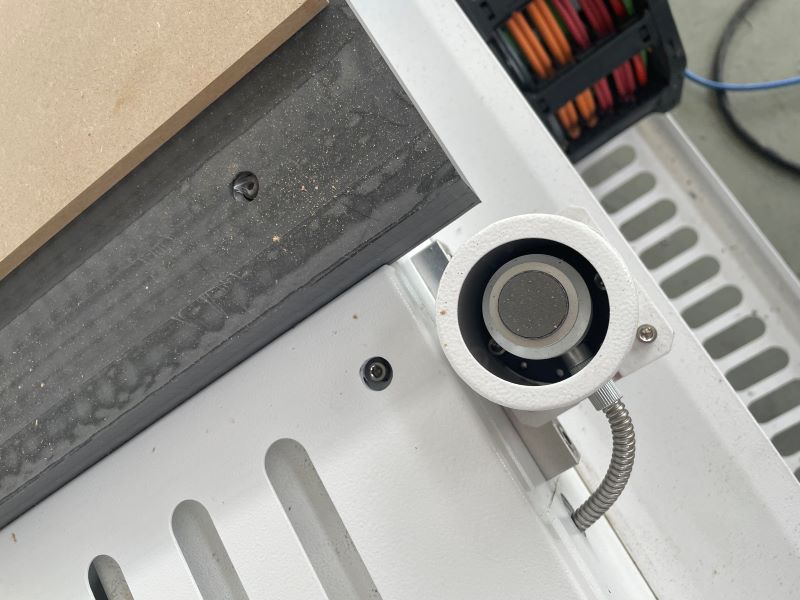

Tools sensor High accuracy, long service time,steady movement and good startingperformance.
