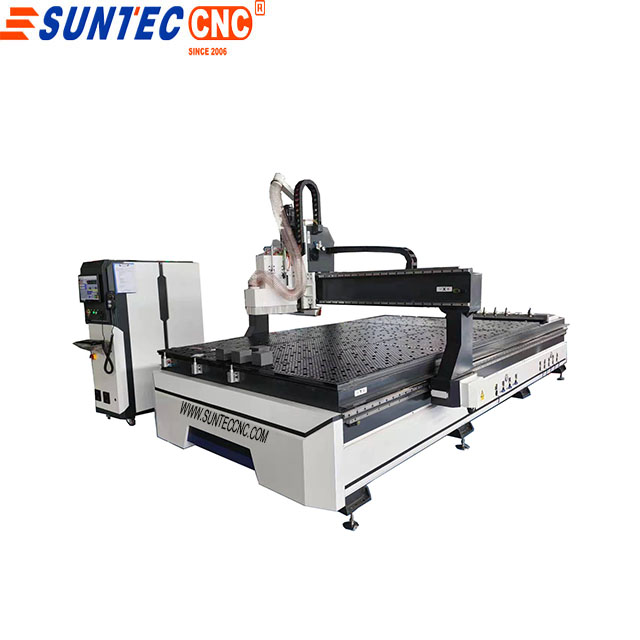

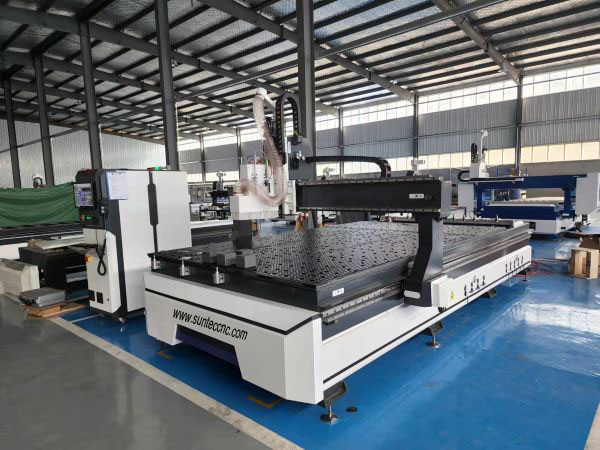

Customized osai controller ST-2038 atc woodworking cnc machine with c axis aggregate
Productions details
1) Vacuum table: Double PVC layer, 5 vacuum zones for different panel size. PVC table 35mm thickness each vacuum hole 8mm to make sure well adsobtion MDF wood .
2) Independent electric cabinet & control panel
3). The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity and zero down time.
4). Leading brand components such as Italian HSD spindle (automatic tool changer), HSD C axis with aggregate for side milling cutting . Japanese Yaskawa servo motors, italy Osai controller, Japan Shimpo reducer and transmissions ensure high efficiently.
5). High efficiency advanced automatic tool change program, without human intervention, program automatically.
6). Through industrial grade overall welding lathe bed with tempering and aging treatment, deformation is avoided and the stability and processing precision of the machine toolare improved.
7). Carousel Tool Magazine can hold up to 12 tools or linear atc for HSKF63 or ISO30 . Adopted Yaskawa servo motor magazine to ensure high repeatability, high efficiency.
8). Truly versatile: nesting, routing, vertical drilling, cutting, side milling and edge grinding all in one. It is well-suited for panel furniture, office furniture, cabinets production.
Advantage
1. Increase 10% material usage
2. Reduce the dependence of the technical workers.
3.Decrease of sorting procedure and sorting error.
4. Save both time and labor for complicated workpiece processing.
5. It can also groove and drill.
6. Improve the product quality and the efficiency.
7. Optimize technology procedure, reduce the production cost.
Description | Parameters |
Model | ST-2038 |
Working Area | 2000x3800x500mm |
Table Size | 2150x4440mm |
Machine structure | Welded Steel square tube |
Traveling Positioning Accuracy | ±0.01/500mm |
Repositioning Accuracy | ±0.01mm |
Table Surface | Vacuum table |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Max. Power Consumption (Without spindle) | 11KW |
Max. Rapid Travel Rate | 9000mm/min |
Max. Working Speed | 2500mm/min |
Spindle head | 9.0kw Italy HSD spindle, with HSD C axis with aggregate |
Spindle Speed | 0-24000RPM |
Drive Motors | Japan YASKAWA Servo motor |
Working Voltage | AC380V/50/60Hz,3PH |
Command Language | G code |
Operating System | Italy Osai controller |
Computer Interface | USB |
Collet | ER32 |
Software Compatibility | Type3 / Ucancam / Artcam |
Running Environment Temperature | 0°C~45°C |
Relative humidity | 30%~75% |

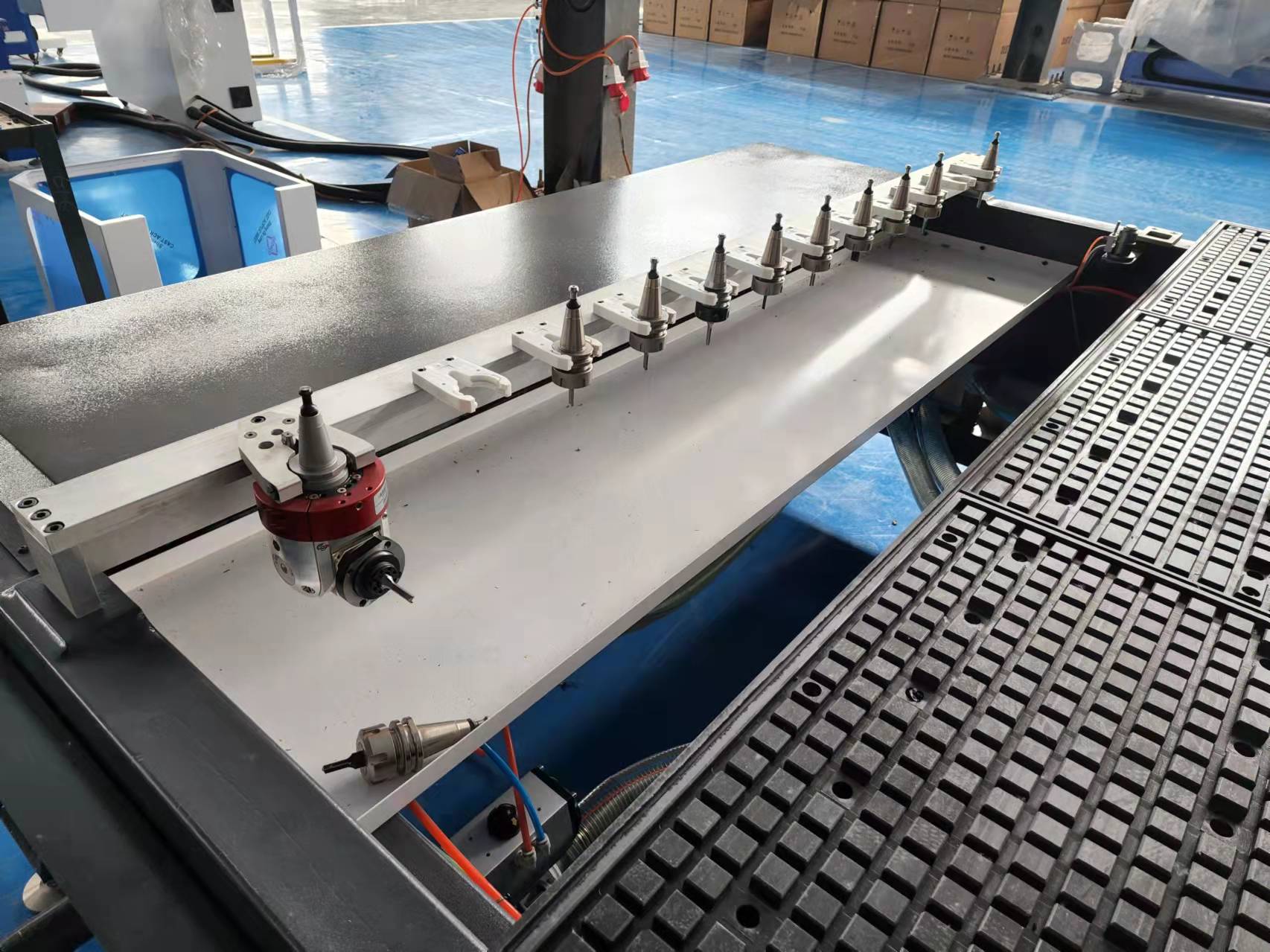

ST-2038 cnc machine center linear ATC with hsd c axis with aggregate customer can side milling 0-90 degree cutting

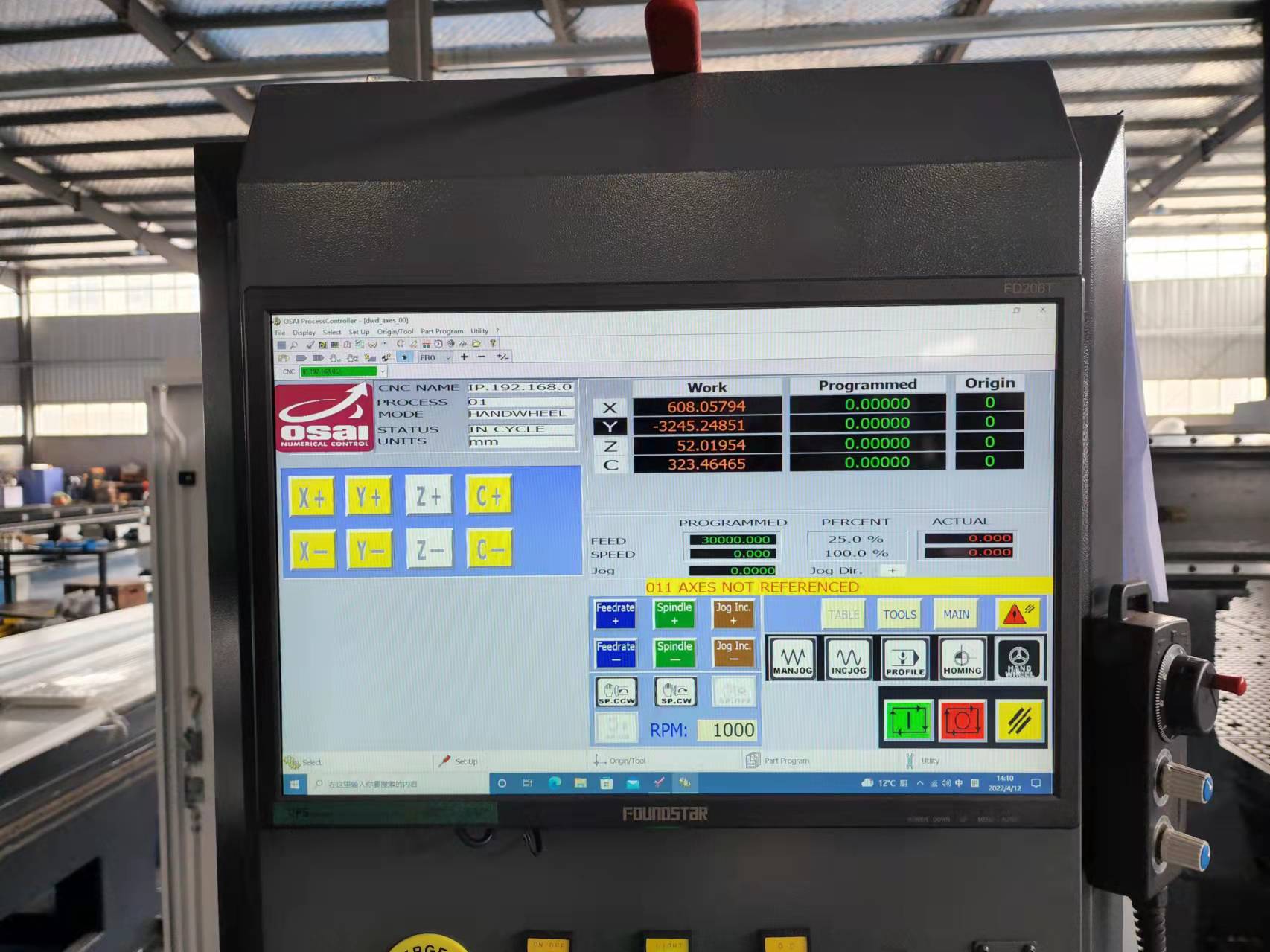

italy osai controller
italy double outlet with saw with side milling which can 0-90 degree rotary for side miling
customer put wood boards on vacuum cups then use c axis within 90 degree fo side hole milling side 45 degree cutting as video .
