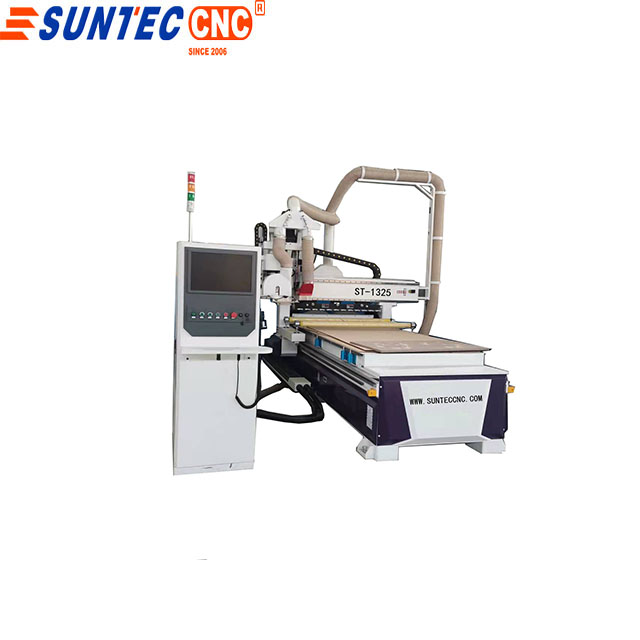

Wood door funiture floor making SUNTEC ATC cnc router with saw 300mm diameter
1.Suntec cnc router ATC cnc router can Increase 10% material usage
2. Reduce the dependence of the technical workers.
3.Decrease of sorting procedure and sorting error.
4. Save both time and labor for complicated workpiece processing.
5. It can also groove and drill.
6. Improve the product quality and the efficiency.
7. Optimize technology procedure, reduce the production cost.
Description | Parameters |
Model | ST-1325 |
Working Area | 1300x2500x200mm |
Table Size | 3800x2640mm |
Machine structure | Welded Steel square tube |
Traveling Positioning Accuracy | ±0.01/200mm |
Repositioning Accuracy | ±0.01mm |
Table Surface | Vacuum table |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Max. Power Consumption (Without spindle) | 11KW |
Max. Rapid Travel Rate | 9000mm/min |
Max. Working Speed | 2500mm/min |
Spindle head | 9.0kw spindle with ISO30 collect Italy HSD spindle HSKF63 for optional |
Spindle Speed | 0-24000RPM |
Saw diameter | 300mm can cut max 90mm thickness hardwood |
Saw rotary degree | 0 45 90 degree rotary |
Saw cutting speed | 50m/min |
Drive Motors | Japan YASKAWA Servo motor |
Working Voltage | AC380V/50/60Hz,3PH |
Command Language | G code |
Operating System | Taiwan Syntec controller |
Computer Interface | USB |
Collet | ER32 |
Software Compatibility | Type3 / Ucancam / Artcam |
Running Environment Temperature | 0°C~45°C |
Relative humidity | 30%~75% |

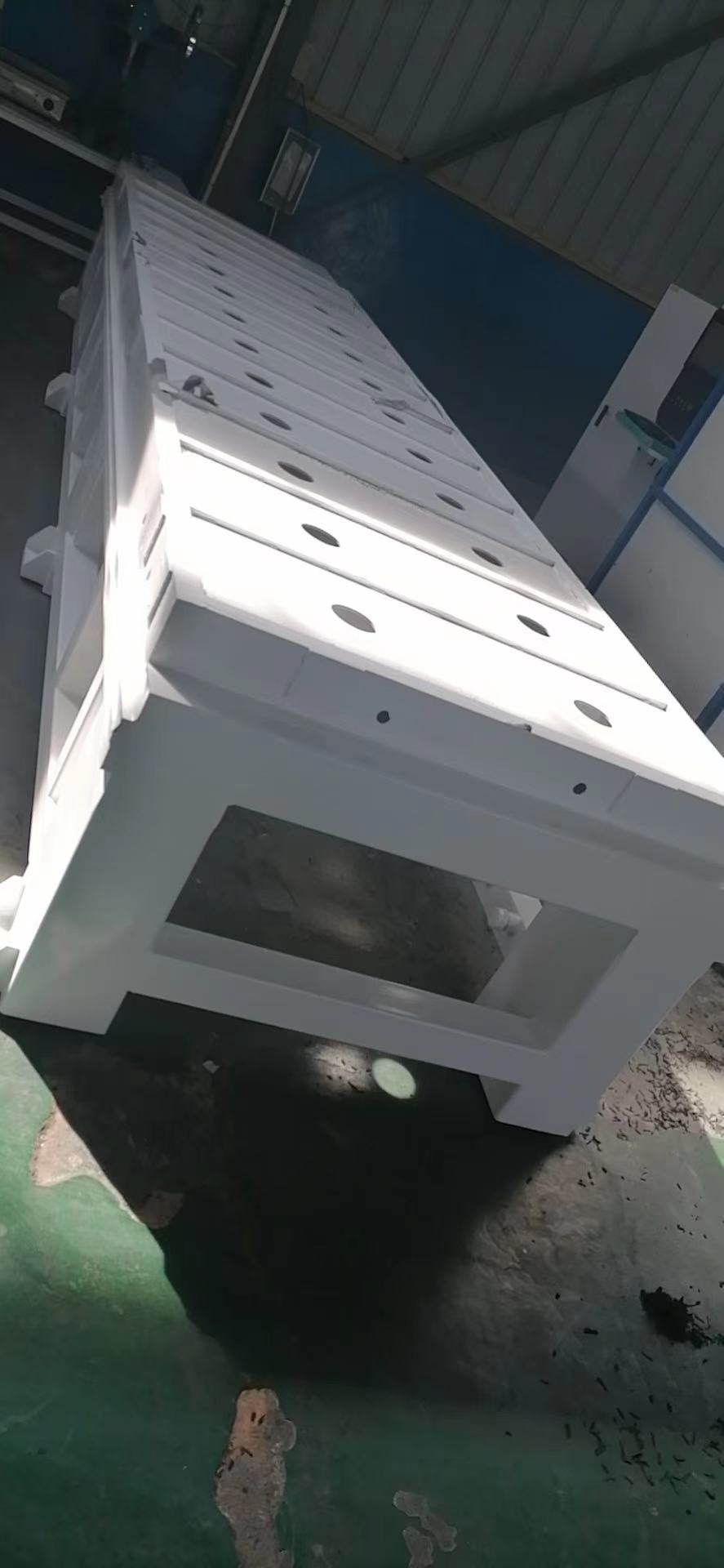

suntec all structure table heat-treatment to delete itself rigidity to make sure long time many years no deformed then used 5 axis cnc center to mill

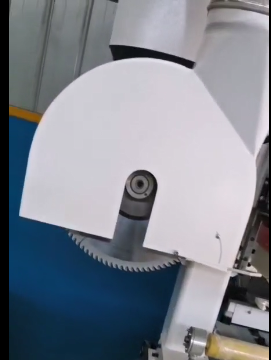

stadard saw diameter 300mm can cut max 90mm thickness hard wood can rotary 0-90 degree rotary

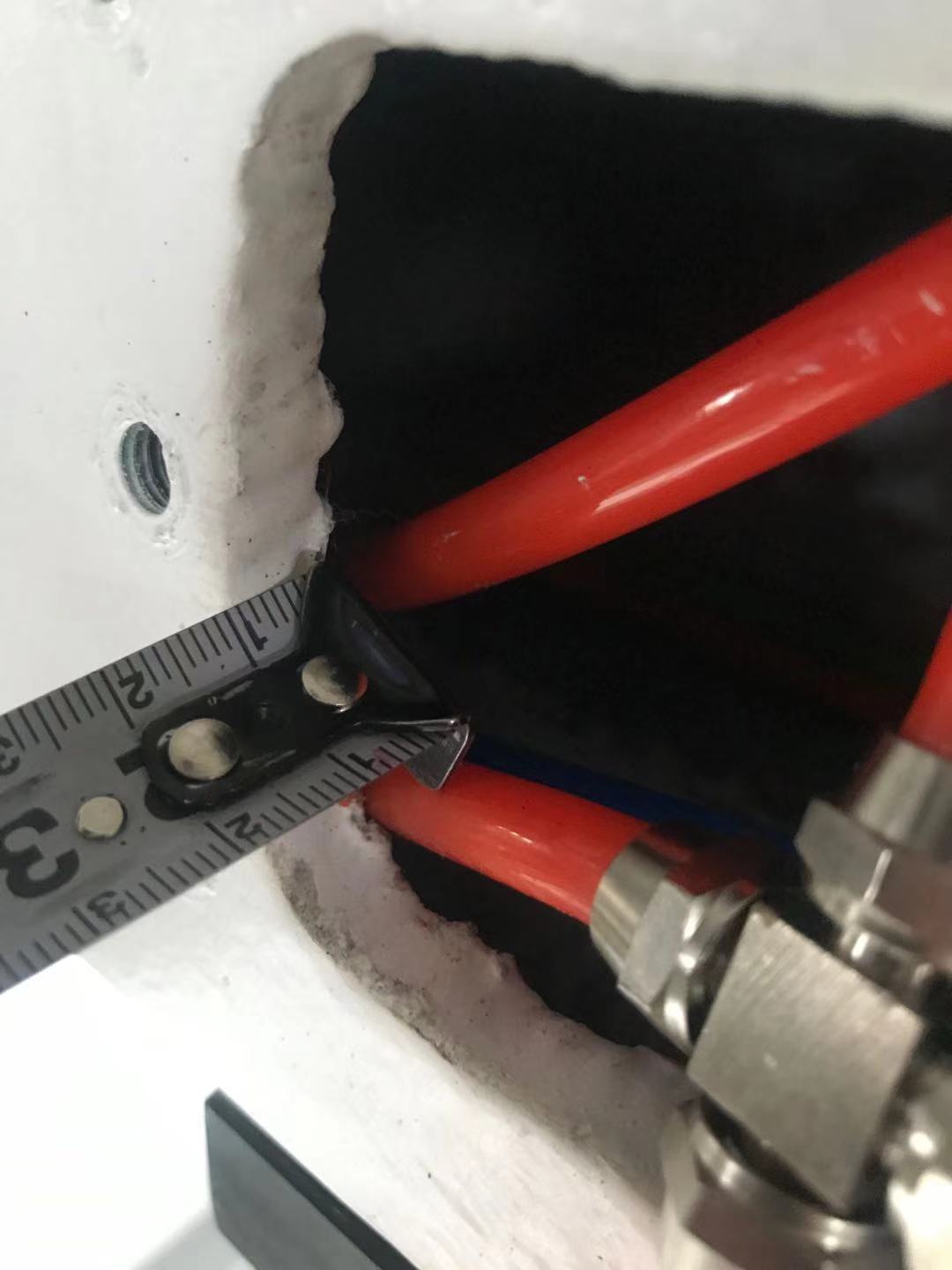

suntec gantry thickness 12mm to bear spindle and saw to make no vibrate when working

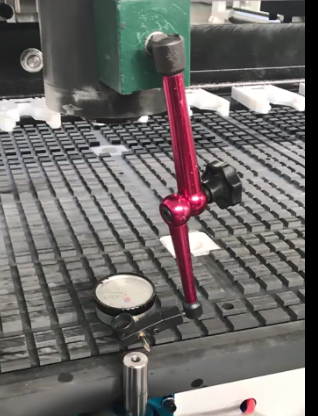

measure vertical with table

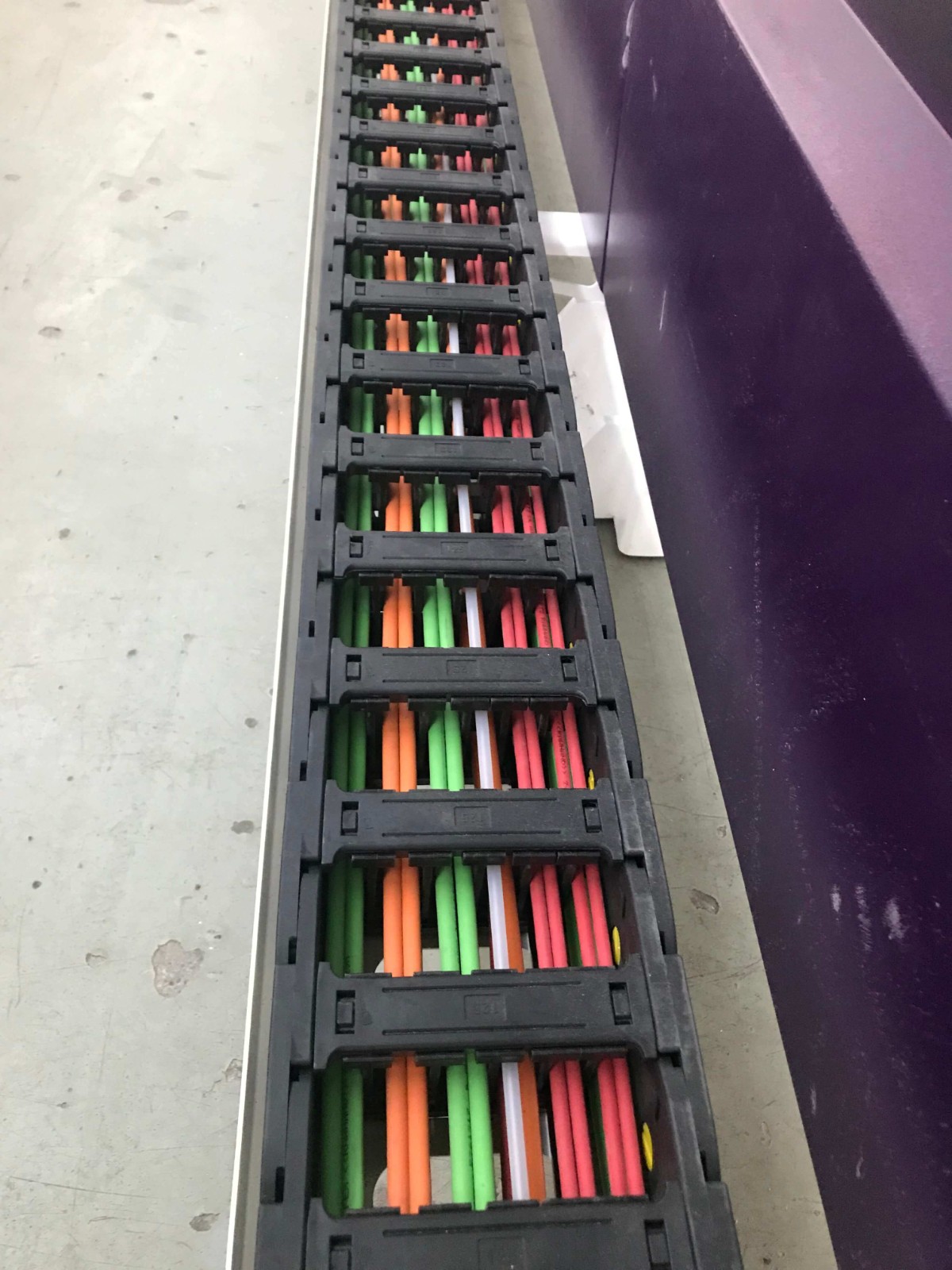

Germany PUR electrical line to high temperature resistance anti-oil anti-disturbe noize .

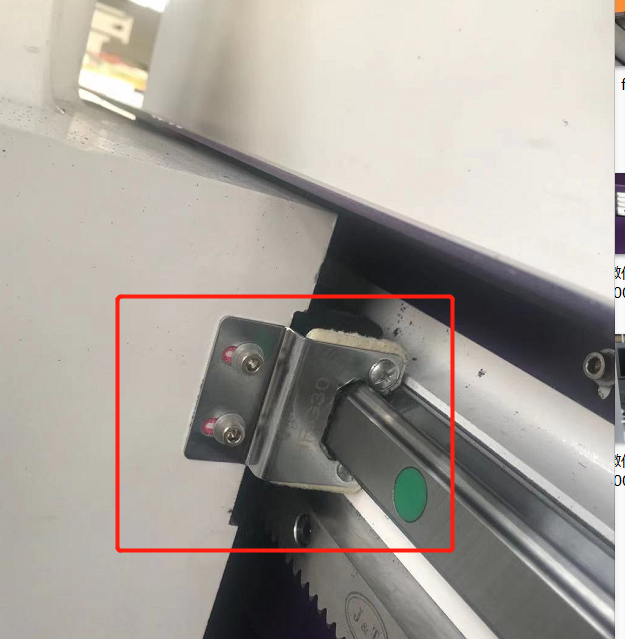

Dust cover to make square working in clean enviroment to make long life usage
whole steel plate no deformed many many years .
