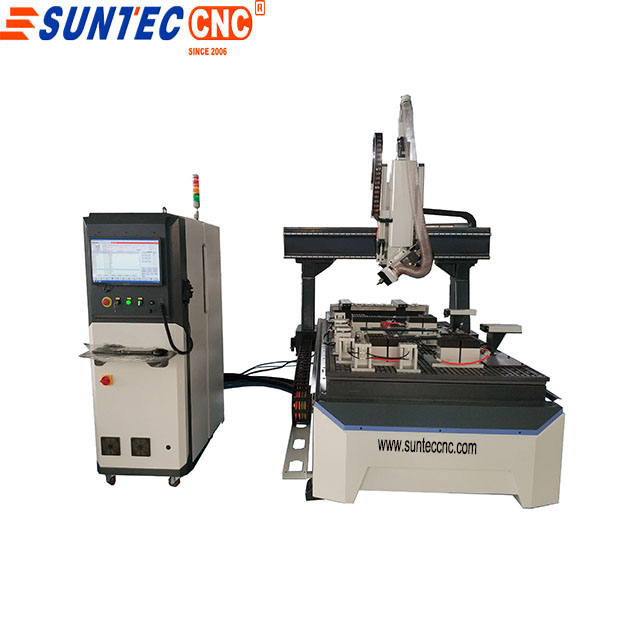

Customized wood door making suntec cnc router ST-1325 4 axis cnc

Customized wood door making suntec cnc router ST-1325 4 axis cnc

1. This machine not only for cabinet furniture but also for wood door making according customer requirments , we offer such solutions

2. if customer making cabinet furniture , just need 3 axis cnc router which is enough , hsd spindle fast speed high power.automatic tool change 8 piece .

3. if need making door need vacuum pump on table then connect tube to make a vaccum zone circle to adsorb wood panel tightly .then using 4 axis spindle horiznal 90 degree side milling door lock and hinger .

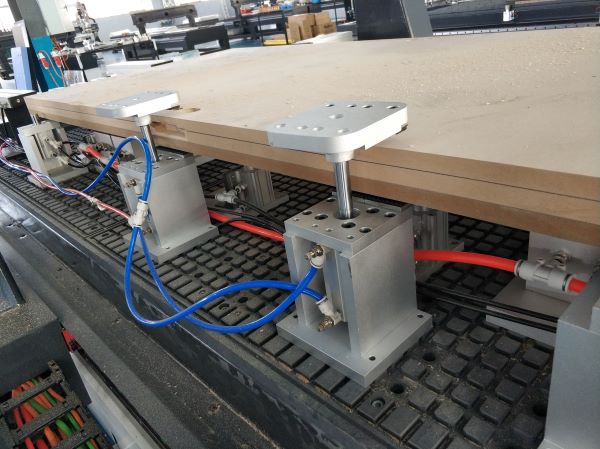

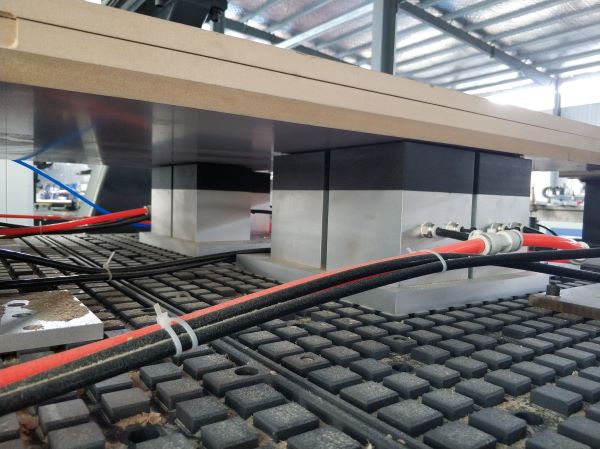

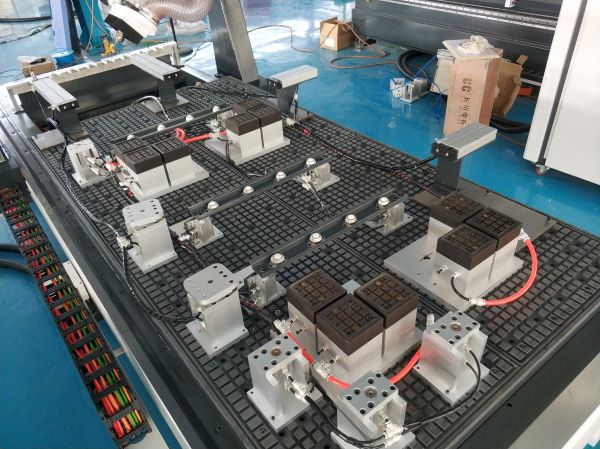

   Customized vacuum cups for wood door making four corner to make a vacuum zone circle to make wood tightly





   side hinger and woodlock milling




4. Description	Parameters
   Model	ST-1325
   Working Area	1300x2500x400mm
   Table Size	2150x4440mm
   Machine structure	Welded Steel square tube
   Traveling Positioning Accuracy	±0.01/500mm
   Repositioning Accuracy	±0.01mm
   Table Surface	Vacuum table
   X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
   Z Structure	Hiwin Rail Linear Bearings and Ball Screw
   Max. Power Consumption (Without spindle)	11KW
   Max. Rapid Travel Rate	9000mm/min
   Max. Working Speed	2500mm/min
   Spindle head	9.0kw Italy HSD spindle,
   Spindle Speed	0-24000RPM
   Drive Motors	Japan YASKAWA Servo motor
   Working Voltage	AC380V/50/60Hz,3PH
   Command Language	G code
   Operating System	Italy Osai  controller
   Computer Interface	USB
   Collet	ER32
   Software Compatibility	Type3 / Ucancam / Artcam
   Running Environment Temperature	0°C~45°C
   Relative humidity	30%~75%
