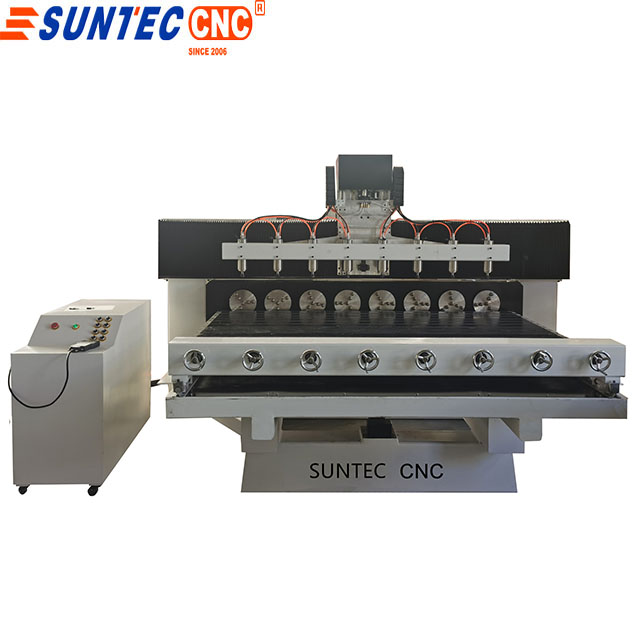

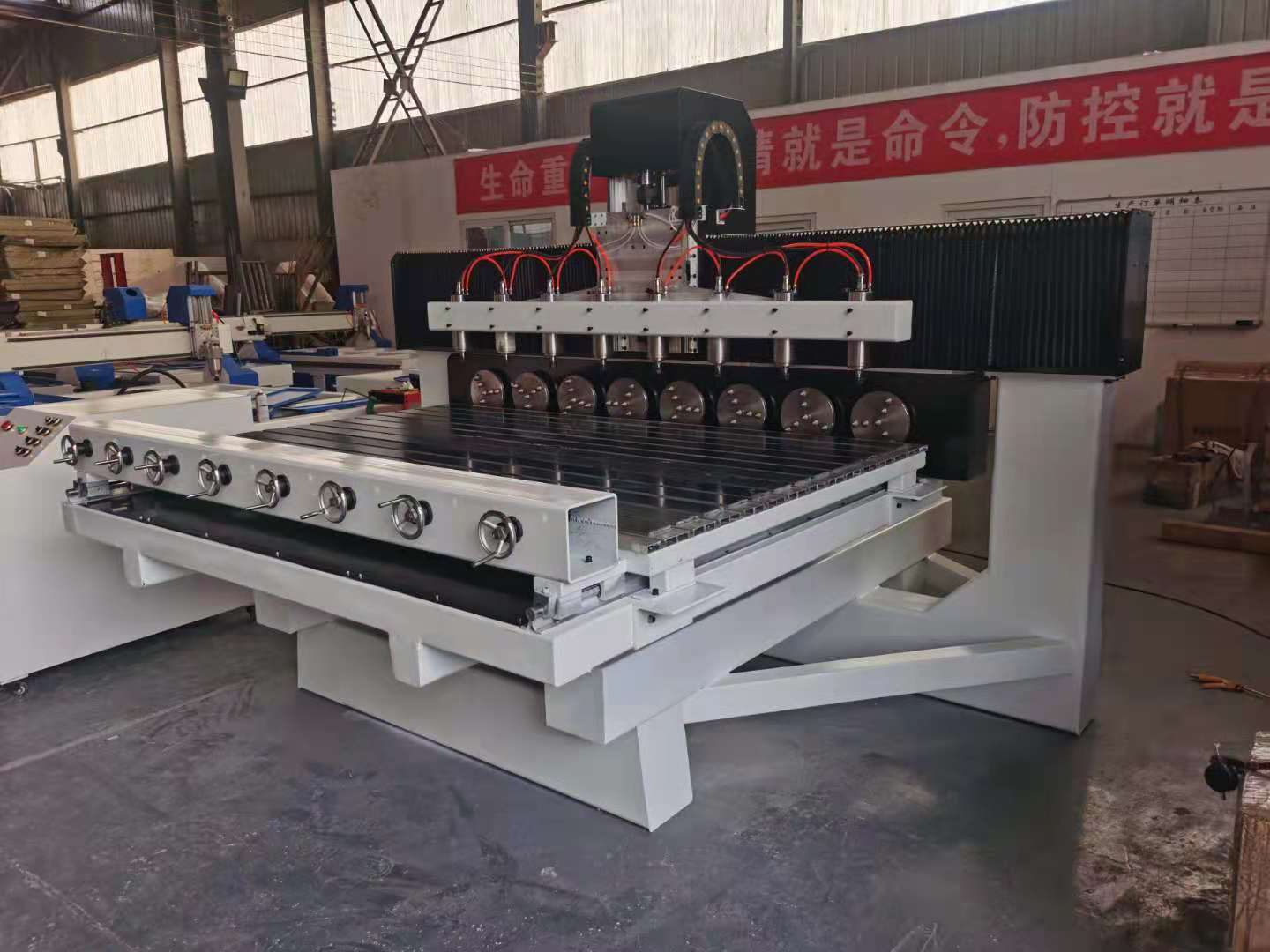

Multi 8 head head 4 axis 3d carving wood cnc router ST12025-8
Heavy duty structure table
movable table
rotary 1200*250mm
2.2water cooling spindle *8 which can work 8 piece wood at same time
Each spindle distance 250mm
servo driver and motor
7. A18 controller for 4 axis
Item | Specifications |
Working area | 2000X200-8 |
XY rotary | 1200*250mm |
Table type | Movable aluminum table |
X,Y,Z Traveling Positioning Accuracy | ±0.03/150mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
spindle | 2.2KW water cooling spindle X 8 for 4 axis |
Spindle rotating speed | 0-24000rpm/min |
Guider | Taiwan PMI linear guider |
Transimission type | ballscrew for X Y Z axis |
Control System | DSP A18 |
Motor | servo motor 1.3kw |
Driver | servo driver |
Software | UCANCAM V9 or Type3 |
Command | G code*.u00*.mmg* plt |
Surroundings for software | windows98/2000/xp |
Working voltage | AC380V 50Hz |
Packing size | 2.1x2.8x1.9 m |
N.W | 2200kg |
G.W | 25000kg |
