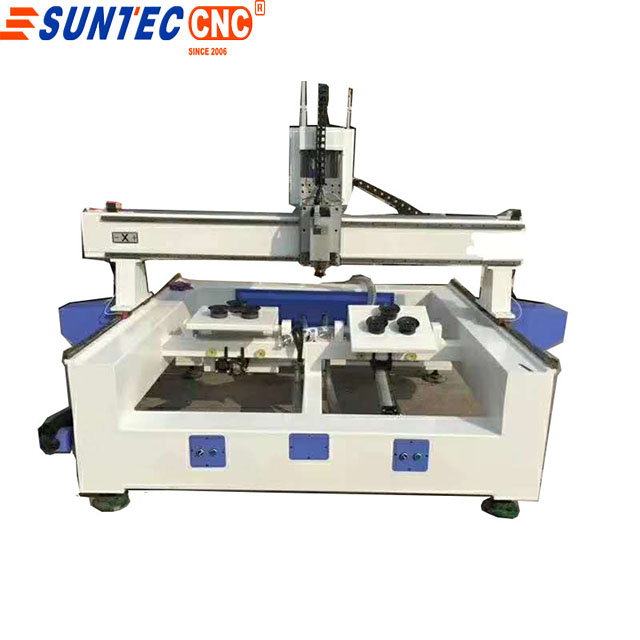

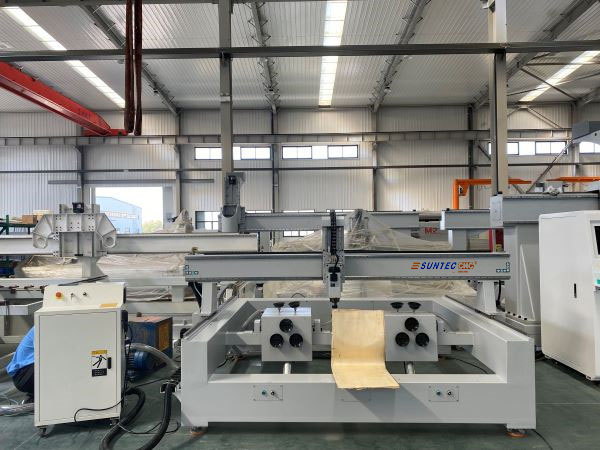

Suntec 3 axis wood chair making machine double table

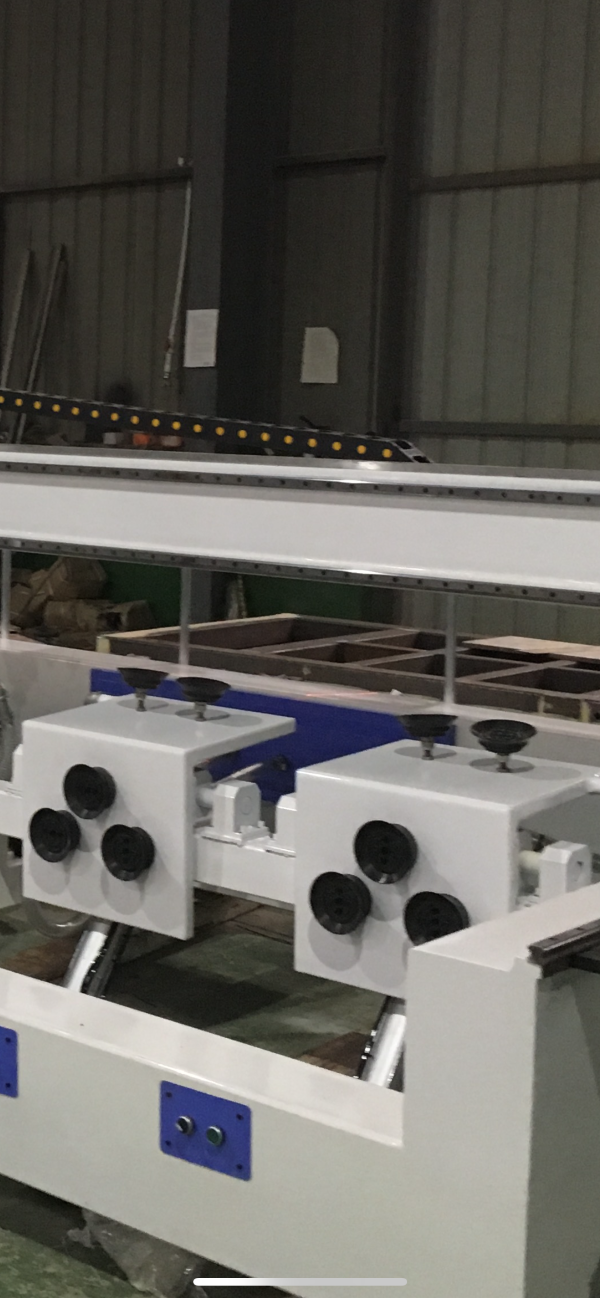

suntec vaccum cups for fix wood piece can work 450*450mm wood and table rotary 90 degree .there is button to control this two table
3 axis chair making machine mainly for no bending chair cutting if curved one better 4 axis or 5 axis
3 axis simple operate and two movable table one table with 5 vacuum cups one side working 450*450mm with rotary 90 degree one finished then cutting another one .
saving cost and energy .
Two spindle for optional one is cutting another making hole all according your working way to choose .
Dsp syntec controller according your method to choose if you want to see working routine syntec with screen is best but dsp is cheaper .
Number | Description | Parameter |
1 | X,Y,Z Working Area | 450*450mm for two table |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
6 | Frame | Big Steel Tube Structure |
7 | X, Y Structure | Rack and Pinion Drive, TaiwnPMI30 Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 9 Kw |
10 | Max. Rapid Travel Rate | 80000mm/min |
11 | Max. Working Speed | 60000mm/min |
12 | Spindle Power | 6kw spindle |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | Yaskawa Motors |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | Syntec 60-E Control System |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ISO 30 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | artcam |
23 | Running Environment Temperature | 0 - 45 Centigrade |
