5 AXIS CNC APPLICATION FOR 3D MOULD

Writer： admin Time：2020-07-06 09:50 Browse：℃

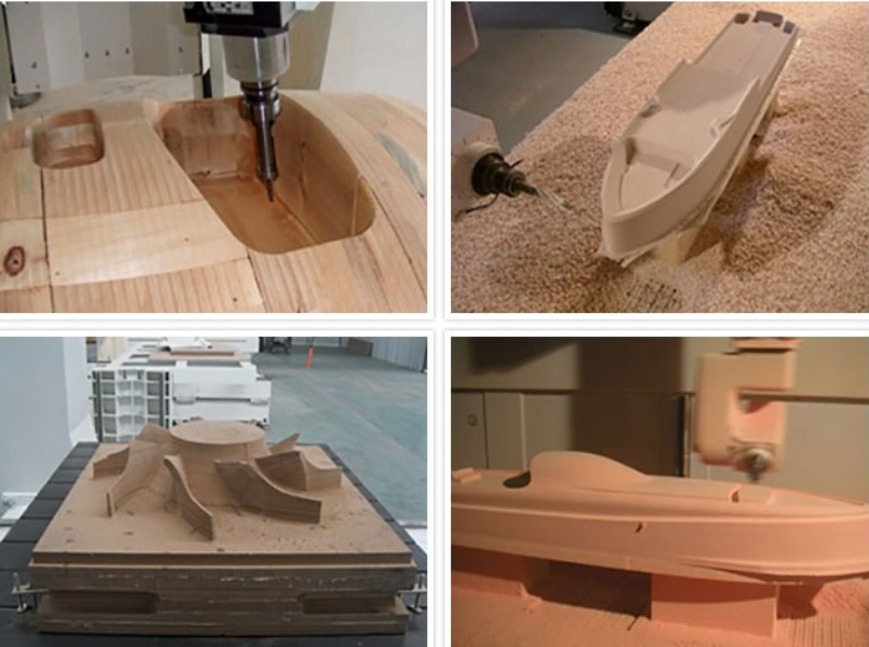

Suntec 5 axis  is a very important part of CNC machining. This technology has been widely used in the fields of high-precision instrument manufacturing such as ships, aerospace, automobiles, light industry, and medical treatment. In traditional mold processing, three-axis machining centers and vertical machining centers are commonly used to complete workpiece milling. With the continuous development of my country's mold manufacturing and processing technology, some weaknesses of traditional vertical machining centers and three-axis machining centers have gradually emerged. At present, ball-end milling cutters are commonly used in mold processing. Although the benefits of using ball-end milling cutters in mold processing are obvious, if a vertical machining center is used, the linear speed of the bottom surface is zero, and the finish is also poor. The five-axis machining center processes the mold, and the above deficiencies can be completely overcome.

In five-axis machining, a flat-bottomed end mill is used to maintain the vertical surface of the complex mold processing surface, which can greatly reduce the processing time. The principle of the five-axis machining center is also suitable for side milling with an angled surface, which can eliminate the rib-like texture caused by the ball end mill, making the surface quality of the mold more ideal, and reducing the need to clean the mold surface. The workload of manual milling and manual work.

     Through the five-axis machining technology, the problem of repositioning the workpiece at a complex angle and requiring multiple times of debugging and clamping is solved, which not only shortens the time, but also greatly reduces the errors generated. The tooling fixture required when installing the workpiece A large amount of cost has also been saved, and the machine tool has also achieved the processing of complex parts, such as drilling, taper processing, cavity concavity, etc. required for complex surfaces, which are not possible by traditional methods.

jinan suntec cnc mainly for customized cnc according customer requirements .we cooperate Italy TPA controller .OSAI control, Taiwan Syntec control, Japan Fanuc , Germany  Siemens , japan yaskawa .France Schneider Etc many world brand parts .

suntec 5 axis cnc can customized 1300*2500*1000mm ,2000*3000*1000mm, 2000*5000mm*1500mm ,3000*6000*2000  or 3000*40000mm*2000mm etc

Z axis can max 2m so need the cast iron structure table and gantry have much bearance to load the 5 axis cnc head . so that it can not vibrate when working .

more information pls contact http://www.sunteccnc.com  whatsapp 8615966606596
