2023 hot sale Kuka KR210 6 axis robot arm 3d carving cnc router

Writer： admin Time：2023-06-02 15:47 Browse：℃

6 axis KR210 robot arm cnc router now widely used many industries wood carving stone engrave foam carving

It depend your material size length width height and material weight to choose robot . KR210 rated weight 210kgs

now hot sale for light industrial carving . with sprutcam software can support english version and support 6 axis 7 axis 8 axis 9 axis .

KRC4 controller with high torque spindle according material to choose spindle . water cooling or air cooling .

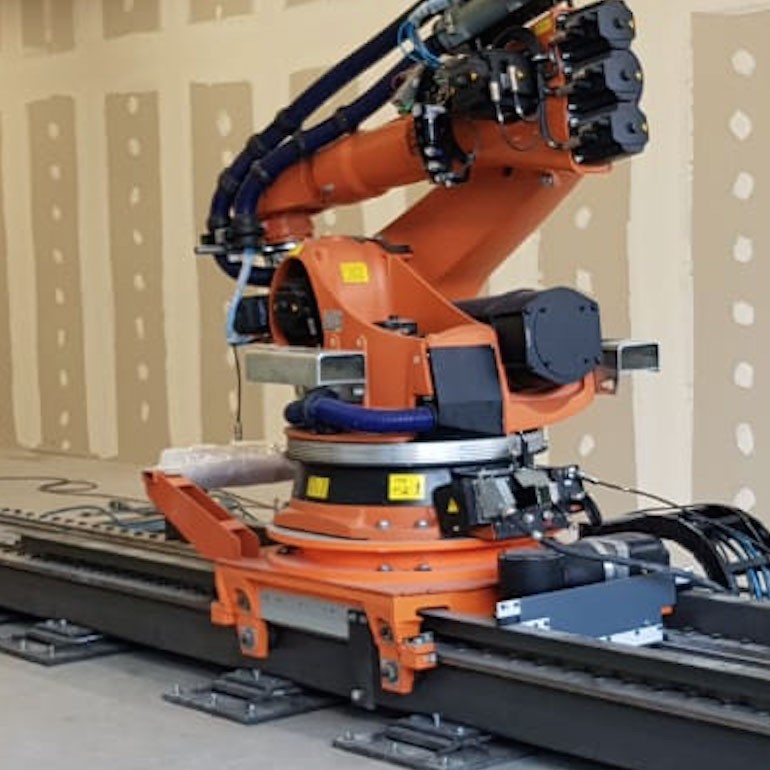

robot rails according your working size to choose normal less than 3m lenght no need rails .

Load (refers to the load of point at the foremost end of the 6th axis)	210kgs
Additional load on the arm	50kgs
Rated payload	260kgs
Maximum payload	275kgs
Weight	1077kgs
Motion axis	6
Pose repeatability (ISO 9283)	± 0.05 mm

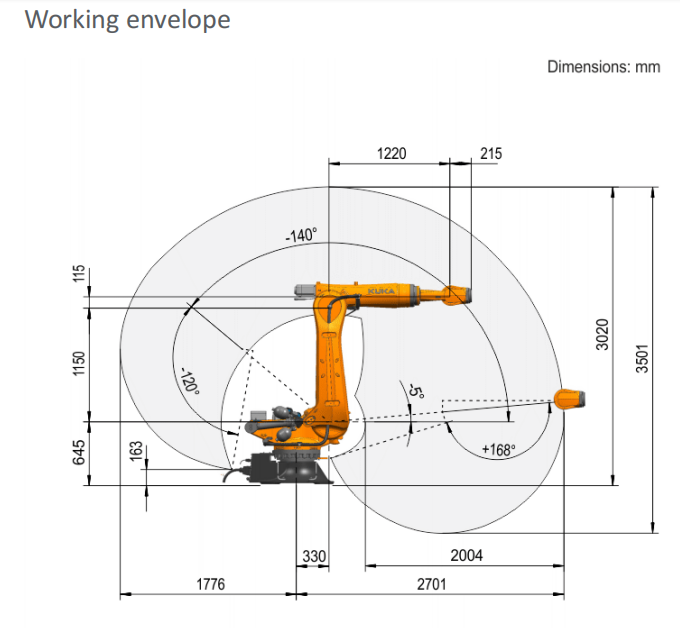

Maximum reach	2701mm
ProtecƟon raƟng (IEC 60529)	IP65
Protection ratng, in-line wrist (IEC 60529)	IP65 / IP67
Sound level	< 75 dB (A)
Mountng positon	Floor
Footprint	754 mm x 754 mm
Hole patern: mountng surface for kinematc system	S780
Permissible angle of inclinaton	≤ 5 °

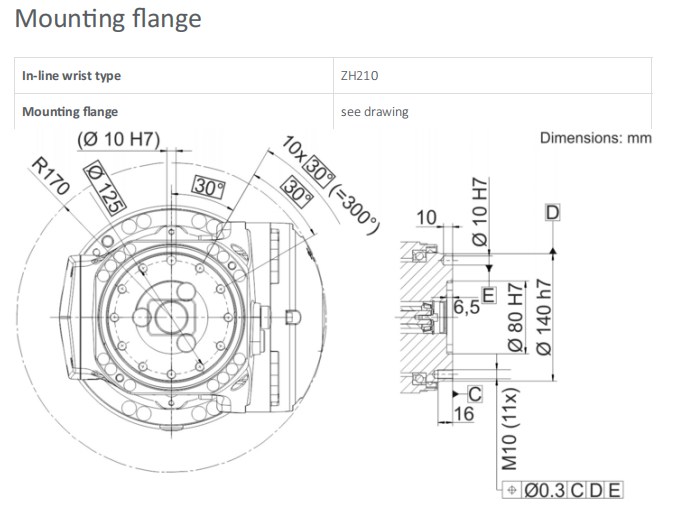

Flange (on the 6th axis)	DIN ISO 9409-1-A50
Controller	KRC4
Transformaton name	KR C4: KR210R2700_2 C4 FLR
During operaƟon	0 °C to 55 °C (273 K to 328 K)
During storage/transportaƟon	-40 °C to 60 °C (233 K to 333 K)
Installation position	On the ground
CPU and main board	KUKA

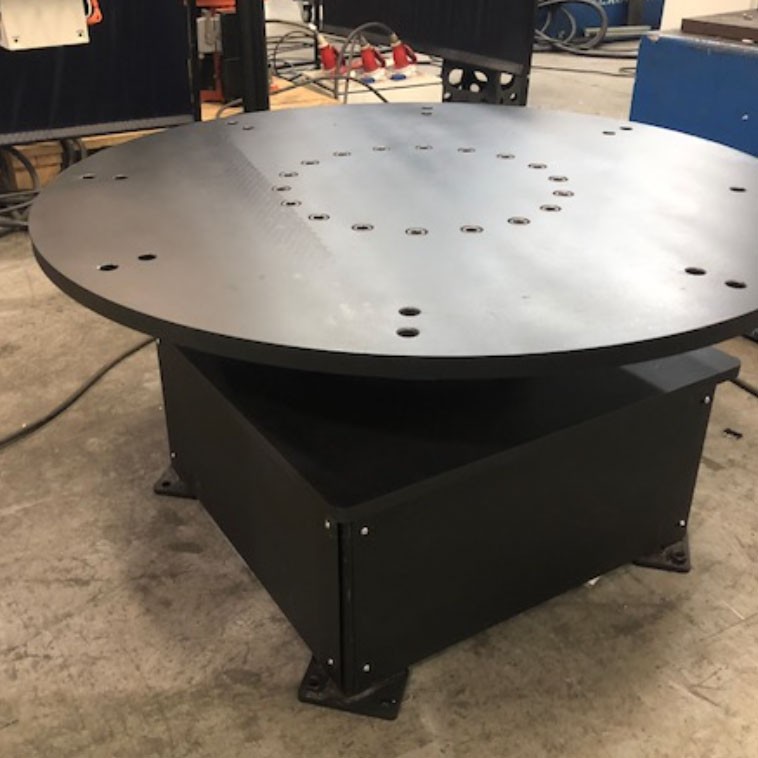

Rotart table	1500kgs china made
Spindle with water cooling systerm	18kw Italy spindle
Software	Sprutcam
DeviceNet	OMRON

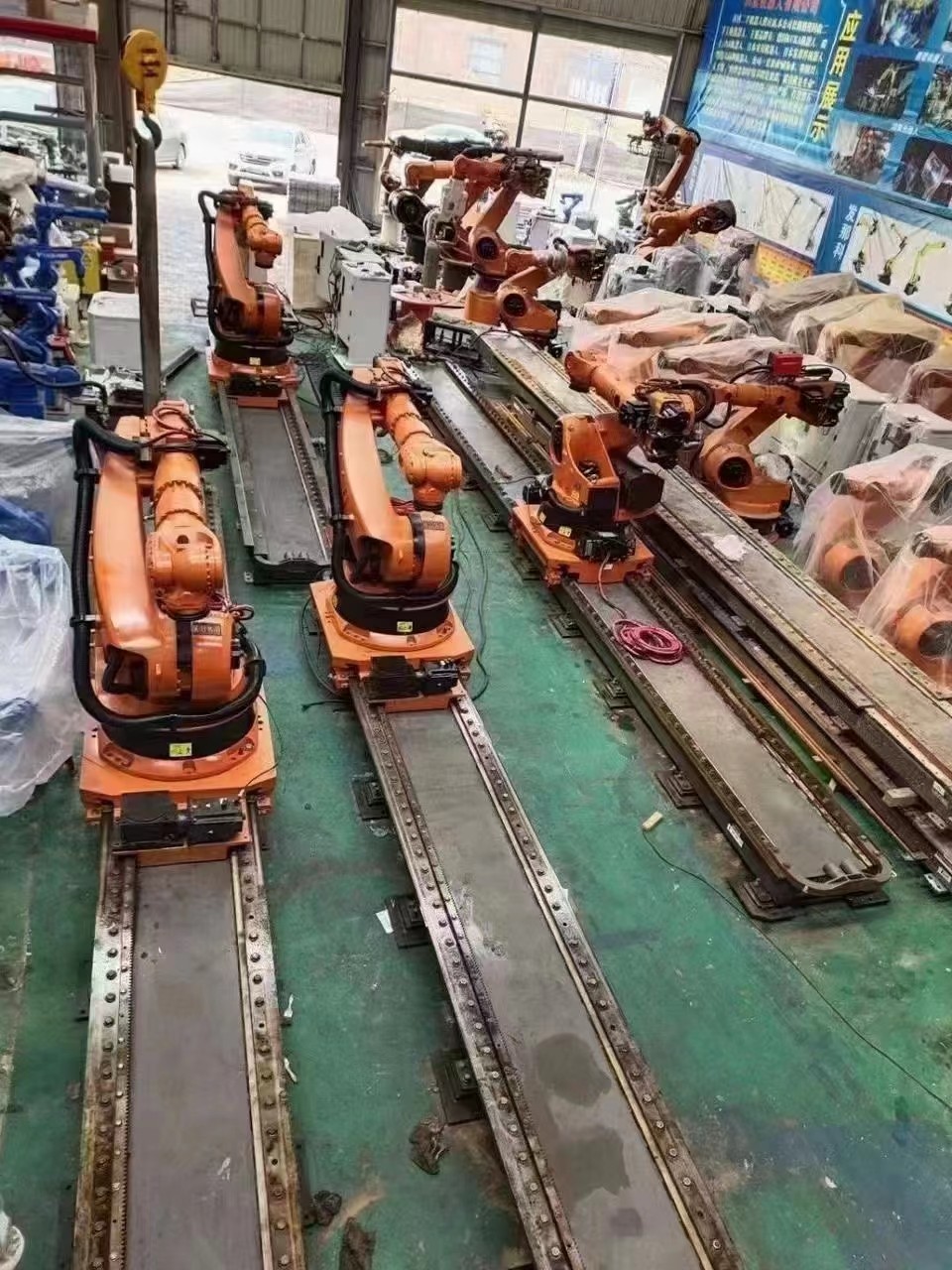

RAILS	5M
Motion parameters of each axis	Range of motion	Speed
Axis 1	+/-185°	120°/s
Axis 2	-5°/-140°	115°/s
Axis 3	-120 ° / 168 °	112°/s
Axis 4	+/-350°	179°/s
Axis 5	+/-125°	172°/s
Axis 6	+/-350°	220/°/s
