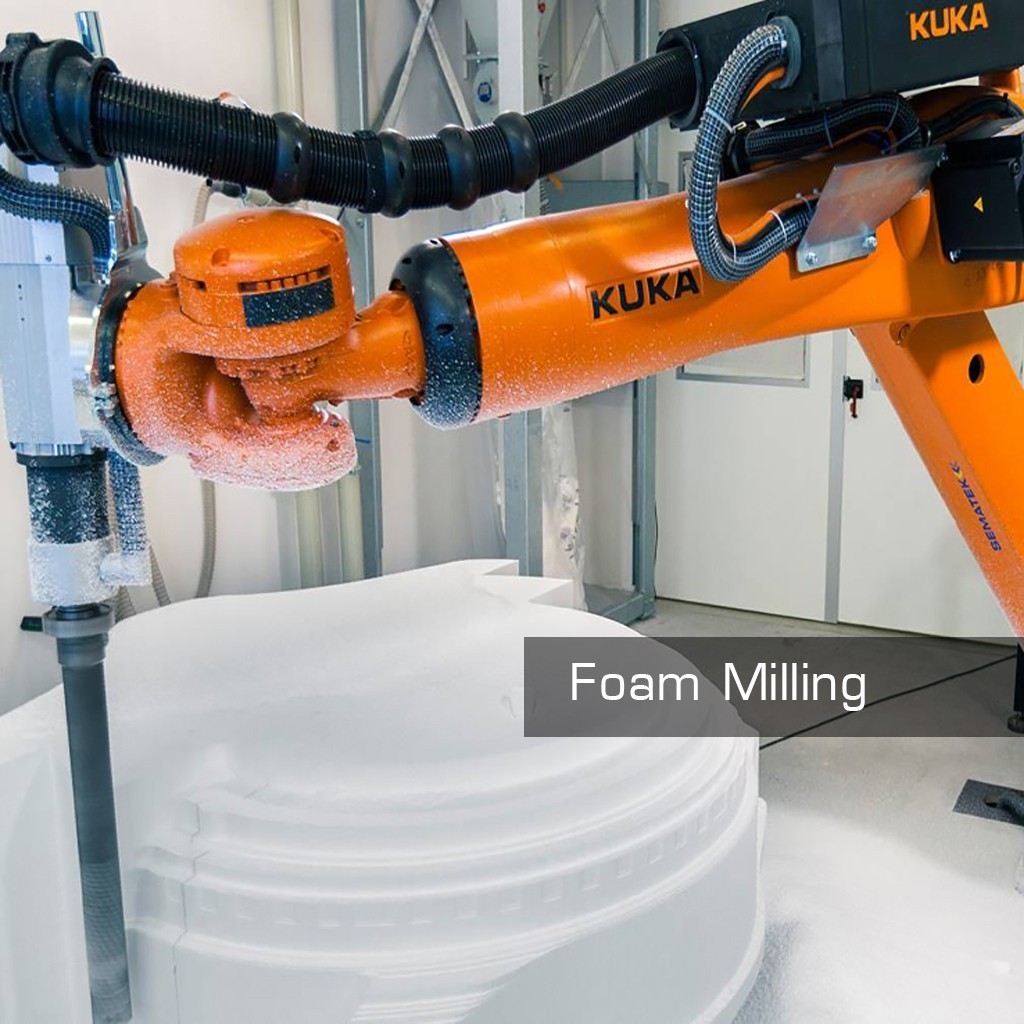

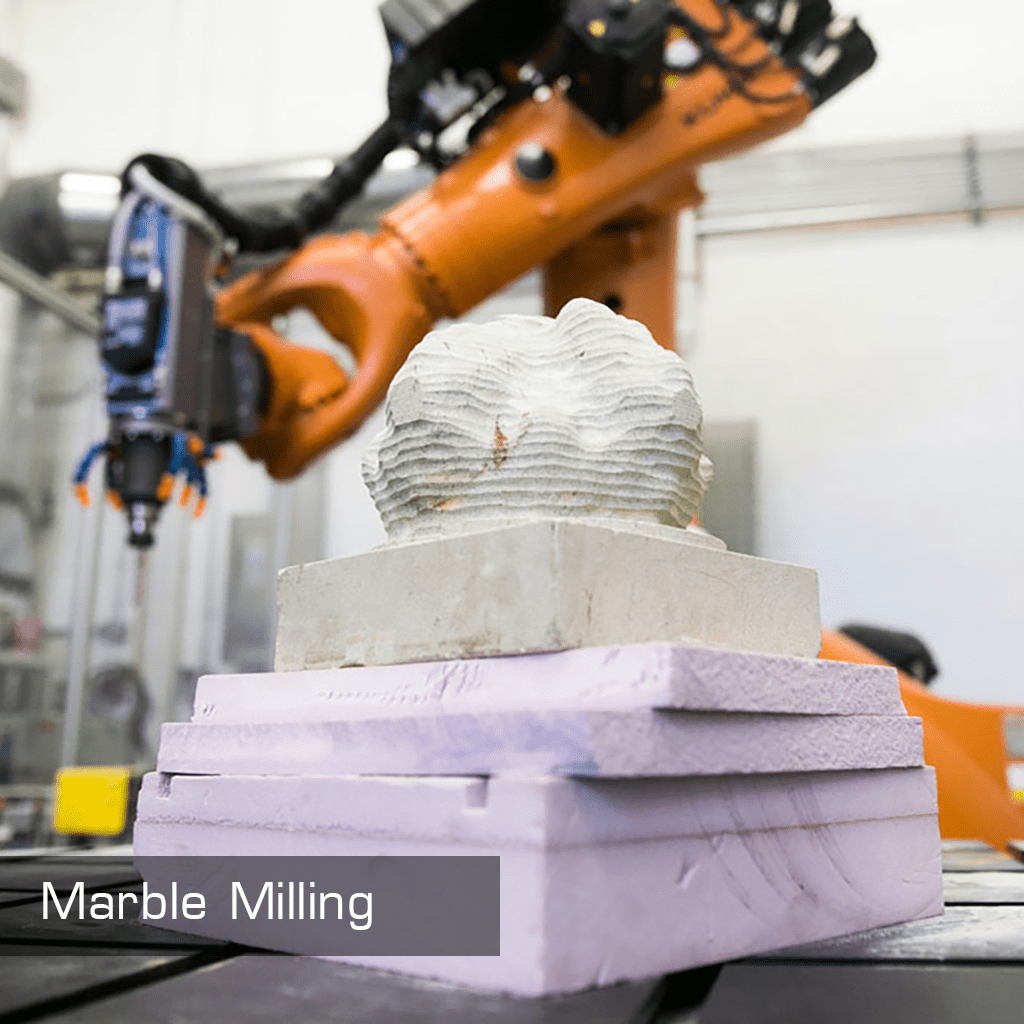

kuka 6 axis 7 axis 8 axis robot arm 3d engraving cnc router for stone wood foam

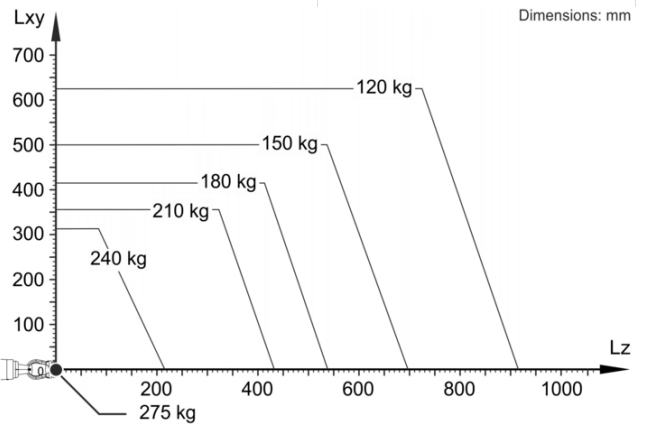

Load (refers to the load of point at the foremost end of the 6th axis) | 210kgs | |
Additional load on the arm | 50kgs | |
Rated payload | 260kgs | |
Maximum payload
| 275kgs | |
Weight | 1077kgs | |
Motion axis | 6 | |
Pose repeatability (ISO 9283)
| ± 0.05 mm
| |
Maximum reach
| 2701mm | |
ProtecƟon raƟng (IEC 60529)
| IP65
| |
Protection ratng, in-line wrist (IEC 60529)
| IP65 / IP67
| |
Sound level
| < 75 dB (A)
| |
Mountng positon
| Floor | |
Footprint
| 754 mm x 754 mm
| |
Hole patern: mountng surface for kinematc system
| S780
| |
Permissible angle of inclinaton
| ≤ 5 °
| |

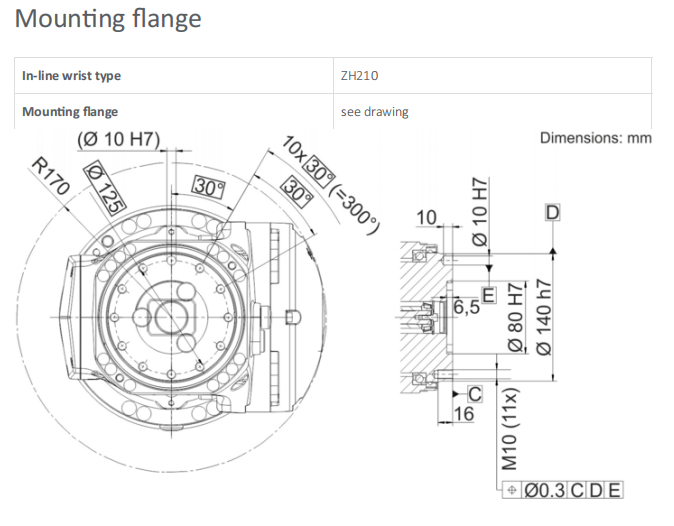

Flange (on the 6th axis) | DIN ISO 9409-1-A50 | |
Controller | KRC4 | |
Transformaton name
| KR C4: KR210R2700_2 C4 FLR
| |
During operaƟon
| 0 °C to 55 °C (273 K to 328 K)
| |
During storage/transportaƟon
| -40 °C to 60 °C (233 K to 333 K)
| |
Installation position | On the ground | |
CPU and main board | KUKA | |

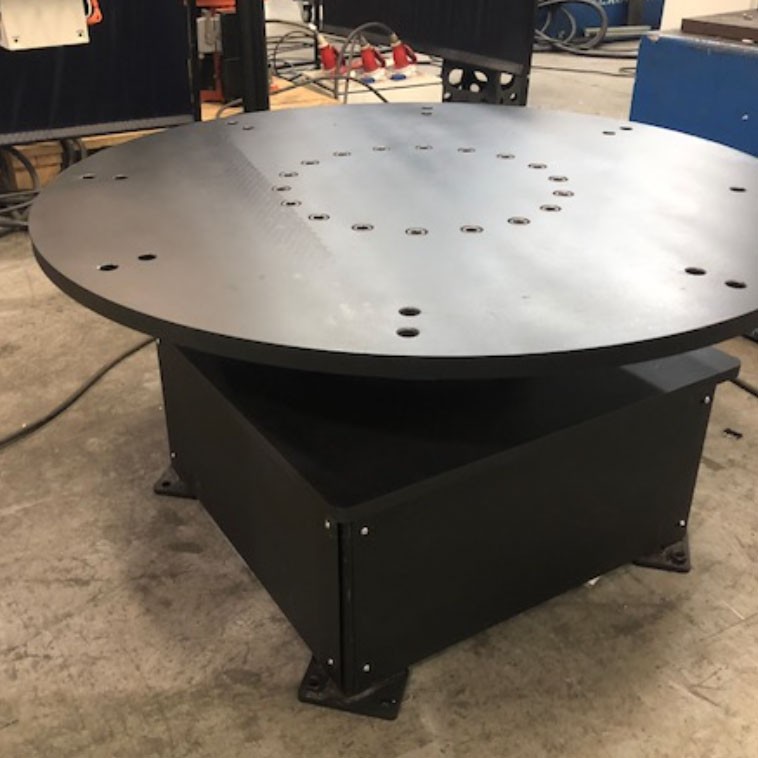

Rotart table | 1500kgs china made | |
Spindle with water cooling systerm | 18kw Italy spindle | |
Software | Sprutcam
| |
DeviceNet
| OMRON | |

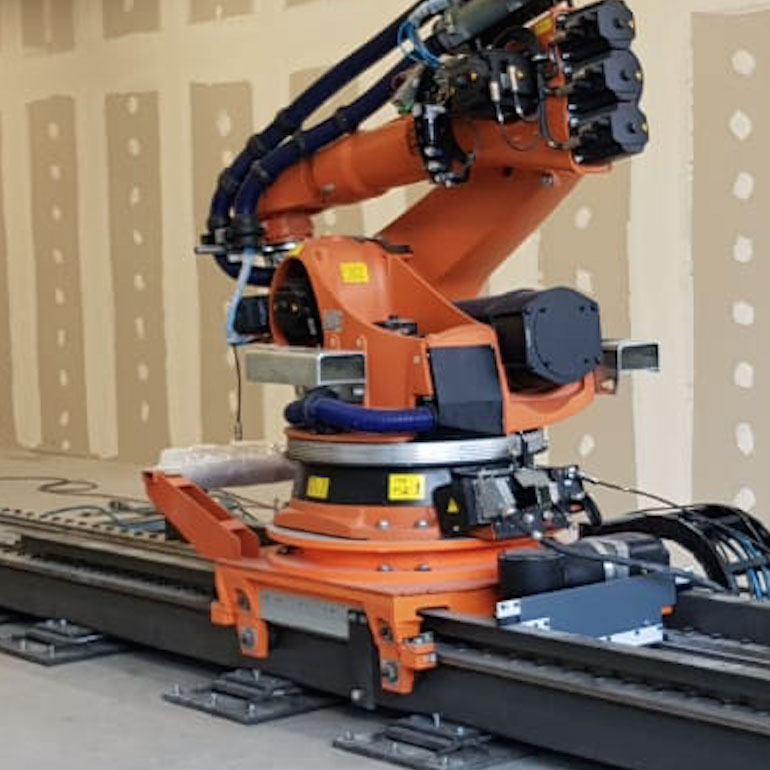

RAILS | 5M | |
Motion parameters of each axis | Range of motion | Speed |
Axis 1 | +/-185° | 120°/s |
Axis 2 | -5°/-140° | 115°/s |
Axis 3 | -120 ° / 168 °
| 112°/s |
Axis 4 | +/-350° | 179°/s |
Axis 5 | +/-125° | 172°/s |
Axis 6 | +/-350° | 220/°/s |
RFQ
What working size length width height
what kind of material you deal and weight
Kuka robot have many types , we according your working size and material weight to introduce best one .sprutcam software according your working material to developed axis .
