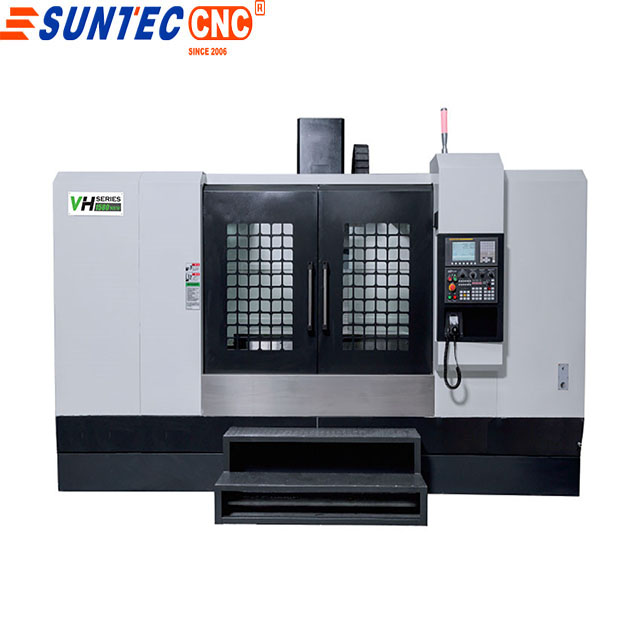

hot sale 3 axis cnc metal cnc lathe center for metal
Type | unit | VH1580 |
journey | ||
The X axis stroke | mm | 1500 |
Y trip | mm | 800 |
The Z axis stroke | mm | 700 |
Distance from the center of the spindle to the guide rail of the column | mm | 855 |
Distance from nose of spindle to workbench | mm | 130-830 |
workbench | ||
bed dimension | mm | 1650*800 |
T-slot size (number of slots * width * spacing) | mm | 5*22*150 |
Table maximum load | kg | 1600 |
principal axis | ||
Spindle distance (selection) | type | BT50(BT40) |
Spindle form (selection) | type | belt（ZF） |
Spindle revolution (selection) | rpm | 6000（8000） |
Spindle motor (continuous /30min) | kw | 15/18.5 |
feed | ||
Three axes moving fast | m/min | 20/20/20 |
Cutting feed rate | mm/min | 1-10000 |
precision | ||
positionaI accuracy | mm | ±0.005/300 |
repeated accuracy | mm | ±0.005 |
Automatic tool change form | ||
Number of tools (selection) | T | 24(30/40) |
The most heavy broadsword | kgf | 15 |
else | ||
Air Pressure | kg | 6 |
power demand | KVA | 40 |
Mechanical dimensions (length * width) | mm | 3900*3200 |
Mechanical height | mm | 3100 |
Maximum machine weight (gross weight) | kg | 12500 |
