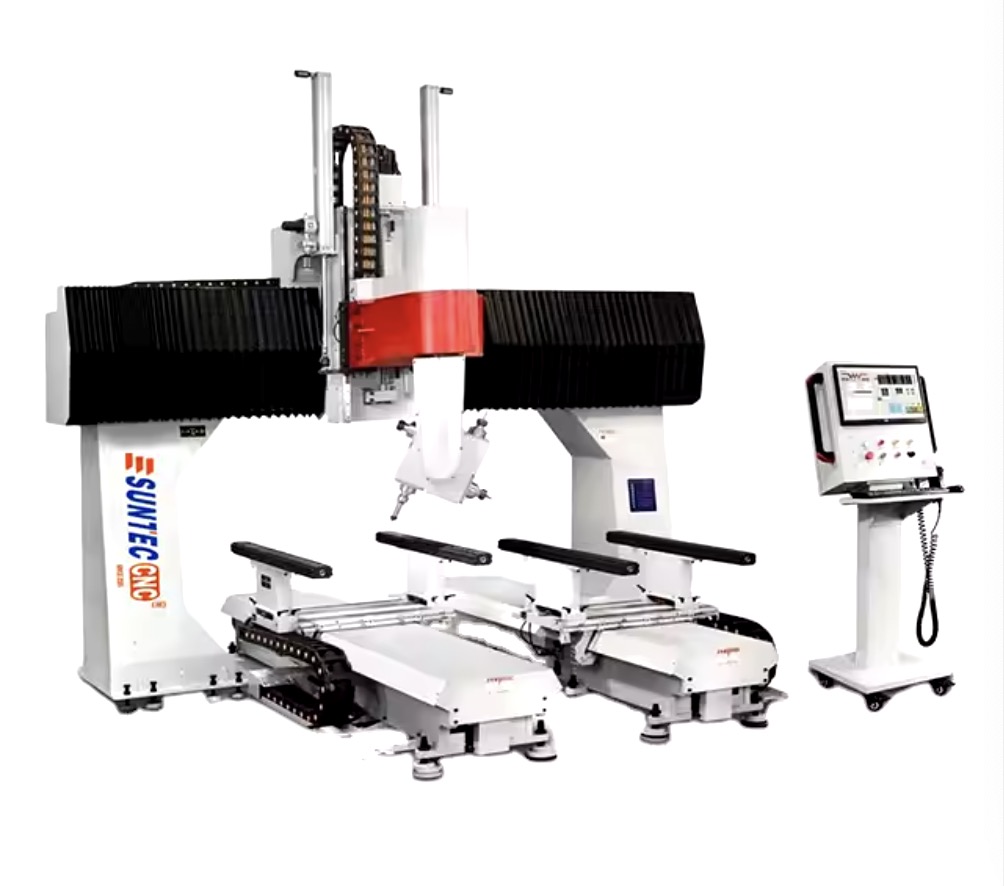

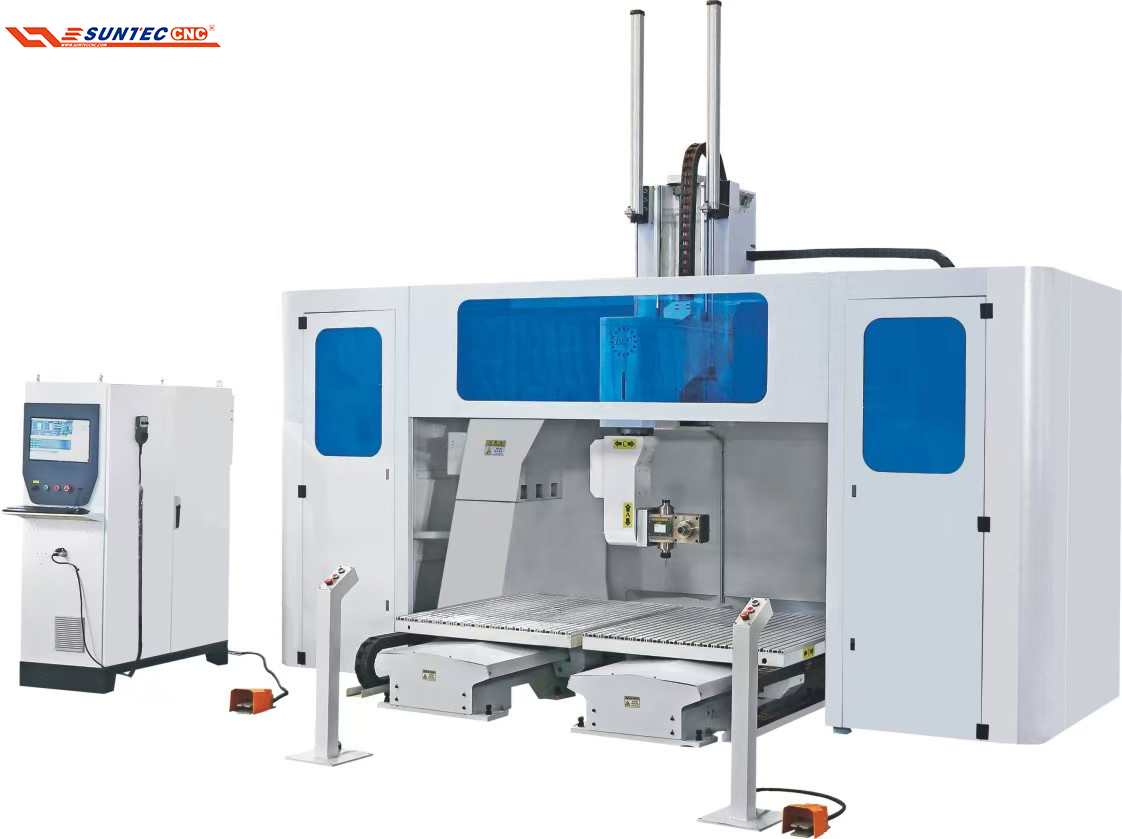

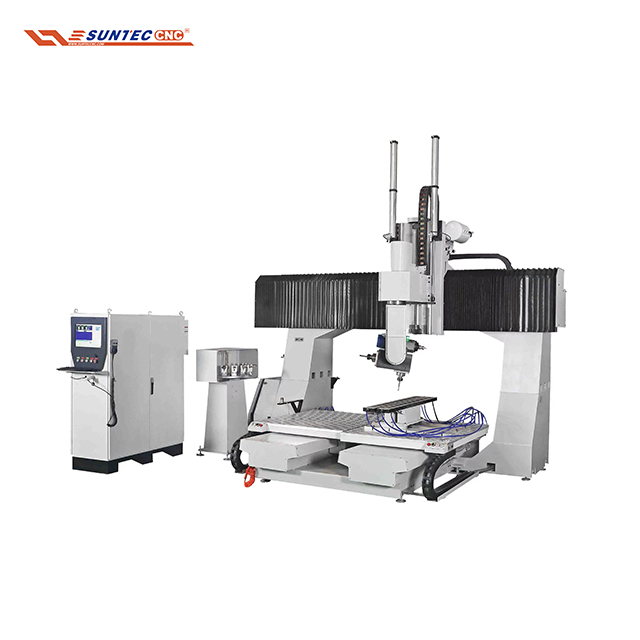

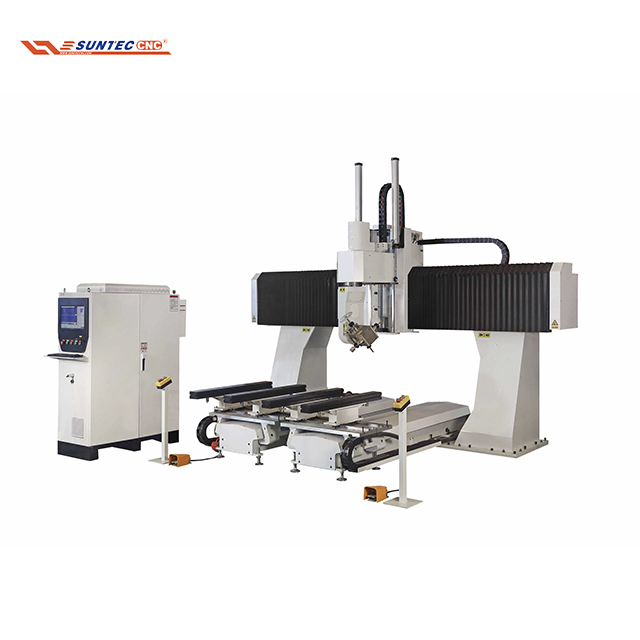

Suntec coffin blister case shell plaster mold making double table 5 axis cnc router

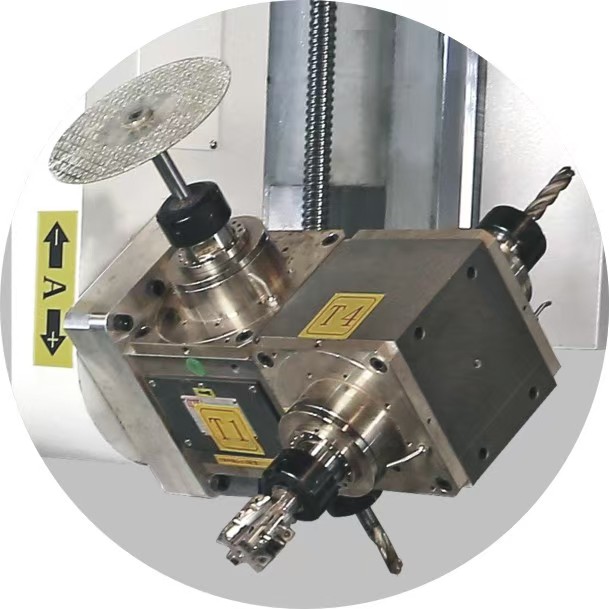

① Double motor cross layout, at the same time can install four different tools or saw blades, quickly switch the tool/saw blade time is less than 1 second, in the production and processing, greatly improve the work efficiency.
② Can adjust the bar table, can quickly adjust the clamping, positioning, convenient to install a variety of pneumatic fixtures. Quick switching of curved flat fixture.
③ The company independently developed simulation software, while compatible with a number of programming software on the market such as UG, alphacam, PowerMill, etc., simple and easy to learn, while having the following advantages.
④ Optimize the excessive trajectory (tool switching or the next program automatically calculate and execute the most efficient way to the next point)
⑤ 3D visual simulation (1:1), you can view the movement of the workpiece and the tool from any Angle, better understand the processing process
⑥ No need to set the workpiece coordinate system on the machine to save part of the set coordinate time
⑦ Simple modular - mortise - mortise - milling - fixed point and other input data can be processed
⑧ Quickly modify the single program and coordinates
⑨ Collision check function
Application
plastics processing,
advertising industry
automotive - production of bodywork, car tuning, body parts and equipment
sanitary - production of bathtubs, shower trays, washbasins,
shipbuilding - for the production of yachts, sailing and motor boats,
model manufacturing - 5D milling of 3D models, injection and foundry molds, trimming after thermoforming.
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1600*11000*700mm double table |
2 | Table Size | 3550×5540mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/700mm |
4 | A axis | ±110 degree |
5 | C AXIS | ±220 degree |
6 | Axis positioning accuracy | 1 arcmin |
7 | Table Surface | movable table two table |
8 | Frame | Big Steel Tube Structure with heat treatment |
9 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
10 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
11 | Max. Power Consumption | 11 Kw |
12 | Max. Rapid Travel Rate | 40000mm/min |
13 | Max. Working Speed | 40000mm/min |
14 | Spindle Power | 7.5kw four spindle with atc saw and tools |
15 | Spindle Speed | 0-24000RPM |
16 | Drive Motors | 3000W Yaskawa Motors |
17 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
18 | Command Language | G Code |
19 | Operating System | Syntec Control System/TPA /OSAI |
20 | Computer Interface | USB |
21 | Flash Memory | 512M |
22 | Collet | 63F |
23 | X,Y Resolution | <0.01mm |
24 | Software Compatibility | powermill UG software |
25 | Running Environment Temperature | 0 - 45 Centigrade |
26 | Relative Humidity | 30% - 75% |
27 | Packing Size | 5500X2100X2300mm |
28 | N.W. | 40000KG |
29 | G.W. | 45000KG |

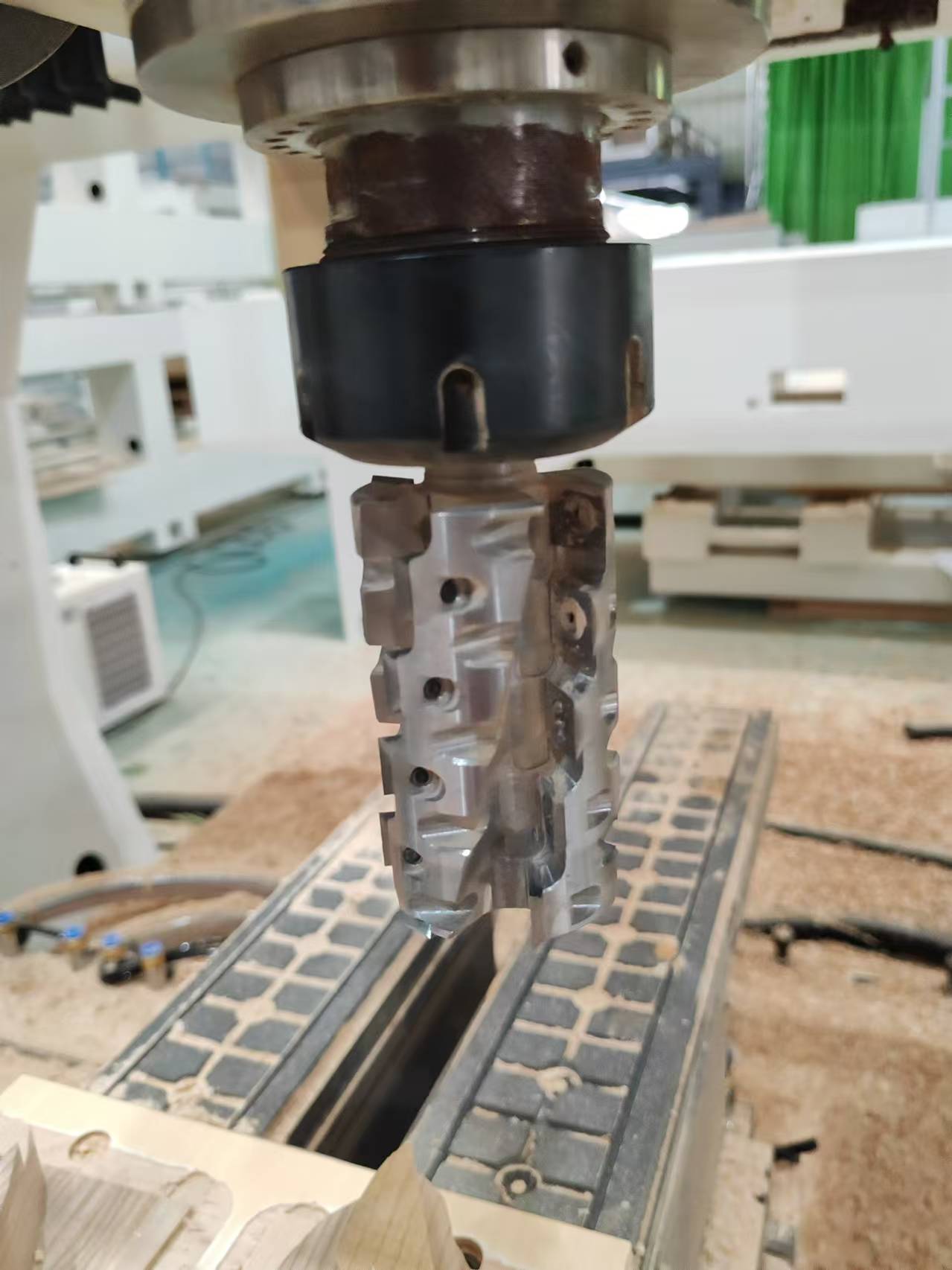

vacuum cups for small piece wood piece .
How to make a bend wood chairs with suntec 5 axis cnc router

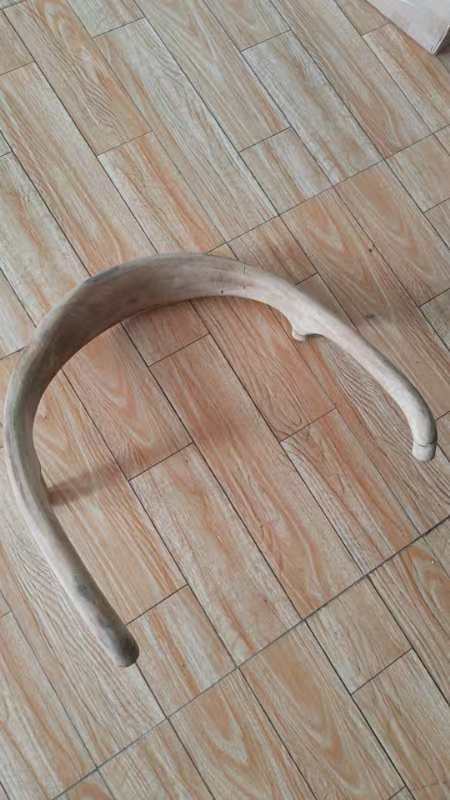

1. Make a semi-finished product based on your chair design, then assemble it like the photos below
2.

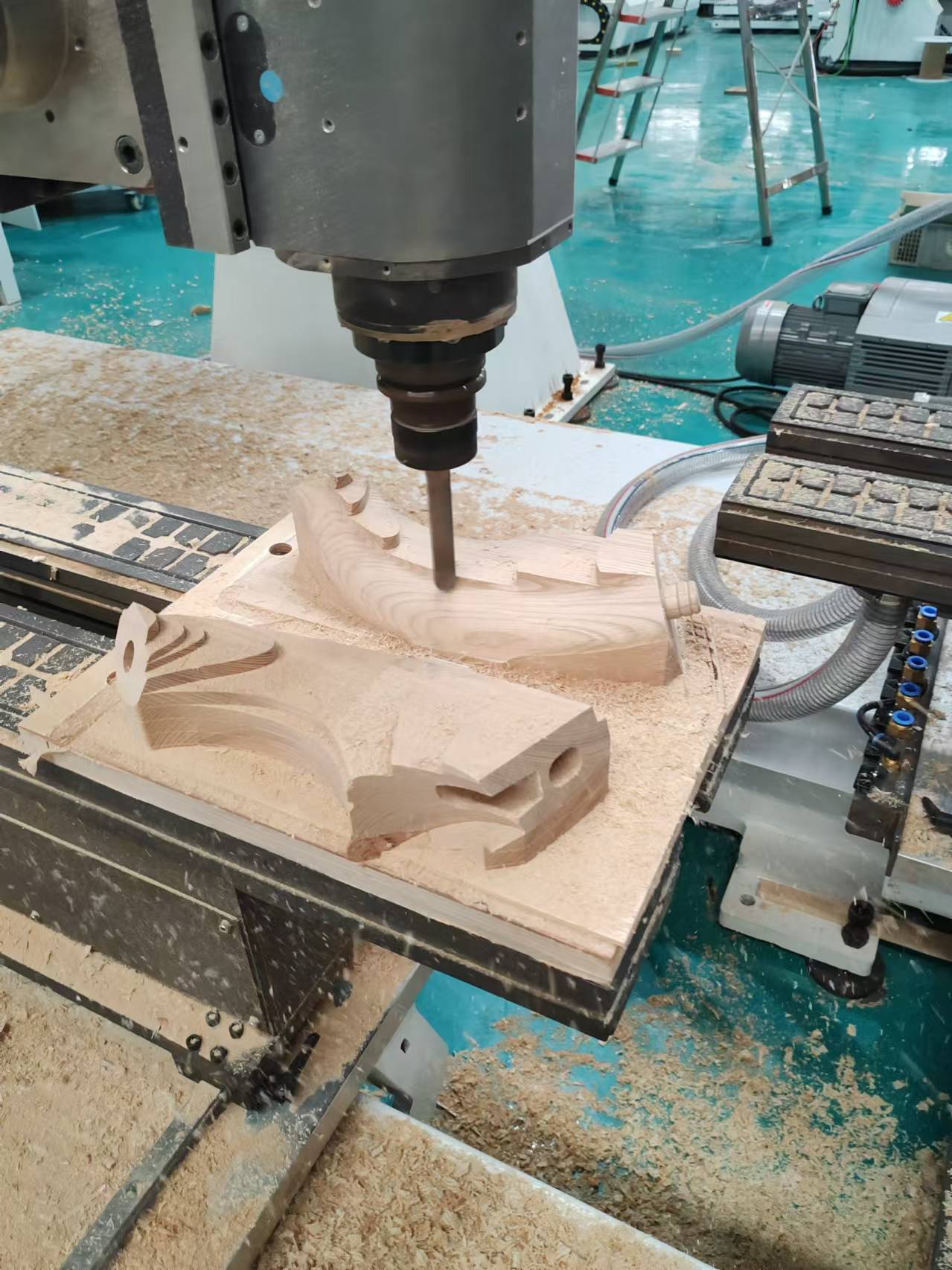

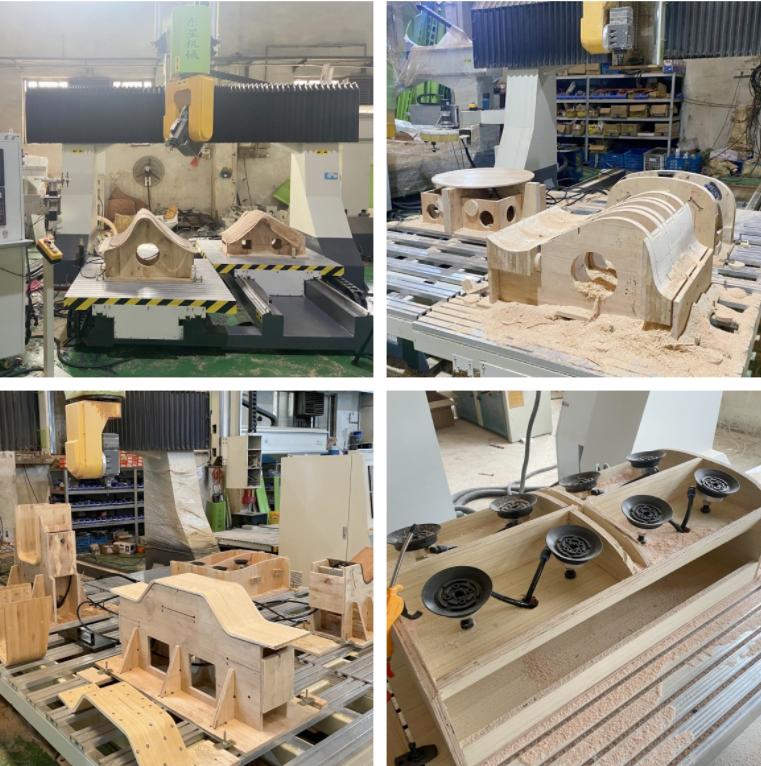

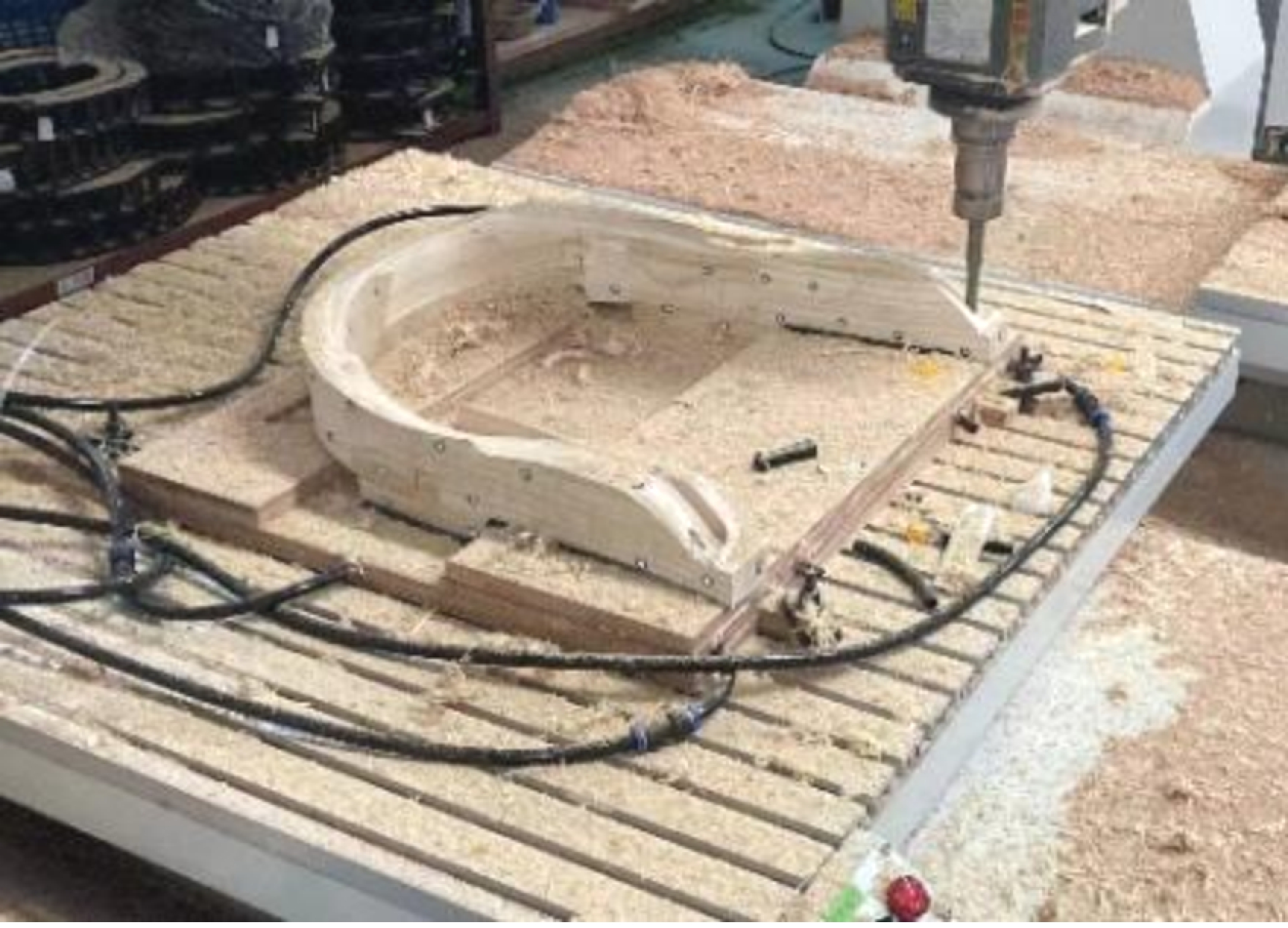

Put above assembled semi-finished product to the machine fixing mold for processing.

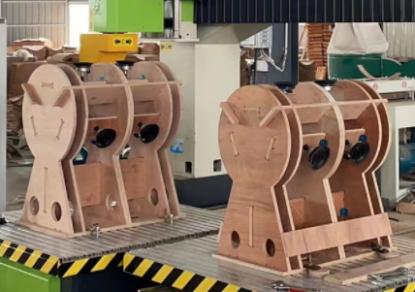

The bottom fixing mold needs to make according to the different shapes of the product.
It has to make 2 molds for the shape, one for front side processing, the other one for back side processing.

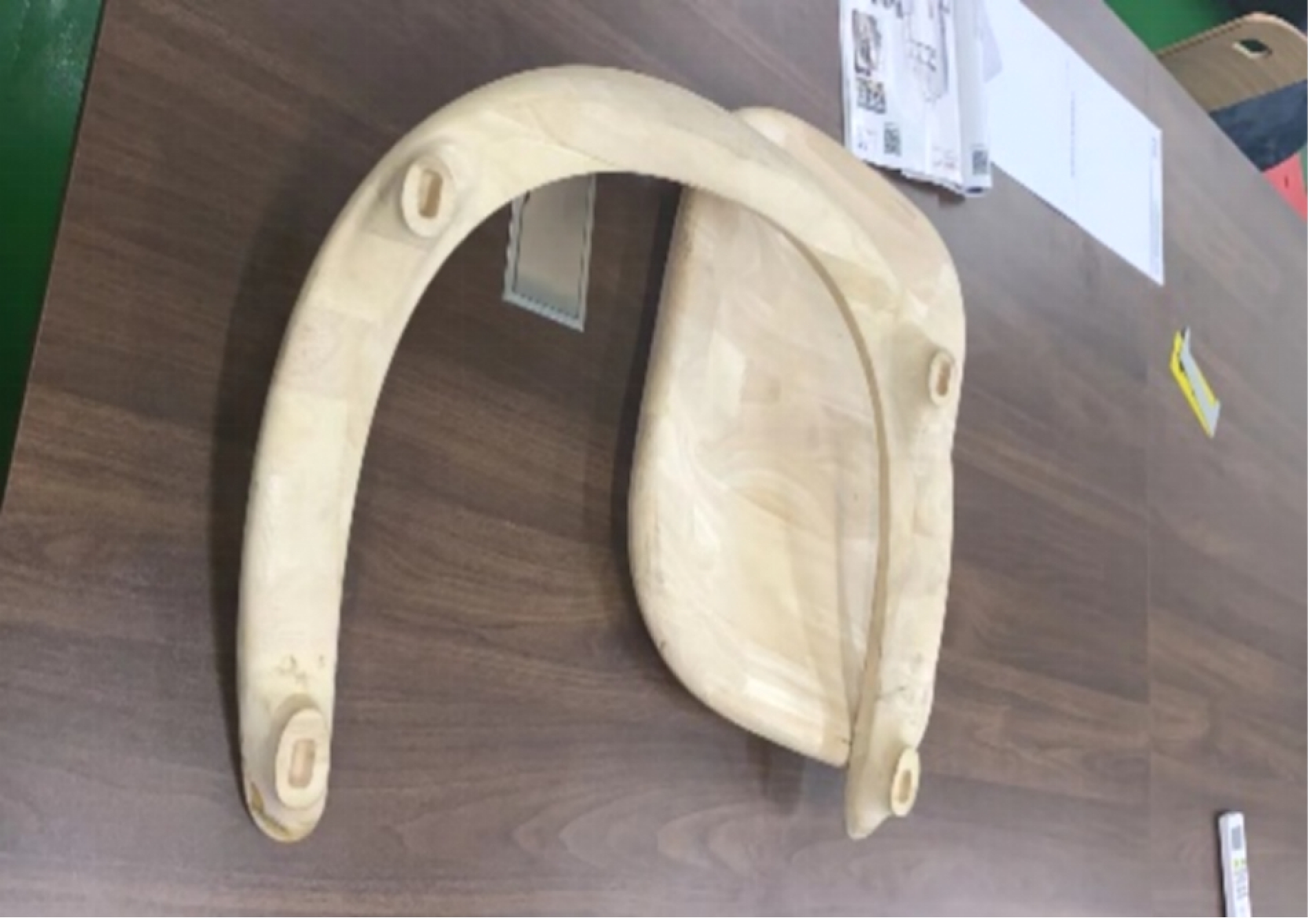

3.Processed semi-finished product

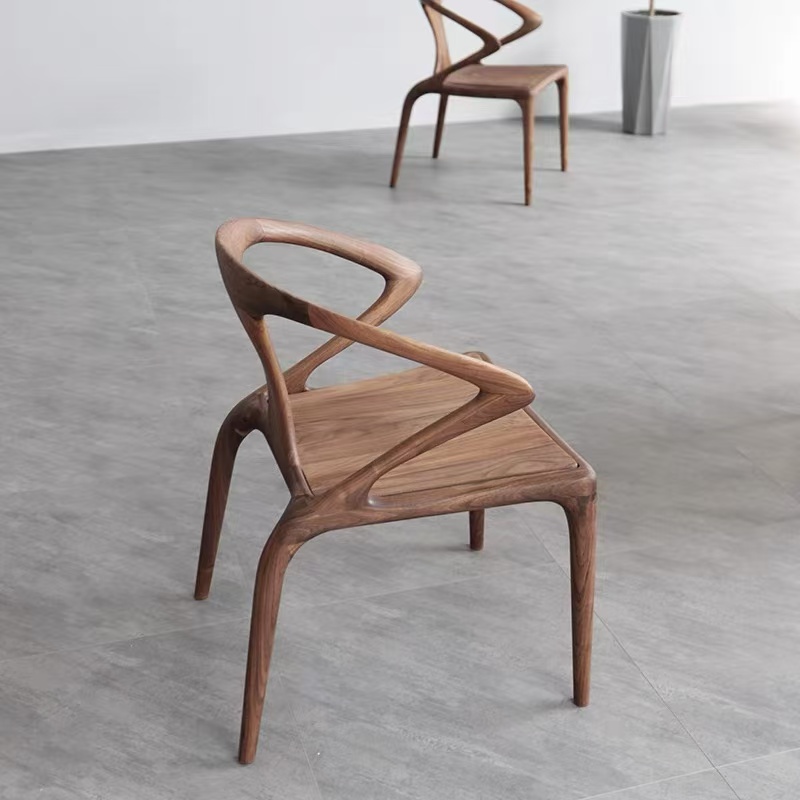

4.Assemble to a finished product
