Kuka robot arm cnc stone machine 3d sculpture 6 axis 7 axis robot arm cnc for aviation

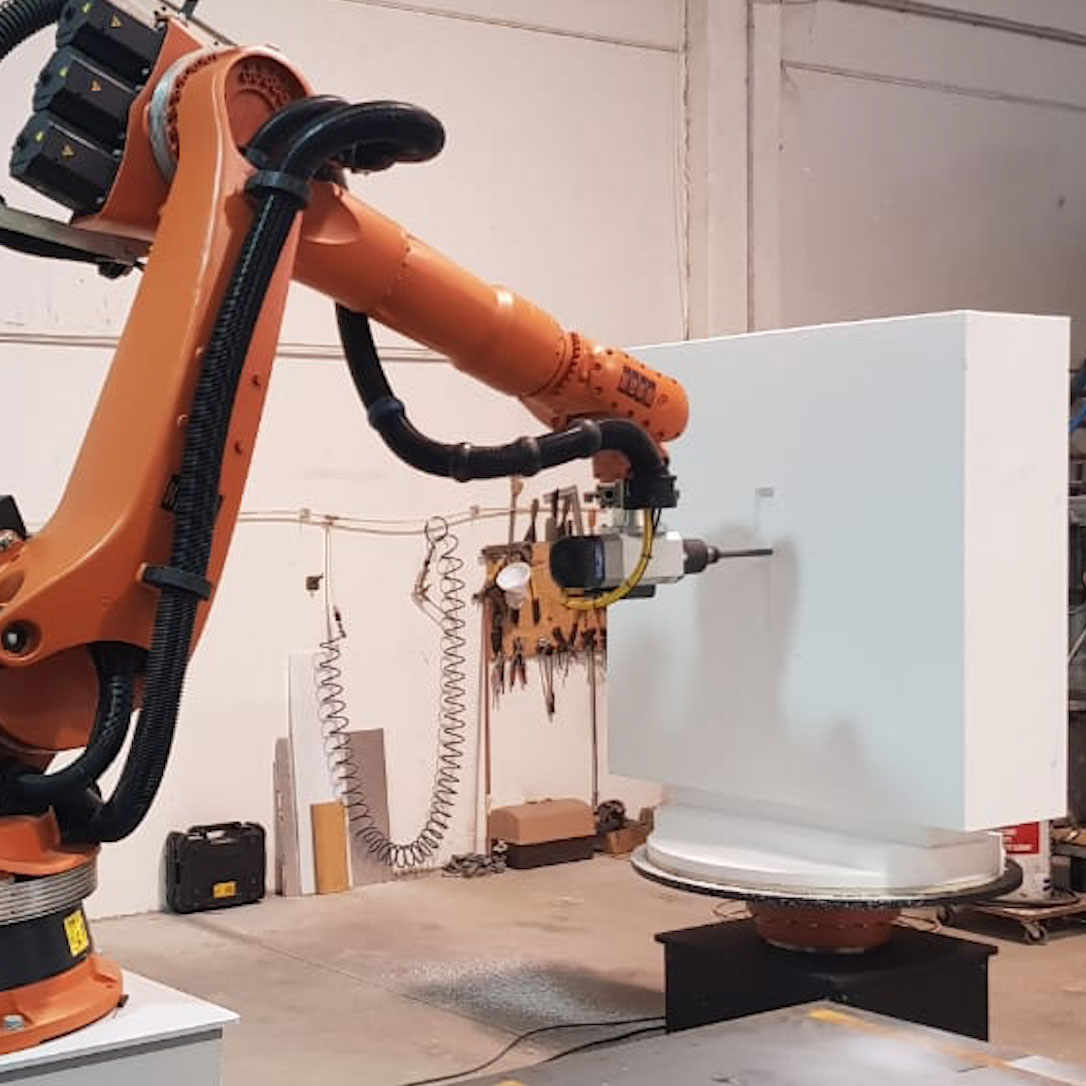

Kuka robot for foam

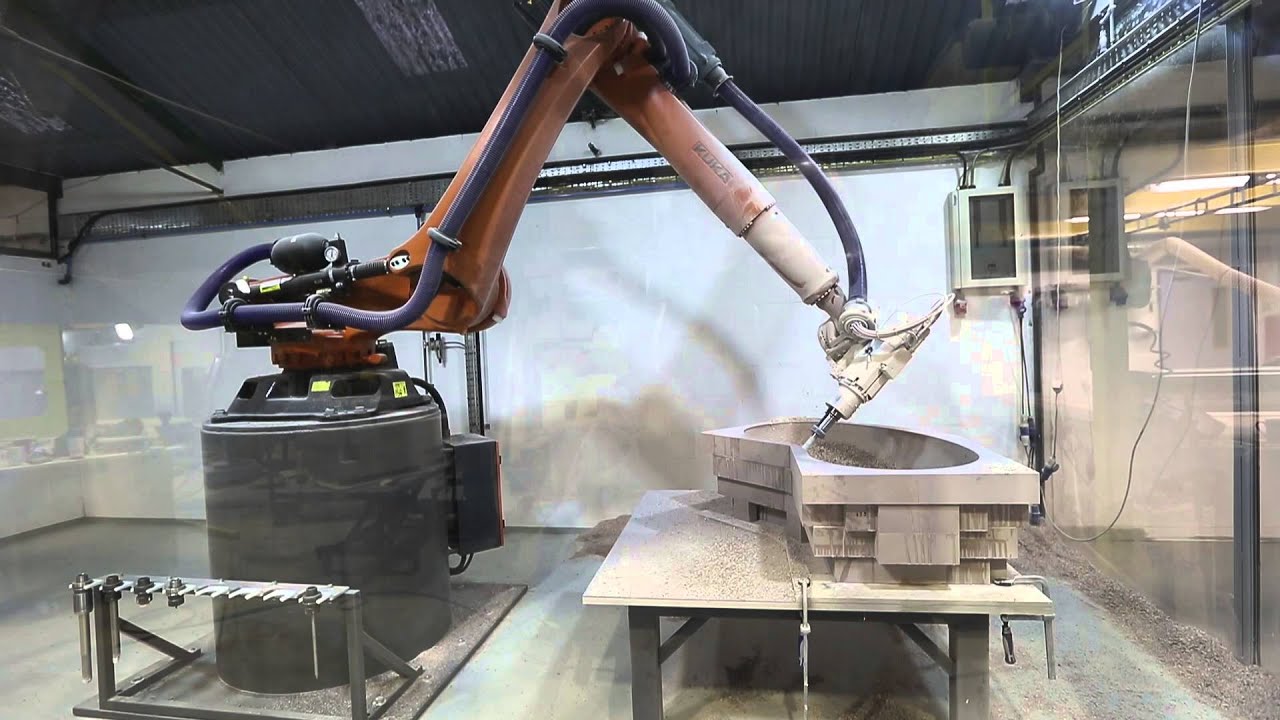

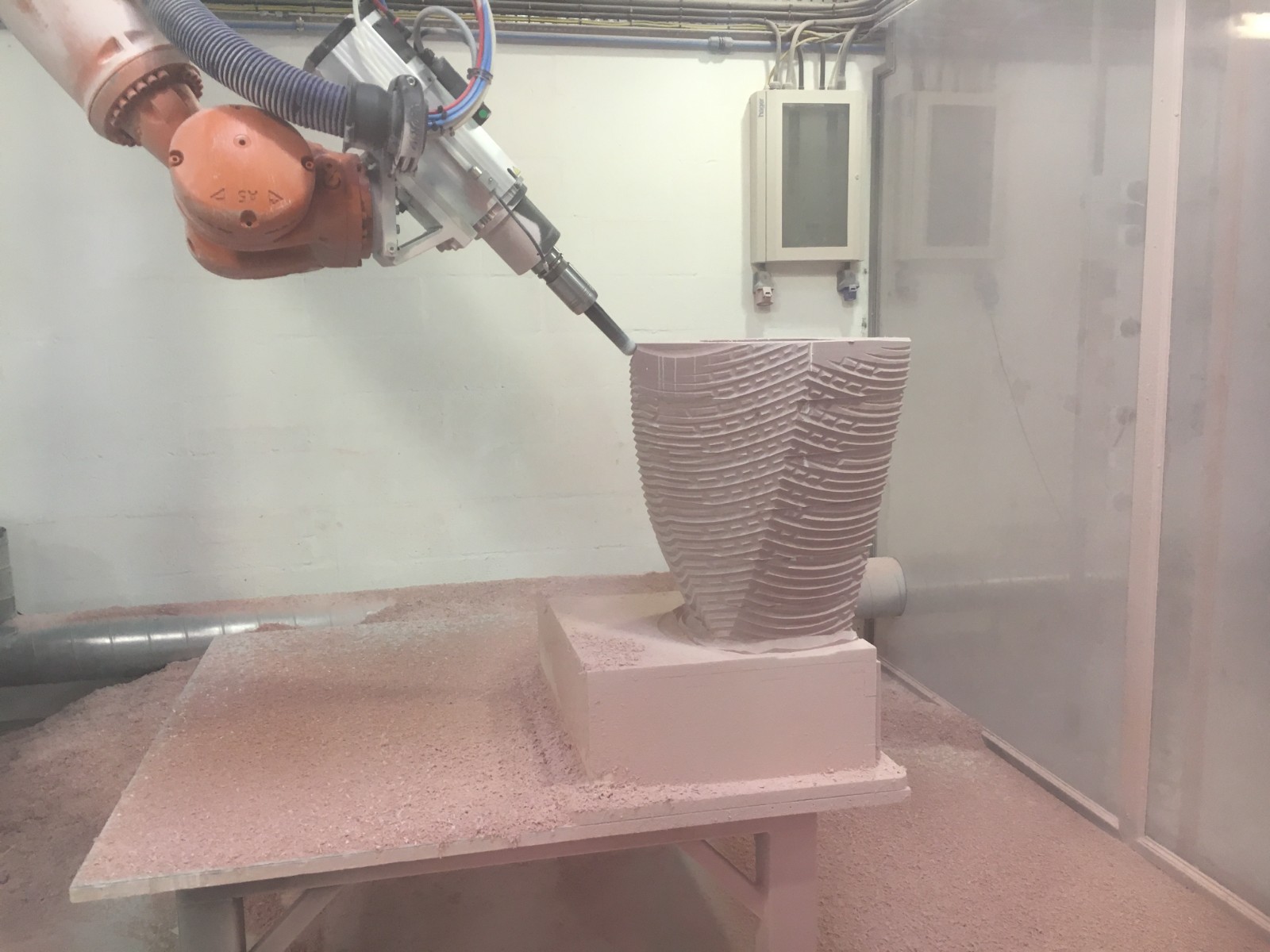

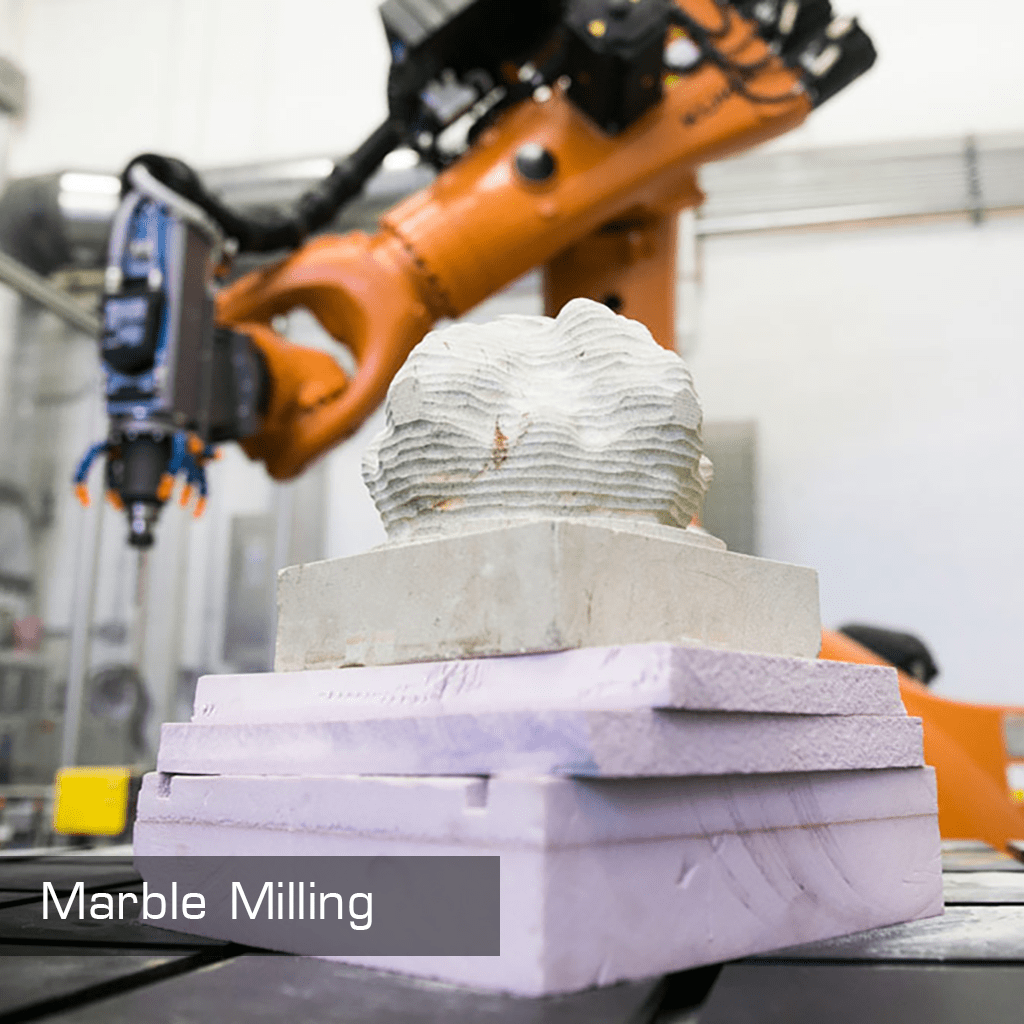

kuka robot for stone marble

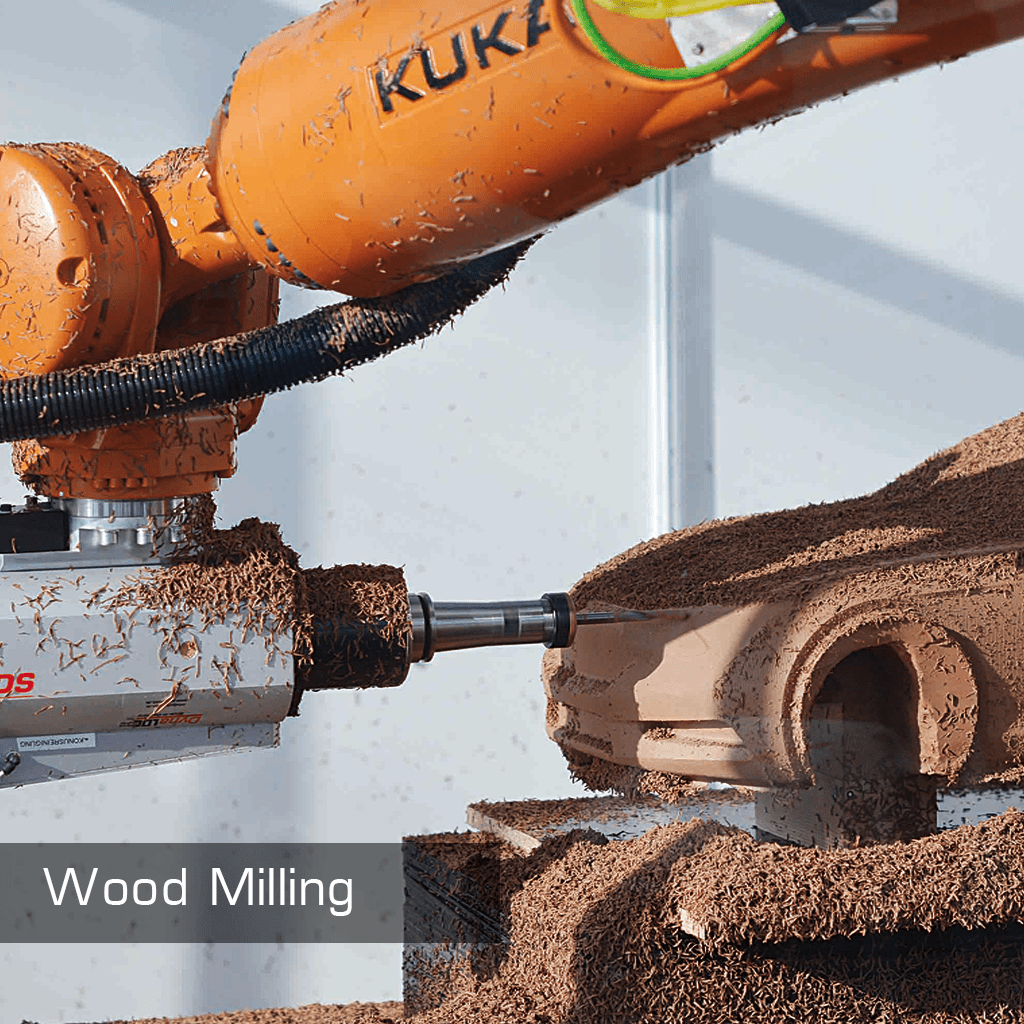

kuka robot for hard wood mold milling
kuka robot for wood foundary

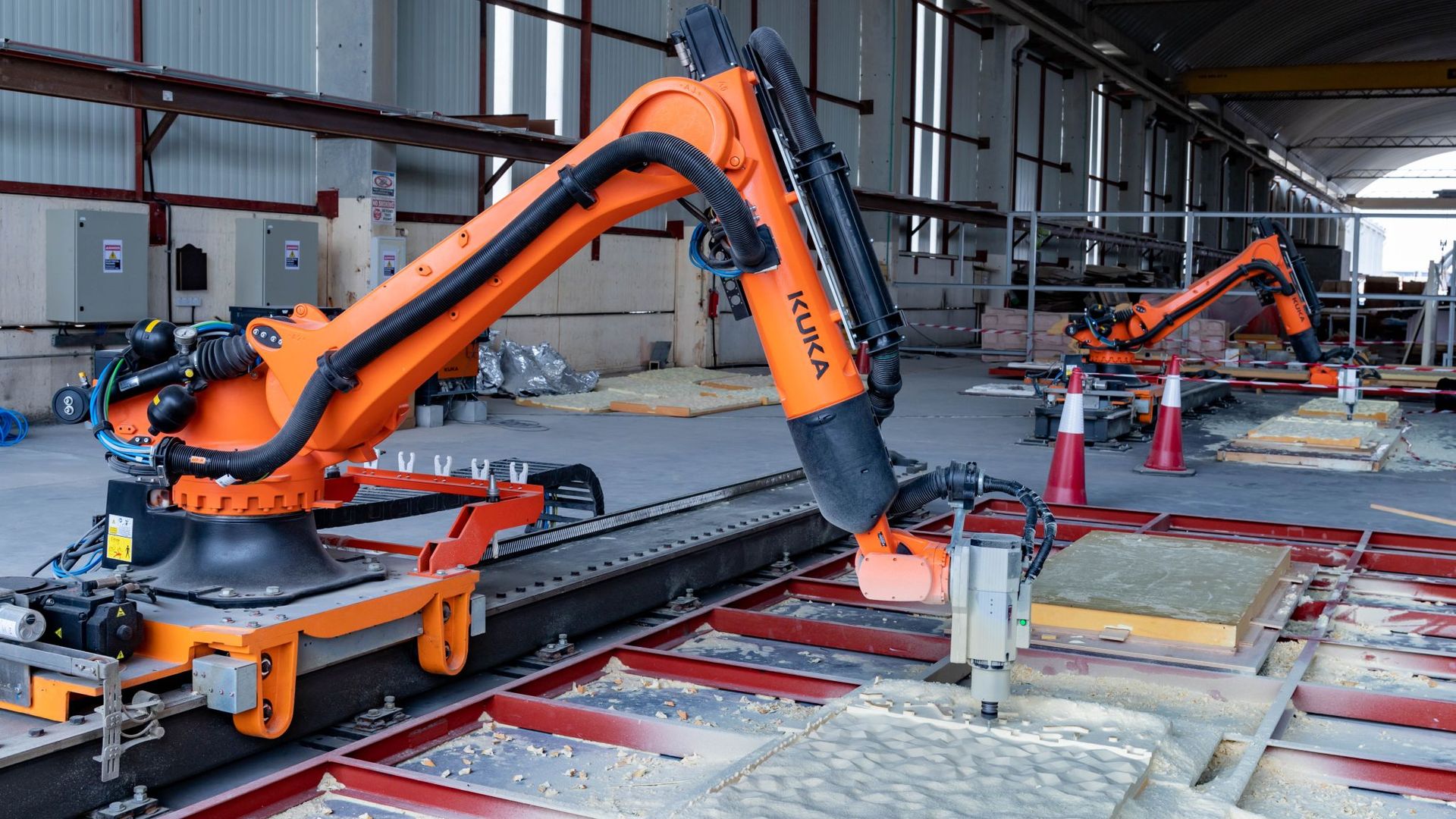

kuka robot for stone
kuka robot for chemical parts

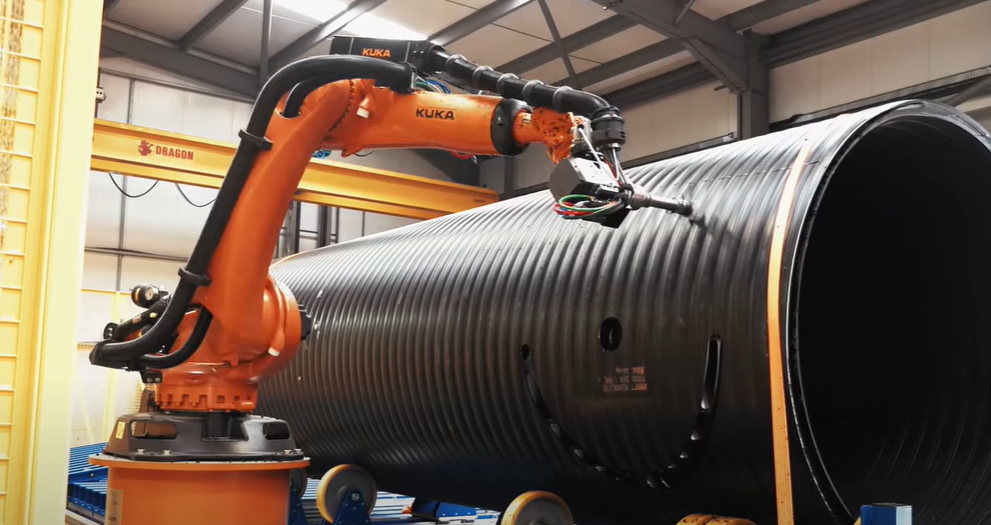

kuka robot for plastic
kuka Robots can be used as a flexible machining centre. The direct execution of all standard G and M commands for tool handling and high-speed cutting turns the robot into a highly flexible machining centre – especially for large, complex components that have to be machined on all sides.
Utilising the two in-house robots for their different strengths we can tackle most multi-axis work especially internal female type moulds due to the 6 axis movement removing the need to ‘ retract and unwind’ and therefore speeding up the machining operation.
Load (refers to the load of point at the foremost end of the 6th axis) | 210kgs | |
Additional load on the arm | 50kgs | |
Rated payload | 260kgs | |
Maximum payload
| 275kgs | |
Weight | 1077kgs | |
Motion axis | 6 | |
Pose repeatability (ISO 9283)
| ± 0.05 mm
| |
Maximum reach
| 2701mm | |
ProtecƟon raƟng (IEC 60529)
| IP65
| |
Protection ratng, in-line wrist (IEC 60529)
| IP65 / IP67
| |
Sound level
| < 75 dB (A)
| |
Mountng positon
| Floor | |
Footprint
| 754 mm x 754 mm
| |
Hole patern: mountng surface for kinematc system
| S780
| |
Permissible angle of inclinaton
| ≤ 5 °
| |
Flange (on the 6th axis) | DIN ISO 9409-1-A50 | |
Controller | KRC4 | |
Transformaton name
| KR C4: KR210R2700_2 C4 FLR
| |
During operaƟon
| 0 °C to 55 °C (273 K to 328 K)
| |
During storage/transportaƟon
| -40 °C to 60 °C (233 K to 333 K)
| |
Installation position | On the ground | |
CPU and main board | KUKA | |
Rotart table | 1500kgs china made | |
Spindle with water cooling systerm | 12.5kw water cooling spindle | |
Software | Sprutcam
| |
DeviceNet
| OMRON | |

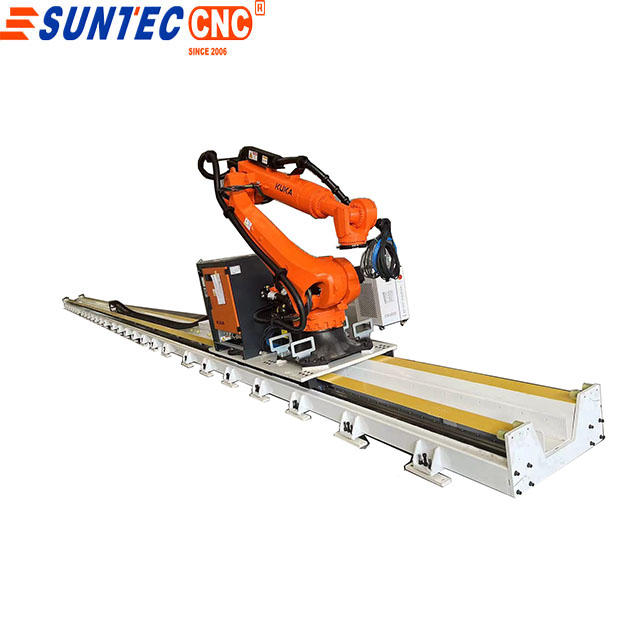

RAILS | 5M | |
Motion parameters of each axis | Range of motion | Speed |
Axis 1 | +/-185° | 120°/s |
Axis 2 | -5°/-140° | 115°/s |
Axis 3 | -120 ° / 168 °
| 112°/s |
Axis 4 | +/-350° | 179°/s |
Axis 5 | +/-125° | 172°/s |
Axis 6 | +/-350° | 220/°/s |
Six-axis robots are positively impacting the bottom-line of many industries through automation, including:
· Metals
· Logistics
· Automotive
· Aerospace
· Consumer Goods
· Food and Beverage
· Pharmaceuticals
