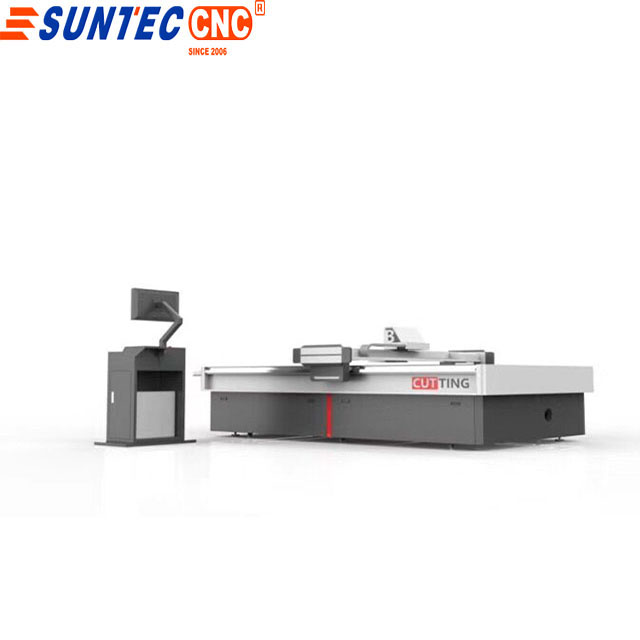

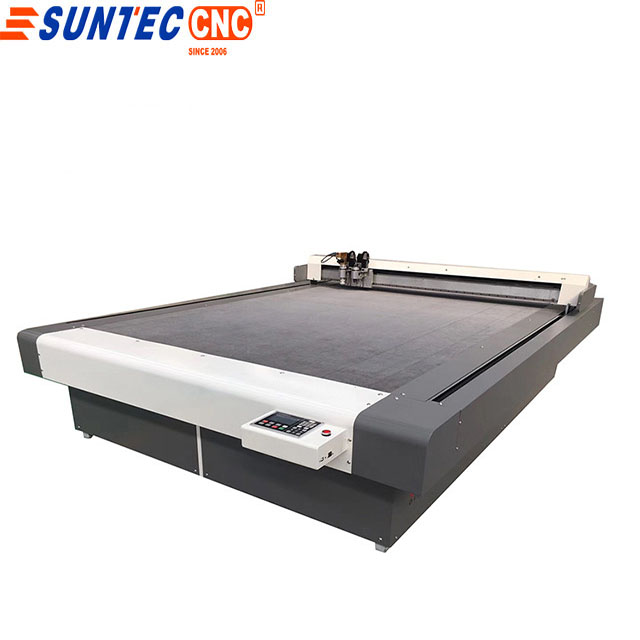

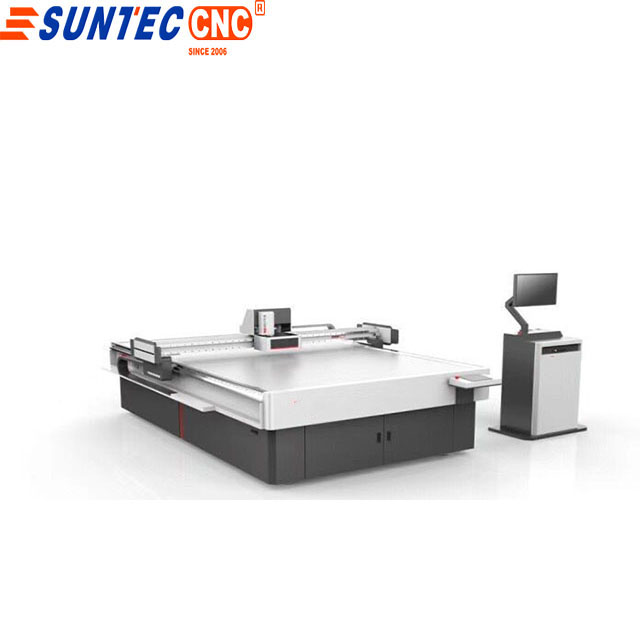

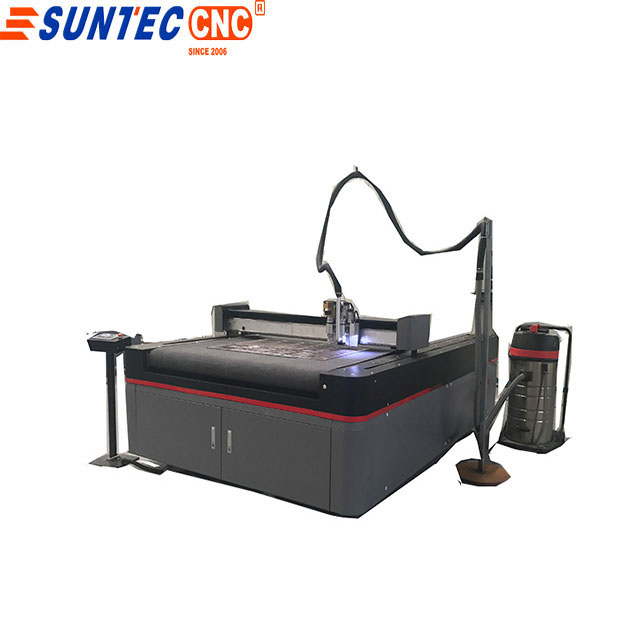

oscillating knife cutting machine for fabric cutting with CCD automatic loading unloading ST1625
1. Specification
1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.
2. The high precision CNC oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.
3. The anti-collision and the built-in auto-sensing devices ensure the security of cnc oscillating knife leather cutting machine.
4. High efficiency can be realized without making a high-cost knife model.
5. The high precision CNC oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy.
6. Automatic feeding device , which can put fabric soft material put automatic feeding , then it cut one pattern by one pattern , automatic feeding material saving cost and labor .
7. CCD for optional which for printed fabric textile , CCD can scan contour then cutting .
8. oscillating knife cutting fabric no burn yellow edge .
Parameter/Model | ST1325 | ST1625 | ST 2030 |
Multi-functional Cutting Head | Replaceable oscillating knife, half knife, full knife, oblique knife and creasing wheel etc. | ||
Tools configuration | Various cutting tools, creasing wheels, pen, cross positioning laser | ||
Safety | High sensitivity infrared induction (optional) | ||
Moving Speed | Max. 1200mm/s | ||
Cutting Speed | Max. 800mm/s(please set the speed according to the material) | ||
Material Applicable | Corrugated paper,non woven fabric , PVC expansion sheet, KT board, foam board, grey paperboard, cardboard, vehicle sticker, adhesive sticker etc. | ||
Cutting Depth | Max 50mm (depends on the material) | ||
Material Fixing Method | Strong power vacuum absorption and intelligence Partition | ||
Resetting Positioning Accuracy | Max 0.01mm | ||
Mechanical Precision | Max 0.02mm | ||
Drive System | Steel Simultaneous Belt, AC Panasonic servo motor. Linear guide rail | ||
Control System | Jinan suntec control systerm | ||
Display | English LCD touch screen | ||
Data Transmission | Ethernet | ||
Command | HP-GL compatible format | ||
Buffering Capacity | Standard--4GB | ||
Rated Power | 11KW | 12KW | 14KW |
Max Working Size | 1300*2500 | 2500*1600 | 3050*2050 |
Rated voltage | 380V | ||
Body dimension | 2241*2152*1235mm | 3391*2723*1235mm | 3891*3173*1235mm |
We reserve the final explanation for the above parameters and able to make any alternations without notice | |||

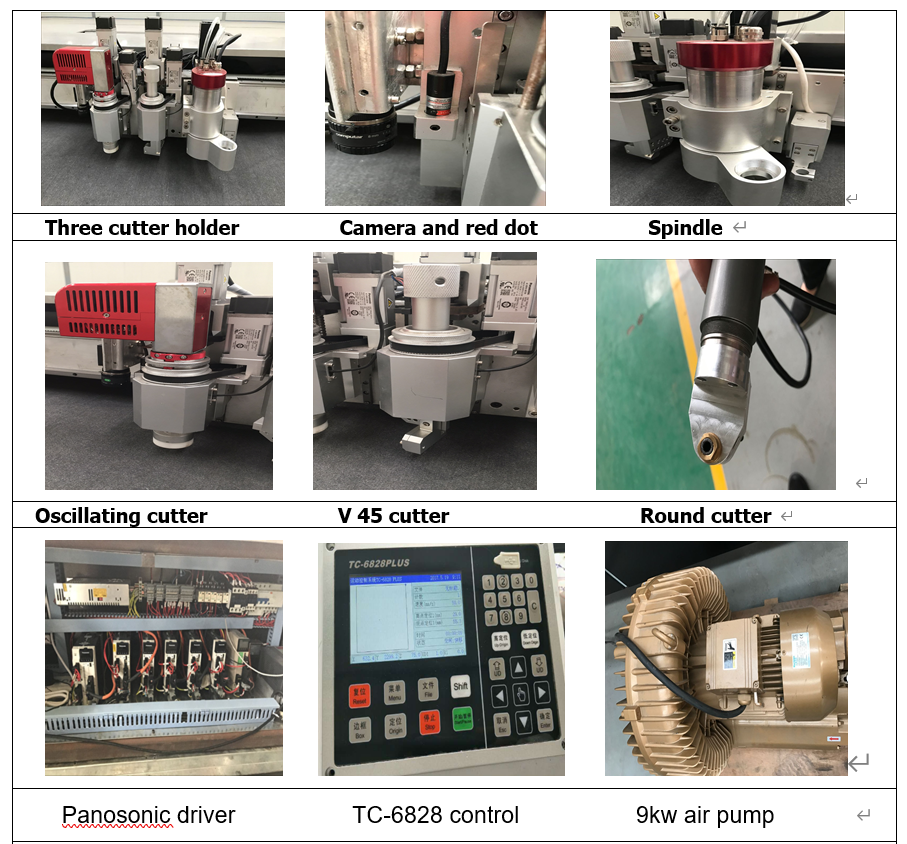

Main parts
1. panasonic driver and motor
2. wheel and oscilatting cutter
3. vacuum table
4. can cut multilayer fabric etc software and hard material
5.Taiwan Hiwin guide rail .
6. automatic feeding and unloading device
7.v cutter
8. Red dot
9. camera for right position
10. spindle for hard material

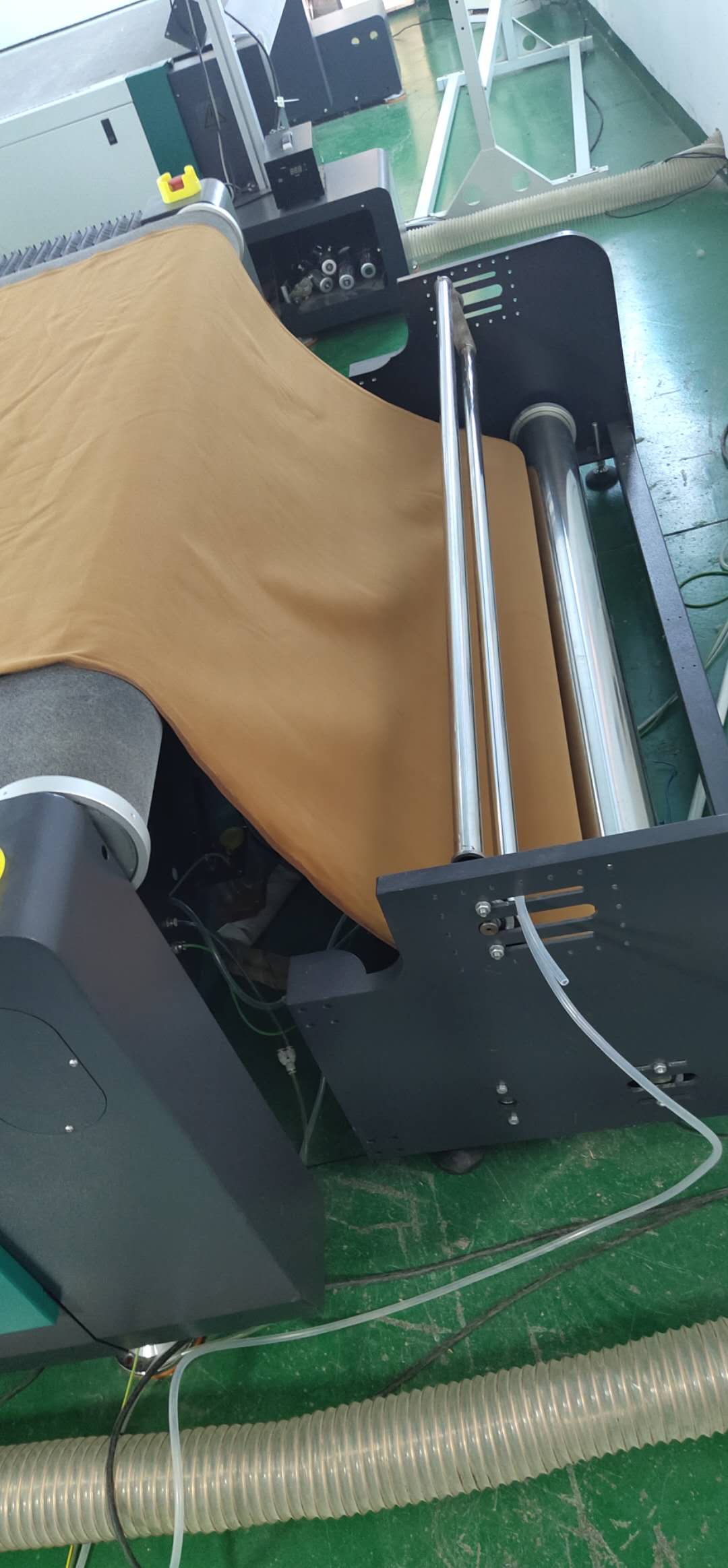

automatic feeding material device for fabric
Working sample
