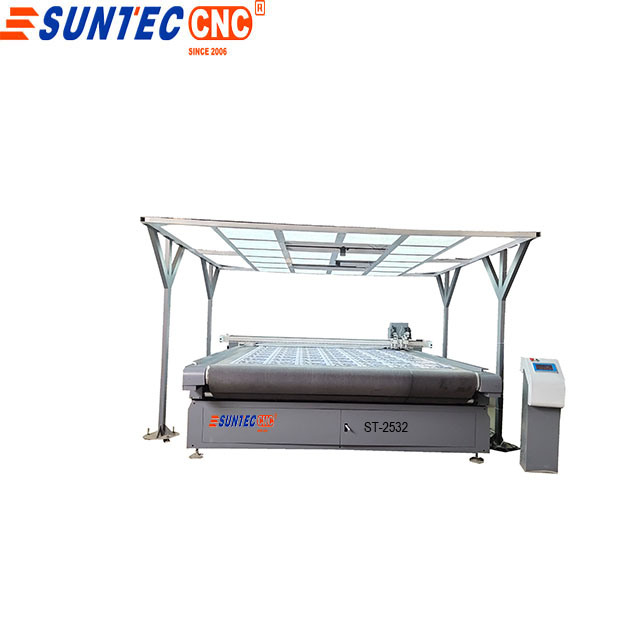

Customized multifunctional 4 heads corrugated paper banner fabric oscillating knife cuter with CCD ST2532
Parameter/Model | ST1325 | ST1625 | ST 2532 |
Multi-functional Cutting Head | Replaceable oscillating knife, half knife, full knife, oblique knife and creasing wheel etc. | ||
Tools configuration | Various cutting tools, creasing wheels, pen, cross positioning laser | ||
Safety | High sensitivity infrared induction (optional) | ||
Moving Speed | Max. 1200mm/s | ||
Cutting Speed | Max. 800mm/s(please set the speed according to the material) | ||
Material Applicable | Corrugated paper,non woven fabric , PVC expansion sheet, KT board, foam board, grey paperboard, cardboard, vehicle sticker, adhesive sticker etc. | ||
Cutting Depth | Max 50mm (depends on the material) | ||
Material Fixing Method | Strong power vacuum absorption and intelligence Partition | ||
Resetting Positioning Accuracy | Max 0.01mm | ||
Mechanical Precision | Max 0.02mm | ||
Drive System | Steel Simultaneous Belt, AC Panasonic servo motor. Linear guide rail | ||
Control System | Jinan suntec control systerm | ||
Display | English LCD touch screen | ||
Data Transmission | Ethernet | ||
Command | HP-GL compatible format | ||
Buffering Capacity | Standard--4GB | ||
Rated Power | 11KW | 12KW | 14KW |
Max Working Size | 1300*2500 | 2500*1600 | 5050*2250 |
Rated voltage | 380V | ||
Body dimension | 2241*2152*1235mm | 3391*2723*1235mm | 5050*2280*3000mm |
We reserve the final explanation for the above parameters and able to make any alternations without notice | |||
1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.
2. The high precision CNC oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.
3. The anti-collision and the built-in auto-sensing devices ensure the security of JWEI cnc oscillating knife leather cutting machine.
4. High efficiency can be realized without making a high-cost knife model.
5. The high precision CNC oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy.
Main parts

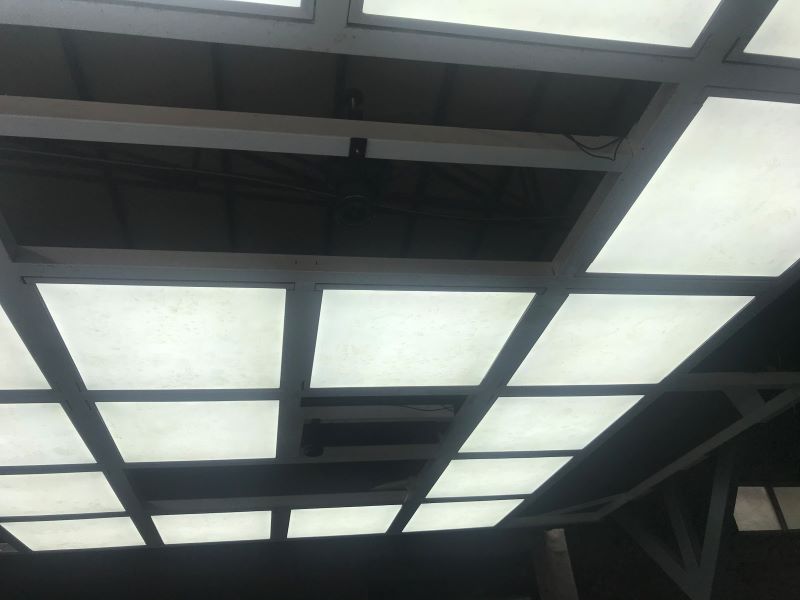

TWO CAMERA SCAN COUNTOUR CUTTING TO INDENTIFY PATTERN COUNTOUR ALONG THE POSITION CUTTING EDGE .

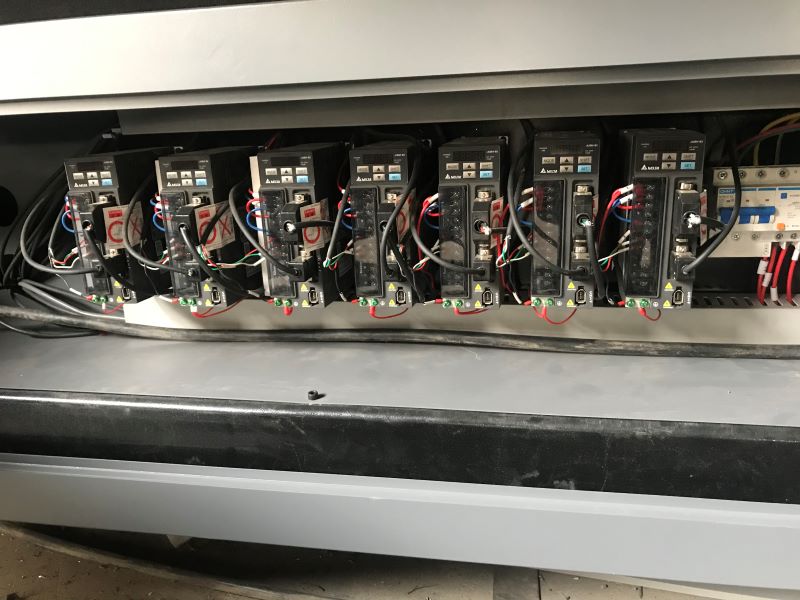

TAIWAN DELTA DRIVER HIGH POWERUL

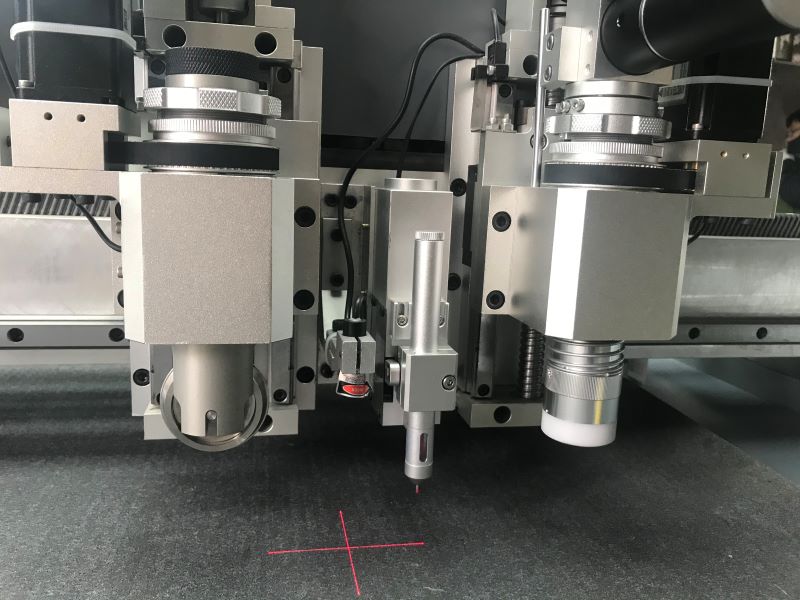

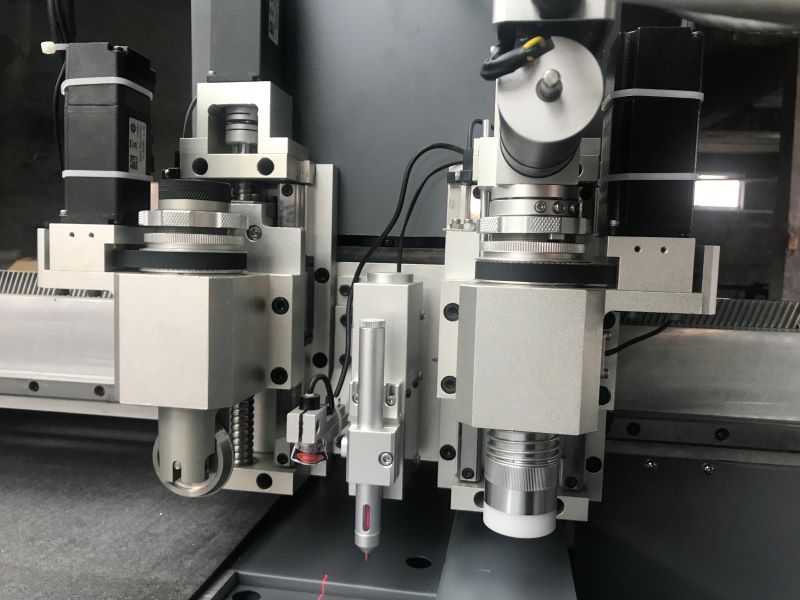

OSCILLATING KNIFE CUTTER FOR MIDDLE DENSITY MATERIALS SUCH AS LEATHER CARPET, CARBON FIBER CORRUGATED PAPERS KITTY BOARDS ETC .

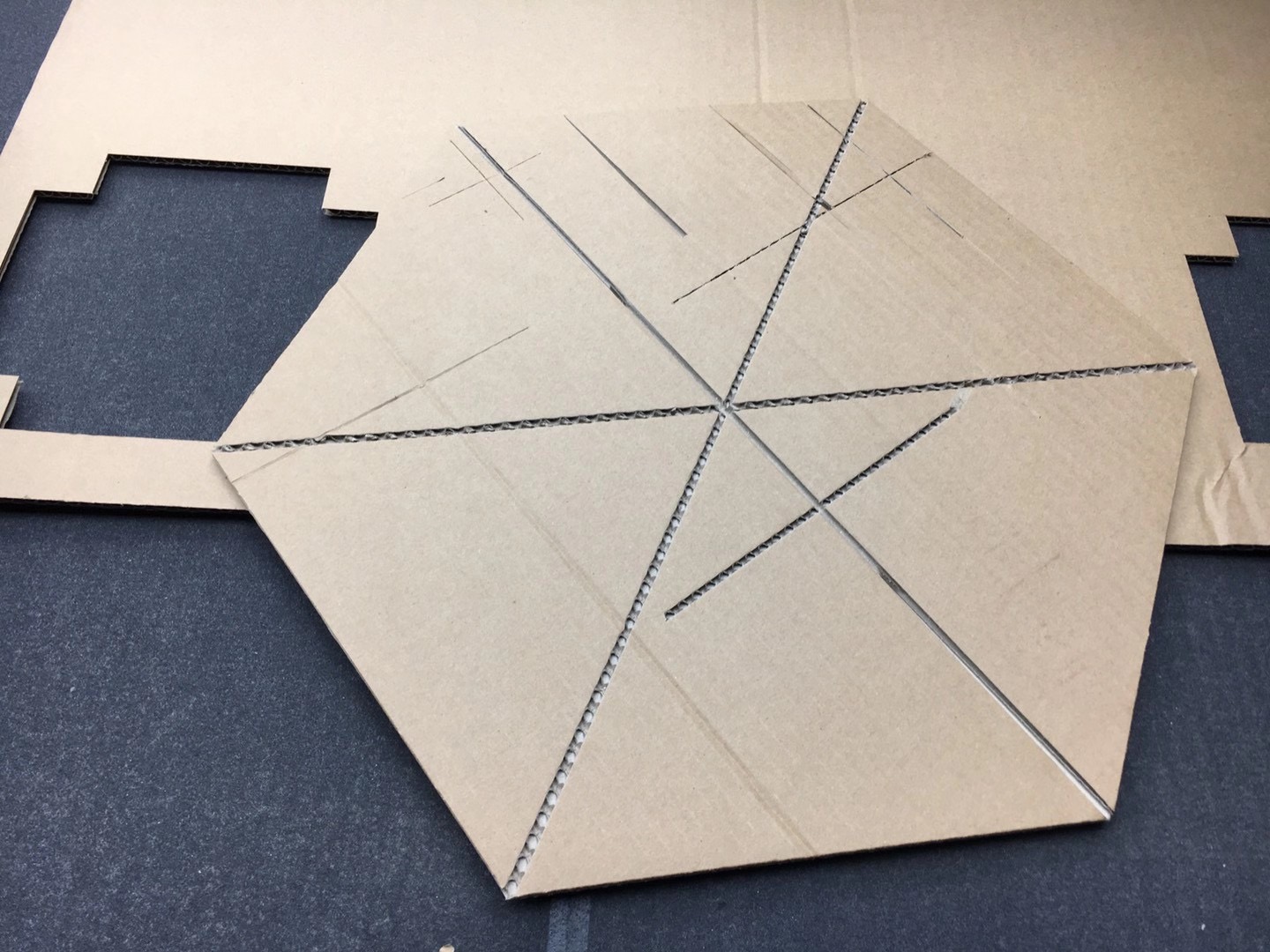

PRESSWHEEL MAINLY FOR EDGE FOR MATERIALS ESPECAILLY FOR CORRUGATED PAPER CUTTING .

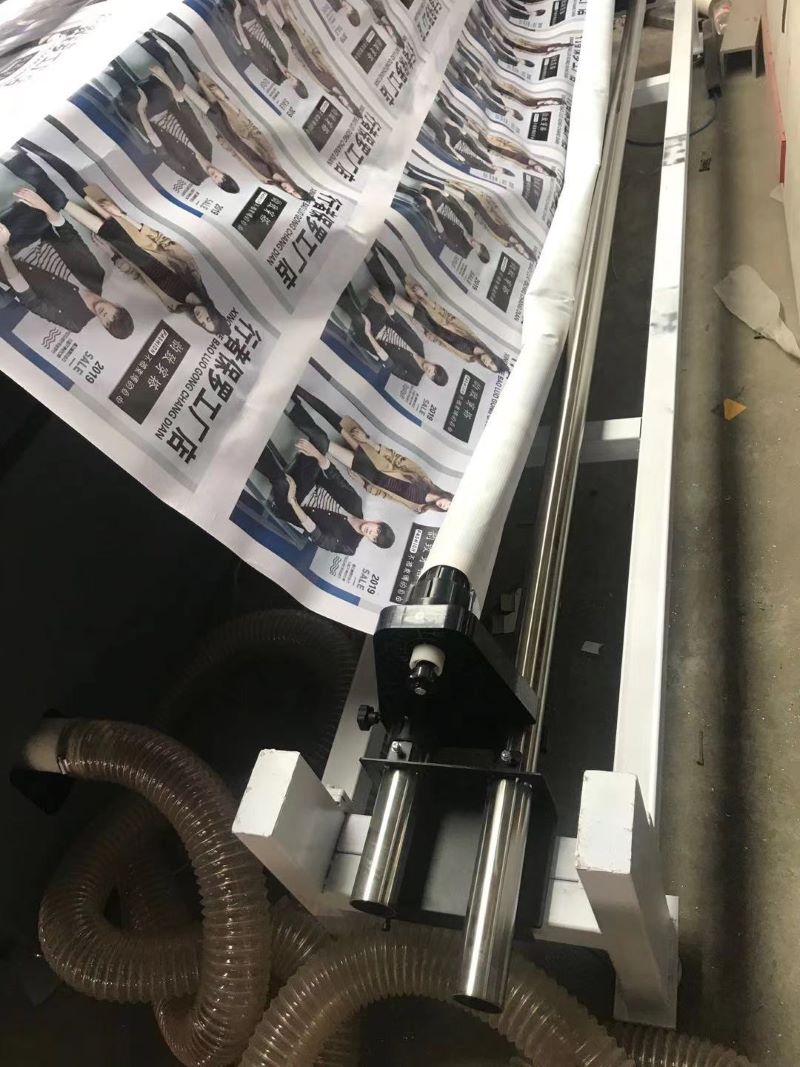

AUTOMATIC FEEDING DEVICE FOR SOFT MATERIALS
