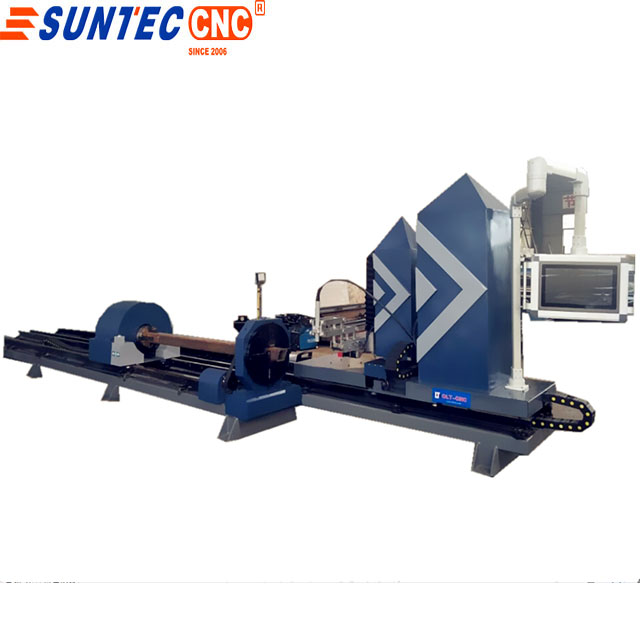

suntec 8 axis pipe plasma cutter machine mainly used for cutting various low carbon steel, stainless steel, copper, aluminum and other pipes. It can cut the end face of round pipe, the intersecting surface of round pipe and plane, and the intersecting surface of various round pipes and round pipes, round pipes and spherical surfaces, round pipes and curved surfaces, H-shaped steel channel steel, rectangular pipes, square pipes, etc. The machine has beautiful appearance, compact structure, stable operation and easy operation. The cutting pipe diameter range is 320-30mm, and the cutting pipe length range is 12m.
Model No. | ST-8 axis plasma cutter machine | |||
Max.diameter | 320mm | 420mm | 500mm | 600mm |
Max.width | 226mm | 296mm | 353mm | 424mm |
Max.load capacity | 1500kg | 2200kg | 2800kg | 3500kg |
Length | 6m/8m/12m (other lengths are customized) | |||
Cutting mode | Plasma cutting (Option: oxyfuel cutting) | |||
Cutting speed | 100-6000mm/min for plasma cutting, 100-750mm/min for oxyfuel cutting | |||
Moving speed | 10-8000mm/min | |||
Driving system | Servo driving for 8 axis | |||
Bevel cutting range | Plasma: 45 degrees, oxyfuel (gas cutting): 60 degrees | |||
Cutting thickness | Depends on the plasma source and material | |||
Clamping way | Front and rear chucks (pneumatic or manual chucks) | |||
Cutting accuracy | ± 0.5mm/4000mm | |||
Positioning accuracy | ±0.25mm/8000mm | |||
Voltage | 220V±10% /380V±10% | |||
Environment requirement | Temperature: -10-50℃ Humidity: ≤80% | |||
SUNTEC 8 AXIS CONTROLLER DETAILS
Industrial computer CNC control, powerful function, good scalability
Hardware board interpolation, stable and reliable, simple wiring
Support standard G code, FastPipe, FastFrame and other nesting software
Support manual control box operation, improve production efficiency
Support flame/plasma/demo three operating modes, easy to switch
You can set the speed using the file, or use the system to set the speed
File speed setting supports line speed and composite speed
Automatic import of pipe diameter, safe and reliable
Display the maximum size of processing graphics, intuitive and convenient
Graphics can be zoomed in and out
The limit can be used as a zero return switch, which is simple and convenient.
Simple machining start positioning, no need to consider the swing axis
During processing, it can move forward and backward, and can return offset
Parameter backup and parameter restoration.
Optional hole to start cutting for quick and easy.
Full manual touch screen setting, more convenient operation
working sample

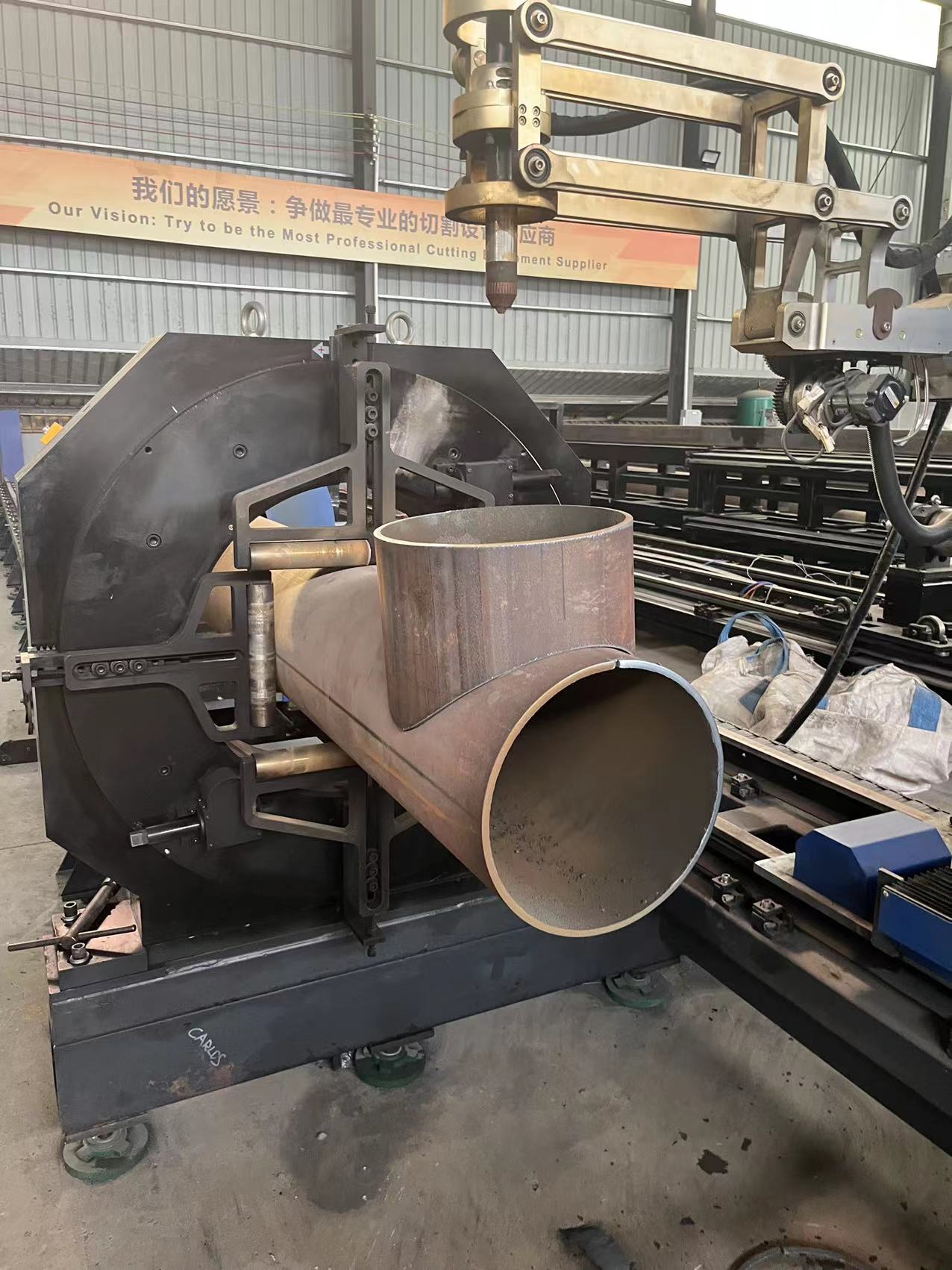

Saddle steel cutting for russia customer

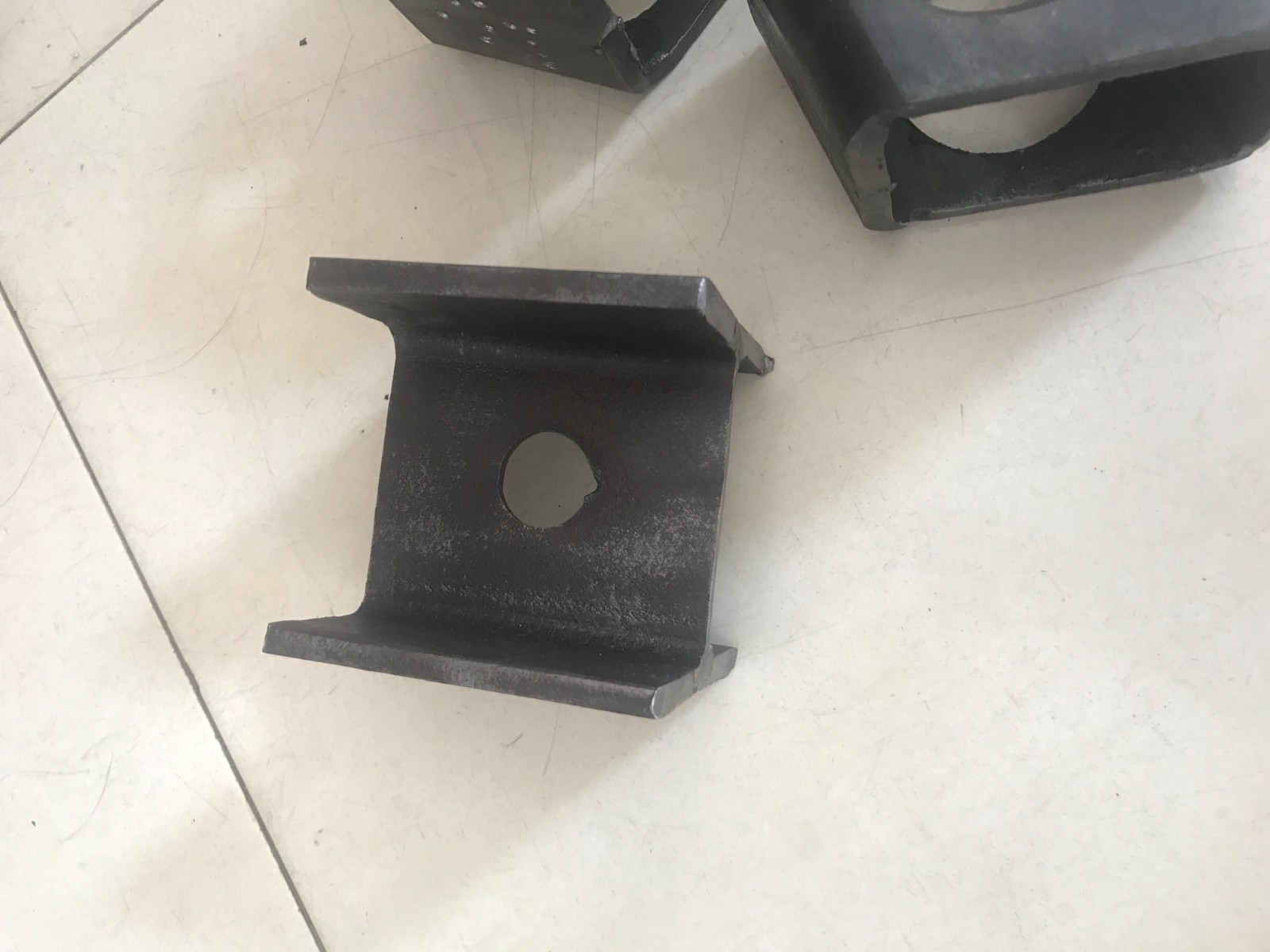

H style steel sample cutting

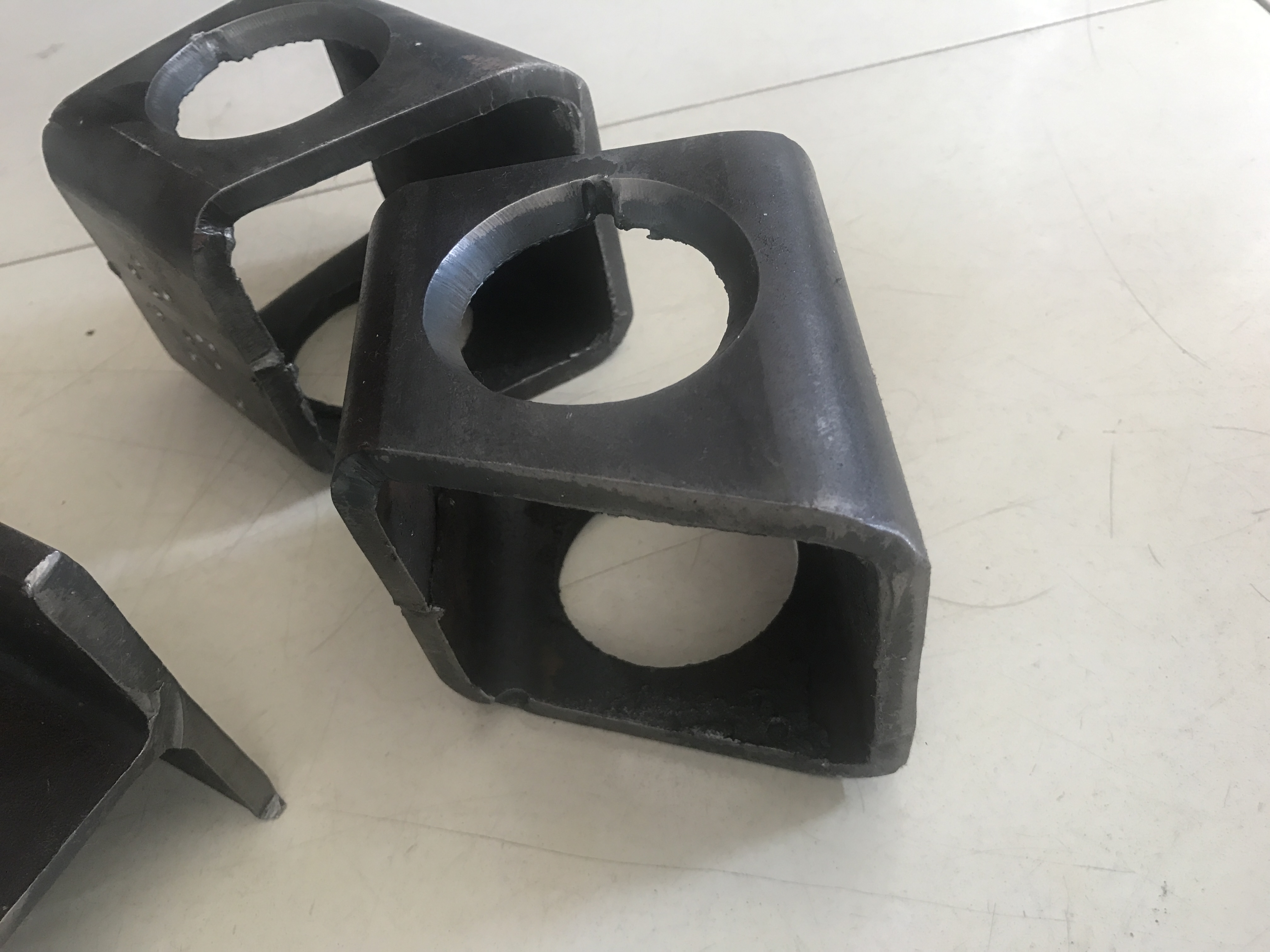

square steel cutting
