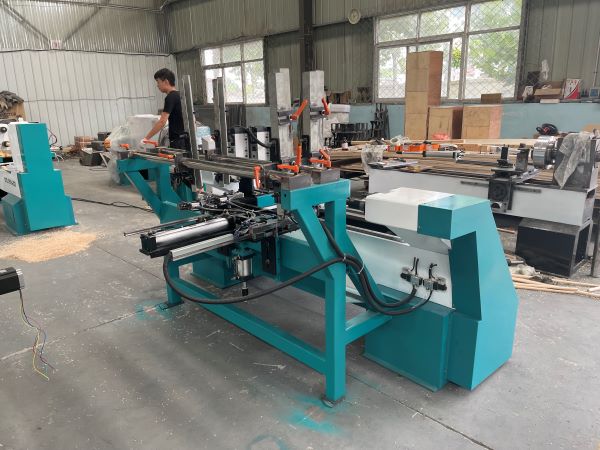

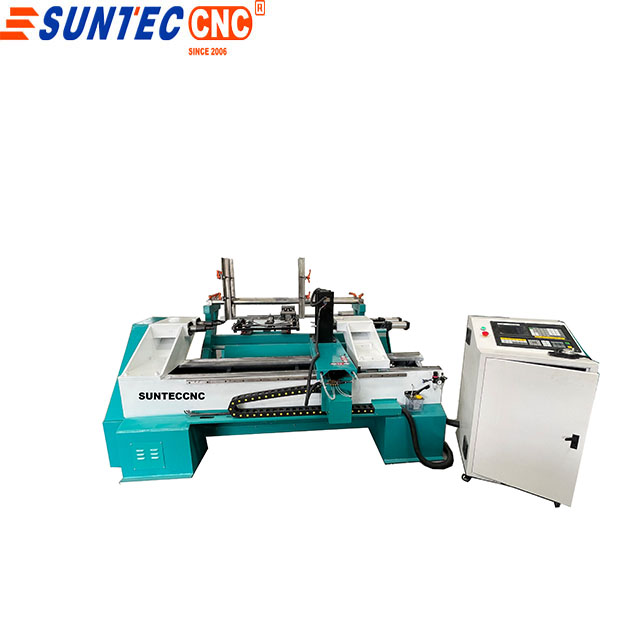

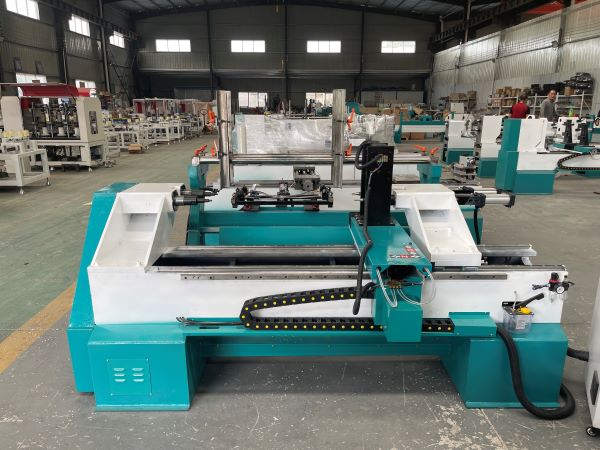

Customized automatic feedingo two piece wood cue ple billiards making cnc wood lathe ST9015

Structure:

Cast iron

Spindle shaft:

Sturdy spindle, NSK deep groove ball bearing, P5 grade.

Drive system:

-   Three phse current of 380V, 50HZ. 4 Kw. , 1 set

-   Stepper motor: 450B 2 sets

-   Stepper driver: YKAO2811MA 2 sets

-   Servo motor is optional

5.5kw 220v/3ph/220v/1ph for optional

Inverter:

Best inverter 5.5 kw (Fuling brand is optional)

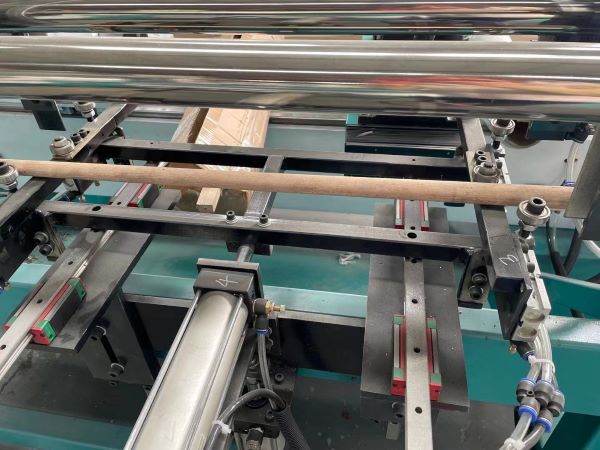

Guide rail:

Taiwan HIWIN/PMI linear square guide rail.

Spindle speed:

3000 r/min

Material size:

150*900 mm (length:1500 mm , 2000mm, 2500mm, 3000mm are optional)

Center  Sleeve ID:

1.414 times the side length of material (no need sleeve if material diameter is more than 60mm)

Weight – bearing:

500 kg

Engraving speed:

4 m/min

Max. feed

15 mm/r

Max. feed rate:

700 mm /min

Min. setting unit:

0.1 mm

Pivoting device:

Pneumatic air connection within 6-8 bar.

Tailstock:

Precisely and easily movable, with quick clamping with pneumatic

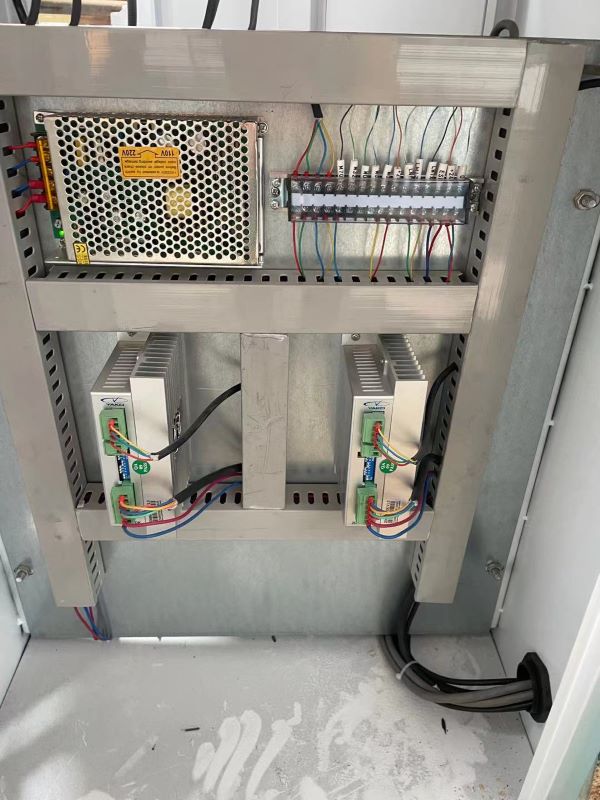

Electric system:

Air break switch protection

Dimensions(L*W*H):Machine (without operation box)

2100 *1280*1780 mm

Packing dimensions:Machine (with operation box)

2200*1380*1980 mm

Weight:

1700 kg

Software

 AUTOCAD (DXF format )

Control system:

LCD control with screen show

Planner

  for optional
