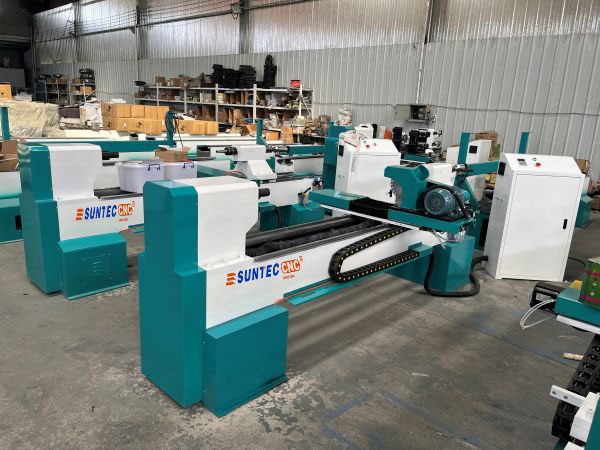

Customized Suntec ST-1530 cnc wood lathe for baseball bat making with saw for USA
Customer used ST-9080 round machine make square wood into round one
then use ST-1530 cnc wood lathe to mill baseball bat sawblade fast speed than two cutter especailly baseball bar very thin it can use sawblade mill 2-3 times . and it can control different side to mill .
5.5kw (7.37hp)240v three phase motor to take spindle rotary it means take wood 360 degree rotary then use saw blade to cut carve and this motor can use G code to control M03 on M05 Off. also can use DXF format to mill .

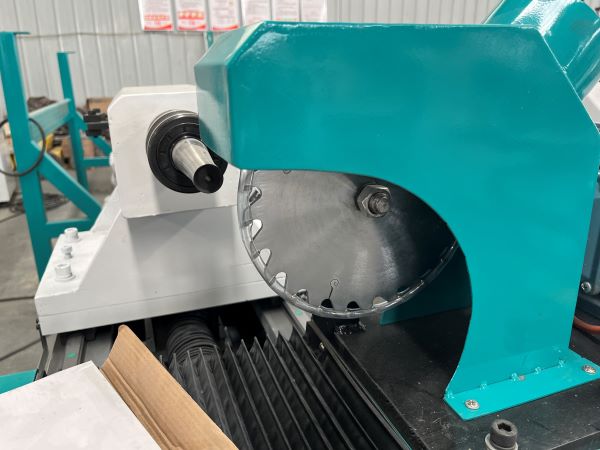

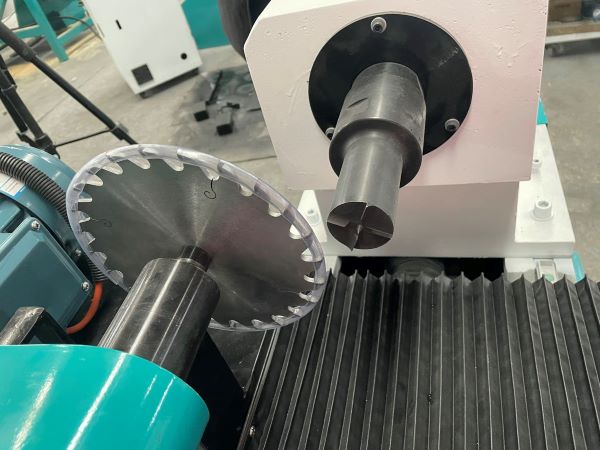

sawblade must with spindle bar at same level then it make sure high precision
Cast iron table weight 1600kgs to make sure no vibrate when mill so thin baseball bat

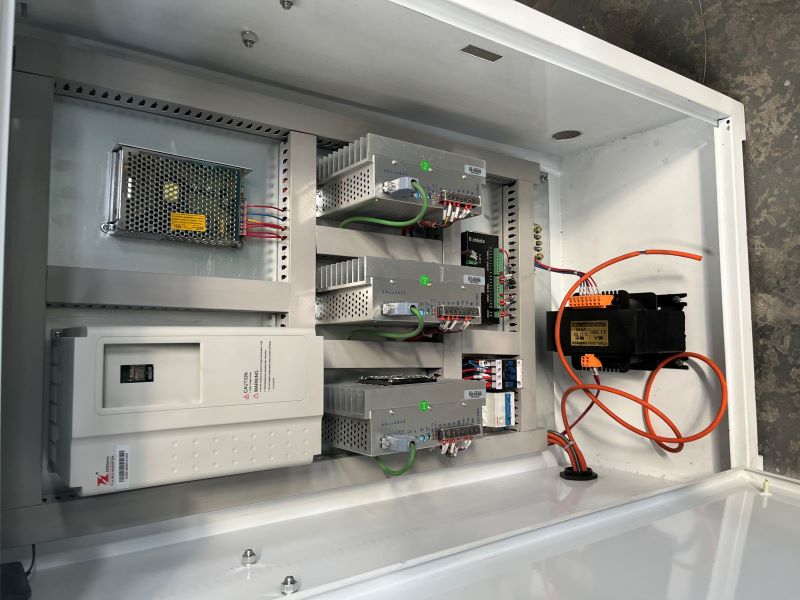

Yako driver big power for movement .
DSP controller PLC controller two option .
7. Schneider soft limit for optional which can protec motor suddenly off .to make sure motor longlife usage .
8.working voltage suggested three phase which is powerful than one phase

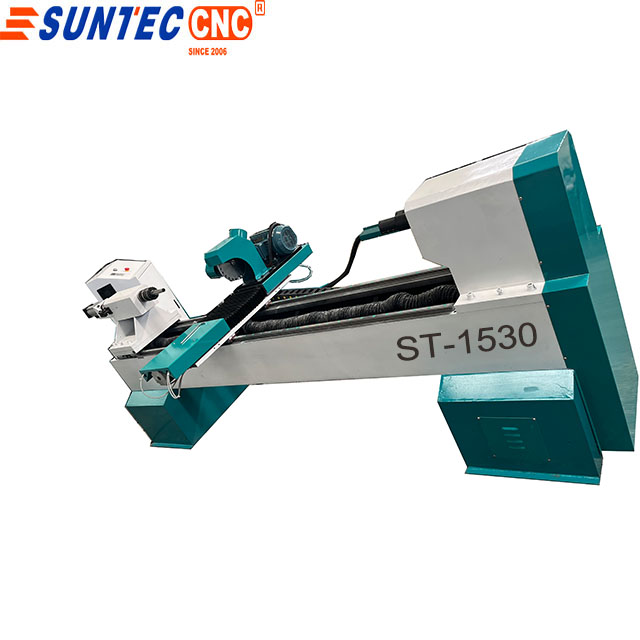

Model: | ST-1530(1500*300mm) _1 axis_2 blades |
Structure: | Cast iron |
Spindle shaft: | Sturdy spindle, NSK deep groove ball bearing, P5 grade. |
Drive system: | - Three phase current of 240V, 50HZ. 5.5Kw. , 1 set - Stepper motor: 450B 2 sets - Stepper driver: YKAO2811MA 2 sets - Servo motor is optional 5.5kw 220v/3ph/220v/1ph for optional |
Inverter: | Best inverter 5.5 kw (Fuling brand is optional) |

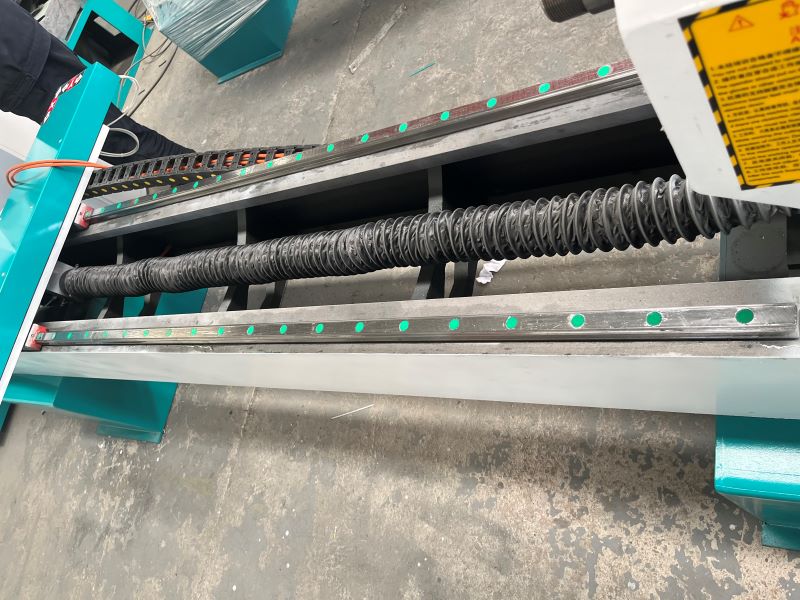

Guide rail: | Taiwan HIWIN/PMI linear square guide rail. |
Spindle speed: | 3000 r/min |
Material size: | 300*1500 mm (length: 2000mm, 2500mm, 3000mm are optional) |
Center Sleeve ID: | 1.414 times the side length of material (no need sleeve if material diameter is more than 60mm) |
Weight – bearing: | 500 kg |
Engraving speed: | 4 m/min |
Max. feed | 15 mm/r |
Max. feed rate: | 700 mm /min |
Min. setting unit: | 0.1 mm |
Pivoting device: | Pneumatic air connection within 6-8 bar. |
Tailstock: | Precisely and easily movable, with quick clamping with pneumatic |
Electric system: | Air break switch protection |
Dimensions(L*W*H):Machine (without operation box) | 3100 *1280*1780 mm |
Packing dimensions:Machine (with operation box) | 3200*1380*1980 mm |
Weight: | 1700 kg |
Software | AUTOCAD (DXF format ) |
Control system: | DSP |
customized sawblade with hard alloy making strong enough for hardwood making
