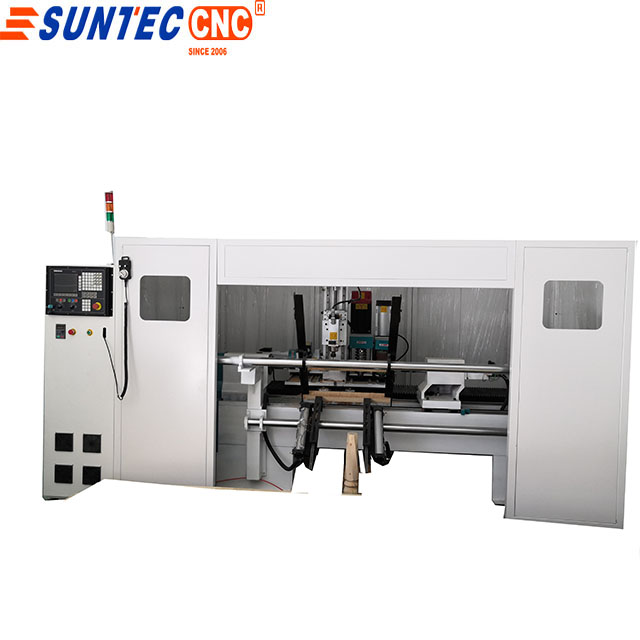

2023 hot sale automatic feeding 4 axis cnc wood lathe center for curved wood with sanding sawing
one planer for irrregular wood to make any shape
2. one saw fast speed to make wood columns
3. one polish tools to polish wood smoothly
4. one 4.5kw spindle to engrave on wood flat and round engrave
5.one cutter to turn outshape wood round one
6. professional software powermill or UG
7. automatic feeding device to save labor
8. automatic tool change for optional
Model: | ST-1220(1200*200mm) |
Structure: | Heavy Cast iron lathe bed |
Spindle shaft: | Sturdy spindle, NSK deep groove ball bearing, P5 grade. |
Drive system: | - Three phase current of 380V, 50HZ. 3 Kw. , 2 set Japan Yaskawa driver 4 sets - 4 kw Servo motor spindle
|
Inverter: | Fuling inverter 5.5 kw |
Guide rail: | Taiwan HIWIN/PMI linear square guide rail. |
Transmission | XYZA TBI ballscrew |
Spindle speed: | 3000 r/min |
Material size: | 200*1200 mm |
Center Sleeve ID: | 1.414 times the side length of material (no need sleeve if material diameter is more than 60mm) |
Weight – bearing: | 500 kg |
Engraving speed: | 4 m/min |
Max. feed | 15 mm/r |
Max. feed rate: | 700 mm /min |
Min. setting unit: | 0.1 mm |
Pivoting device: | Pneumatic air connection within 6-8 bar. |
Electric system: | Air break switch protection |
Dimensions(L*W*H):Machine (without operation box) | 3100 *1380*1780 mm |
Packing dimensions:Machine (with operation box) | 3200*1580*1980 mm |
Weight: | 4000 kg |
Software | Our professional lathe software |
Control system: | NK280 with handwheel |
apply | wood columns staircase baluster etc |

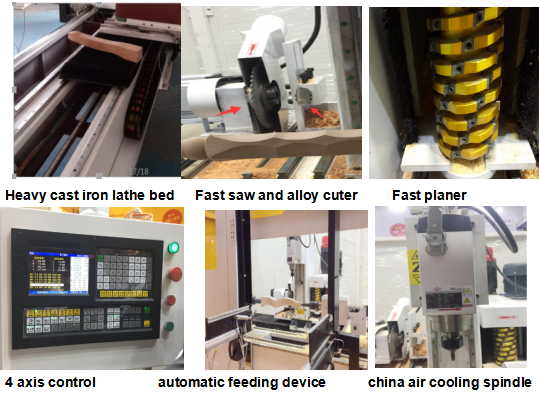

Cnc wood lathe center main parts

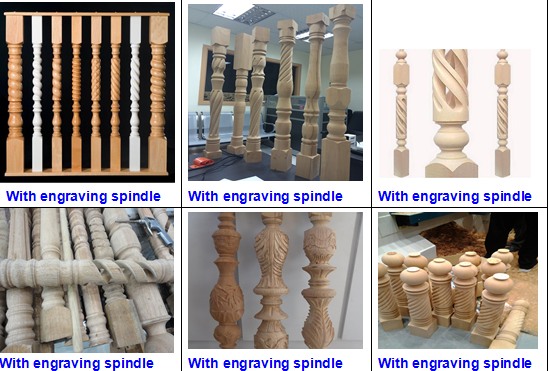

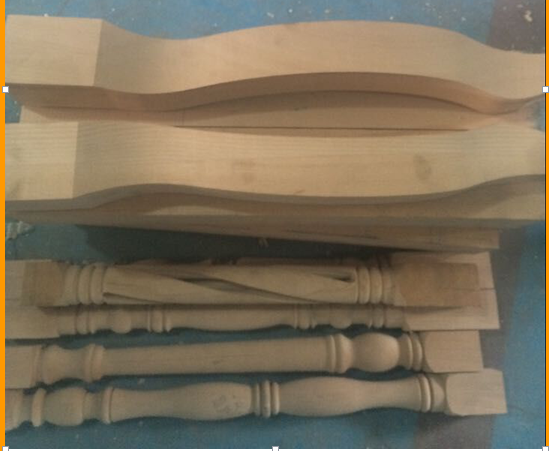

Working sample
Wirh planner to make curved one according software to make design .

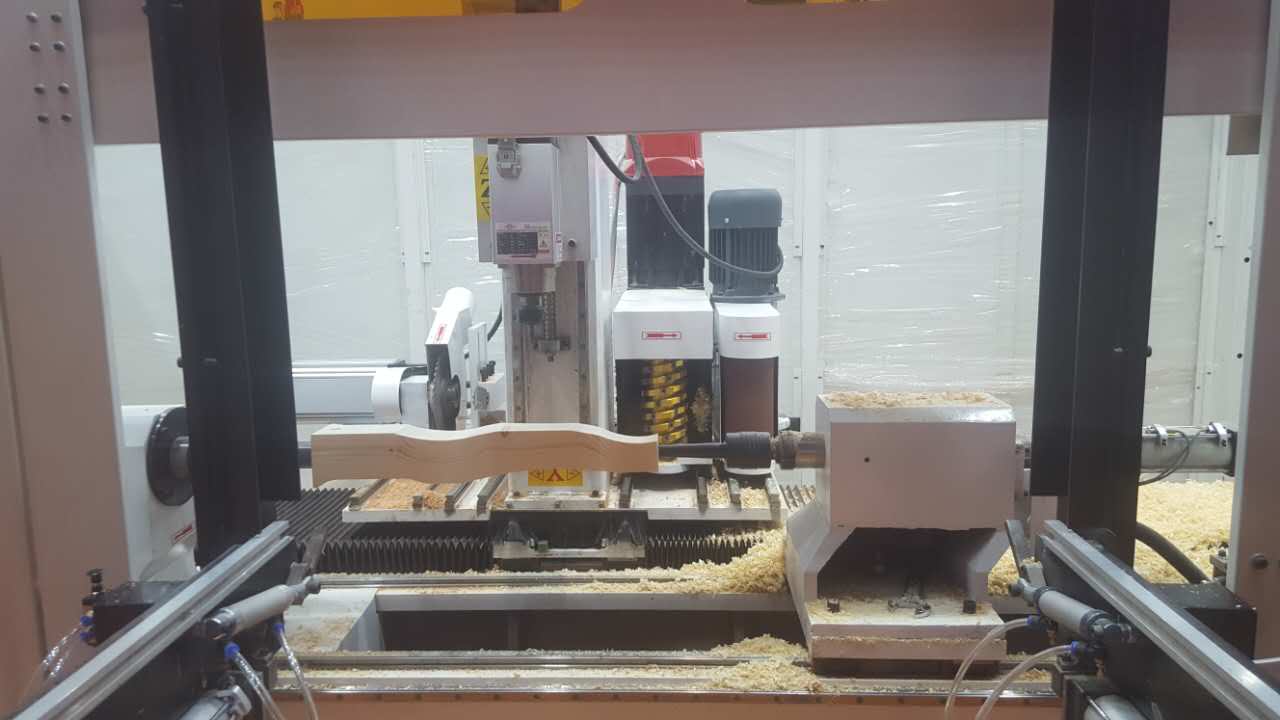

cnc wood lathe center to read the design then making different pattern to make wood columns curved legs staircase large productivity fast speed

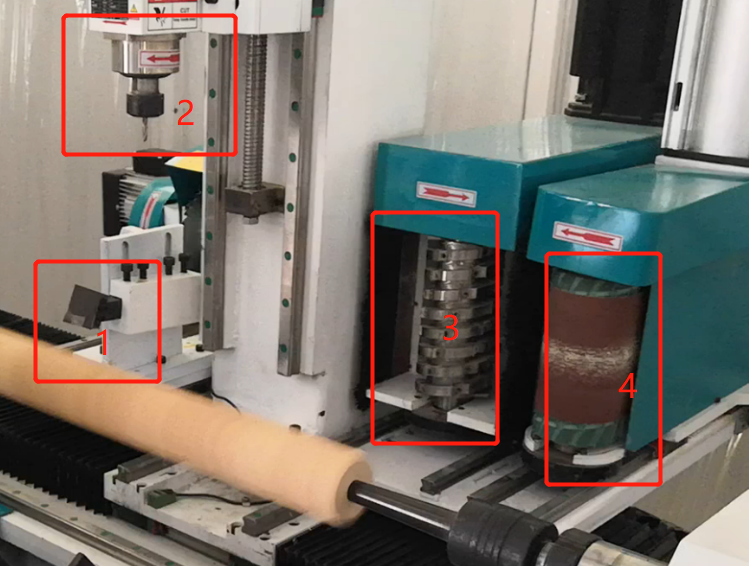

suntec cutter for turning one time can adjust cutting depth to make wood shape
suntec 3.5kw engraving spindle can carve engrave on wood
suntec planner can make irregular wood shape according your design file
sanding tools polish wood to make clean
Suntec handwheel to tool set easily to operate machine

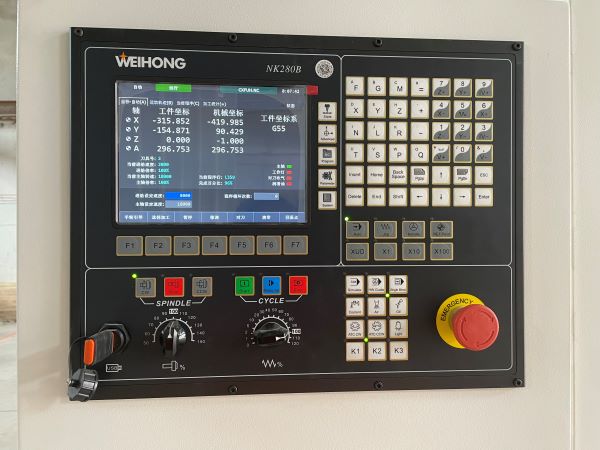

Nk controller can read DXF format G code Intergrated small computer operate machine just need this one controller to fulfill all function

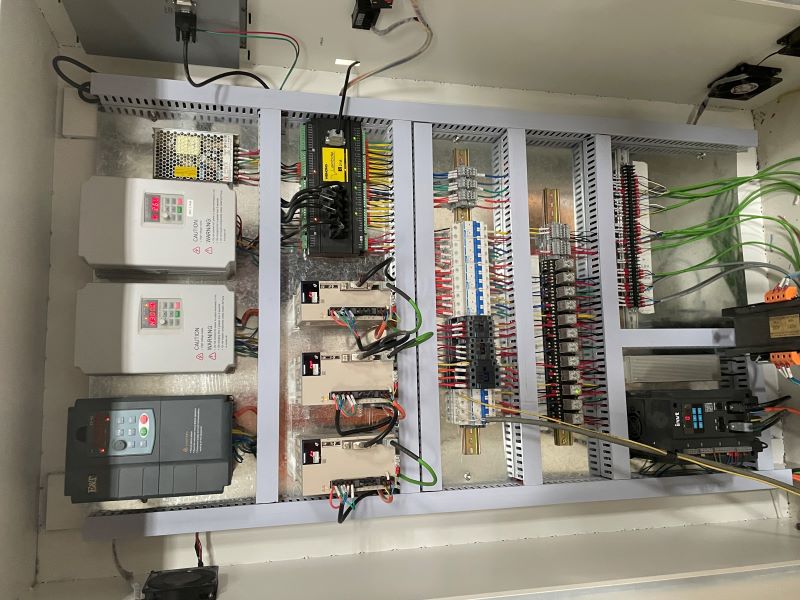

Yaskawa driver high powerful
