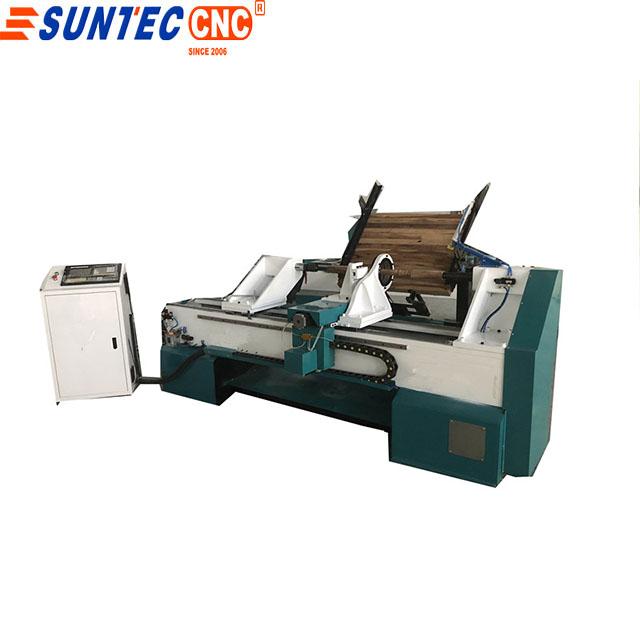

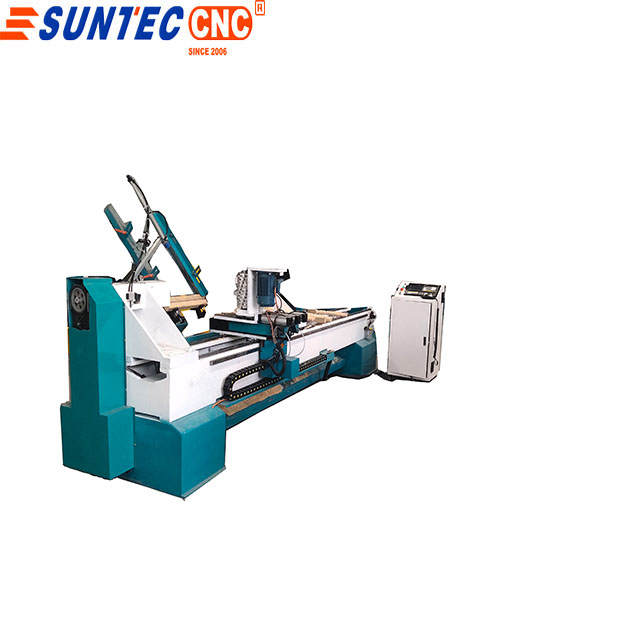

SUNTEC automatic cnc wood lathe single axis two cutter with planner
1. Fast speed for automatic feeding wood saving labor
2. max diameter 300mm if three piece working at same time .if bigger diameter can be customized .
3. max length 1500mm
4. planner for optional which mainly for curved no irregated wood shape .
Model: | ST-1530(1500*300mm) _1 axis_2 blades with automatic feeding with sander |
Structure: | Cast iron |
Spindle shaft: | Sturdy spindle, NSK deep groove ball bearing, P5 grade. |
Drive system: | - Three phse current of 380V, 50HZ. 4 Kw. , 1 set - Stepper motor: 450B 2 sets - Stepper driver: YKAO2811MA 2 sets - Servo motor is optional 5.5kw 220v/3ph/220v/1ph for optional |
Inverter: | Best inverter 5.5 kw (Fuling brand is optional) |
Guide rail: | Taiwan HIWIN/PMI linear square guide rail. |
Spindle speed: | 3000 r/min |
Material size: | 300*1500 mm (length: 2000mm, 2500mm, 3000mm are optional) |
Center Sleeve ID: | 1.414 times the side length of material (no need sleeve if material diameter is more than 60mm) |
Weight – bearing: | 500 kg |
Engraving speed: | 4 m/min |
Max. feed | 15 mm/r |
Max. feed rate: | 700 mm /min |
Min. setting unit: | 0.1 mm |
Pivoting device: | Pneumatic air connection within 6-8 bar. |
Tailstock: | Precisely and easily movable, with quick clamping with pneumatic |
Electric system: | Air break switch protection |
Dimensions(L*W*H):Machine (without operation box) | 3100 *1280*1780 mm |
Packing dimensions:Machine (with operation box) | 3200*1380*1980 mm |
Weight: | 1700 kg |
Software | AUTOCAD (DXF format ) |
Control system: | DSP |
Payment | 50% TT as deposit , The Balance 50% before shipment |
Validity | One month |
Delivery | 7-15 days after your deposit |
Application :

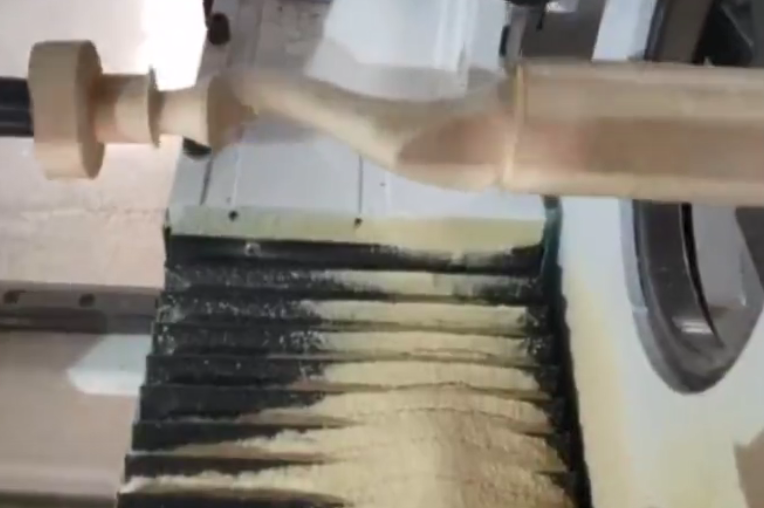

Staircases,stairway balusters,stairway newel posts;dining table legs;end table
legs;sofa table legs;bar stool legs;chair legs;chair arm posts;chair stretchers;bed
rails;lamp posts;baseball bats, handles and so on.

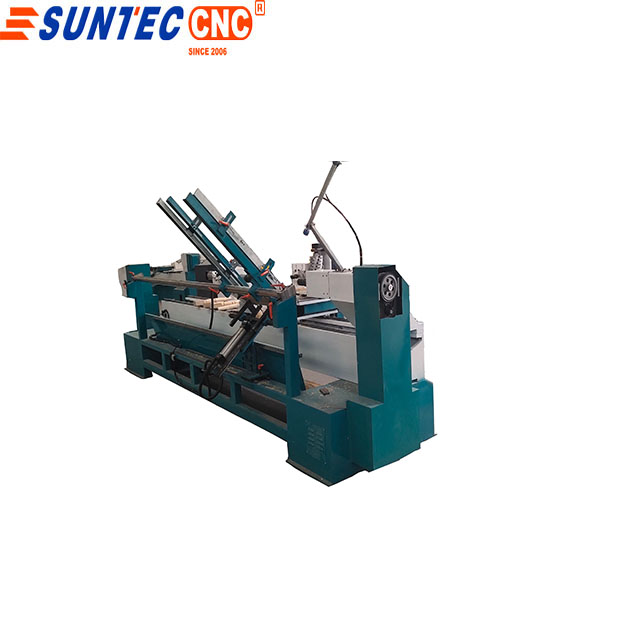

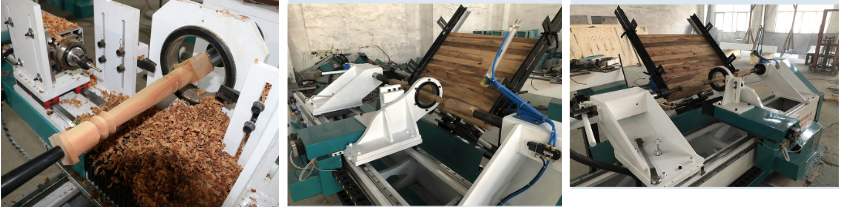

Automatic feeding systern saving labor to feeding material

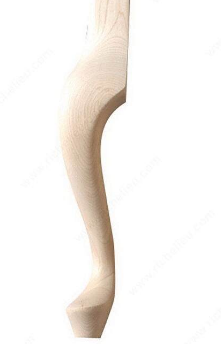

planner mainly for irregular wood shape which can do many design according software .

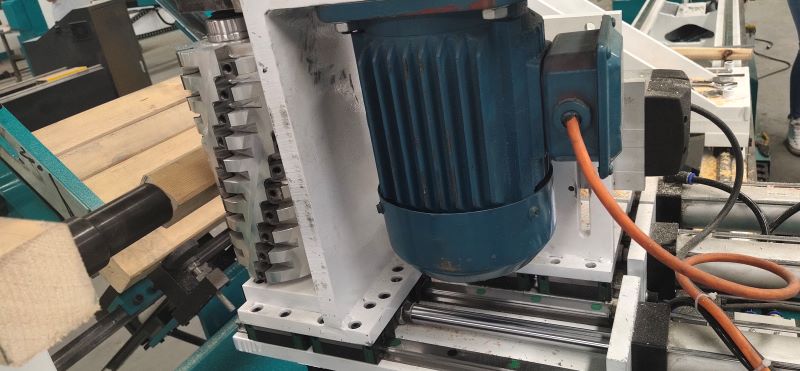

Suntec irregular planner for irregular wood shape it according software progame to cut different shape .

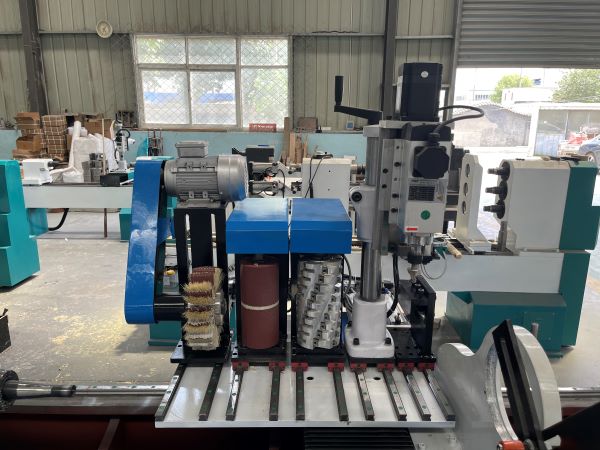

sanding polish tools for round square wood shape to clean wood dust .
Second brush for also secondary clean wood to make wood baluster clean smoothly .

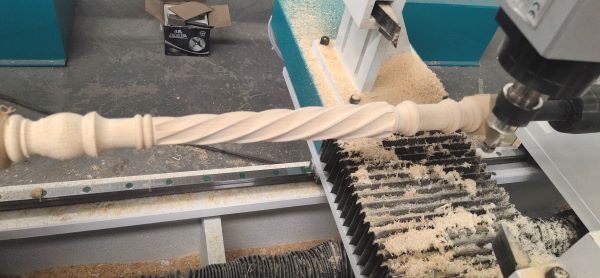

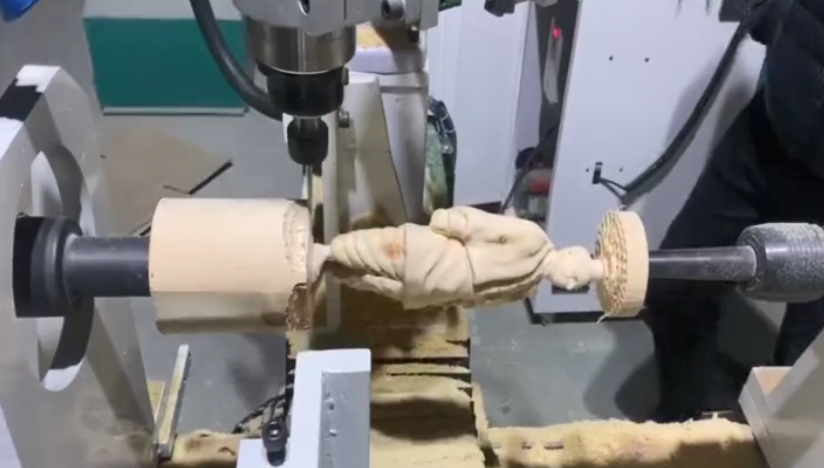

Engraving spindle can engraving broaching caring on wood also according program .
5. Multi function cnc wood lathe according your requirments and budget to choose what you need .
