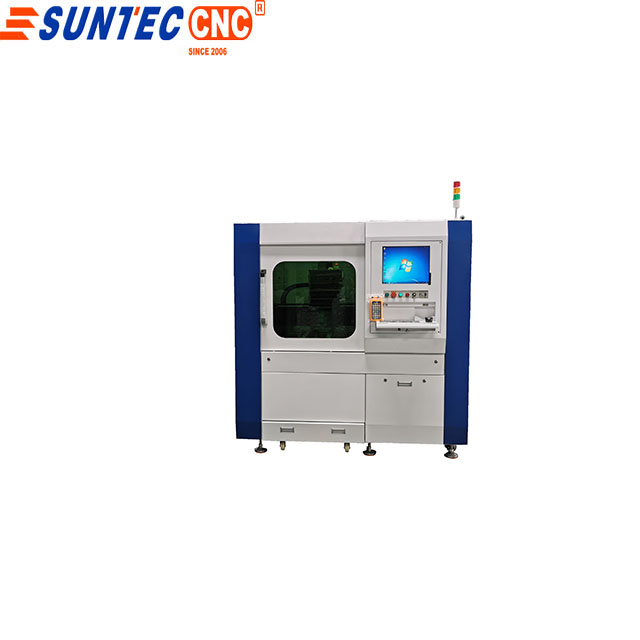

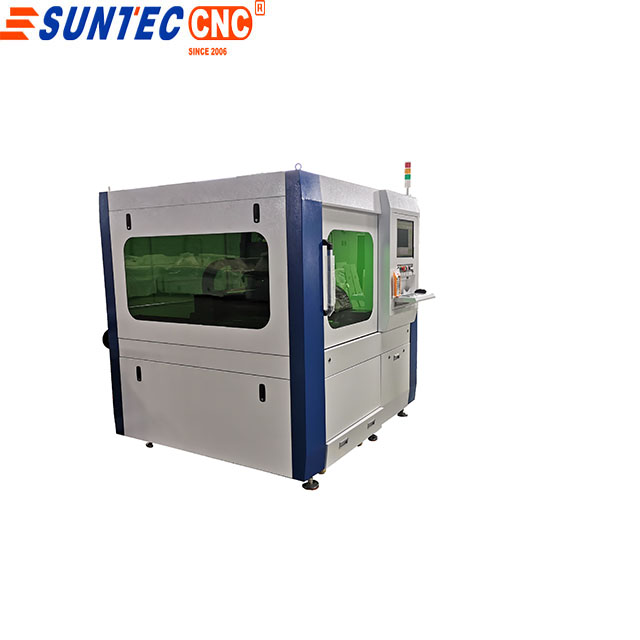

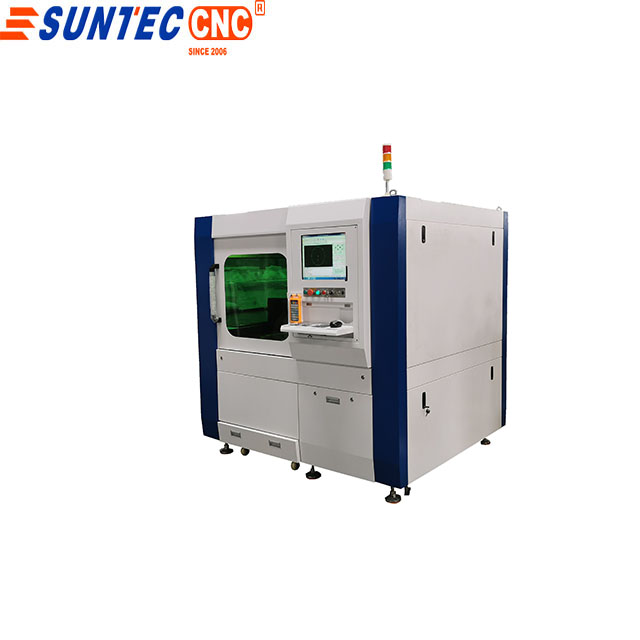

1000w mini silver gold fiber laser cutting machine ST6080

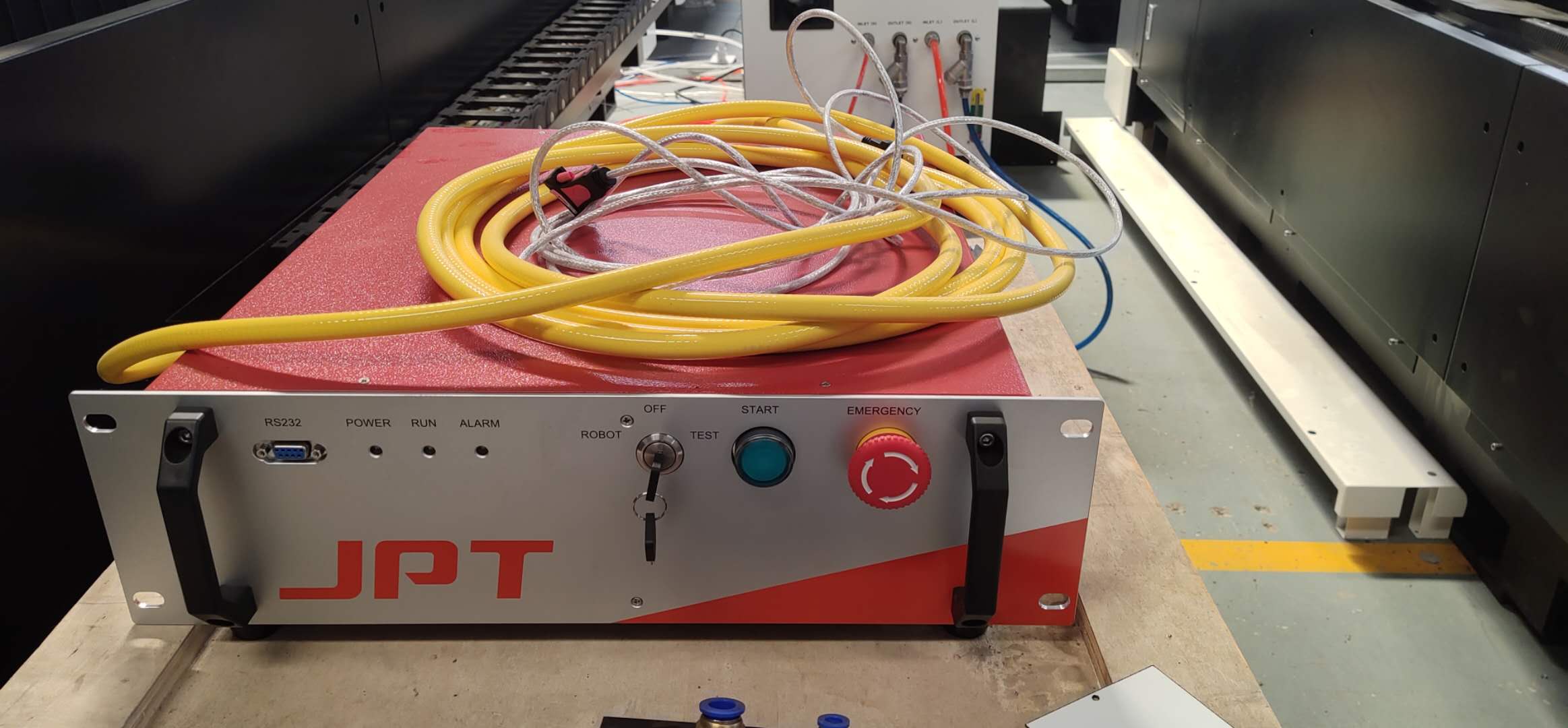

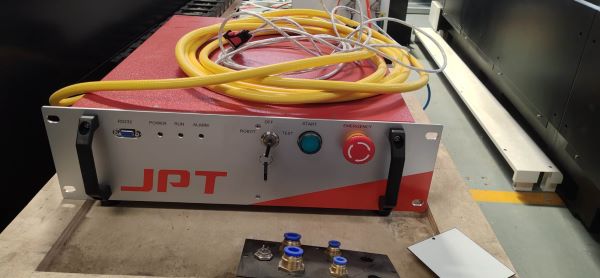

Laser Source

JPT / Raycus /IPG

Laser Power

1000W / 1500W

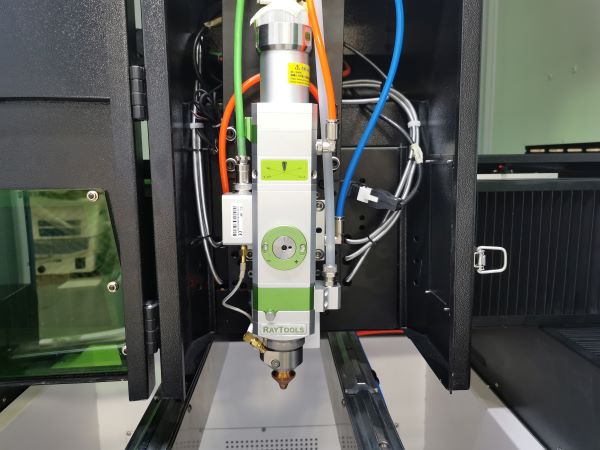

Cutting head

RAYTOOLS

Working Area

600*800mm

Cutting Thickness

<22mm

Max Speed

80m/min

Repeat positioning accuracy

±0.02mm

Minimum Line width

<0.12mm

Cooling System

S&A Industry chiller

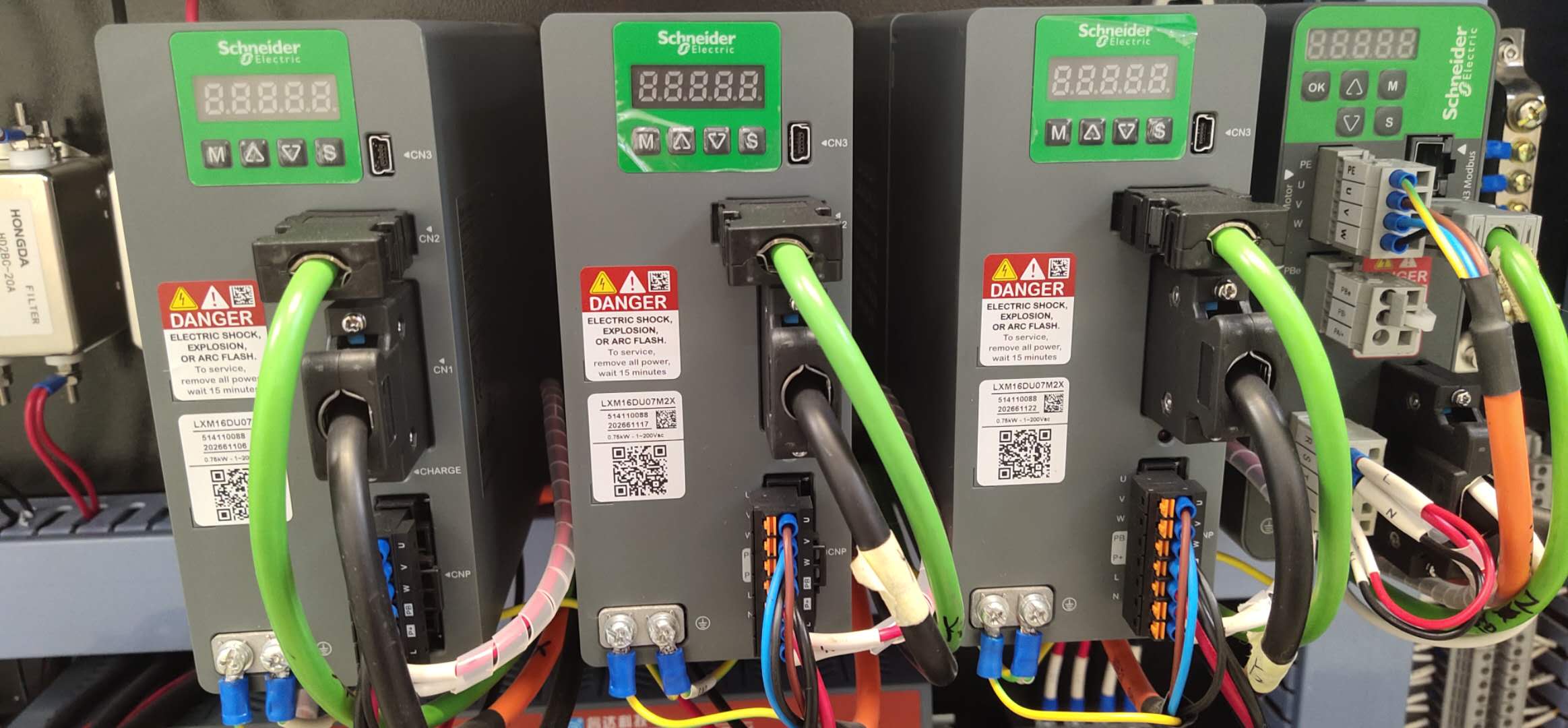

Driving System

Franch Schneider Servo motor and drivers

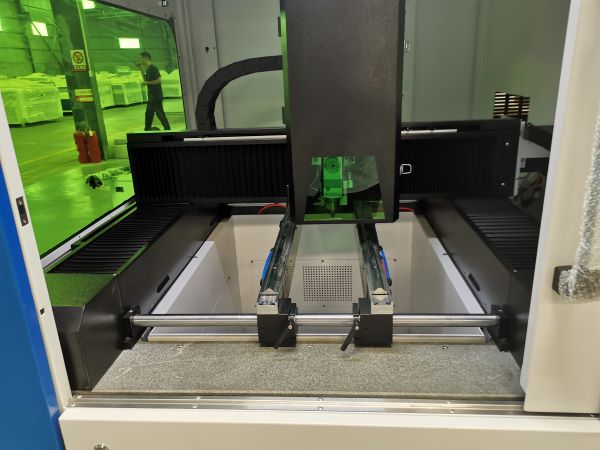

Transmission

Taiwan PMI / HIWIN Linear Rail + TBI ball screw

Reducer

France Motoreducer

Warranty

3 Years

Working Voltage

220v/380V; 50Hz/60Hz

Protection level

IP54

Machine weight

1600kgs

Size L*W*H(mm)

2500*1900*2100mm
