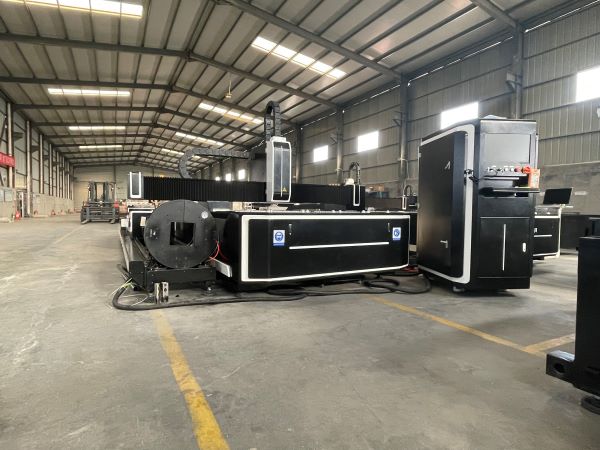

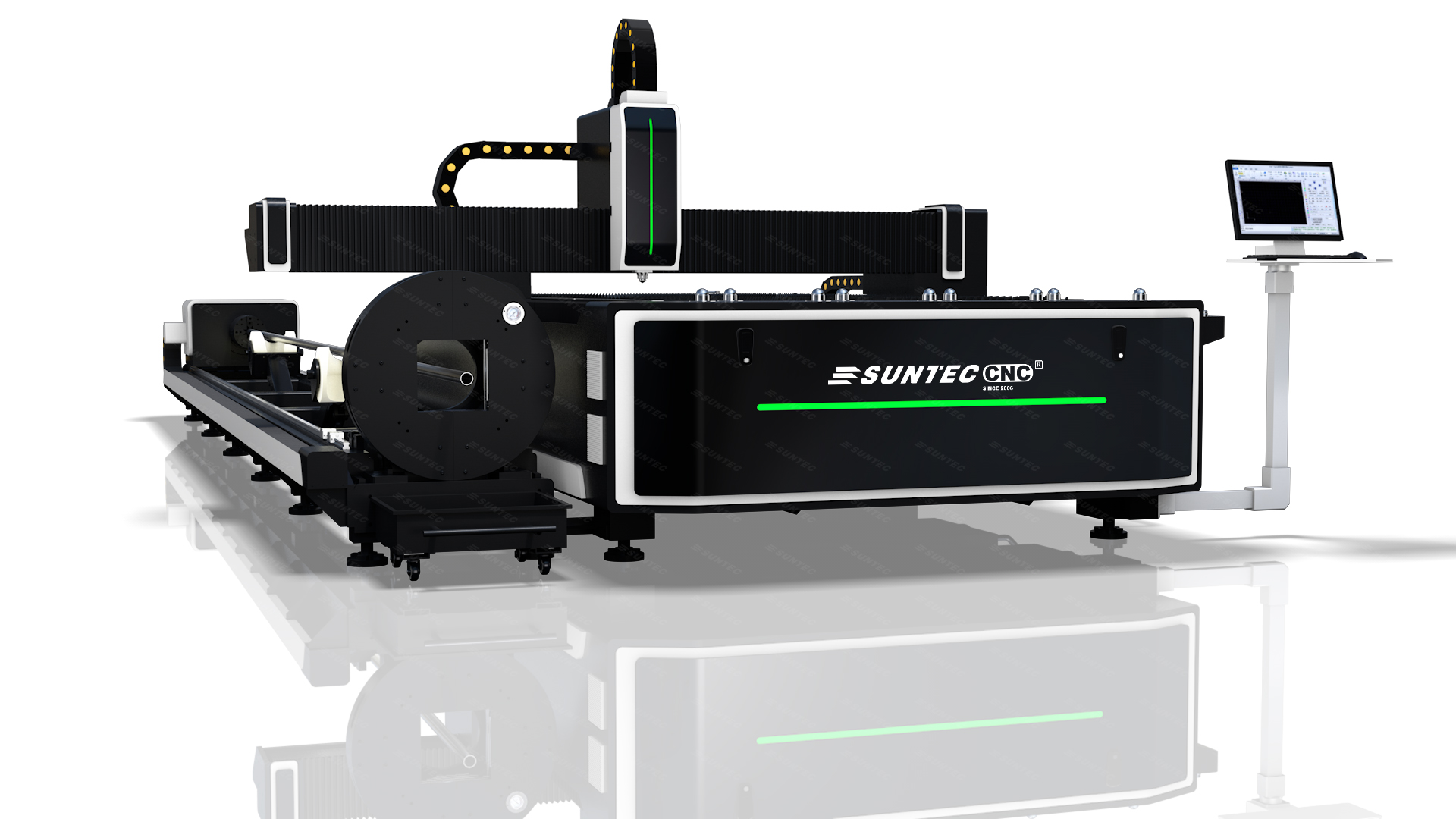

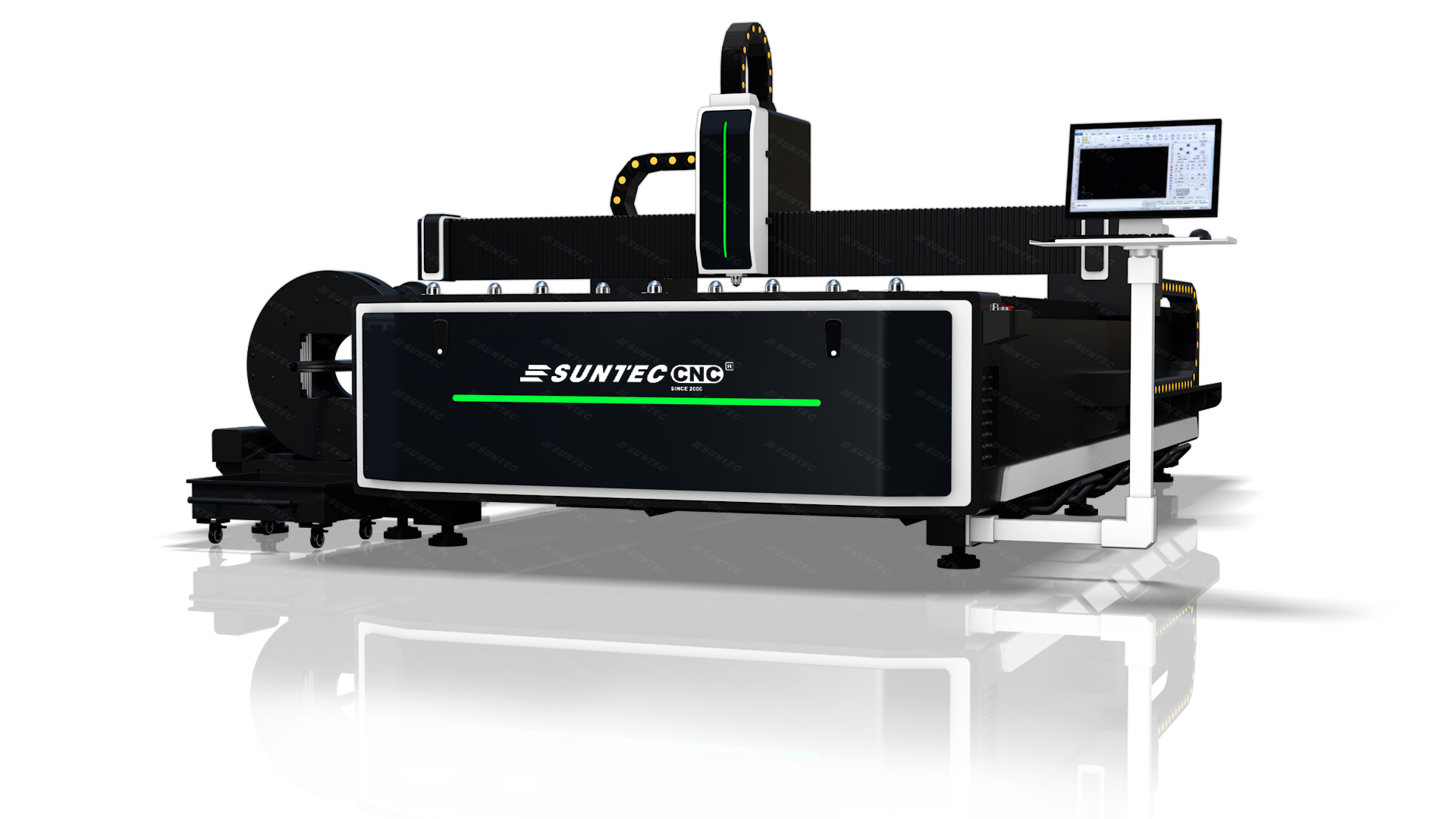

ST1530 fiber laser cutting machine with 6 m length tube pipe cutting

ST1530 fiber laser cutting machine with 6 m length tube pipe cutting

1. The machine adopts gantry type single-side double-drive structure, imported high-precision reducer, gear rack and linear guide, smooth transmission, fast acceleration, Bit precision.

2. Both the bed and the moving beam adopt the whole welded structure. After annealing, rough machining and vibration aging, the welding process can be completely eliminated. Processing of stress, rigidity, high precision, can be maintained for a long time without deformation.

3. X, Y axis with high-precision servo motors, bed movement performance greatly improved, acceleration up to 1.5G, to ensure that the whole machine has high speed and high acceleration performance.

4. Using the Windows operating system based CypCut Fiber laser cutting machine dedicated CNC system, integrated a lot of laser cutting control dedicated functions Module, powerful, simple operation.

5. Switzerland RAYTOOLS Laser Head is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.

6. Germany imported high-precision electronic proportional valve, precise control of cutting auxiliary gas pressure, in order to achieve the best cutting results.

Main parts

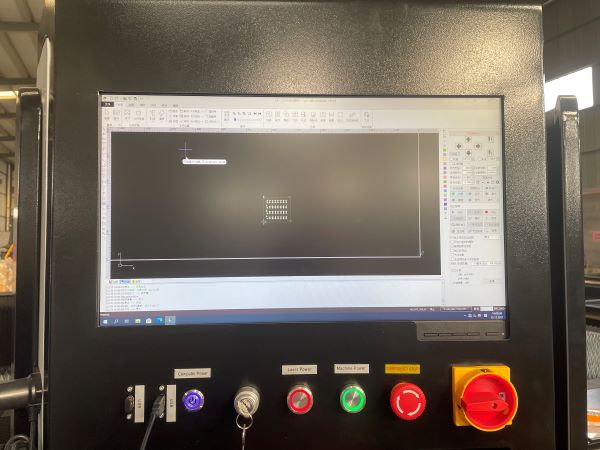

Cypcut operation system

Switzerland Raytools laser head

France Motovario motor reducer

Japan YASKAWA servo motor 850w

Taiwan APEX gear rack

Japan SMC/Airtac pneumatic parts

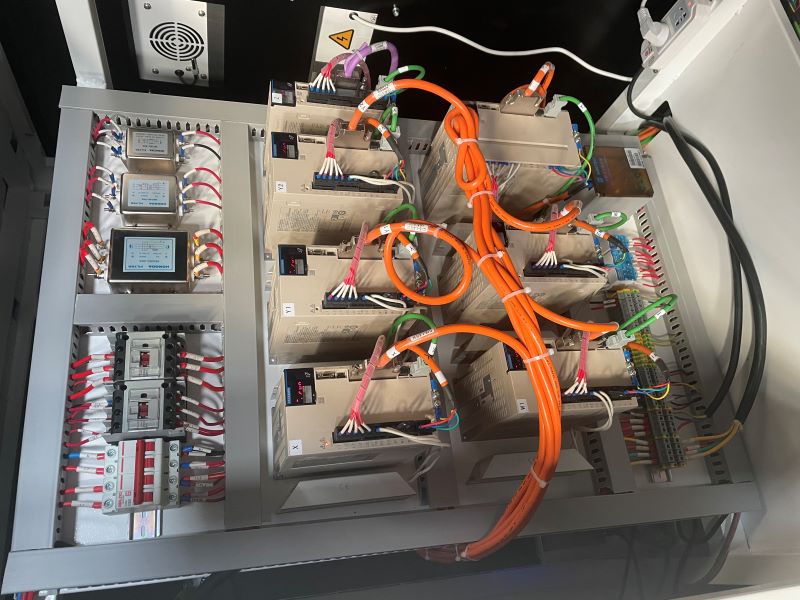

French Schneider electronic parts

Automatic lubrication system.

Integrated cast aluminum beam

Taiwan HIWIN square rail

Laser head automatically adjust system.

Smoke purify system

Water cooling machine

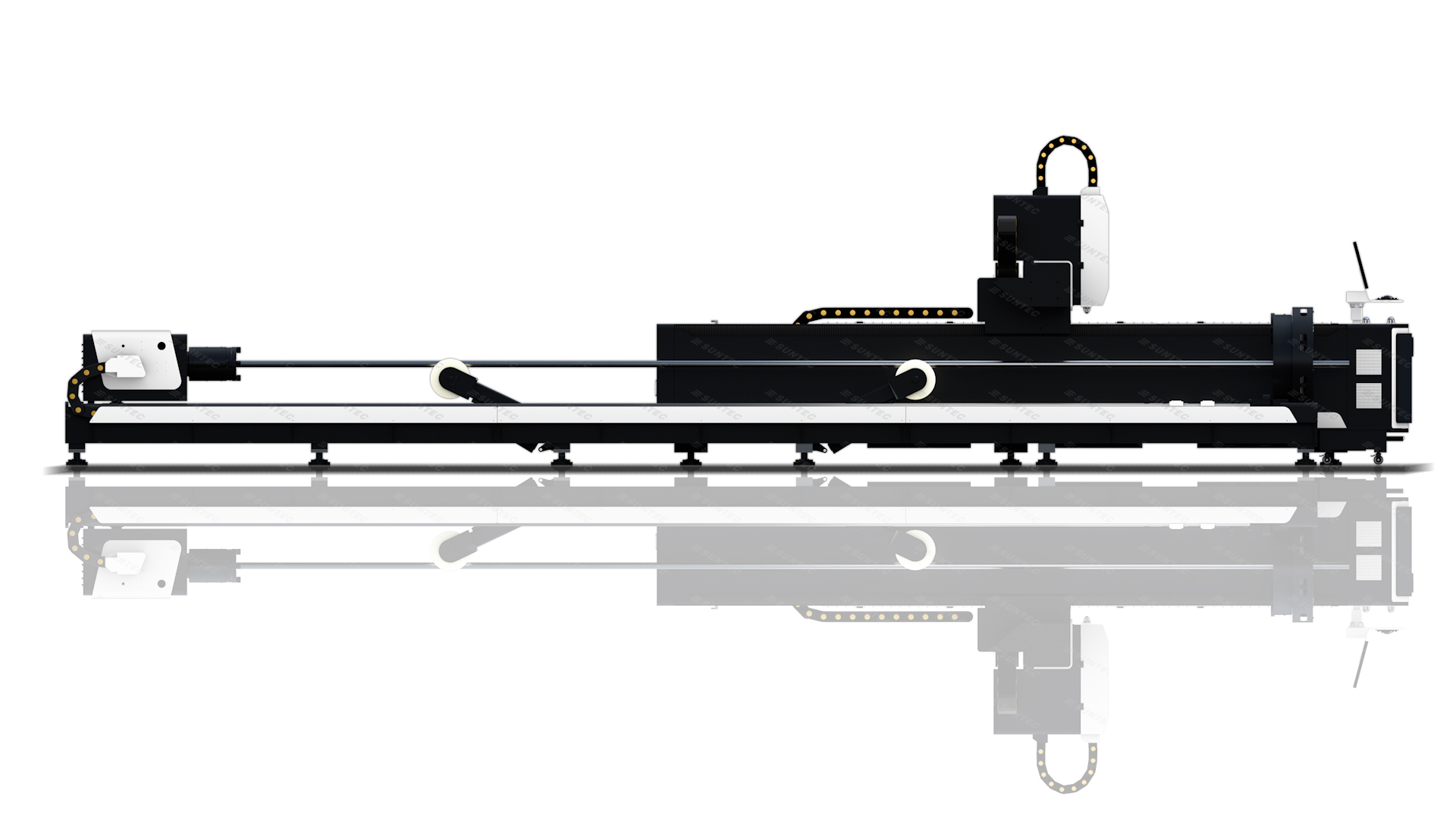

6m length pipe tube 220mm diameter

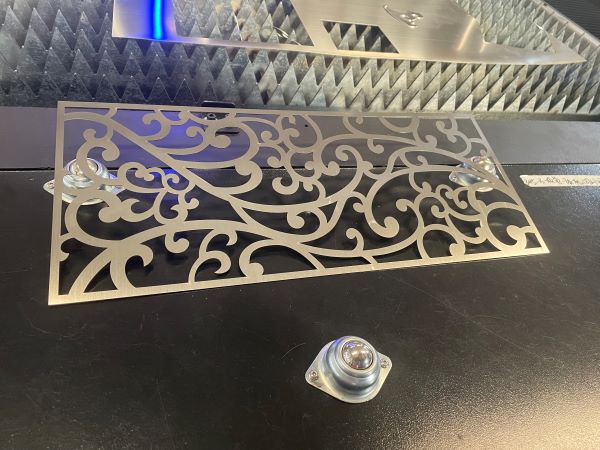

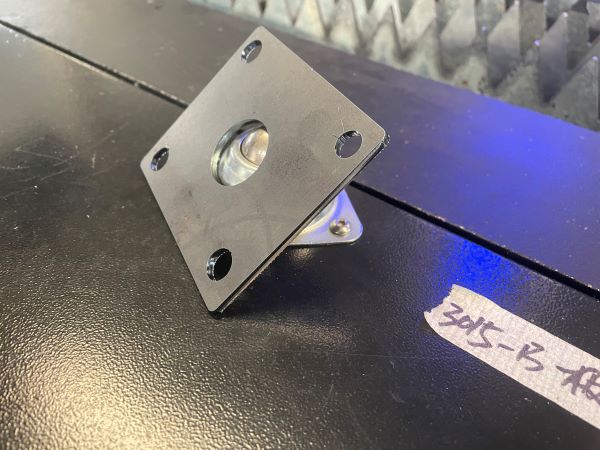

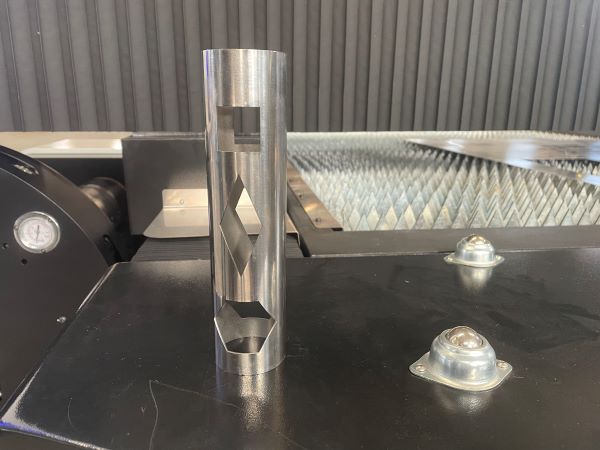

working sample
