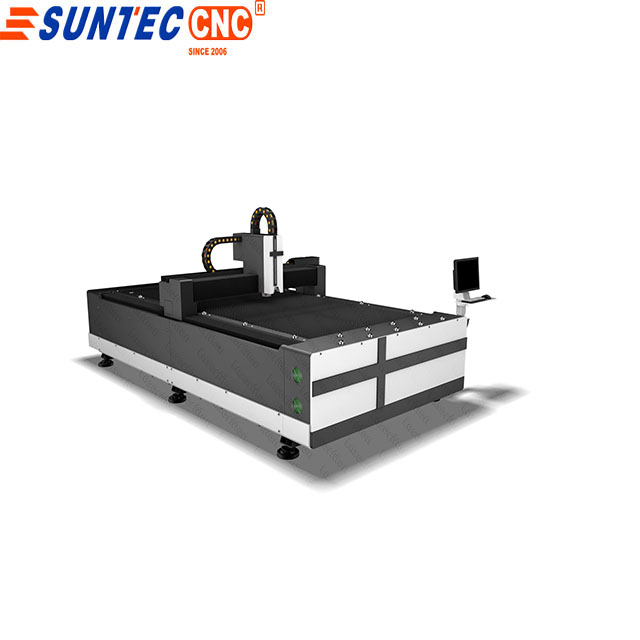

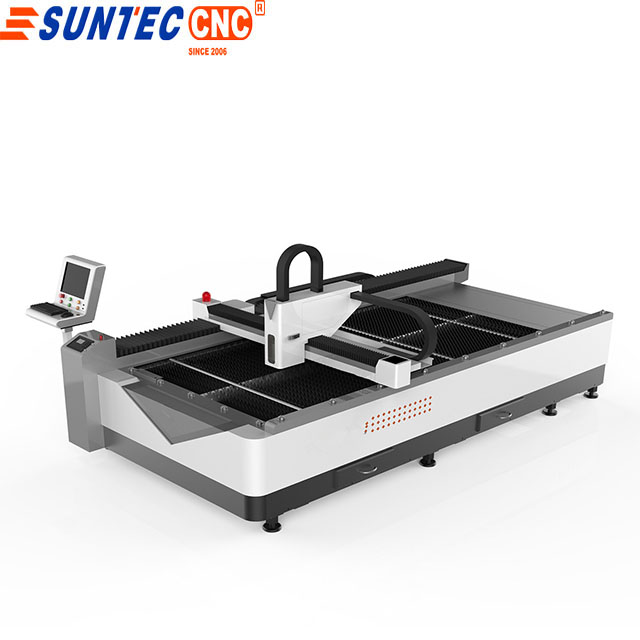

china cheap price fiber laser cutting machine 1500w raycus ST1530 for metal cs ss
1. The machine adopts gantry type single-side double-drive structure, imported high-precision reducer, gear rack and linear guide, smooth transmission, fast acceleration, Bit precision.
2. Both the bed and the moving beam adopt the whole welded structure. After annealing, rough machining and vibration aging, the welding process can be completely eliminated. Processing of stress, rigidity, high precision, can be maintained for a long time without deformation.
3. X, Y axis with high-precision servo motors, bed movement performance greatly improved, acceleration up to 1.5G, to ensure that the whole machine has high speed and high acceleration performance.
4. Using the Windows operating system based CypCut Fiber laser cutting machine dedicated CNC system, integrated a lot of laser cutting control dedicated functions Module, powerful, simple operation.
5. Switzerland RAYTOOLS Laser Head is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
6. Germany imported high-precision electronic proportional valve, precise control of cutting auxiliary gas pressure, in order to achieve the best cutting results.
Main parts
Cypcut operation system
Switzerland Raytools laser head
France Motovario motor reducer
Japan YASKAWA servo motor 850w
Taiwan APEX gear rack
Japan SMC/Airtac pneumatic parts
French Schneider electronic parts
Automatic lubrication system.
Integrated cast aluminum beam
Taiwan HIWIN square rail
Laser head automatically adjust system.
Smoke purify system
Water cooling machine
Machine model | ST1530 fiber laser cutting machine |
Laser source | 1000W/1500/2000/3000 raycus ipg fiber laser source |
Control system | Shanghai Cypcut system |
Working size | X,Y 1500x3000mm |
Cutting head | Swiss Raytools (optional Worthing ) |
Driver and motor for Y | Y axis double Yaskawa servo driver and motor |
Driver and motor for X | X axis Yaskawa motor and driver |
Driver and motor for Z | Z axisPanasonic driver and motor |
Reducer | France MOTOVARIO |
Reducer ratio | 5:1 |
Rack and pinion | Taiwan APEX |
X,Y,Z guide rail | Taiwan Hiwin guide rail |
Water cooling system | TONGFEI water chiller (double temperature control) |
Electricals | Schneider |
Support software | DXF , PLT ,AI , LXD , Gerber ,NC , G. code |
Repeat positioning accuracy | ±0.02mm |
Maximum speed | 120m/min |
Maximum Acceleration | 1.5G |
Focus lens | 125mm |
Power supply | 380V 50HZ /60HZ 3PH |
Total power | 20.1kw |
Application material | Stainless steel , carbon steel ,galvanized sheet ,brass ,aluminum , silver ,mild steel , silicon steel , titanium alloy etc . |
Warranty | 3 years |
Consumable parts of the machine | ||||
Items | Use life (hours) | Unit price (USD/pc) | Suggested buying Quantity (pcs) | Remarks |
Protective mirror | 600 | 35 | 5 | |
Protection goggle | / | One for free | 1 | |
Collimator | 10000 | 235 | 1 | |
Ceramic ring | 4000 | 65 | 2 | |
Focus lens | 10000 | 235 | 2 | |
Nozzle(single layer 1mm) | 600 | 15 | 5-10 | For below 3mm stainless steel ,copper ,aluminum |
Nozzle(single layer 1.5mm) | 600 | 15 | 5-10 | For 3-5mm stainless steel ,copper ,aluminum |
Nozzle(single layer 2mm) | 600 | 15 | 5-10 | Above 5mm stainless steel ,copper ,aluminum |
Nozzle(twin layer 1mm) | 600 | 15 | 5-10 | For below 4mm carbon steel |
Nozzle(twin layer 1.5mm) | 600 | 15 | 5-10 | 4-8mm carbon steel |
Nozzle(twin layer 2mm) | 600 | 15 | 5-10 | Above 8mm carbon steel |

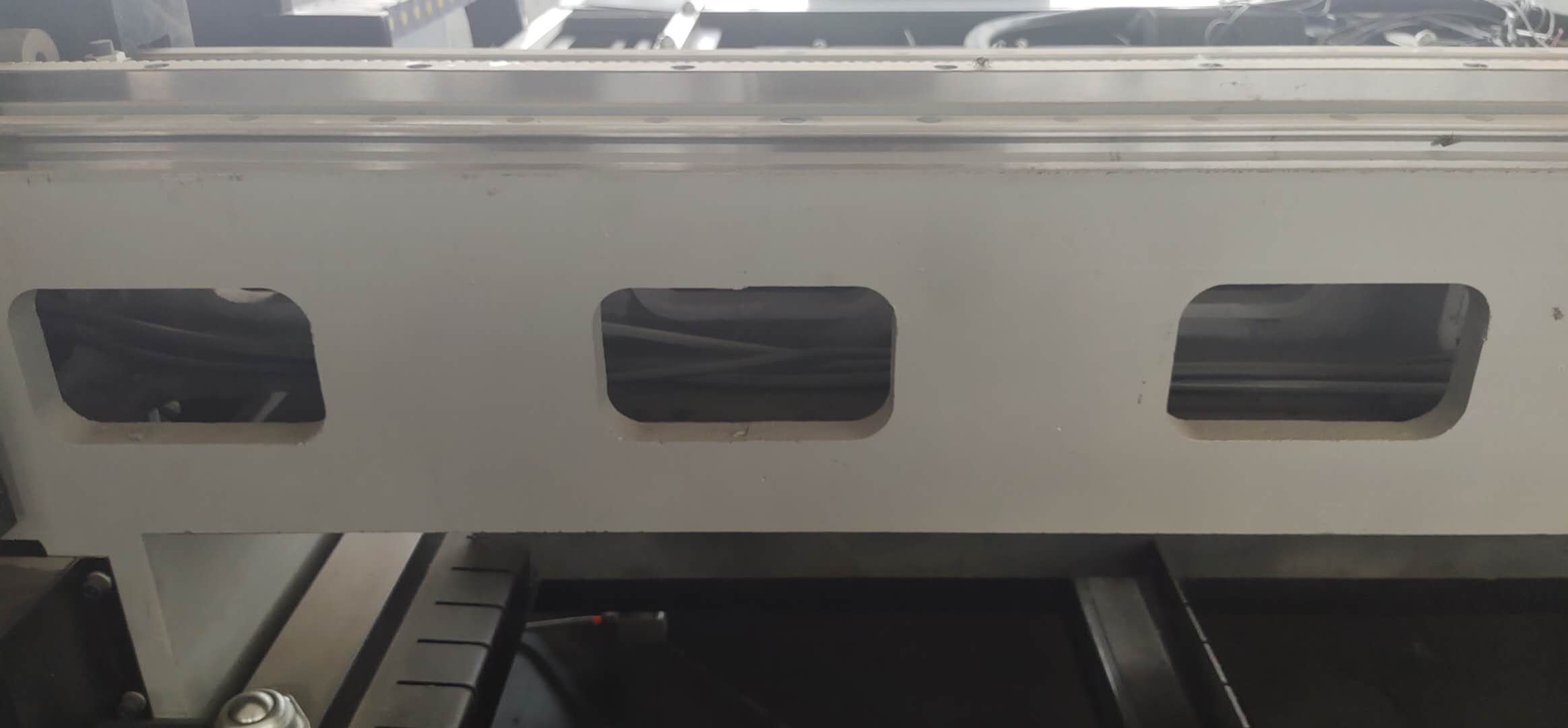

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength
can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light
weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

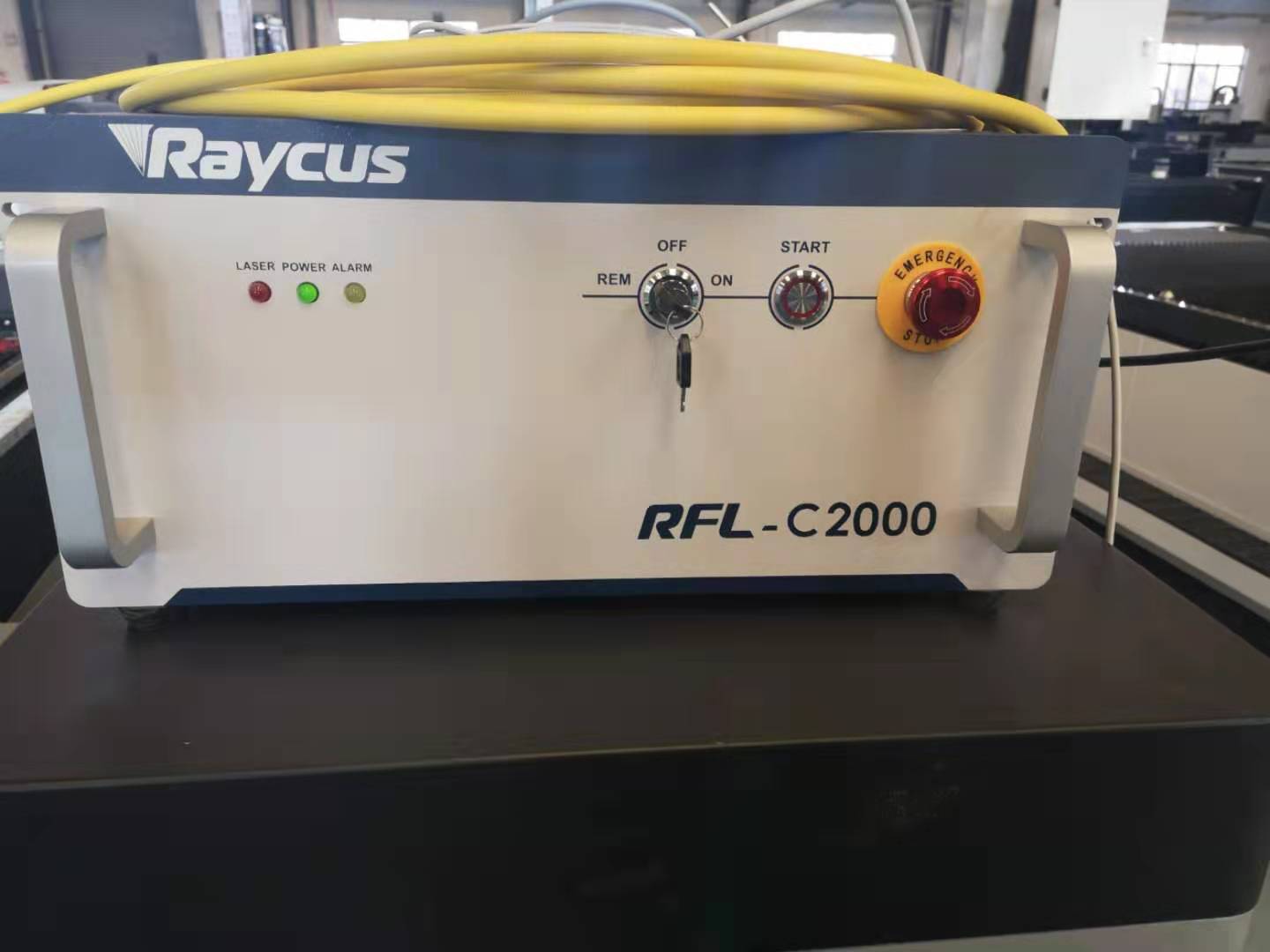

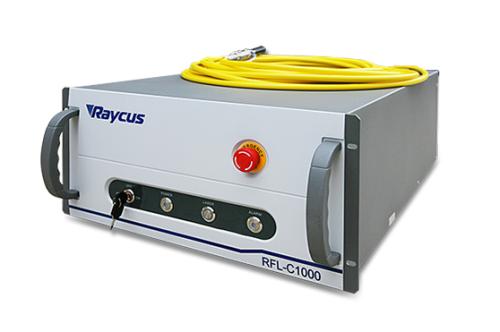

Raycus 2000w fiber laser source other laser source 1000w/1500w 3000w IPG for you optiaonal

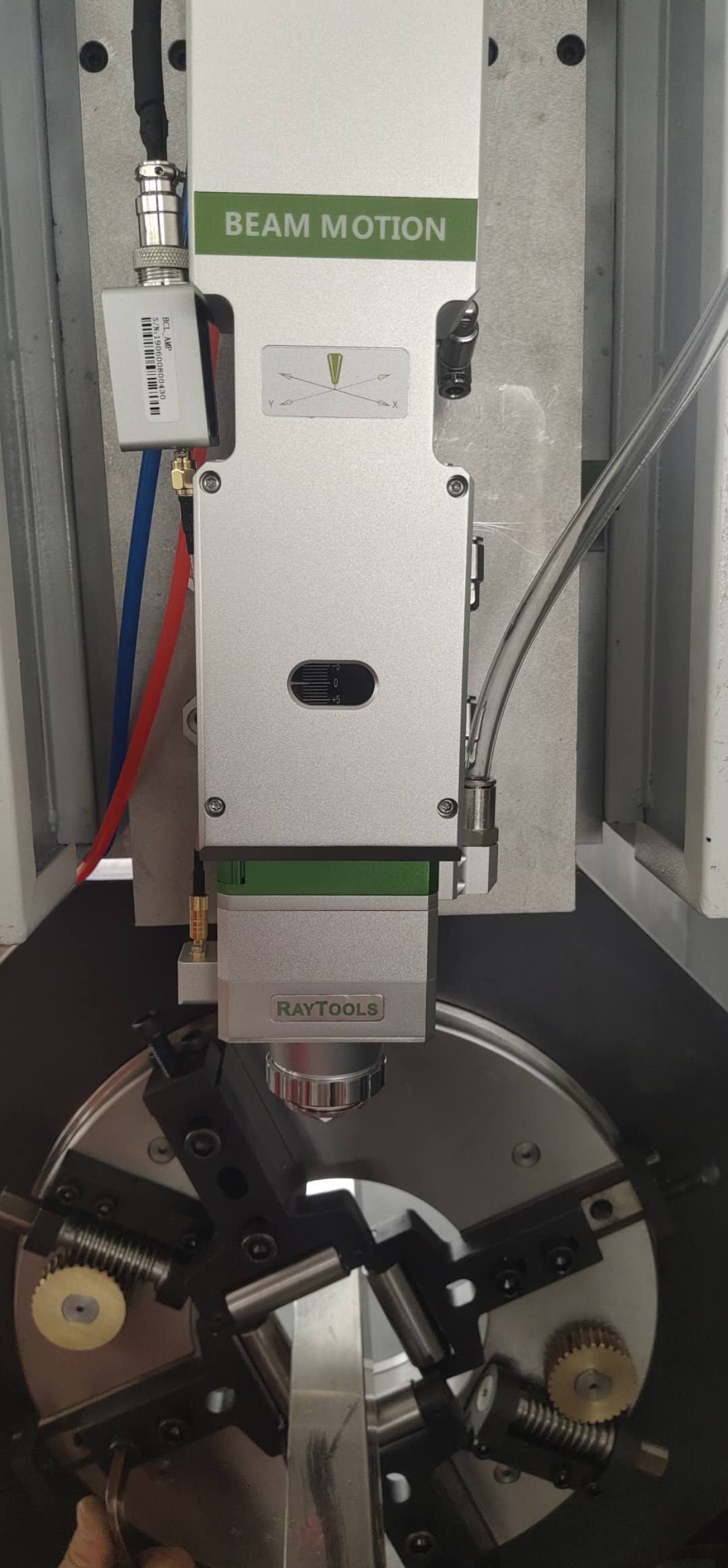

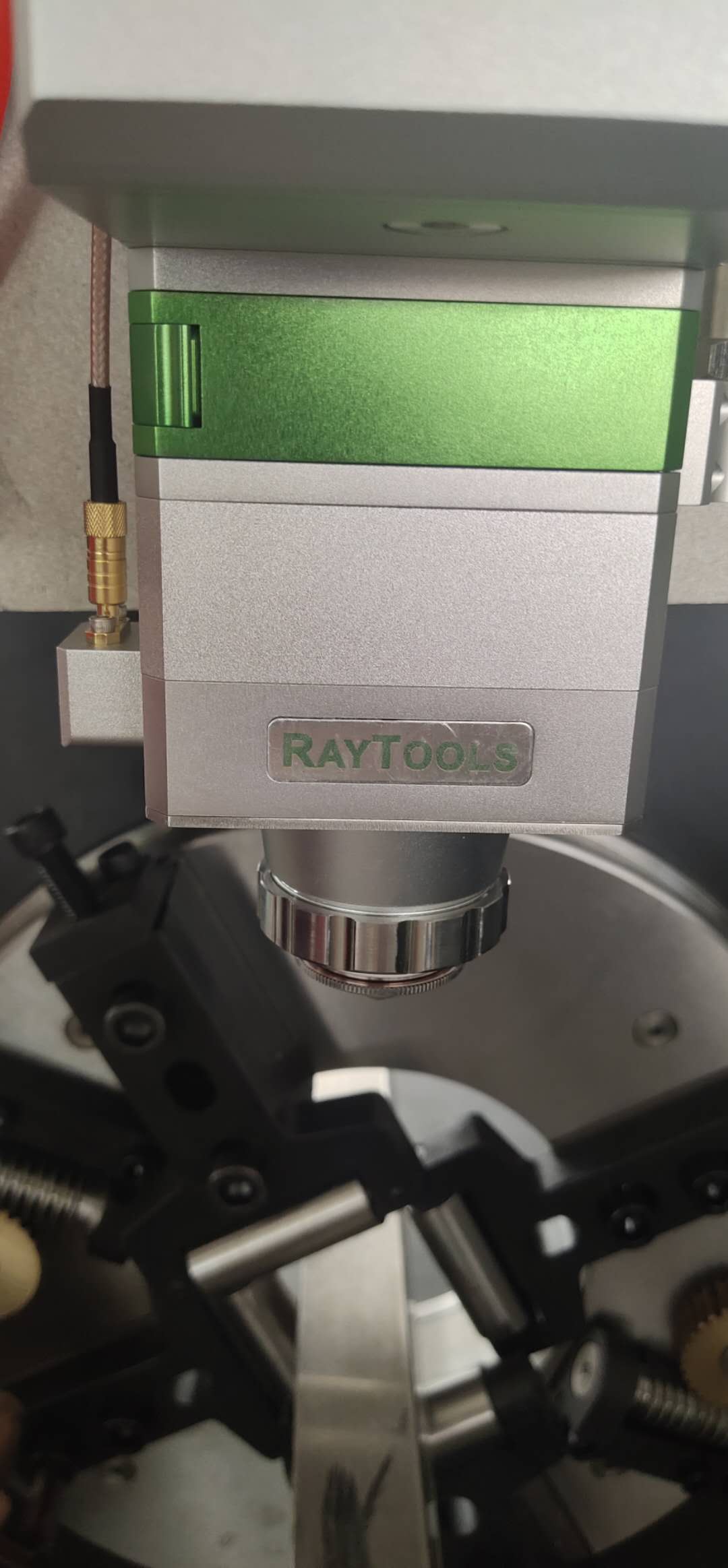

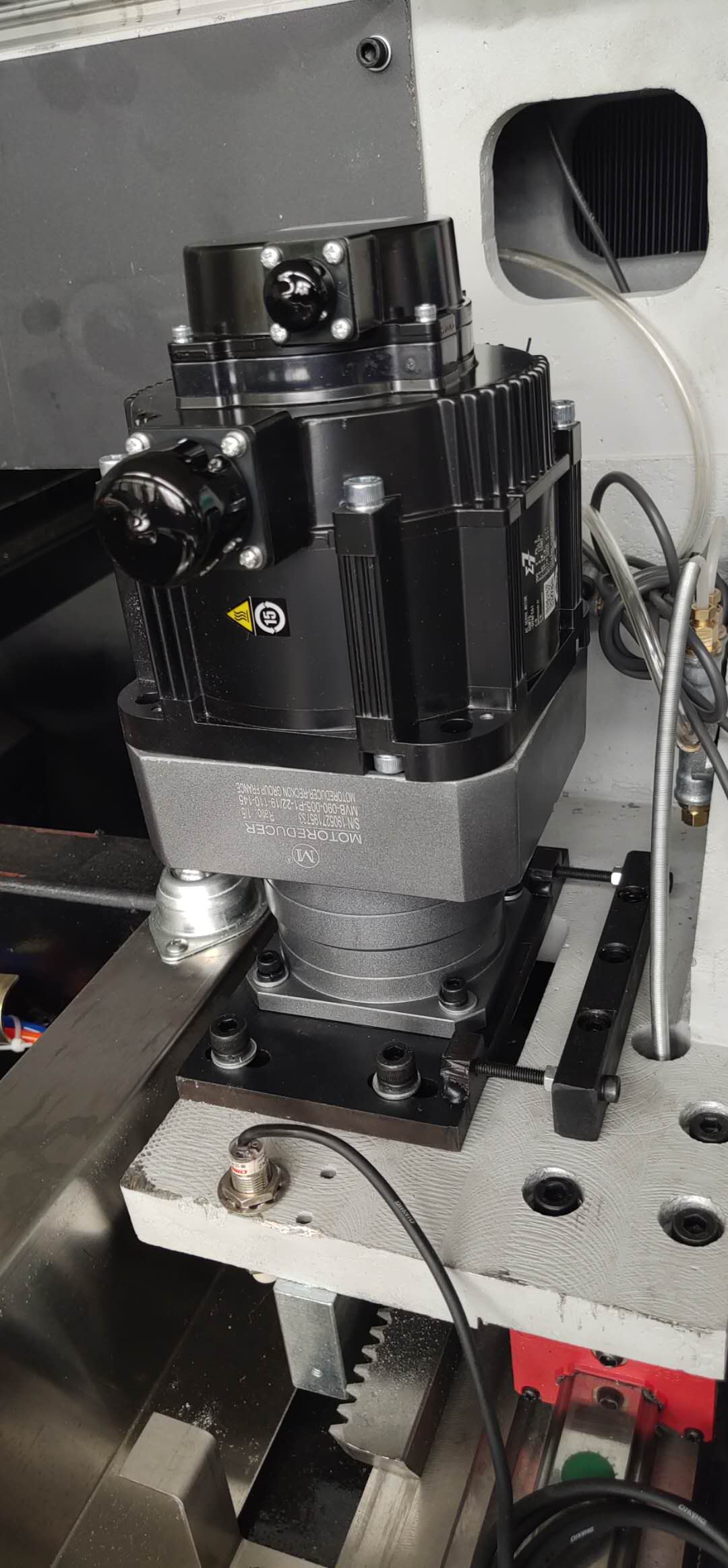

Raytools laser head japan yaskawa driver and motor

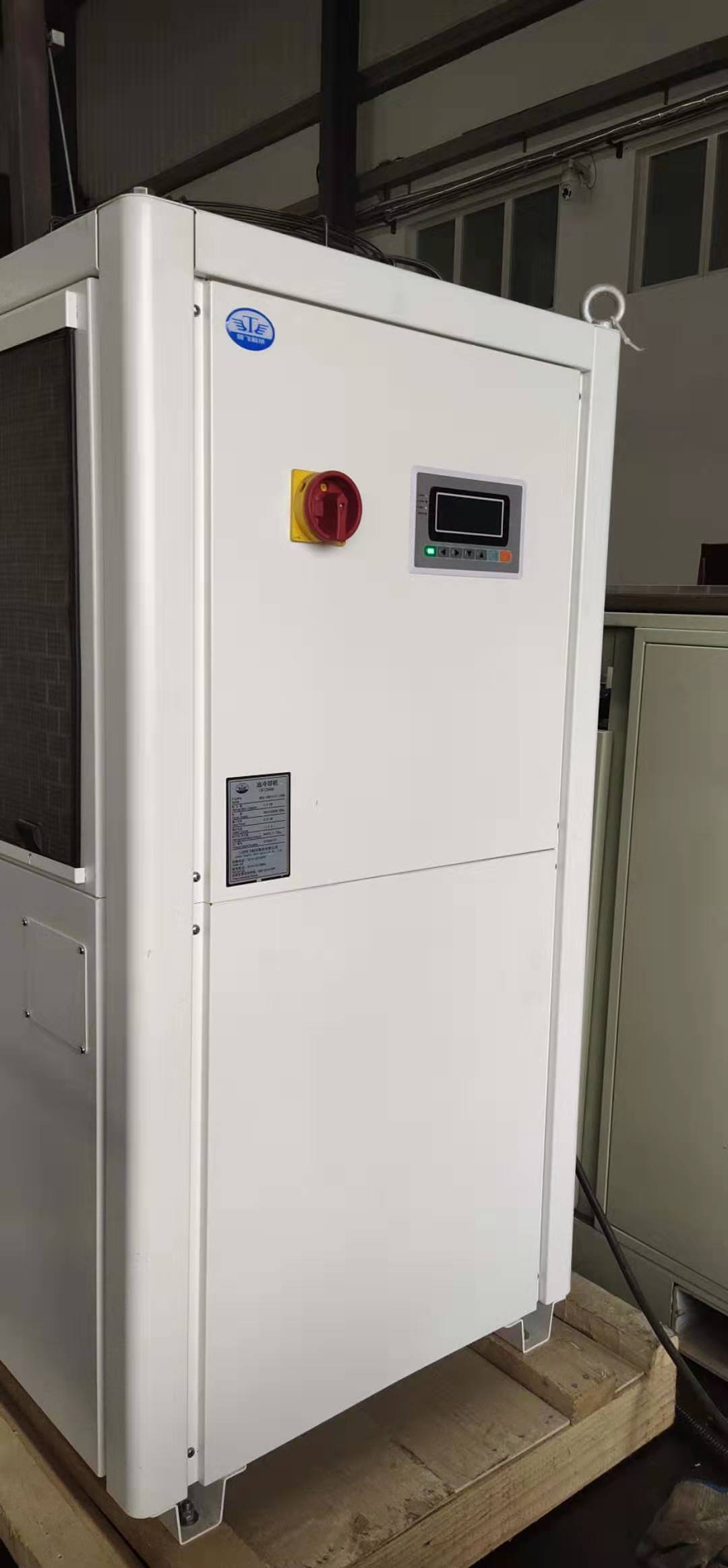

Tongfei water chiller

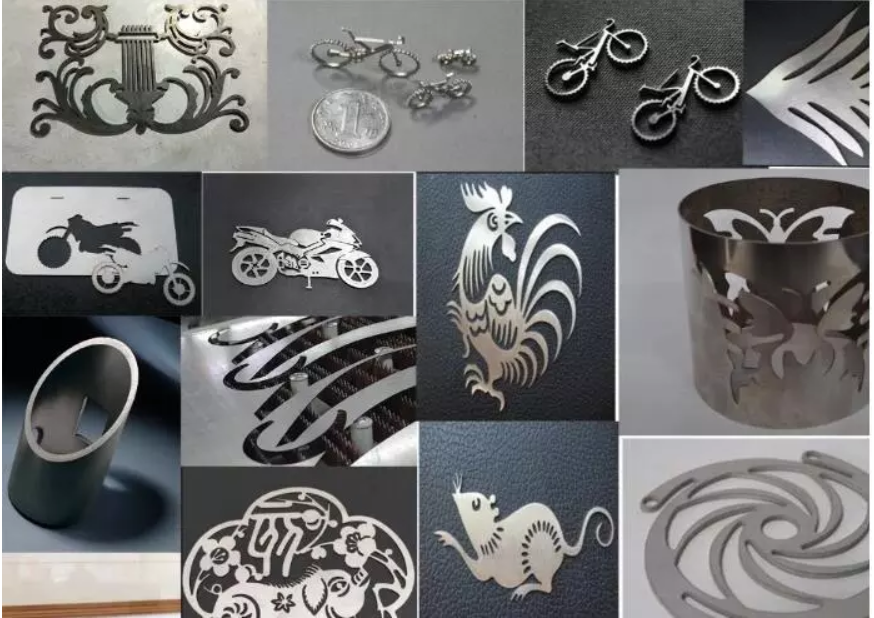

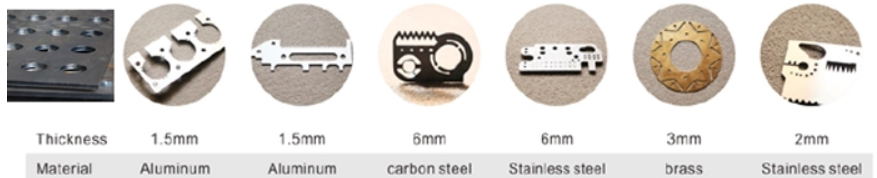

working sample
