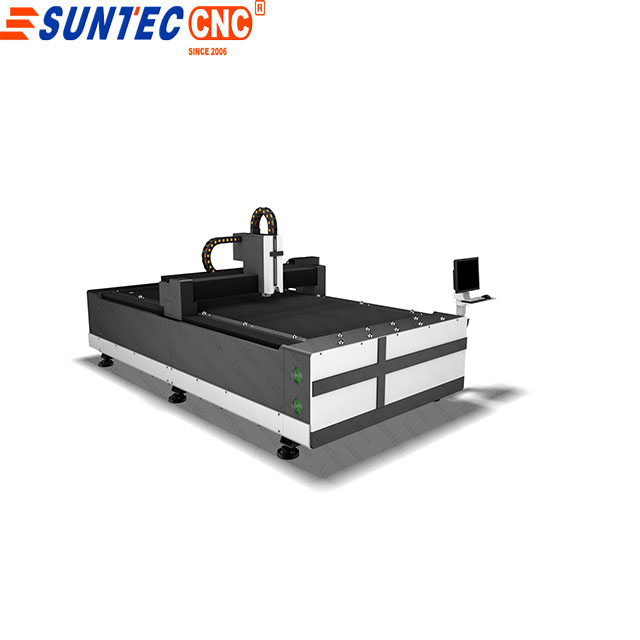

2020 hot sale 500w 1000w fiber laser cutting machine for metal sheet cutting
1. The machine adopts gantry type single-side double-drive structure, imported high-precision reducer, gear rack and linear guide, smooth transmission, fast acceleration, Bit precision.
2. Both the bed and the moving beam adopt the whole welded structure. After annealing, rough machining and vibration aging, the welding process can be completely eliminated. Processing of stress, rigidity, high precision, can be maintained for a long time without deformation.
3. X, Y axis with high-precision servo motors, bed movement performance greatly improved, acceleration up to 1.5G, to ensure that the whole machine has high speed and high acceleration performance.
4. Using the Windows operating system based CypCut Fiber laser cutting machine dedicated CNC system, integrated a lot of laser cutting control dedicated functions Module, powerful, simple operation.
5. Switzerland RAYTOOLS Laser Head is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
6. Germany imported high-precision electronic proportional valve, precise control of cutting auxiliary gas pressure, in order to achieve the best cutting results.
Machine model | ST9013 fiber laser cutting machine |
Laser source | 1000W ipg fiber laser source |
Control system | Shanghai Cypcut system |
Working size | X,Y 900x1300mm |
Cutting head | Swiss Raytools (optional Worthing ) |
Driver and motor for Y | Y axis double Yaskawa servo driver and motor |
Driver and motor for X | X axis Yaskawa motor and driver |
Driver and motor for Z | Z axisPanasonic driver and motor |

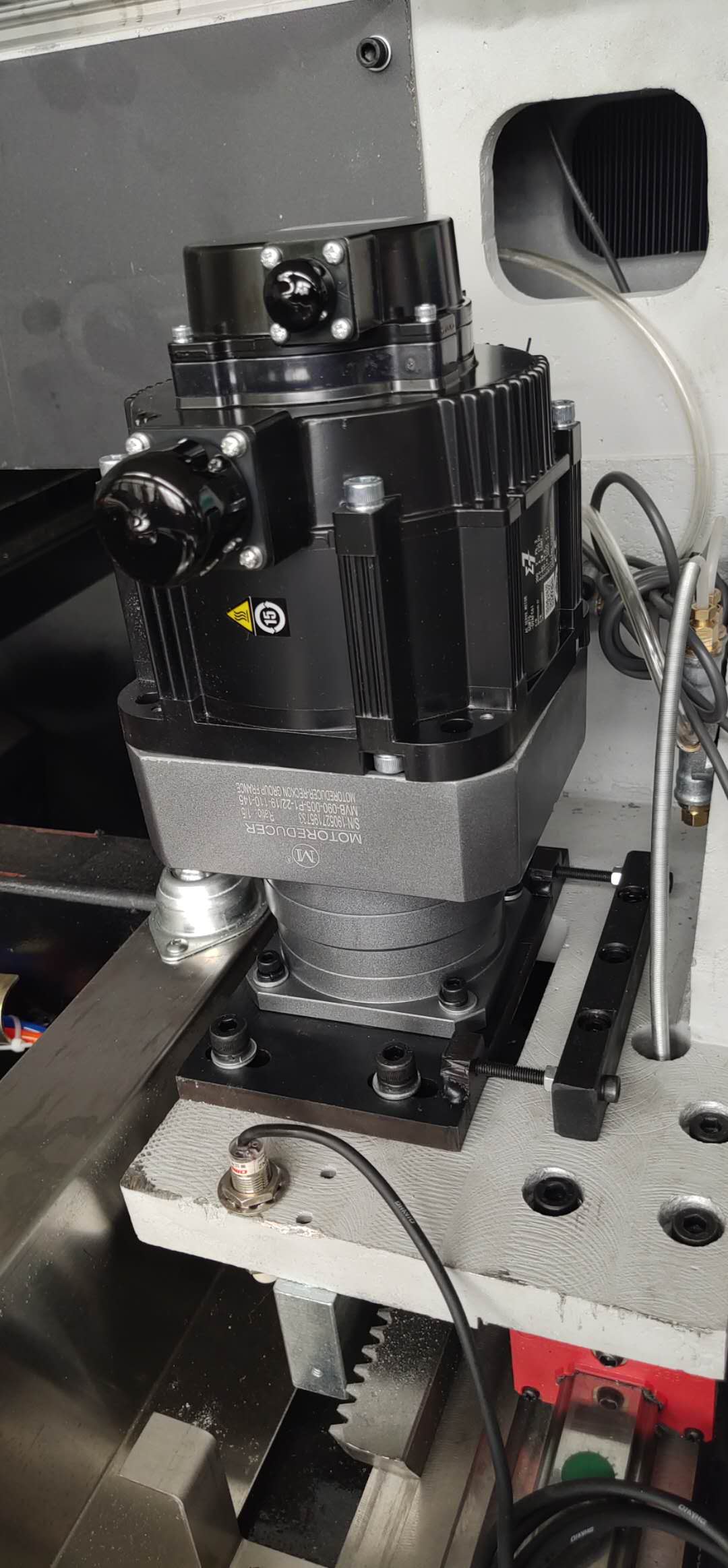

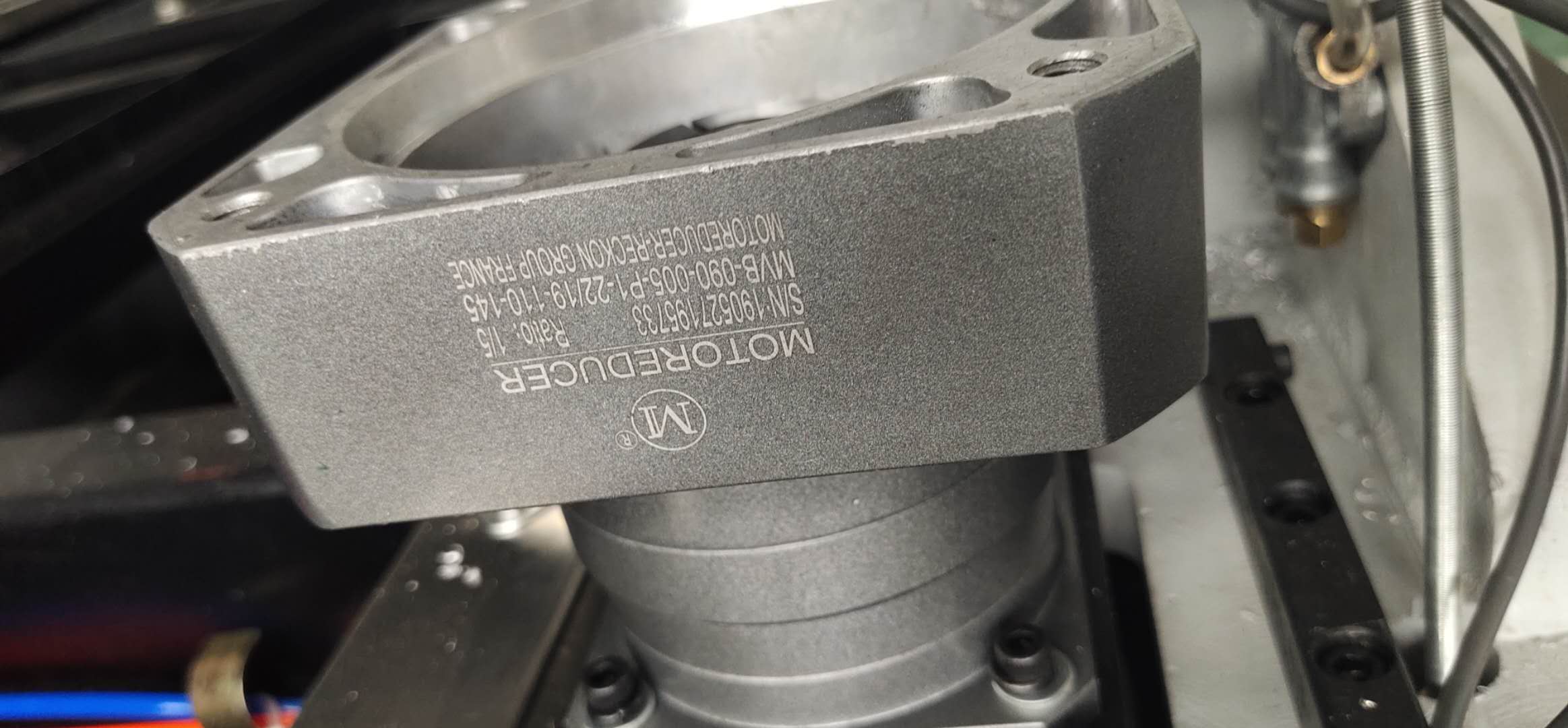

Reducer | France MOTOVARIO |
Reducer ratio | 5:1 |
Rack and pinion | Taiwan APEX |
X,Y,Z guide rail | Taiwan Hiwin guide rail |
Water cooling system | TONGFEI water chiller (double temperature control) |
Electricals | Schneider |
Support software | DXF , PLT ,AI , LXD , Gerber ,NC , G. code |
Repeat positioning accuracy | ±0.02mm |
Maximum speed | 120m/min |
Maximum Acceleration | 1.5G |
Focus lens | 125mm |
Power supply | 380V 50HZ /60HZ 3PH |
Total power | 20.1kw |
Application material | Stainless steel , carbon steel ,galvanized sheet ,brass ,aluminum , silver ,mild steel , silicon steel , titanium alloy etc . |
Warranty | 3 years |

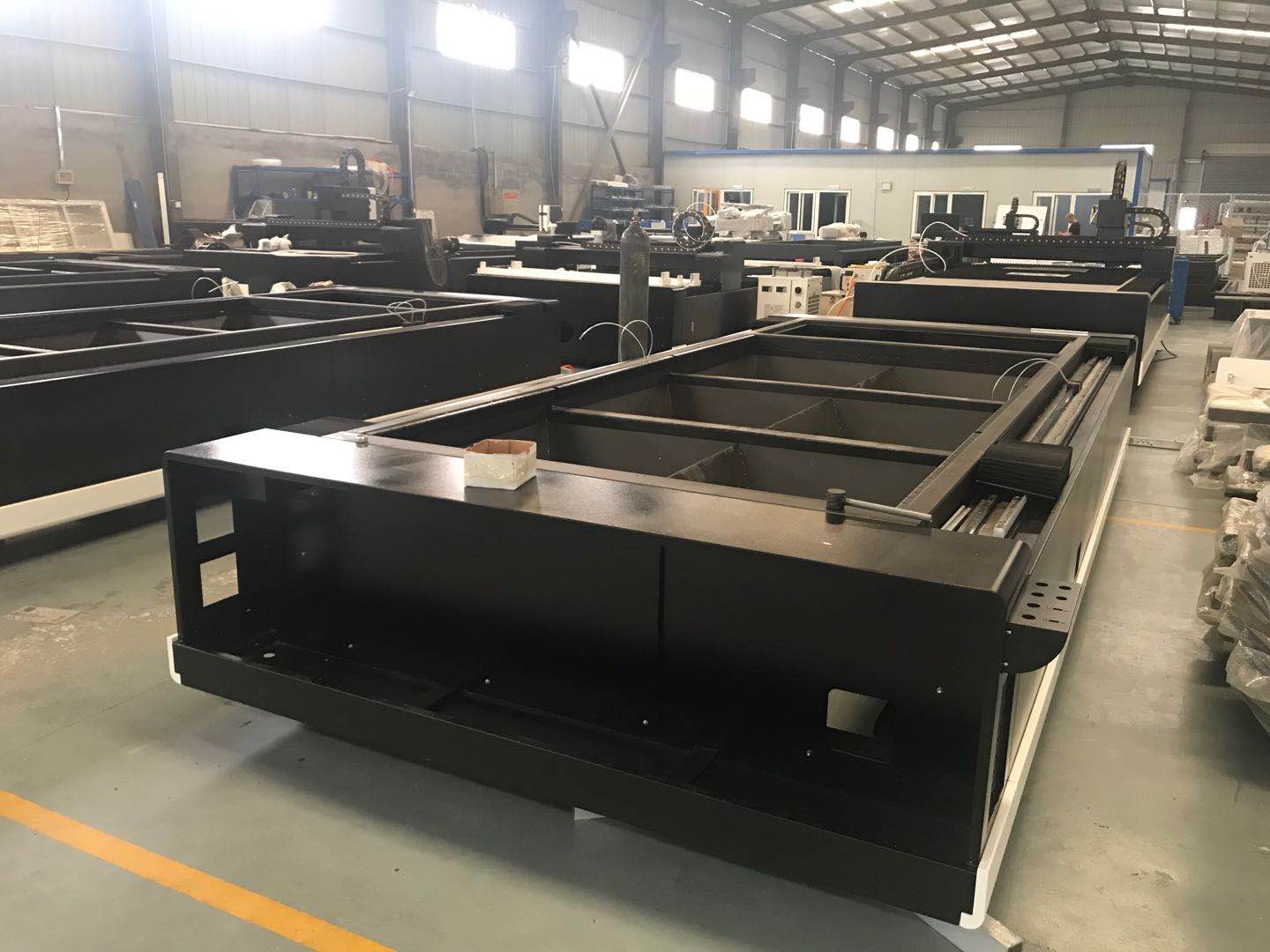

Heavy structure table by cnc lathe center milling which make sure high precsion

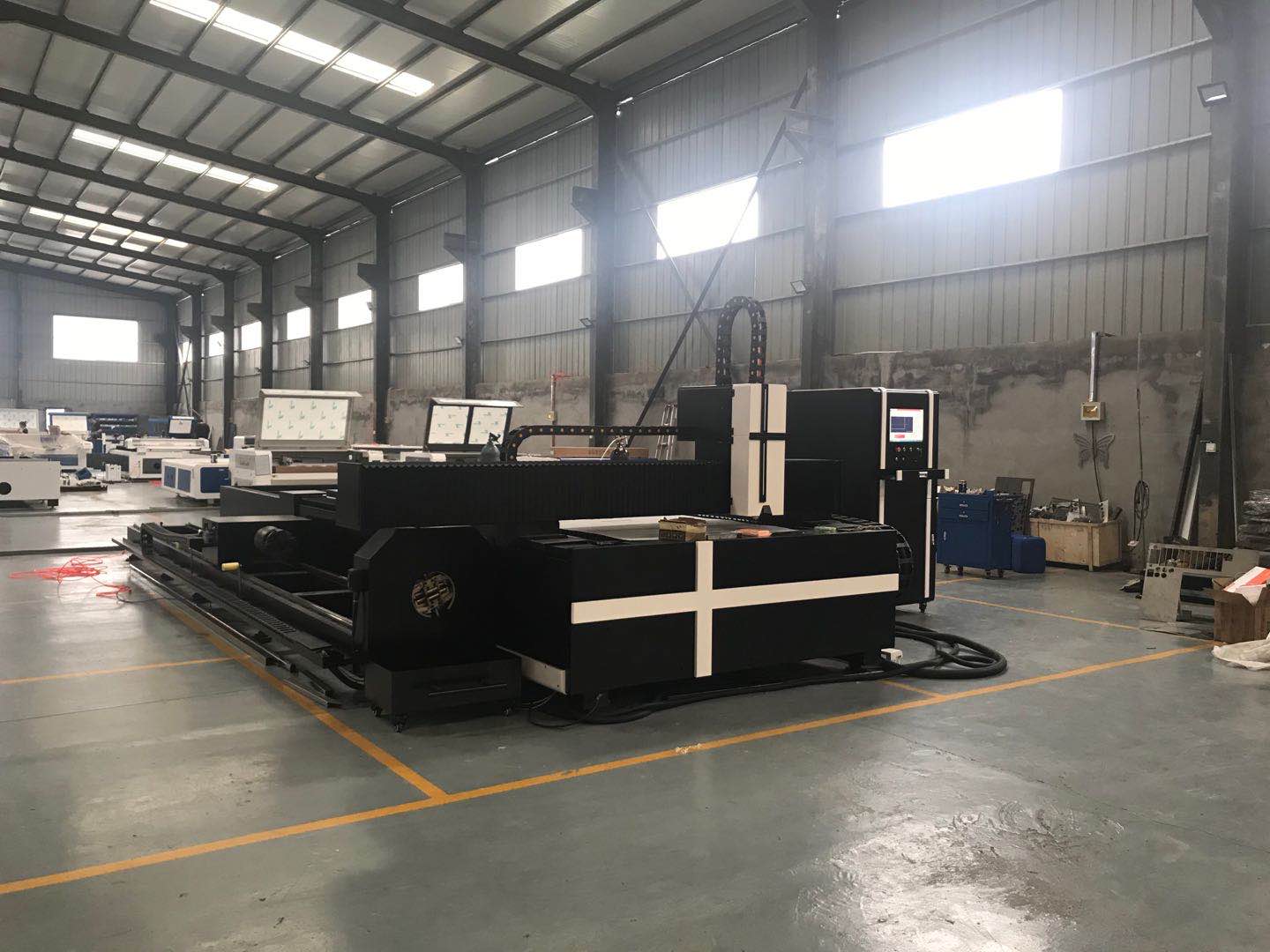

Rotary exchange table for optional

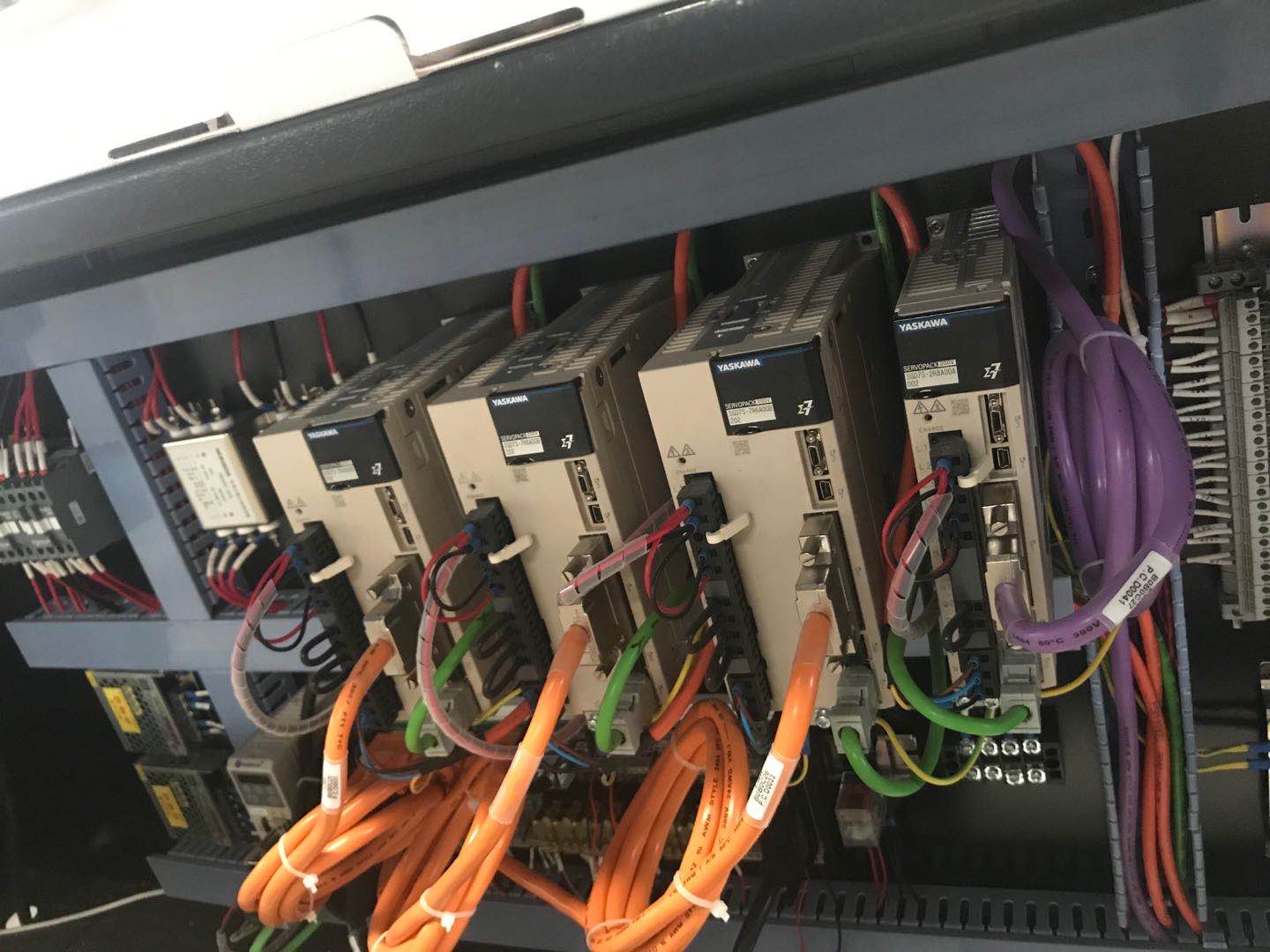

Japan yaskawa driver high speed

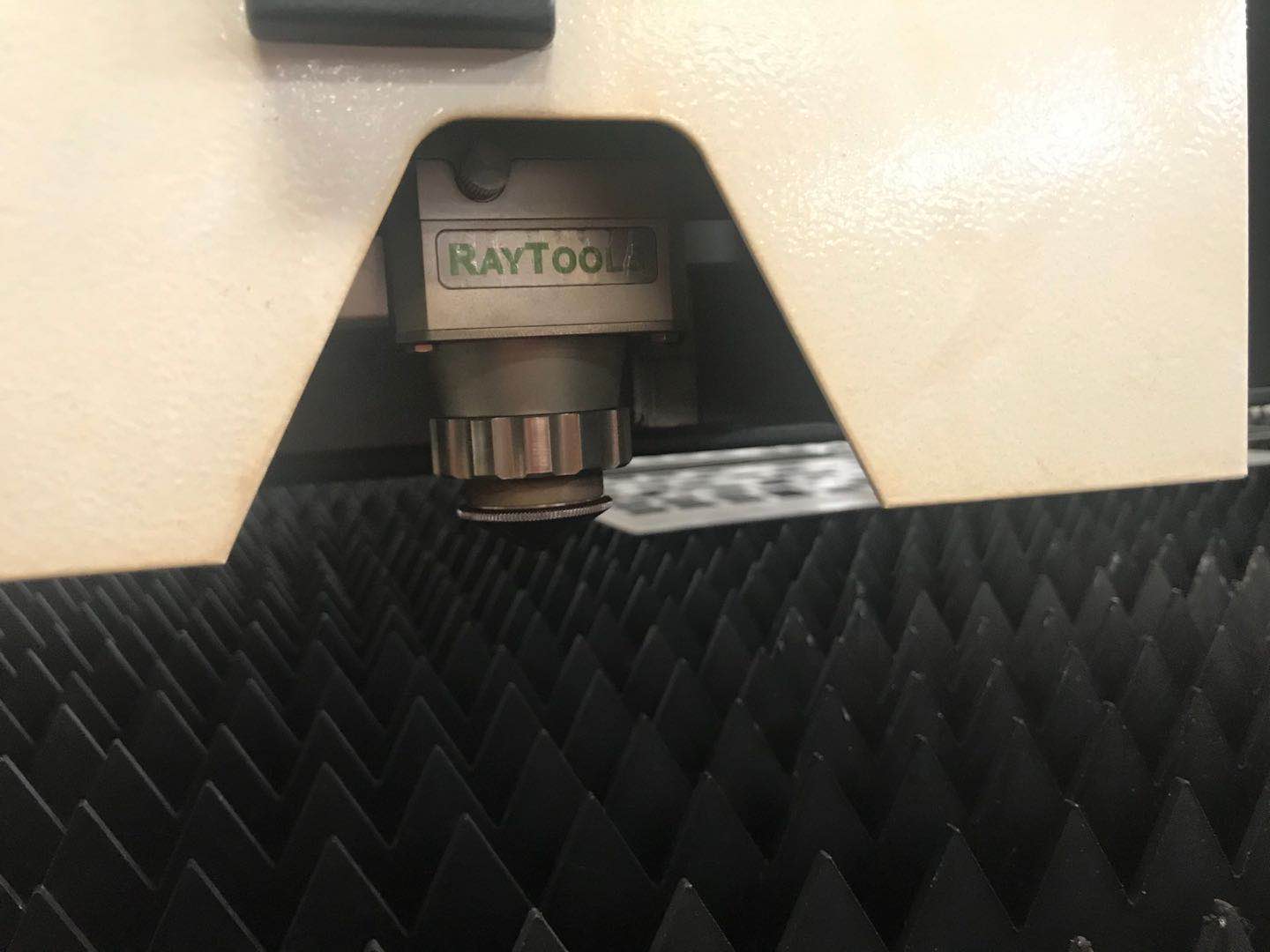

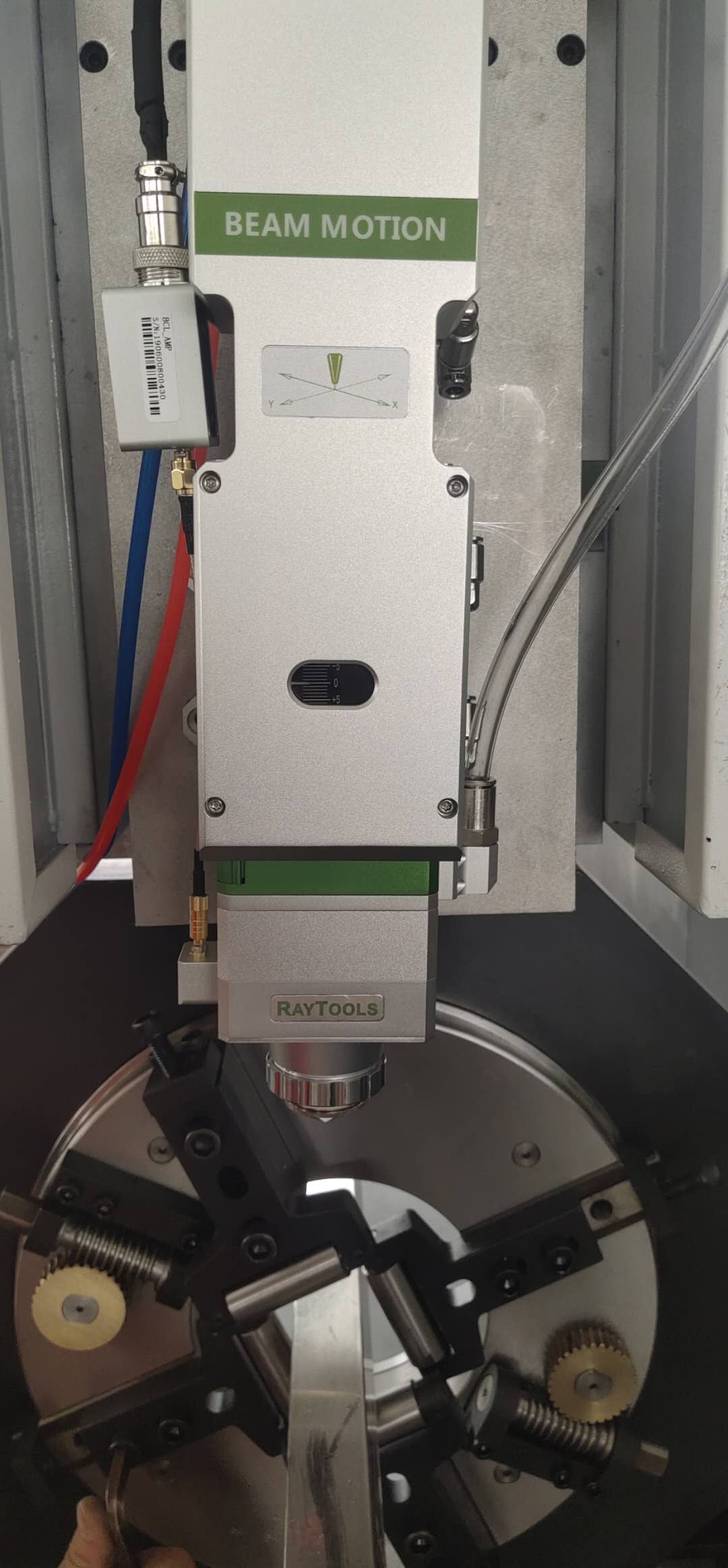

Raytools laser head

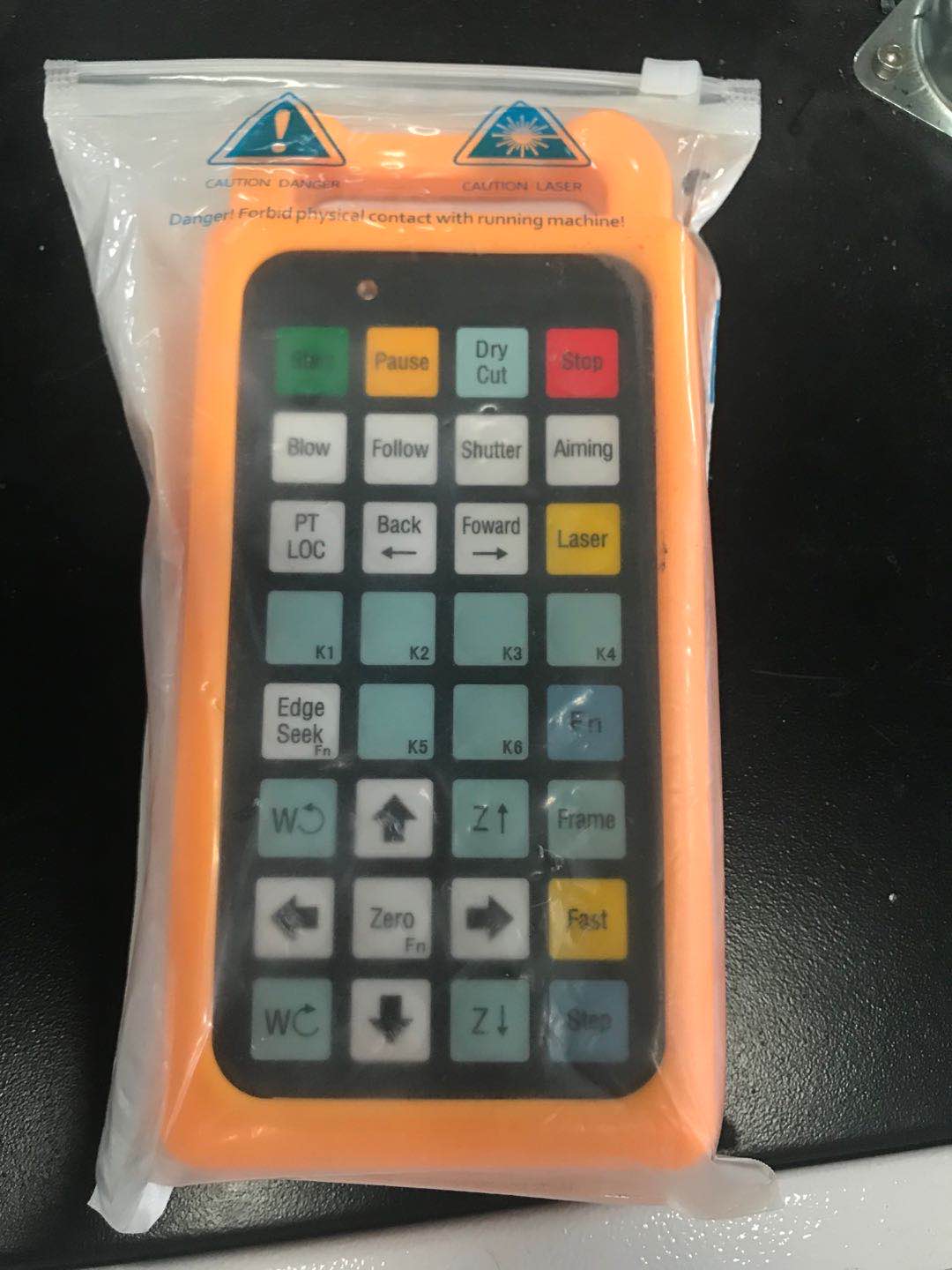

Remote control which can operate easily

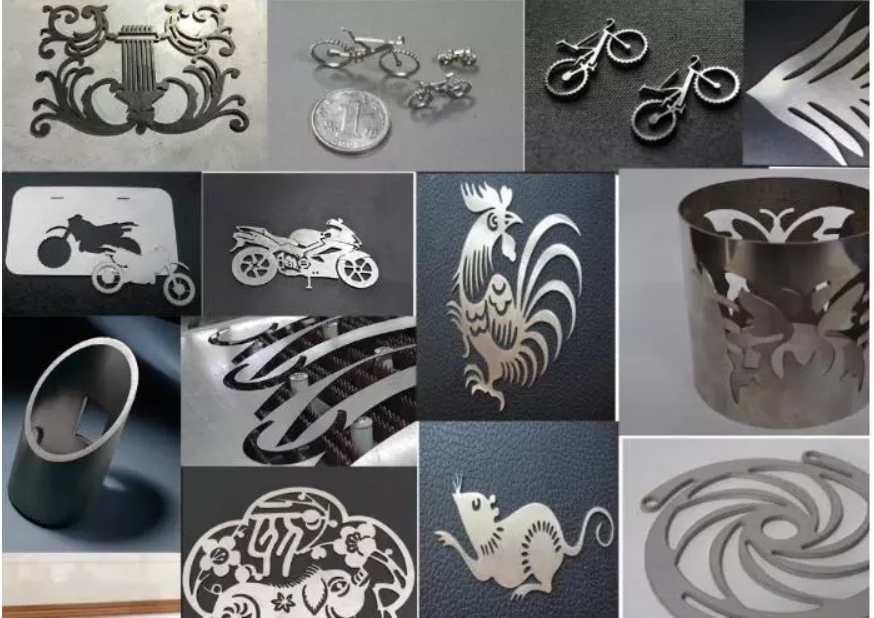

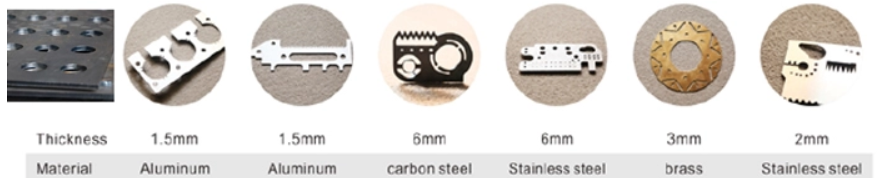

Working sample
