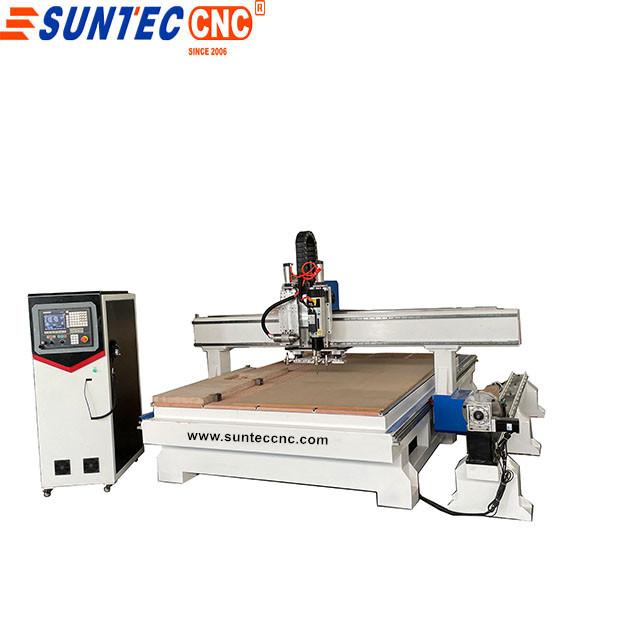

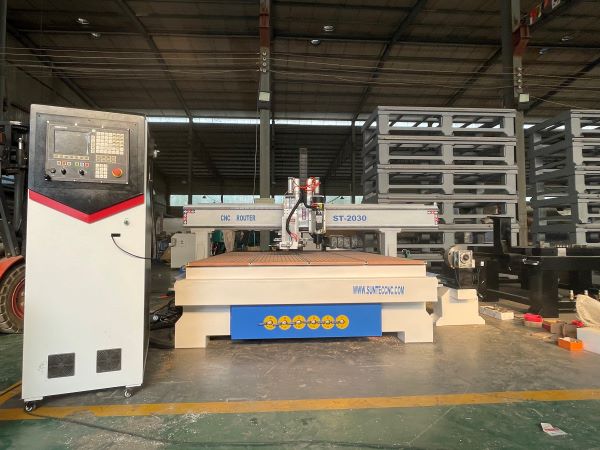

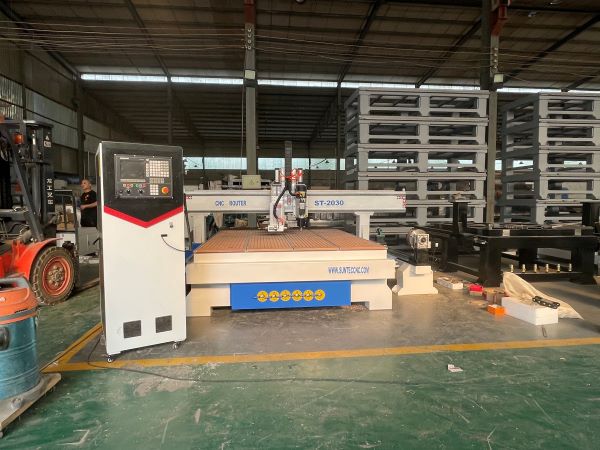

Customized side drilling atc wood cnc router with rotary ST2030

Model

ST-2030

Working Area

2000x3000x300mm

Table Size

2150x4440mm

Machine structure

Welded Steel square tube

Traveling Positioning Accuracy

±0.01/300mm

Repositioning Accuracy

±0.01mm

Table Surface

Vacuum table

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear   Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Max. Power Consumption (Without spindle)

11KW

Max. Rapid Travel Rate

9000mm/min

Max. Working Speed

2500mm/min

Spindle head

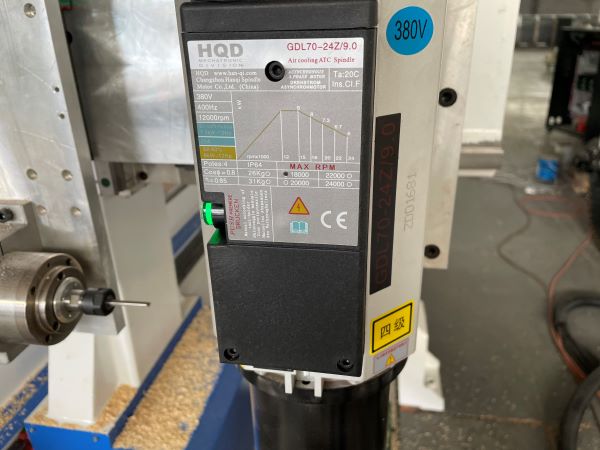

9.0kw Italy HQD spindle

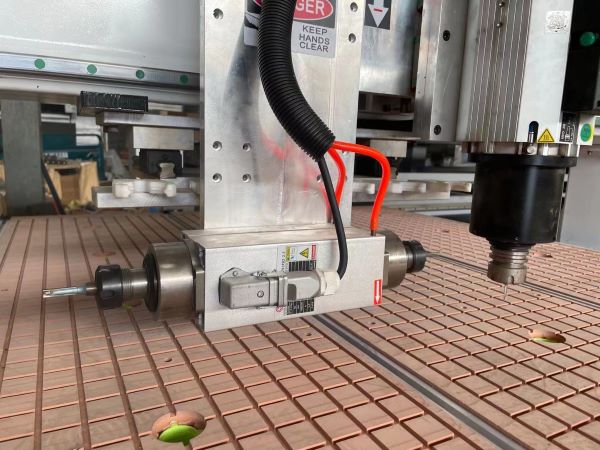

1.5kw side drilling spindle

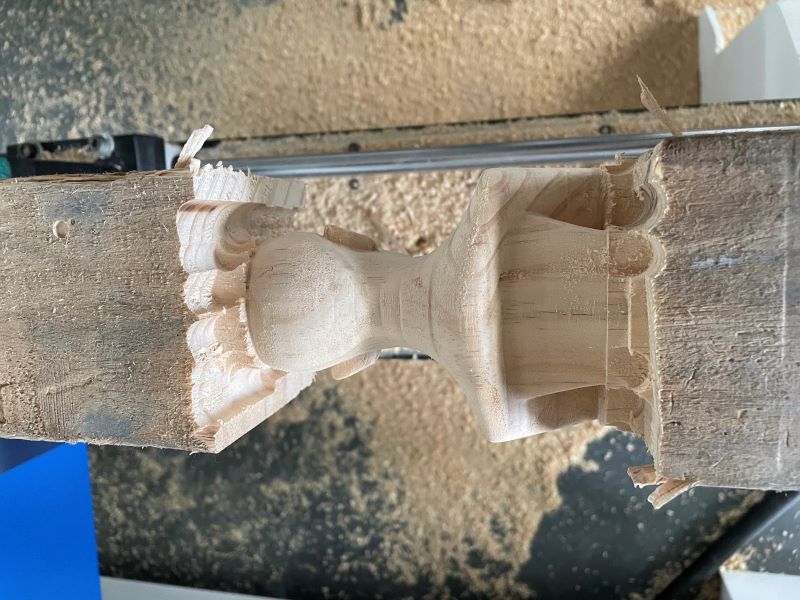

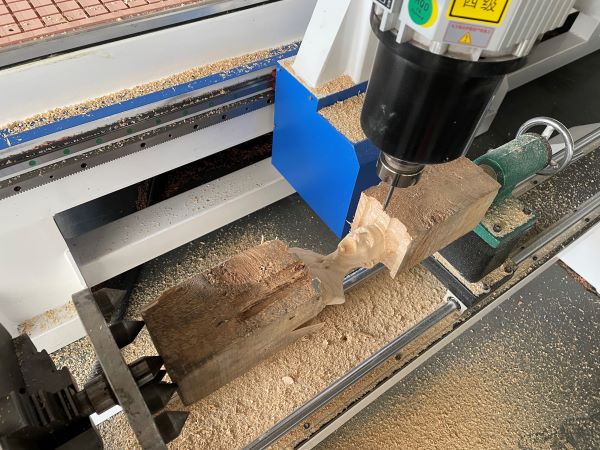

Rotary

260*3000mm

Spindle Speed

0-24000RPM

Drive Motors

Japan YASKAWA Servo motor/Delta driver

Working Voltage

AC380V/50/60Hz,3PH

Command Language

G code

Operating System

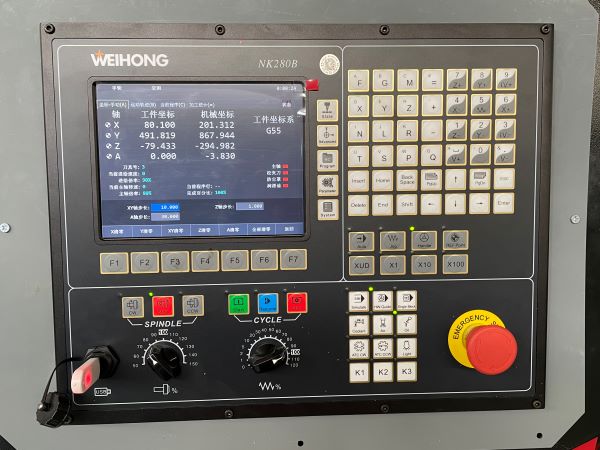

Taiwan Syntec controller/NC280 controller

Computer Interface

USB

Collet

ER32

Software Compatibility

Type3 / Ucancam / Artcam

Running Environment Temperature

0°C~45°C

Relative humidity

30%~75%
