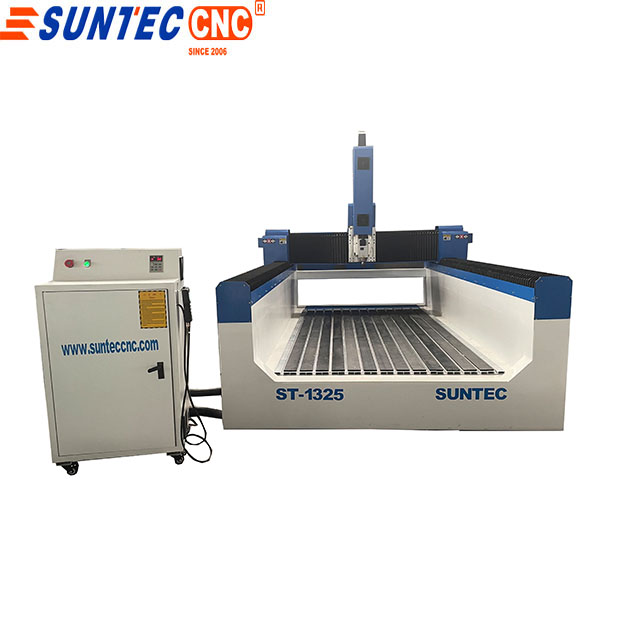

Customized 3 axis 3d mold wood making machine ST-1325

Model

ST-1325

Working Area

1300x2500x500mm

Table Size

3900x2260mm*2000mm

Machine structure

Welded Steel square tube with heat-treatment

Traveling Positioning Accuracy

±0.03/500mm

Repositioning Accuracy

±0.03mm

Table Surface

Aluminum table with PVC

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear   Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Max. Power Consumption (Without spindle)

11KW

Max. Rapid Travel Rate

90000mm/min

Max. Working Speed

2500mm/min

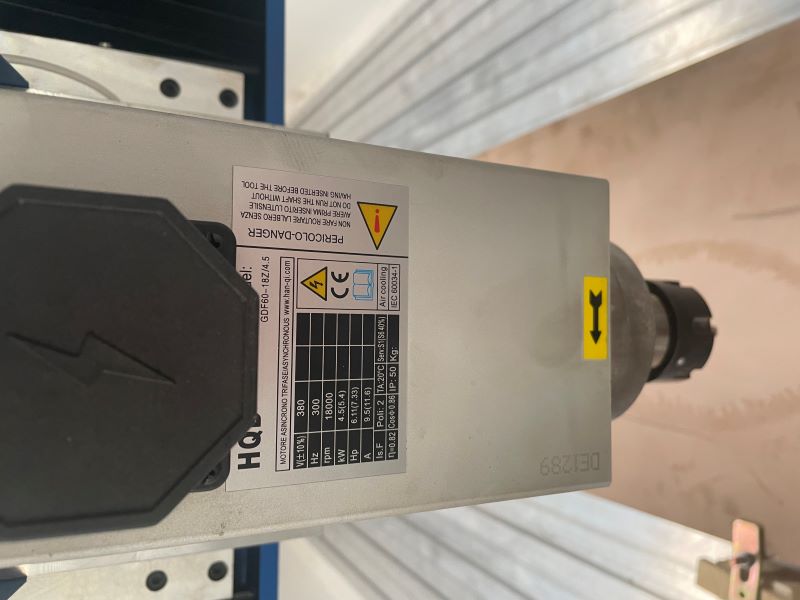

Spindle head

4.5 kw air cooling spindle

Spindle Speed

0-18000RPM

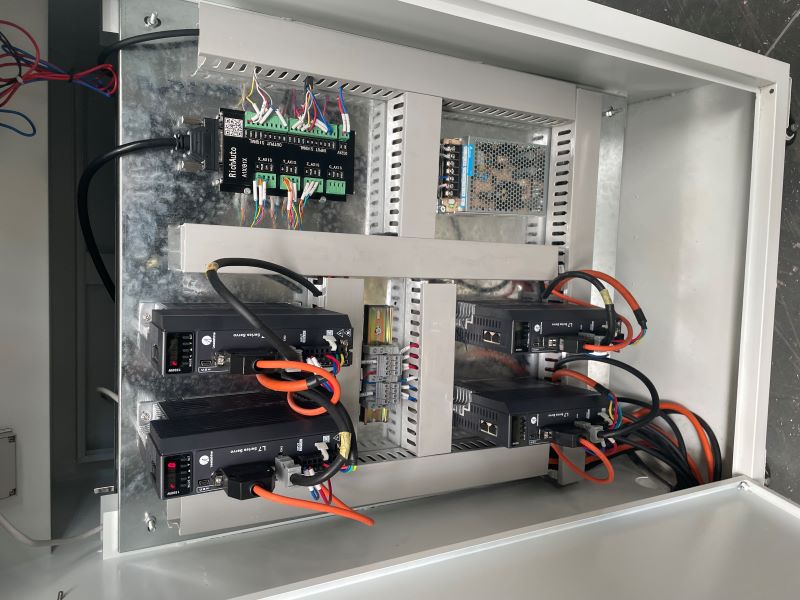

Drive Motors

leasine servo driver 1.5kw

Working Voltage

AC380V/50/60Hz,3PH

Command Language

G code

Operating System

DSP controller

Computer Interface

USB

Collet

ER32

Software Compatibility

Type3 / Ucancam / Artcam

Running Environment Temperature

0°C~45°C

Relative humidity

30%~75%
