Suntec ST-2040 5 axis cnc router for plastic vacuum mold for Russia

Suntec ST-2040 5 axis cnc router for plastic vacuum mold for Russia

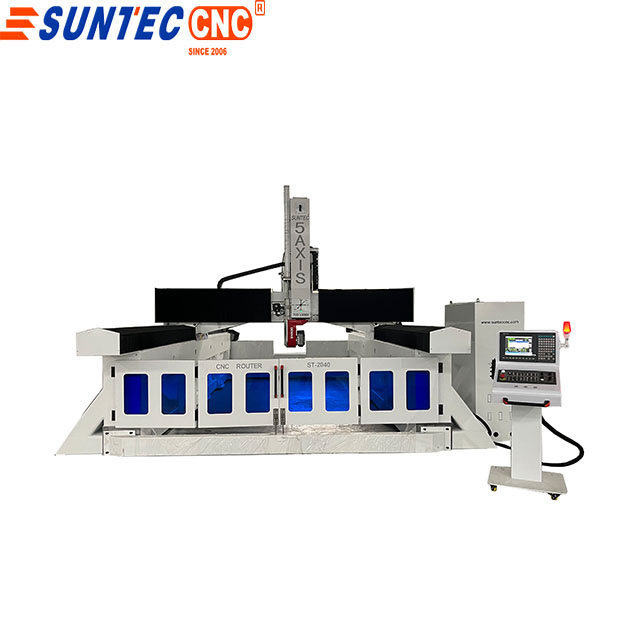

ST-2040 5 axis cnc router

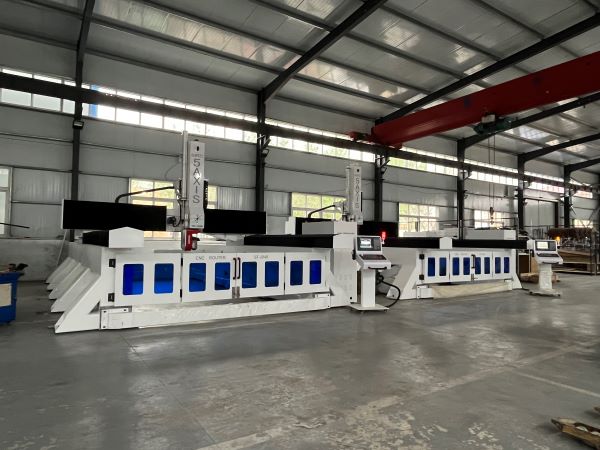

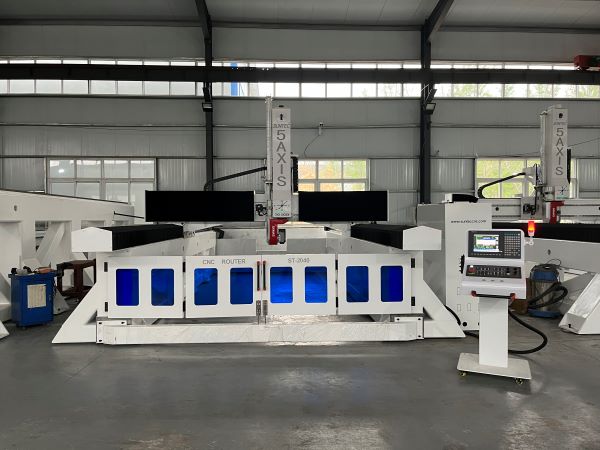

Two Set Suntec ST-2040 5 axis cnc router in workshop

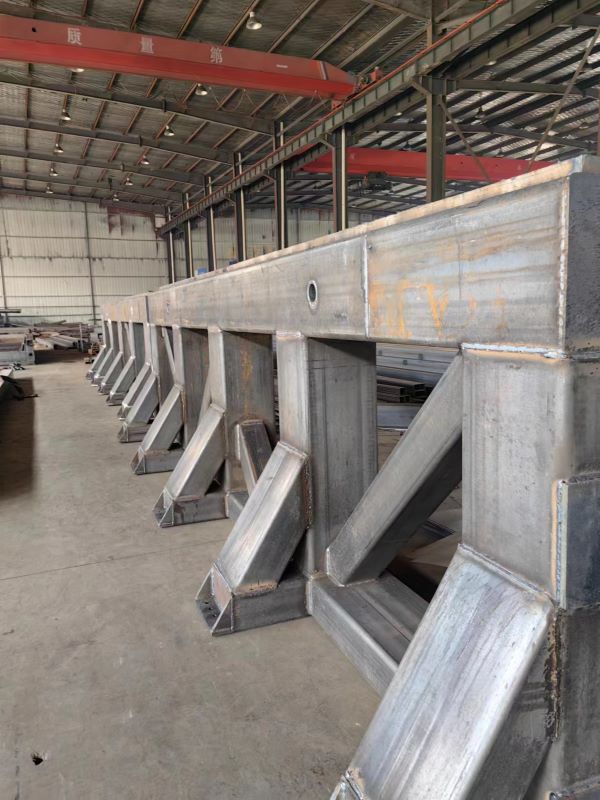

20mm heavy duty strucutre steel welded for one legs one legs 40mm thickness

enside with enforced steel so one legts weigth 5 t to make sure high precision .

suntec one legs 5t  two legs 10t strong enough for mill hard wood plastic fiberglass carbon material aluminum composite material etc non-metal material

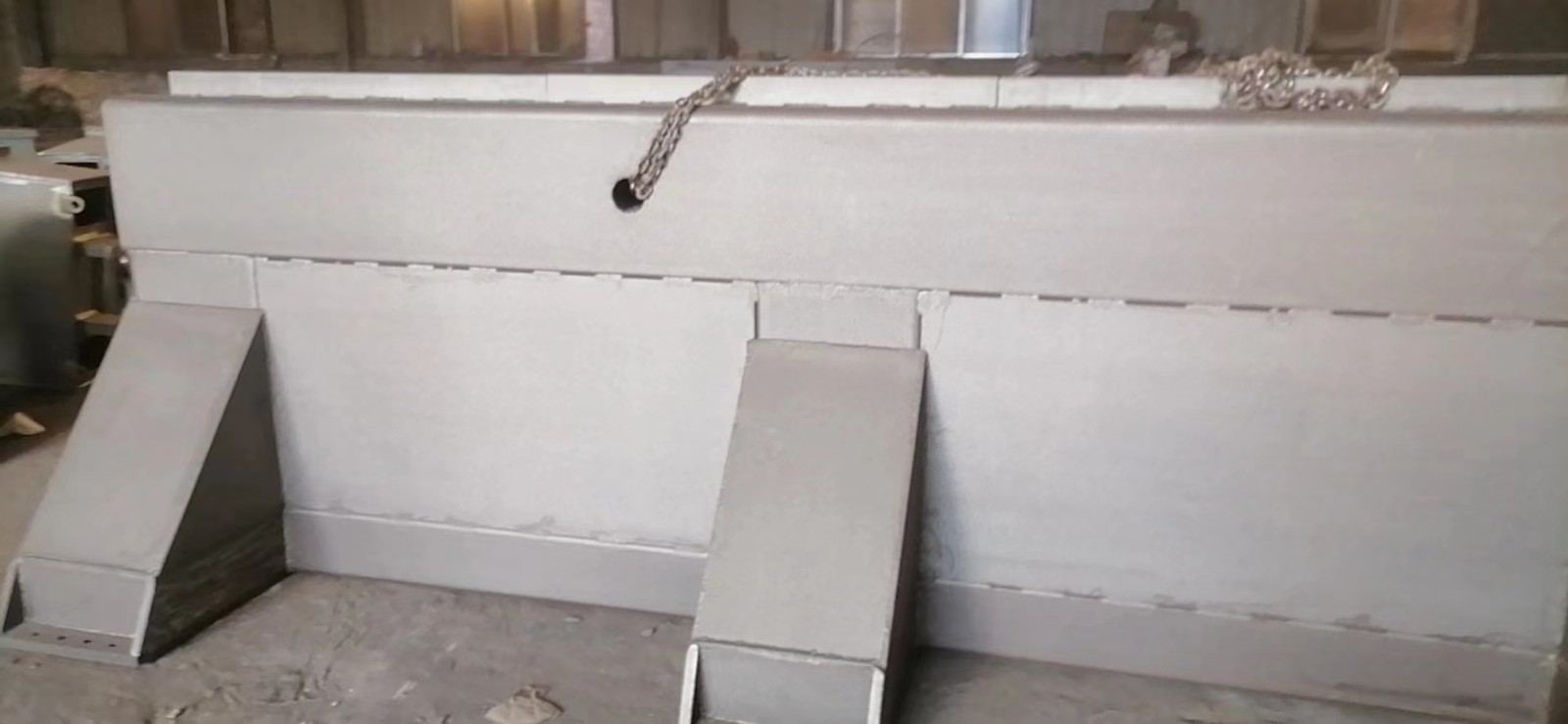

Sanding blast for easy painting

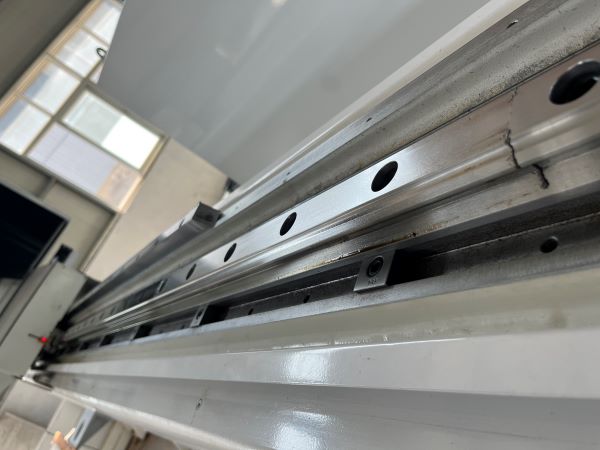

Germany sqaure guide with flat piece to make sure square at same level to make high precision

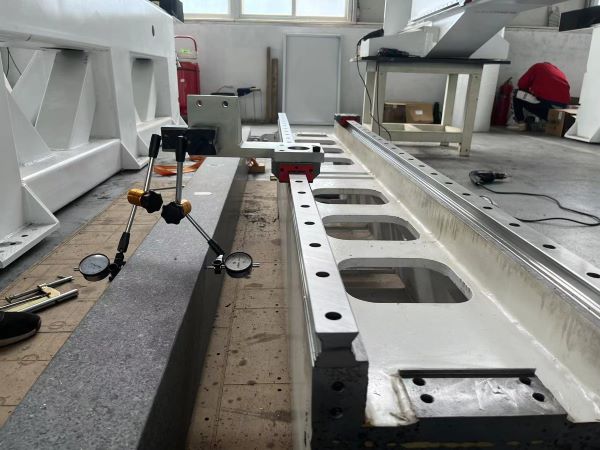

USe marbel percentage indicator to make sure square guide same level to make high precision

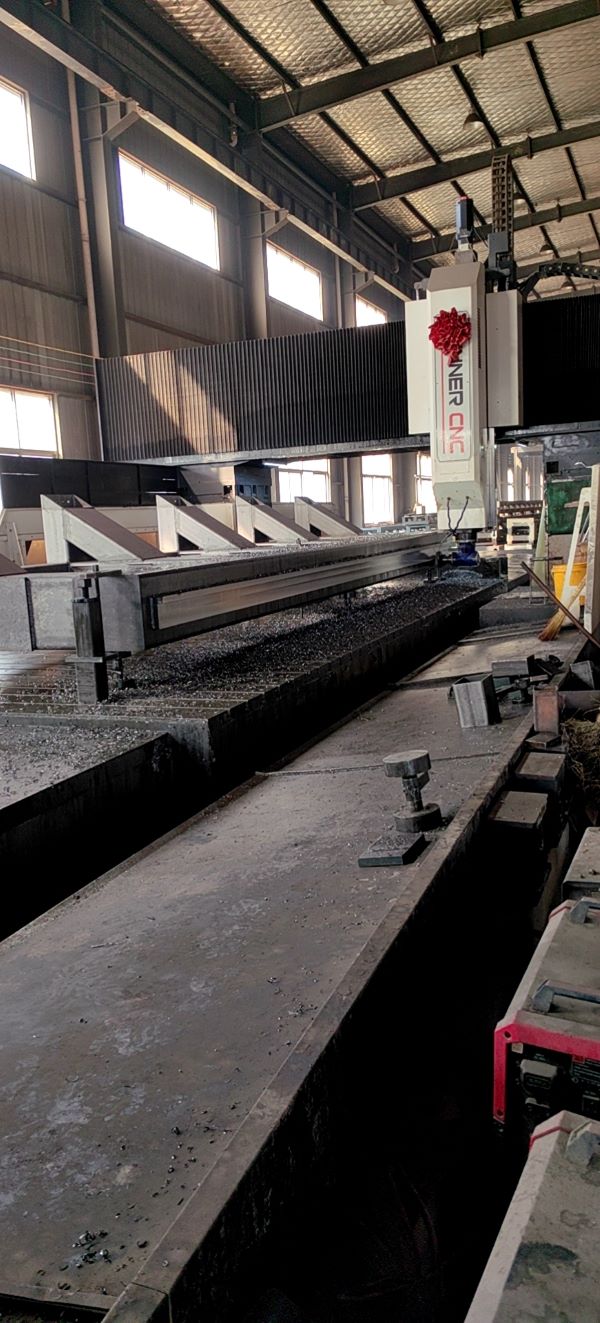

10m cnc miling center to mill square guide hightoque to make high precision

percentage indicator to make sure horizonal

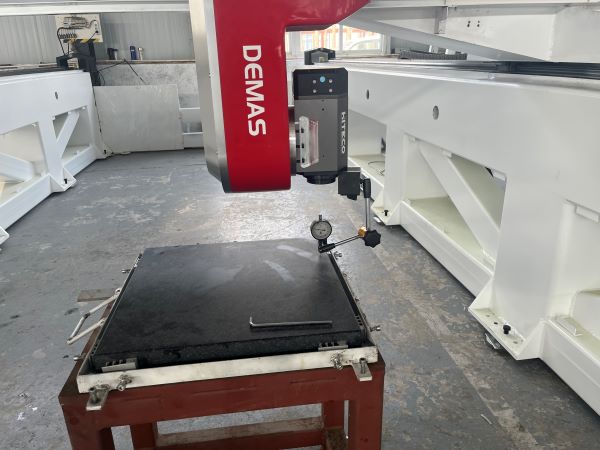

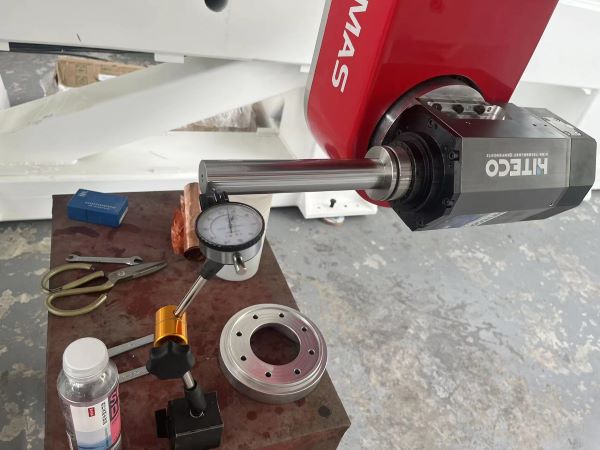

Use marble to test spindle vertical

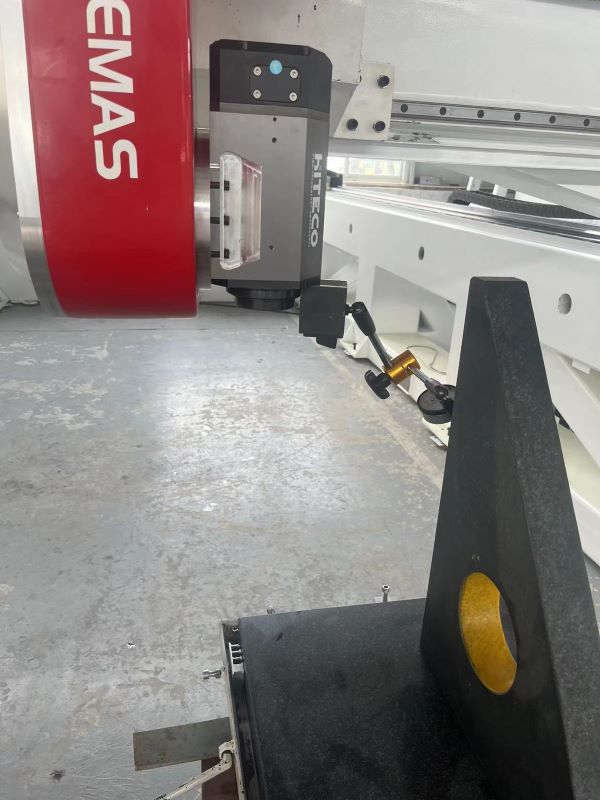

Use marble to test A axis

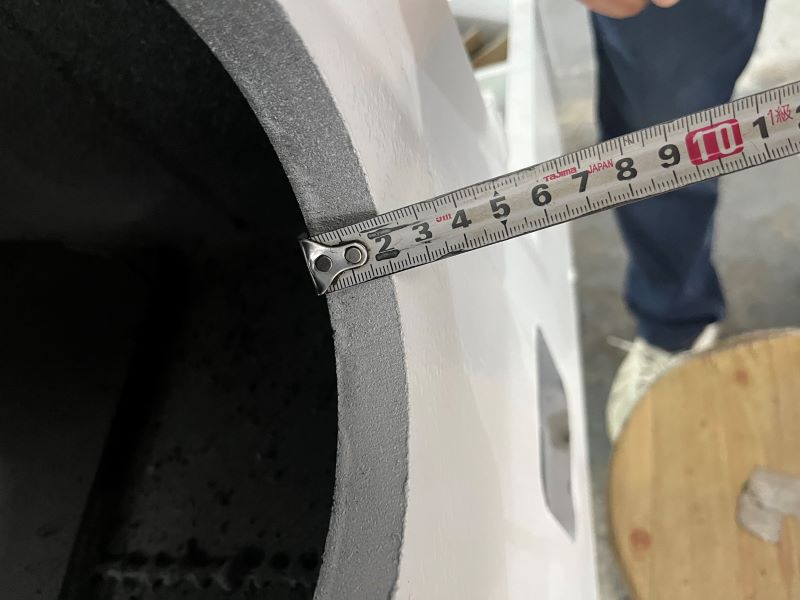

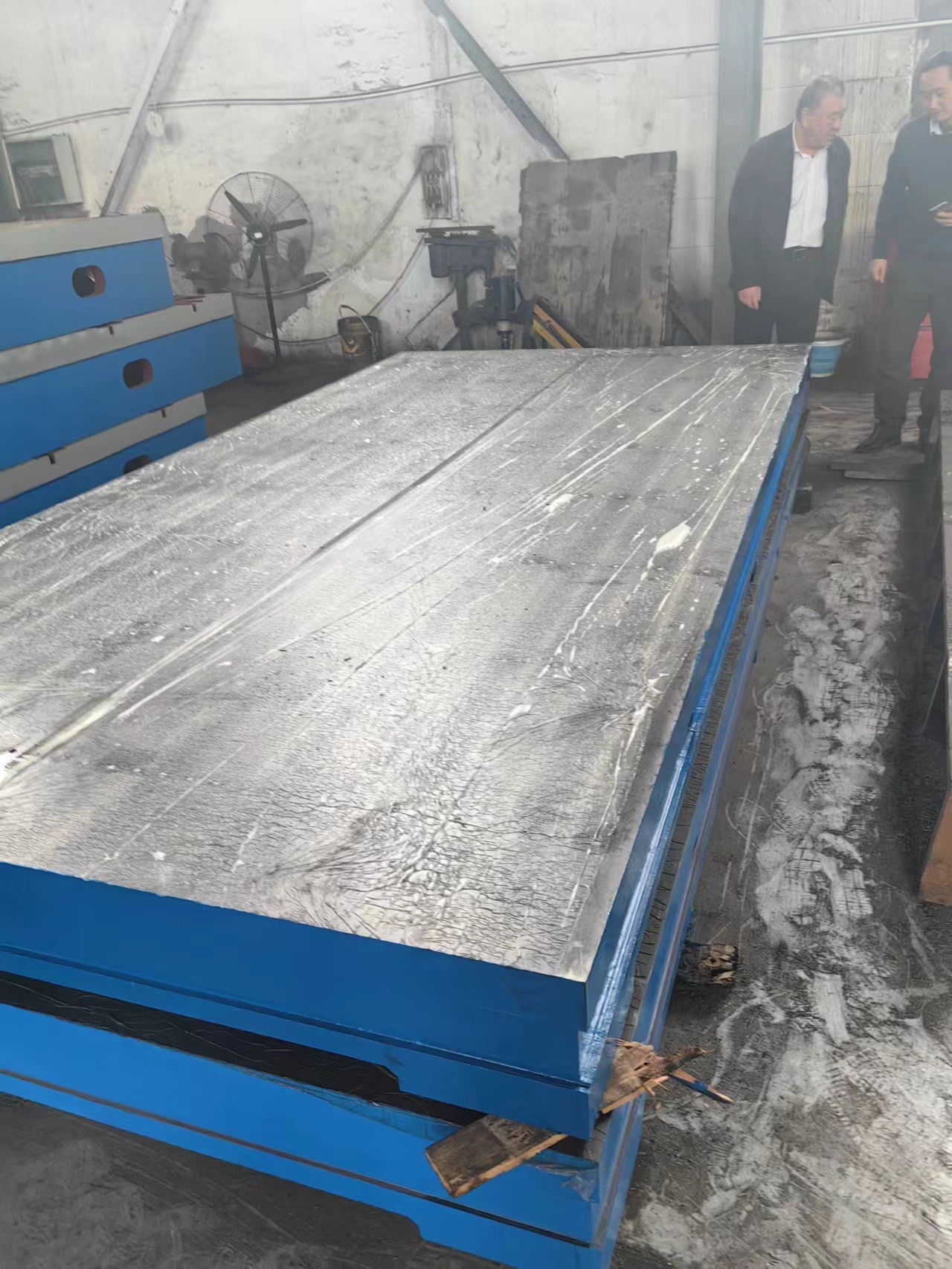

40mm thickness cast iron table no deformed when making material to make high precision

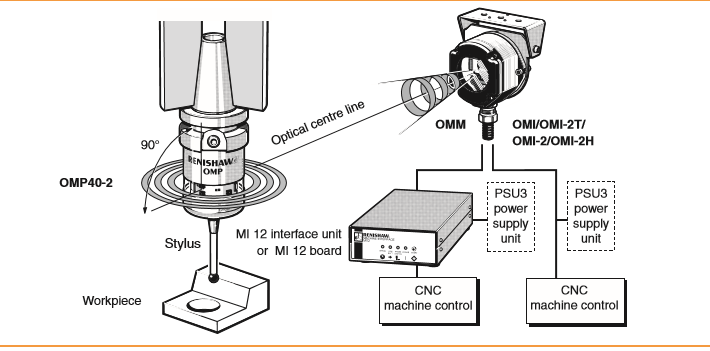

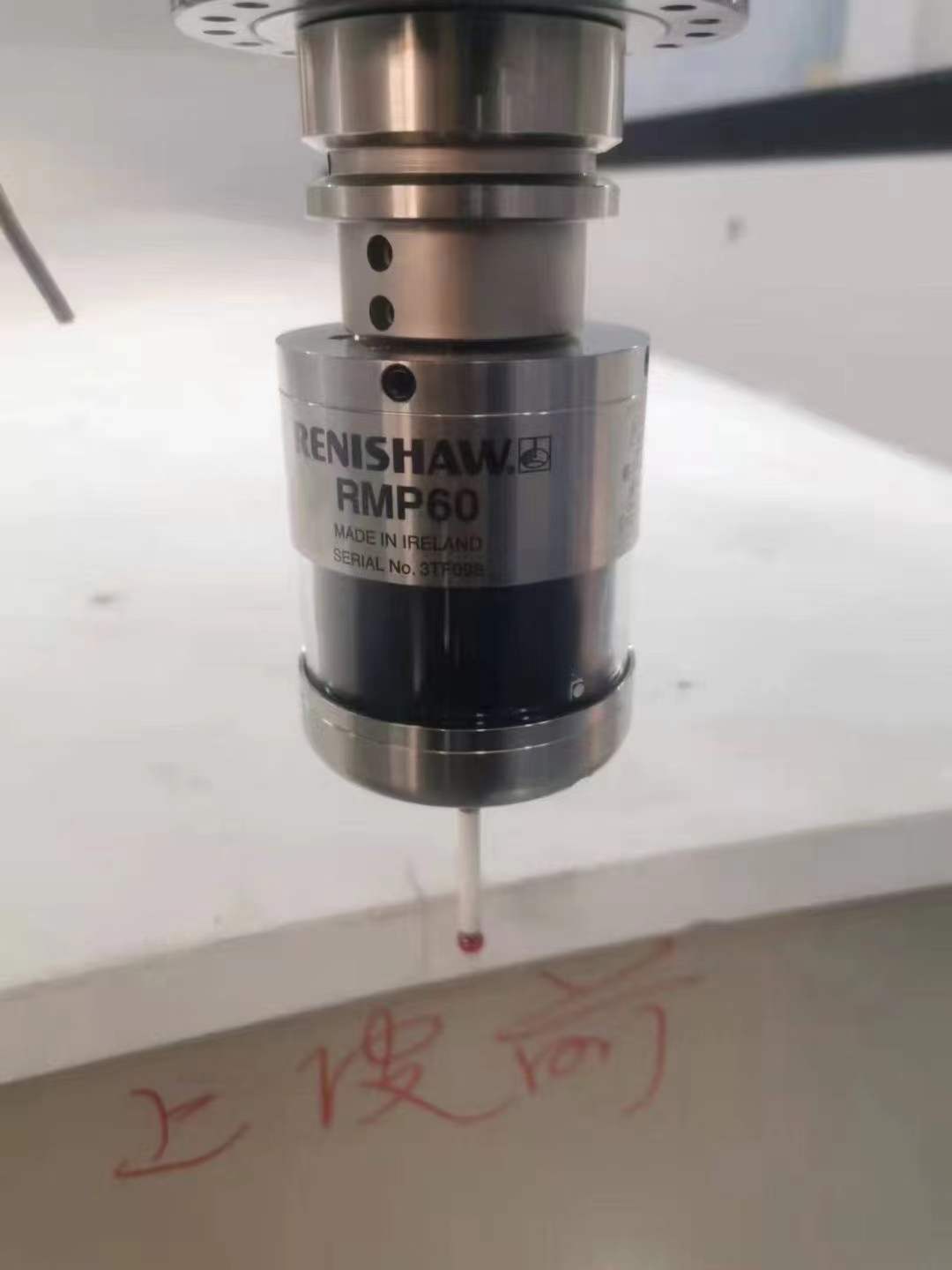

Renishaw laser for optional if you make high precision material need test precision so use Renishaw laser test XYZAC every axis precision then use controller offset to make up . suntec 5 axis cnc adjust 0.03-0.1mm precision before delivery

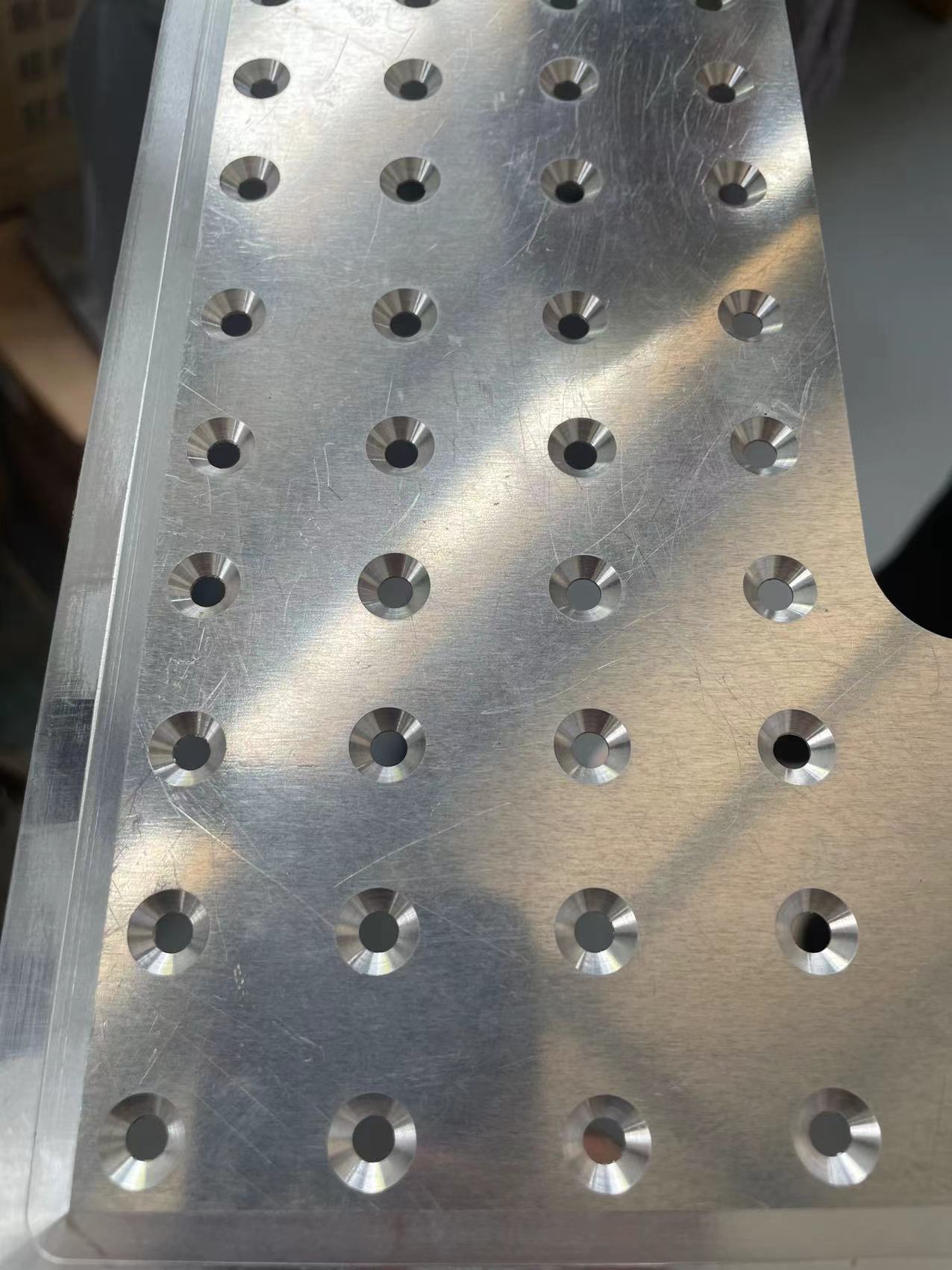

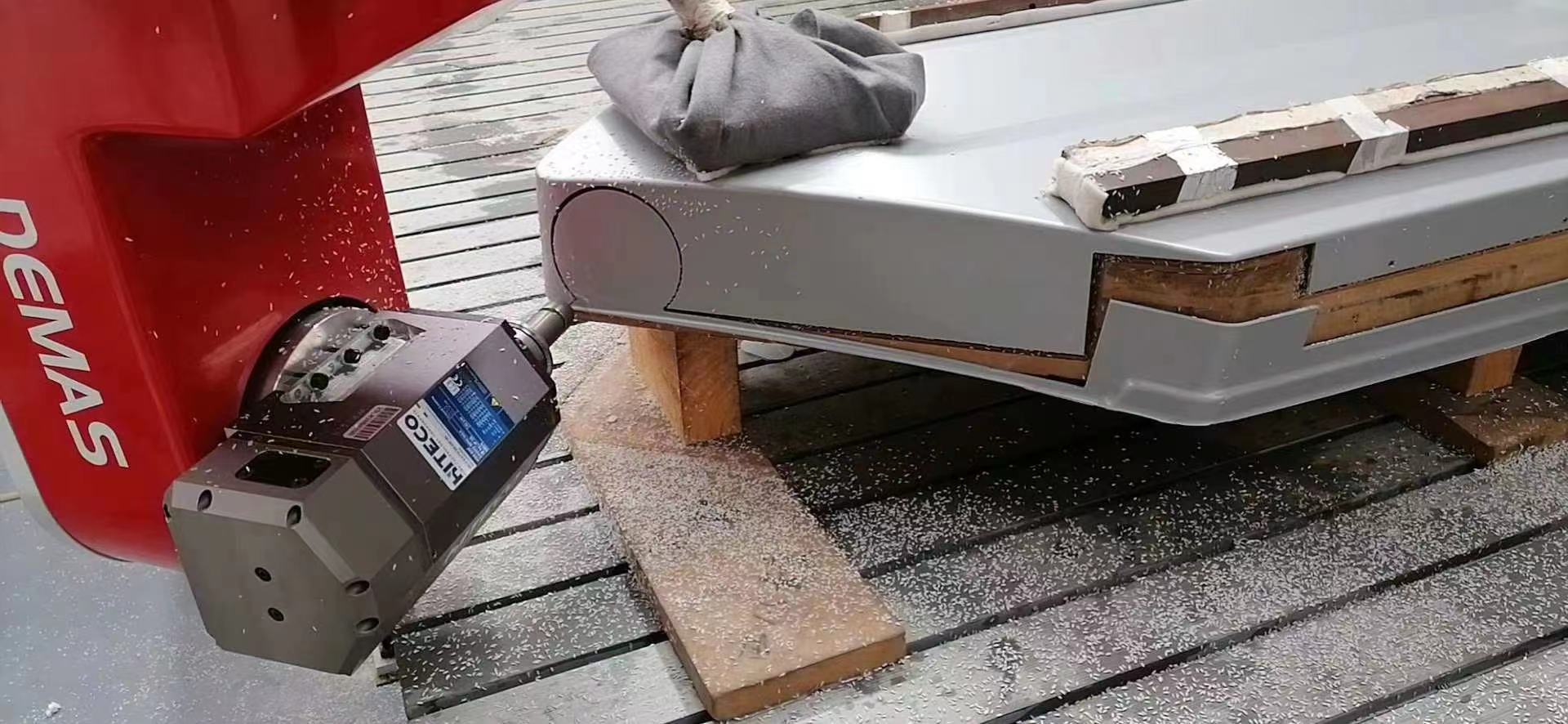

Airplane aluminum make hole use suntec 5 axis cnc every hole and distance must same .

Suntec 5 axis cnc making composite material ship

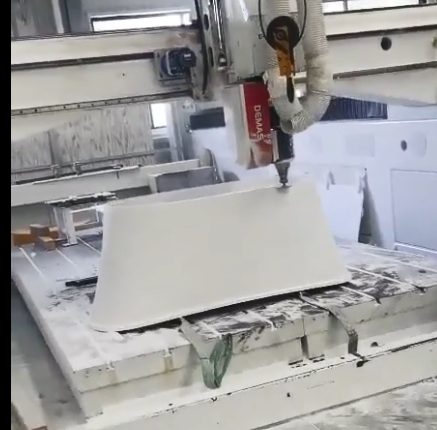

Suntec 5 axis cnc making bathroom parts in Kohler

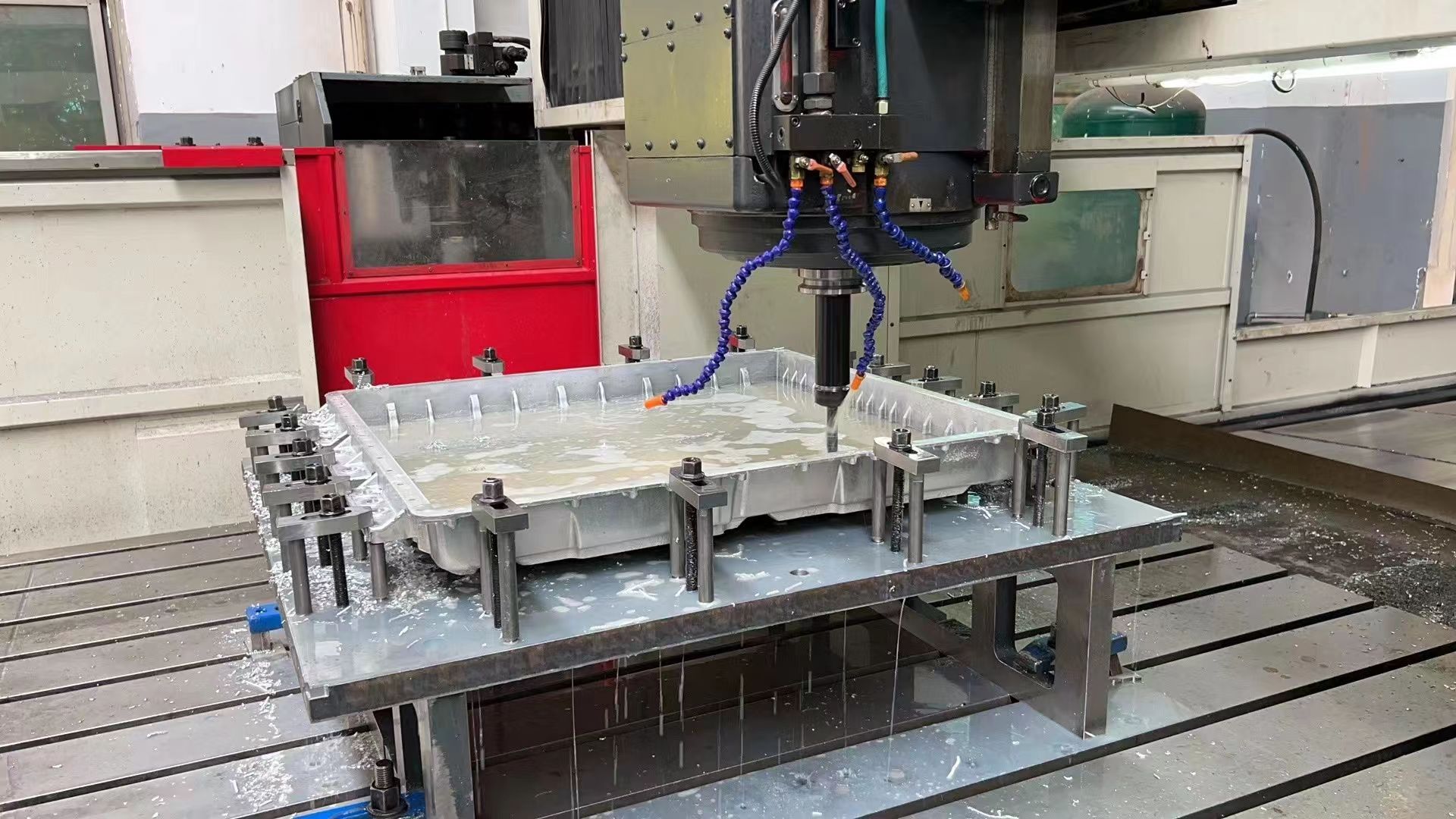

Suntec 5 axis cnc for aluminum mold

Suntec 5 axis cnc router test precision using Leica laser in Russia customer workshop

Suntec5 axis cnc router can give you solutions according your material and working size length width height . then send you production details and test video after finished .

we also send you install instruction and operation manual and video .

Material application :Steel, aluminum skin, carbon fiber, glass fiber reinforced plastic, aramid honeycomb, aluminum honeycomb, foam, honeycomb panel, substitute wood and other composite materials

Aluminum profiles, aluminum plates, composite materials, etc. automotive interior industry ,new engergy car mold parts  rail transit industries, such as luggage racks, sunroof railings, bumpers, high-speed rail, body side panels, body, roof

Suntec 5 axis cnc can apply for Aerospace industrial ,green engergy parts new energy cars ,stamping die, plastic injection mold ,railways parts ,boats and yacht ,crawler shoes ,spider cap, bathtubs ,bathroom parts mold etc ,army parts , airplanes parts etc .can work fiberglass ,carbon material ,foundary molds ,GFK MDF wood , construction transport vehicles etc .

sunteccnc free training in our factory and also our engineer can be your workshop from build Nc code how to use software and how to install and how to operate machine need about 5-7 days till you learn well .

sunteccnc can customized any size cnc machine our engineer have more than 20 years experience since cnc begin . he is the beginner for the first cnc .

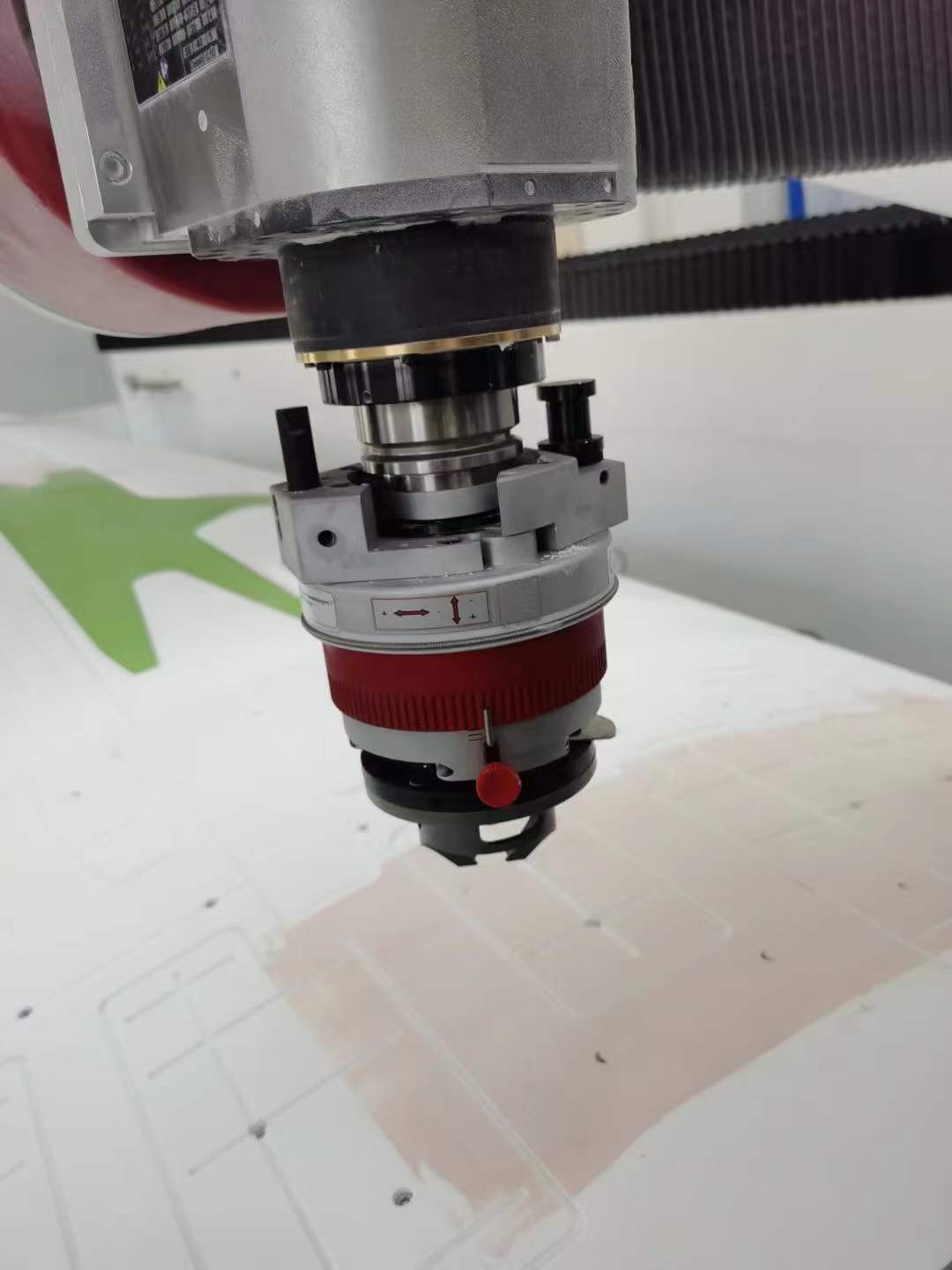

1. The spindle can rotate A +-120 ,C+- 245 degree can make multi-kinds of surface which we can design with Software.

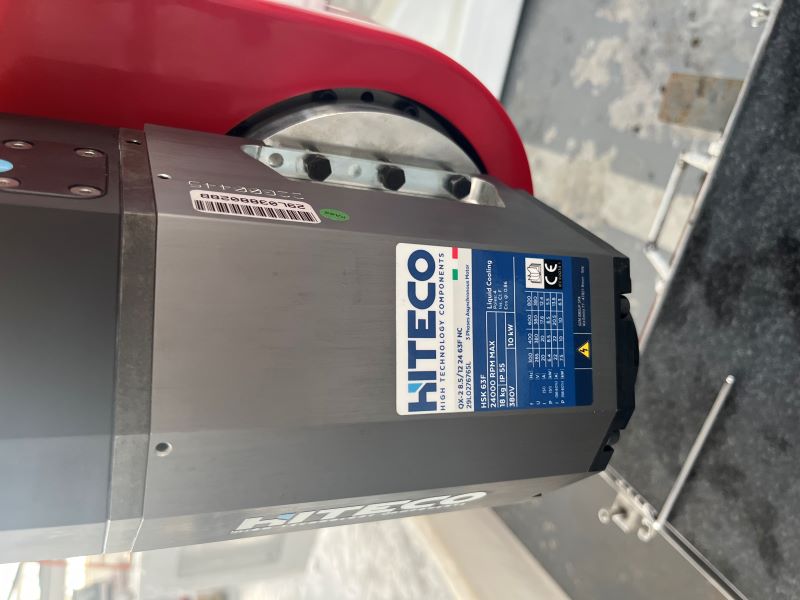

2. We use top quality components for the machines, like italy hitec , Syntec control
syntec servo motors, and separate control box, Hiwin linear and so on, to keep the machine in best condition even after manyyears working.
3. With hard steel structure, is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor
decoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of furniture.
4. this machine all model heat -treatment . which using many years no deformation.so no vibrating when
working .
5. 5 axis/working size  2000*4000*1000mm. customized any size according your material size
6.. working table and structure according your material , Foam wood aluminum etc
7. MPG XYZAC Hand Wheel for easy origin and work piece setting.
8. Measure Tool setting device.
9. One starter set woodworking tools.
10. 3 x collets, choice from 1-20mm (imperial available if preferred)
11. Inverter: Taiwanese Delta Inverter 0-22000rpm control.
12. German Schneider Electronic Spare parts.
13. Japanese OMRON limit switches.

14.RTCP function

RTCP (Rotation Tool Center Point) Function maintains rotary axes at a constant angle between tool and surface to be machined. It is a crucial difference between real (simultaneous) and fake (3+2) 5-axis CNC systems.

For machines with RTCP functionality, the control system keeps the tool center in the programmed position. In this case, programming is independent and is programming that is independent of machine motion. When processing on the machine, you don't have to worry about machine movement and tool length. All you need to consider is the relative motion between the tool and the workpiece. The work control system will handle the rest for you.

For machines that does not have RTCP functionality, that is to say, the pseudo five-axis programming needs to consider the swing length of the spindle and the position of the rotating table. This means that when programming with a fake five-axis CNC system and machine tools, it is necessary to rely on CAM programming and po

st-processing techniques to plan the tool path in advance.
