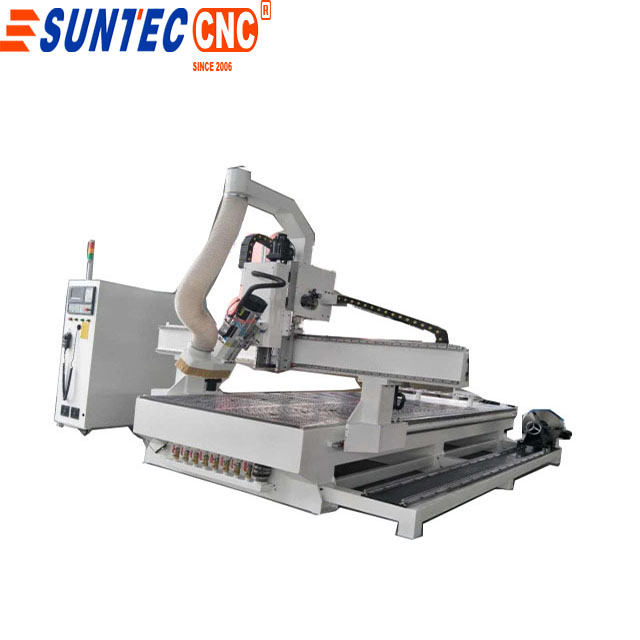

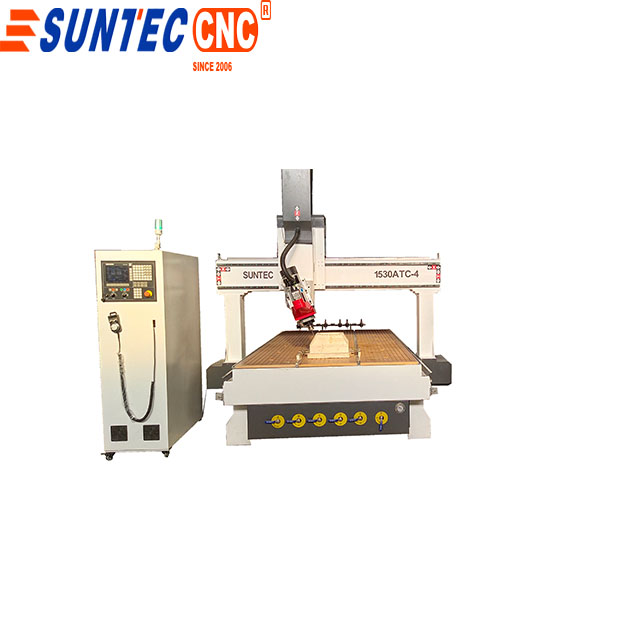

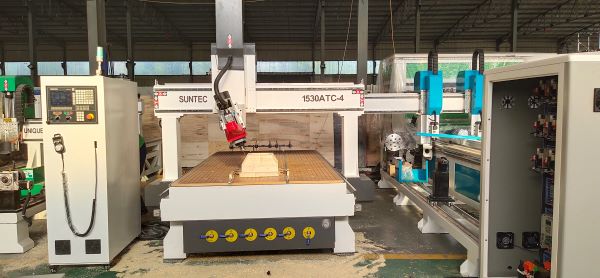

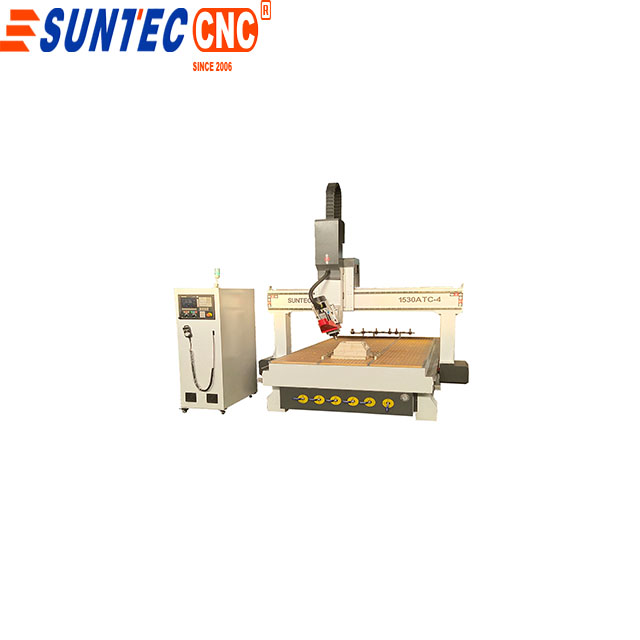

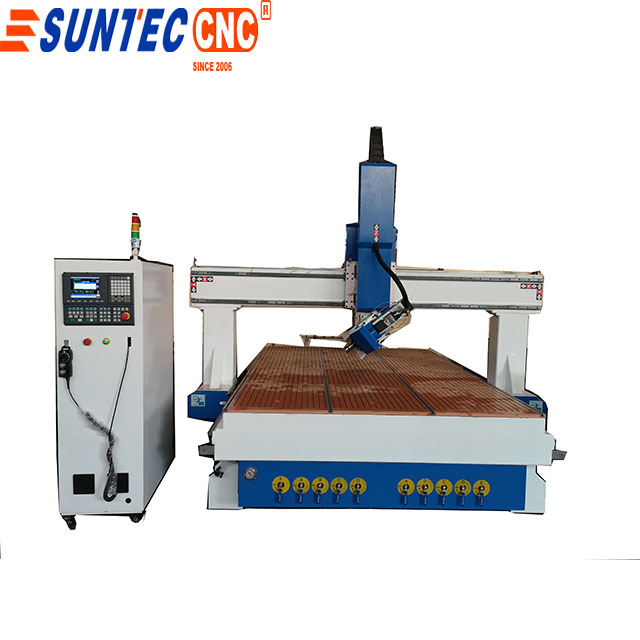

4 axis cnc router ST1530 3d moould making 180 degree rotary spindle
1. The spindle can rotate 180 degree(±90 degree), can make multi-kinds of surface which we can design with Software.
2. We use top quality components for the machines, like HSD spindle, Syntec control system, Delta Inverter, Yaskawa servo motors, and separate control box, Hiwin linear and so on, to keep the machine in best condition even after many years working.
3. With hard steel structure, is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor decoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of furniture.
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x600mm/2000*5000*1000mm/2000*3000*1000mm or customized size |
2 | Table Size | 2350×3540mm*1000mm/3350*5350*2000mm/3500*4350*2000mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/1000mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
6 | Frame | Big Steel Tube Structure |
7 | X, Y Structure | Rack and Pinion Drive, TaiwnPMI30 Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 9 Kw |
10 | Max. Rapid Travel Rate | 80000mm/min |
11 | Max. Working Speed | 60000mm/min |
12 | Spindle Power | Italy 9KW HSD /Hiteco ATC 8 piece |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | 1300W Yaskawa Motors |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | Syntec 60-E Control System |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ISO 30 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | powermill UG software |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 6500X2100X2300mm |
26 | N.W. | 8000KG |
27 | G.W. | 8300KG |
28 | Optional Parts | Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
Delta/ Panasonic Servo Motors | ||
Colombo Spindle/Hitec | ||
TPA/OSAI control |

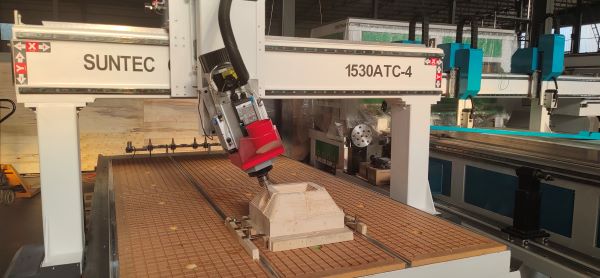

Suntec cnc 9kw HQD spindle swing 90 degree right left position whihc can do surface milling for 3d mould making

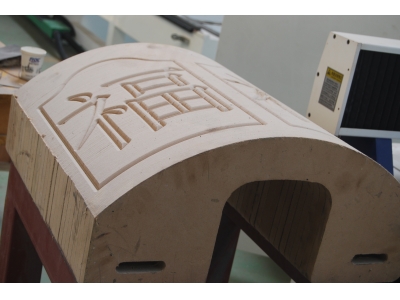

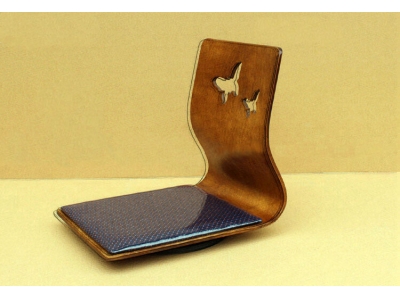

Working sample
