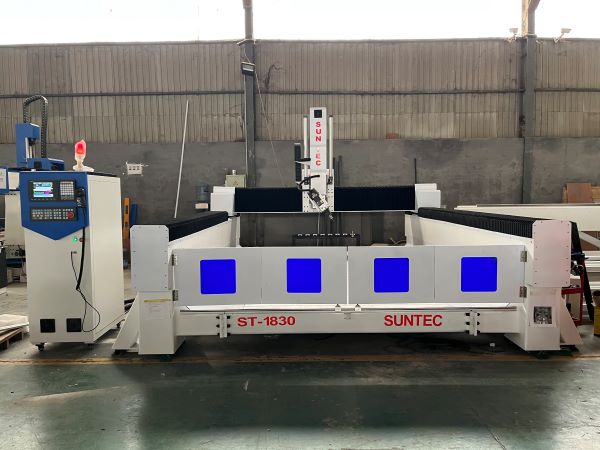

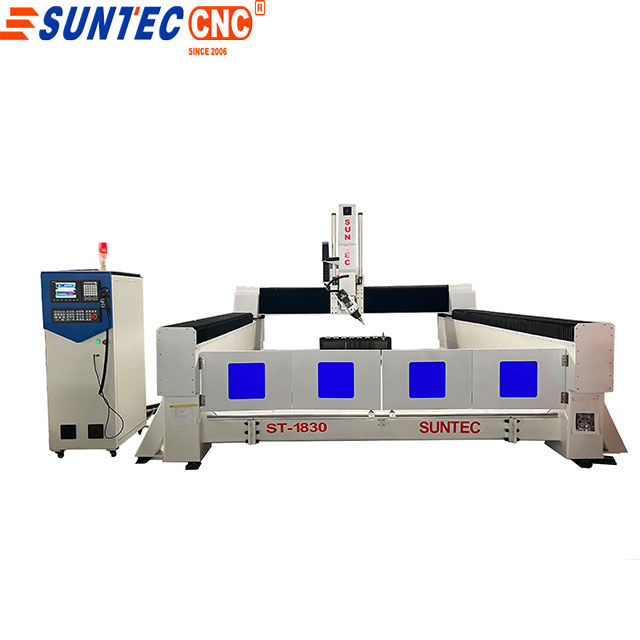

1. ST-1830 4 axis cnc router means XYZB axis B axis can swing right left 90 degree . which can mill surface for non-matel material  four directions .with powermill or ug software making NC format output G code .

2. ST-1830 4 axis can deal hardwood  pre-carbon  fiberglass storofoam etc making car mold plane mold electrical energycar mold bathroom PE PET pp etc 3d people fingure .

3. ST-1830 using heavy duty structure table big steel welded by 5 axis cnc miling center to mill to make sure high precision . world famous parts such as japan yaskawa driver absolutely motor high torque high powerful no easybroken .syntec controller PLC fast responsible fast feedback strong stabilitiy high sensitivity and it can second -developed ,if you want to add funtion ,we can add remote control for you . easily operation . HSD spindle , the features are high speed and low noise. The spindle is passed test of IP65 water proof and dust proof.Ceramic bearing is thermostable. Max. speed is 24000RPM,heavy duty cutting is available for high precision and bearing abrasion. Inside and outside air cooling system prolong spindle’s life.

4. Every parts by heattreatment to delete itself rigidity to make sure high precision and longlife used no deformed . to make sure XYZB high precision 0.1mm .




   Number	Description	Parameter
   1	X,Y,Z Working Area	1800*3000*600mm
   2	Table Size	2500×4700mm
   3	X,Y,Z Traveling Positioning Accuracy	±0.01/600mm
   4	B axis	A ±90degree
   5	Table Surface	Cast iron table
   6	Frame	Big Steel Tube Structure with heat treatment
   7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
   8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
   9	Max. Power Consumption	(Without Spindle)  10 Kw
   10	Max. Rapid Travel Rate	40000mm/min
   11	Max. Working Speed	30000mm/min
   12	Spindle Power	10kw
   13	Spindle Speed	0-24000RPM
   14	Drive Motors	1800W Yaskawa Motors
   15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
   16	Command Language	G Code
   17	Operating System	Syntec Control System/TPA /osai
   18	Computer Interface	USB
   19	Flash Memory	512M
   20	Collet	HSK-F63/ISO30
   21	X,Y Resolution	<0.01mm
   22	Software Compatibility	powermill UG software
   23	Running Environment  Temperature	0 - 45 Centigrade
   24	Relative Humidity	30% - 75%
   25	Packing Size	5500X2100X2300mm
   26	N.W.	6000KG
   27	G.W.	8000kG
   28	Optional Parts	Dust Collector/ Dust Hoods for three Axis
   		Vacuum Pump
   		Rotary System
   		Mist-cooling System
   		Delta/ Panasonic Servo Motors
   		Colombo Spindle
   		Schmalz PTP table

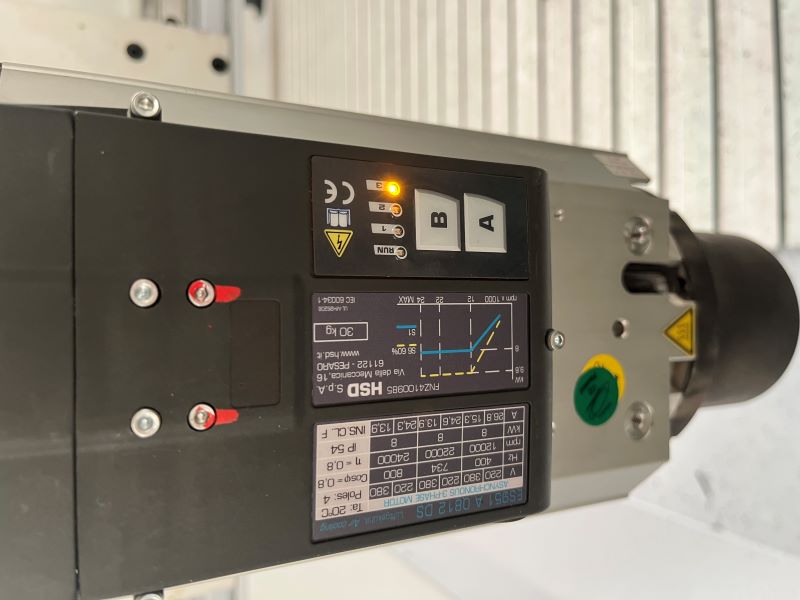

   9KW HSD SPINDLE HIGH TORQUE HEAVY CUTTING FOR HARD MATERIAL AND FAST SPEED MAKE SURE LONGLIFE USEAGE



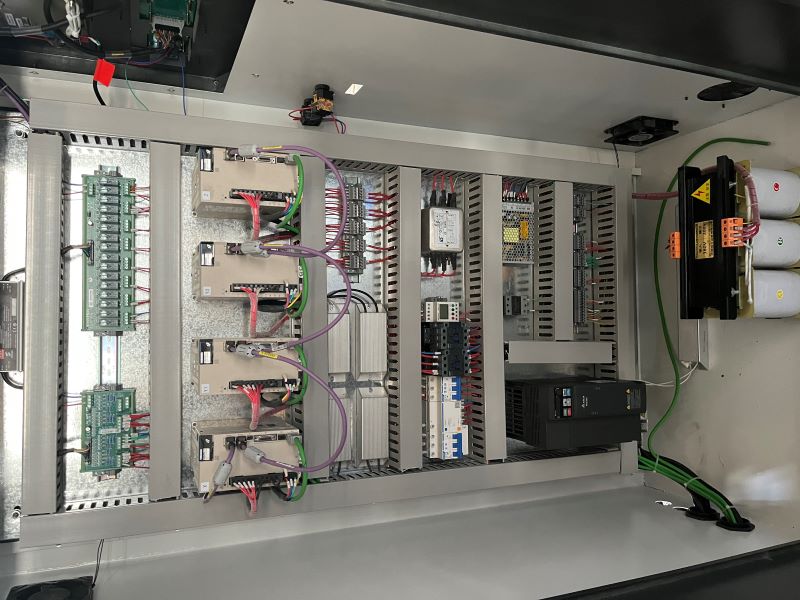

japan yaskawa driver and motor  high speed, high precision. Motor’s max. torque can reach 350% which may shorten speed up and slow down time. The servo motor can response instantly. High resolution makes high Precision position and high precision procession.

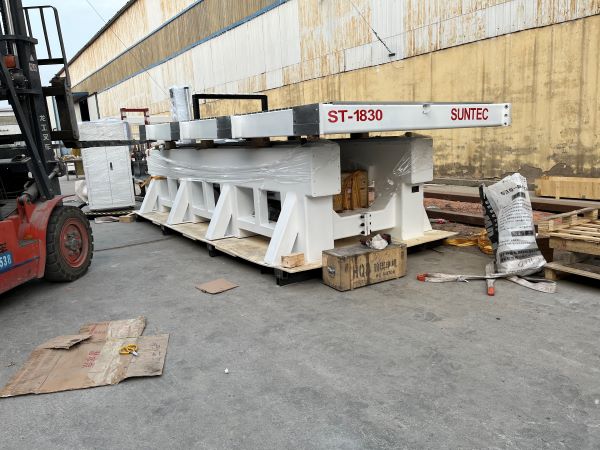

ST-1830 package for one pallet easy to loading unloading

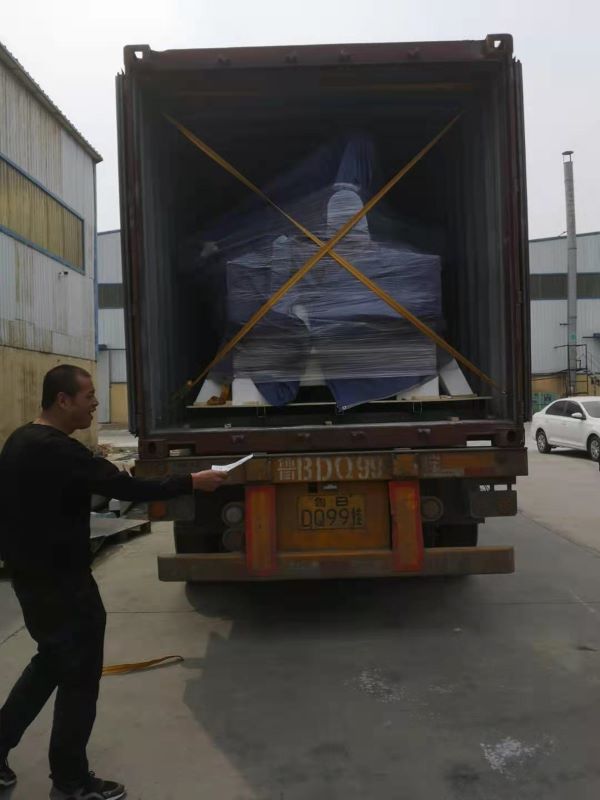

Loading container

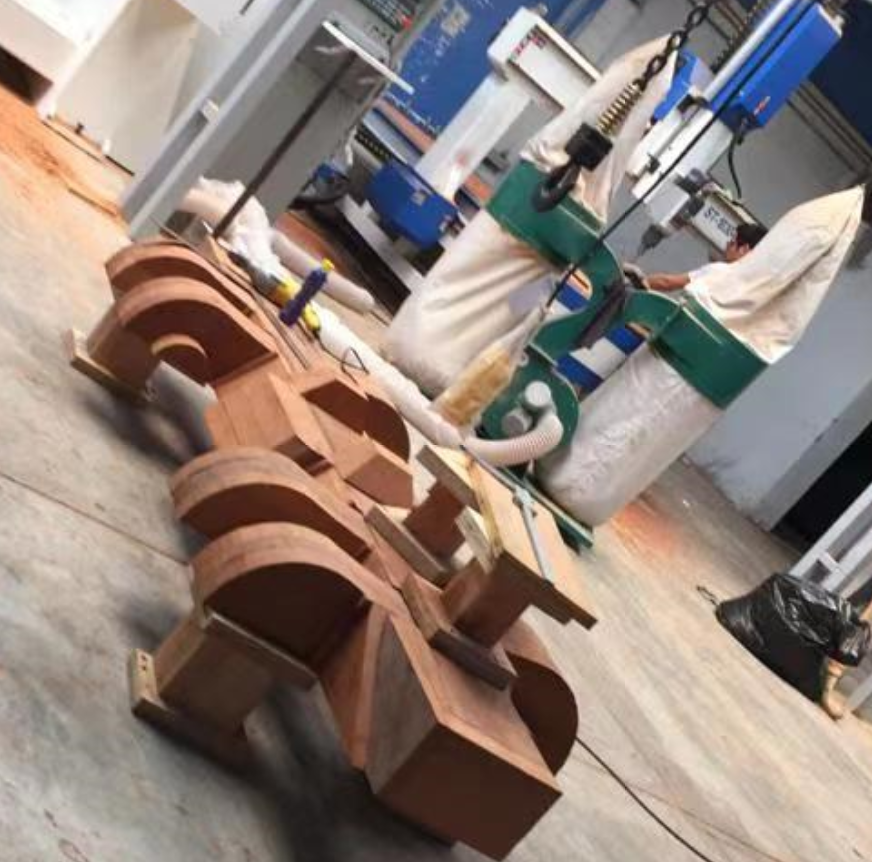

working sample in customer workshop
