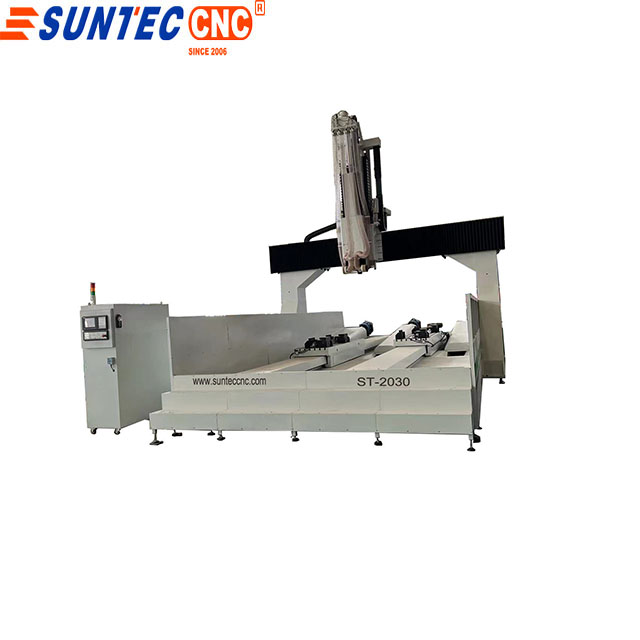

Customized Suntec 4 axis cnc BT40 spindle for wood mold making with dust collect device ST-2030

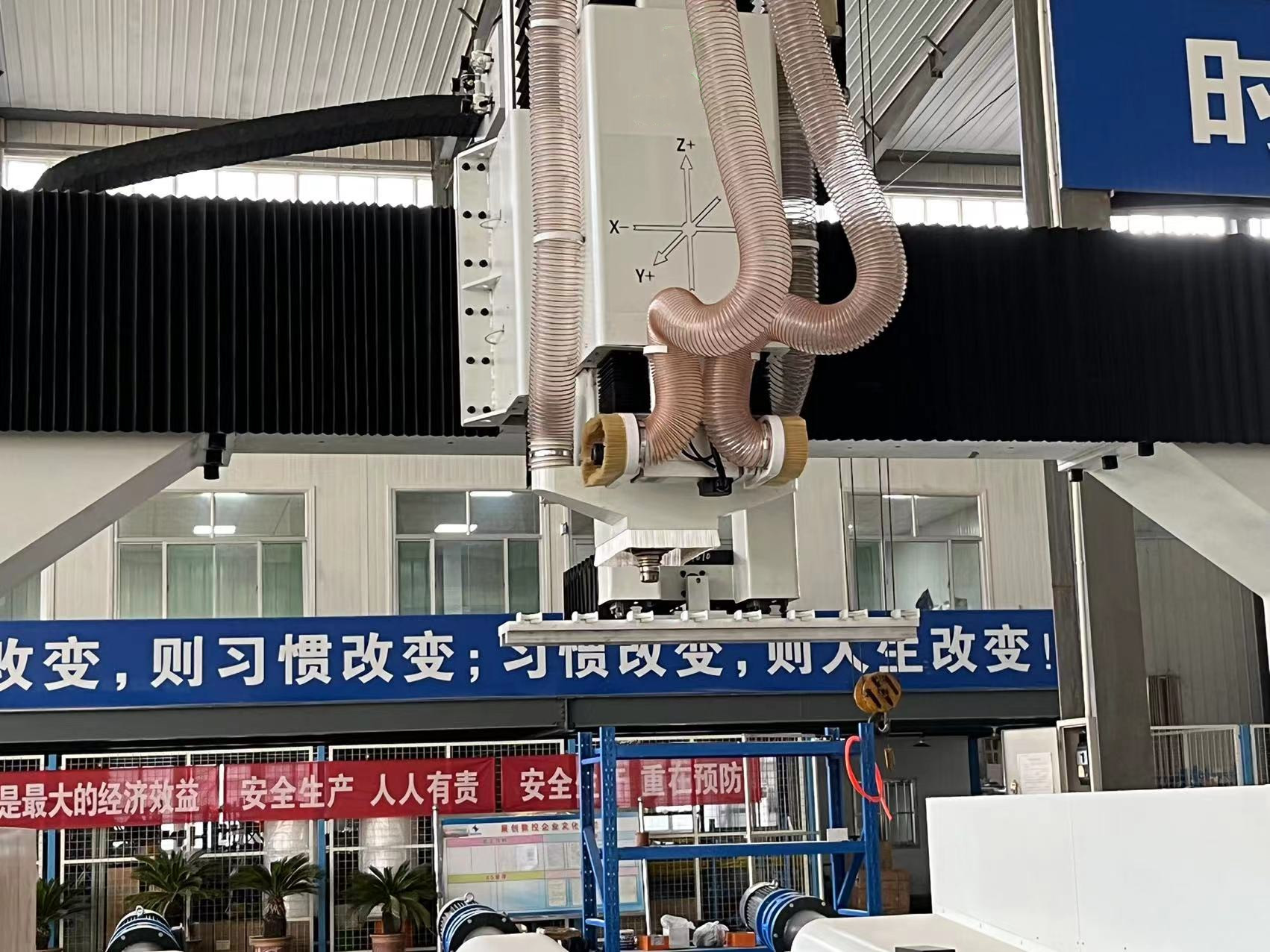

Customized suntec ST-2030 4 axis cnc with BT 40 constant spindle low speed high torque can cut thickness hardwood , double outlet spindle 3.5kw can be make hole for two sides .
Japan yaskawa driver 1.8kw absolutely 26bits easily can receive and feedback singal
syntec controller with remote handwheel

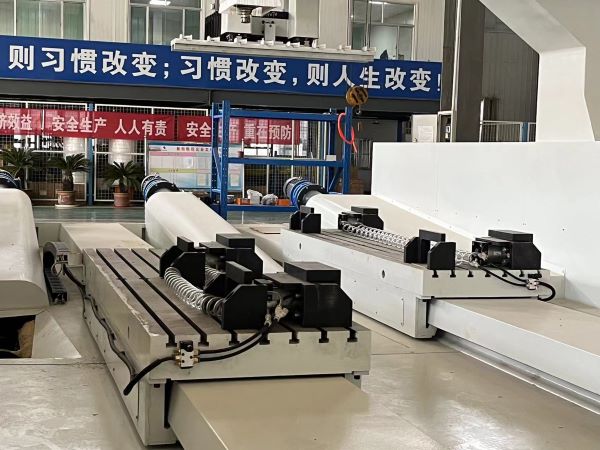

Customzied wood device fixture to fix wood small piece or big size

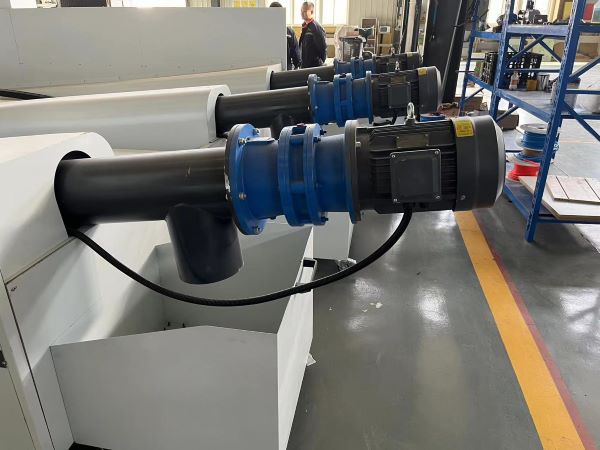

Customzied dust collecting deivce can collect from bottom to the end make sure whole when cutting whole clean enviroment .
Number | Description | Parameter |
1 | X,Y,Z Working Area | 2000x3000x1000mm |
2 | Table Size | 3500×6800mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/1000mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | T-slot table with customized working device |
6 | Frame | Big Steel Tube Structure |
7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 7Kw |
10 | Max. Rapid Travel Rate | 40000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | BT40 spindle |
13 | Double outlet spindle | 3.5kw double outlet spindle er32 |
14 | Spindle Speed | 0-24000RPM 24000rpm |
15 | Drive Motors | 1800 absolutely 24 bits yaskawa motor |
16 | Working Voltage | AC380V/50/60Hz,3PH |
17 | Command Language | G Code |
18 | Operating System | Syntec Control System/osai |
19 | Computer Interface | USB |
20 | Flash Memory | 512M |
21 | Collet | BT40 |
22 | X,Y Resolution | <0.01mm |
23 | Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
24 | Running Environment Temperature | 0 - 45 Centigrade |
25 | Relative Humidity | 30% - 75% |
26 | Packing Size | 3300X2100X2300mm |
27 | N.W. | 5000KG |
27 | G.W. | 6000KG |
